Product Overview

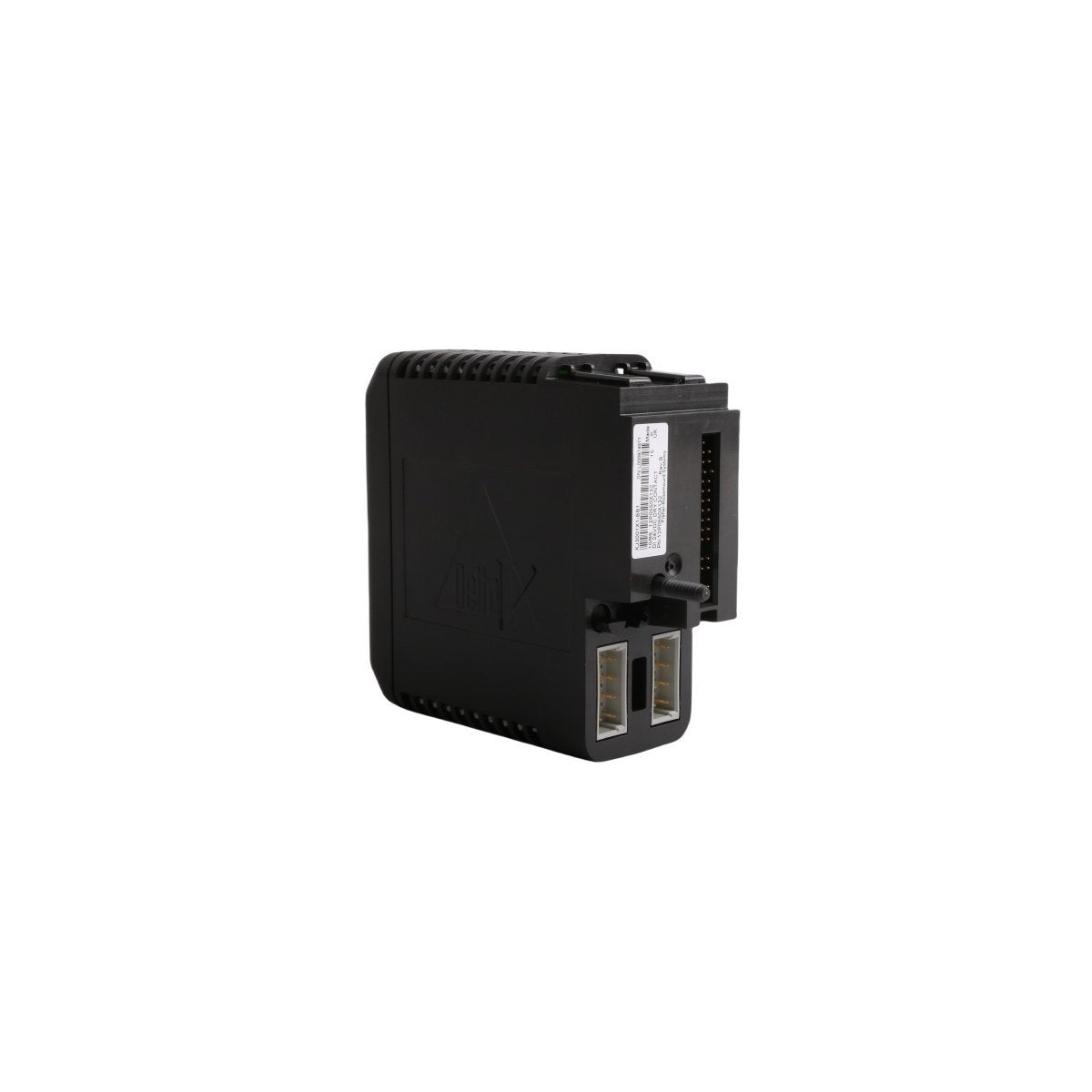

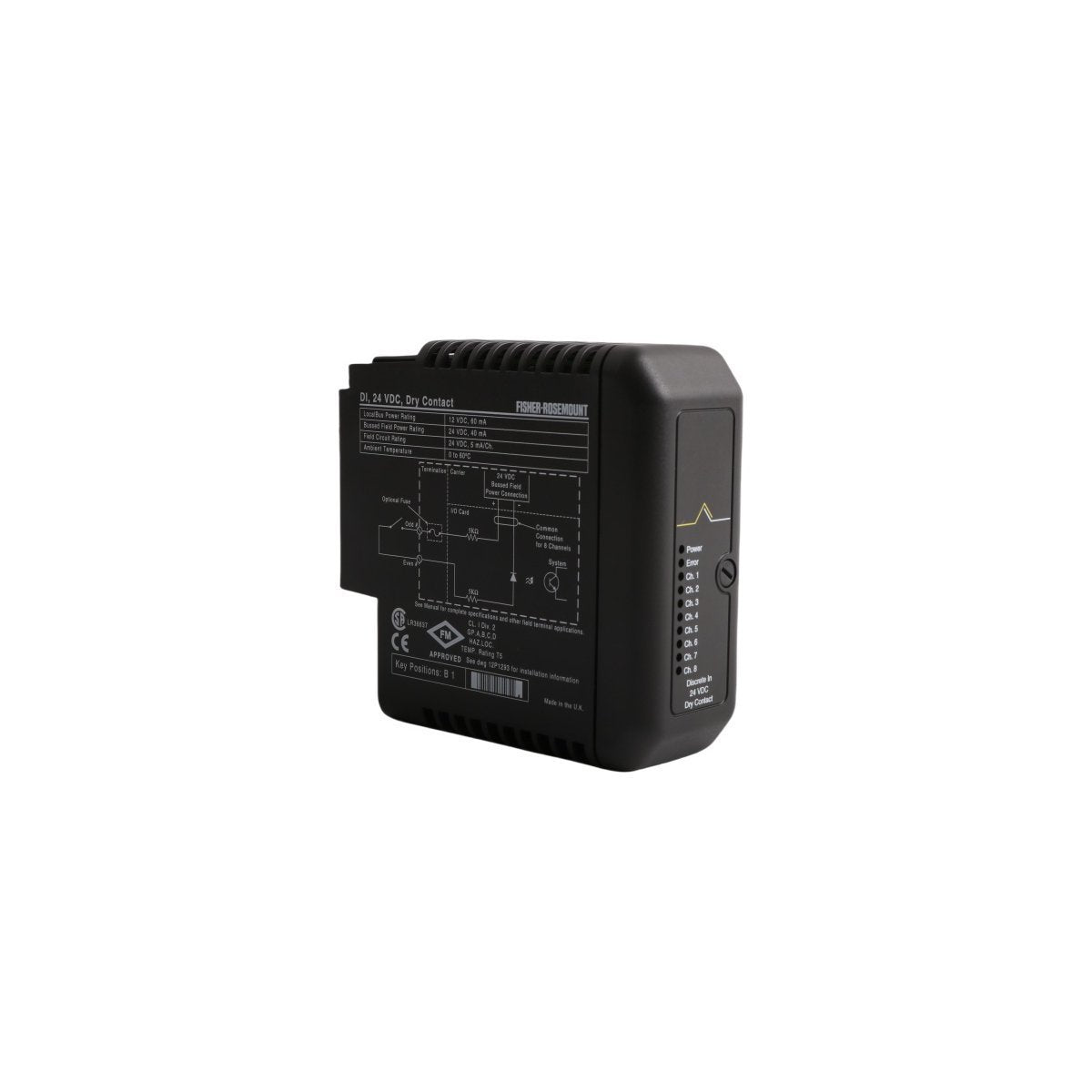

The Emerson KJ3001X1-BB1 (Part Number 12P0550X132, Model VE4001S2T2) is a high-reliability 8-channel digital input module specifically engineered for the DeltaV SIS™ process safety system and M-series I/O subsystem. This module functions as the primary interface for binary field signals, accurately detecting the "On/Off" states of dry contact devices. It is an essential component for capturing real-time data from field hardware such as limit switches, proximity sensors, and push buttons, ensuring that critical process information is transmitted to the DeltaV controller without latency.

Designed to maintain the highest levels of signal integrity, the VE4001S2T2 incorporates advanced hardware filtering to eliminate electromagnetic interference and contact bounce. This ensures that only true process transitions are recorded, preventing false trips or incorrect logic execution. The module’s robust architecture and galvanic isolation protect the system's internal Localbus from external electrical surges, making it a staple in complex industrial automation environments.

Technical Characteristics and Performance

The KJ3001X1-BB1 is defined by its industrial-grade durability and seamless integration into high-availability control architectures.

• 8-Channel High-Density Monitoring: Provides independent monitoring for eight separate discrete inputs, optimizing cabinet space and reducing hardware footprint.

• Galvanic Isolation: Features robust electrical isolation between the field-side sensors and the internal control logic, safeguarding the DCS against ground loops and transients.

• Intelligent Signal Filtering: Integrated circuitry filters out high-frequency noise and mechanical chatter from field contacts to provide clean, actionable digital data.

• Hot-Swappable Design: Supports the removal and replacement of modules under system power, allowing for maintenance without interrupting the operation of adjacent I/O cards.

• Environmental Resilience: Engineered to withstand harsh industrial variables, including high humidity and mechanical vibration, compliant with G3-level corrosive environment standards.

• Software-Driven Configuration: Easily commissioned through the DeltaV Explorer, enabling rapid diagnostic setup and channel-level parameter tuning.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3001X1-BB1 / VE4001S2T2

• Part Number: 12P0550X132

• Module Type: Digital Input (DI) Module

• Channel Count: 8 Channels

• Input Signal Type: Dry Contact / Discrete

• System Series: DeltaV SIS™ / DeltaV™ M-series

• Operating Temperature: Standard Industrial Range

• Dimensions: 4.3 x 12.5 x 10.5 cm

• Weight: 0.18 kg

• Product Origin: USA

Industrial Applications

The Emerson 12P0550X132 Digital Input Card is utilized across sectors where process safety and monitoring precision are paramount:

• Pharmaceutical Production: Monitoring valve position feedback and batch sequence interlocks.

• Food and Beverage: Coordinating high-speed discrete sensors for packaging and processing lines.

• Chemical Processing: Tracking limit switches on reactors and safety-critical vessel hatches.

• Oil and Gas Safety: Integrating emergency shutdown (ESD) push buttons and fire/gas detection triggers.
