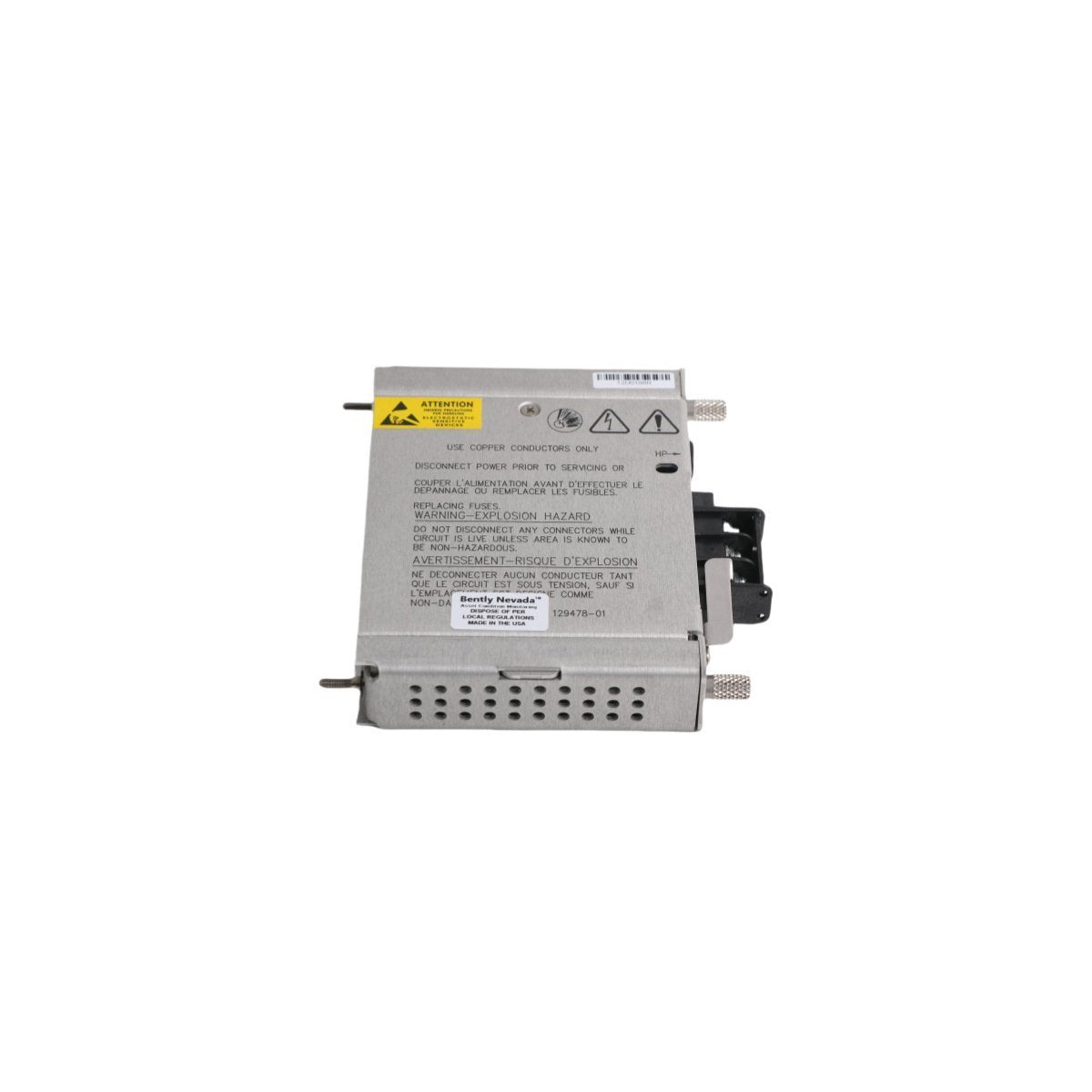

The Bently Nevada 129478-01, also cataloged as the 3500/15 High DC Power Input Module, operates as a dedicated hardware component for HVDC power entry and distribution within the 3500 Machinery Protection System rack backplane.

Input Voltage and Power Ratings

Rotor Dynamics and TSI Signal Integrity

The 129478-01 interfaces directly with the 3500/15 High DC Power Supply to maintain stable backplane voltage for eddy-current probe scaling circuits. Gap voltage validation at -10 VDC targets requires clean DC input with minimal ripple; the integrated EMI filtering suppresses conducted noise that could otherwise corrupt rotor dynamics data. Cross-talk suppression between adjacent monitoring channels is maintained by the module's galvanic isolation boundary between field-wiring terminals and rack backplane. Reverse-polarity protection prevents damage during installation wiring errors, ensuring continuous surveillance of shaft vibration and position signals.

Ordering Information

• 1 x 129478-01 High DC Power Input Module
• 1 x Installation and wiring reference sheet

Mounting and Wiring Guidelines

• Slot Assignment: Install exclusively in the dedicated power supply I/O slots at the rear of the 3500 rack. Do not occupy monitor module slots.
• Terminal Torque: Tighten field wiring terminals to manufacturer-specified torque values. Loose connections increase contact resistance and generate localized heating.
• Wire Gauge: Use appropriately sized conductors for the expected current draw of the full rack load. Oversized conductors complicate termination; undersized conductors risk insulation damage.
• Grounding: Connect shield drains to the rack ground busbar. Maintain separation between power input conductors and signal cables to prevent inductive coupling.

Frequently Asked Questions

Does the 129478-01 support hot-swap insertion while the 3500 rack is energized?

No. The module is not designed for hot-swap operation. De-energize the rack before inserting or removing the module to prevent arcing at the backplane connectors and potential damage to internal filtering components.

What is the maximum backplane current the 129478-01 can deliver to connected modules?

The module itself is a power input interface; actual current capacity is determined by the paired 3500/15 High DC Power Supply. Consult the 3500/15 datasheet for output current ratings based on input voltage and ambient temperature derating curves.

Can the 129478-01 be used with 48 VDC battery systems?

No. The specified input range is 88 to 140 VDC. Applying 48 VDC will not damage the module, but the 3500/15 power supply will not regulate output within specification, resulting in system shutdown or unreliable operation.

Is reverse-polarity protection active on both input terminals?

Yes. The module incorporates internal reverse-polarity protection circuitry. However, correct wiring should always be verified with a multimeter before applying power to avoid unnecessary stress on protection components.

What happens if the input voltage exceeds 140 VDC?

Sustained overvoltage beyond the rated range may cause internal fusing to open or damage filtering components. The module does not include active overvoltage crowbar protection; external surge suppression is the responsibility of the installer.

Can this module be paired with an AC power input module for redundancy?

Yes. The 3500 rack supports dual power supply configurations. The 129478-01 can serve as the primary or backup input interface alongside a separate AC power input module, with automatic switchover handled by the 3500/15 supply logic.

Does the module require firmware upgrades?

No. The 129478-01 is a passive electrical interface containing filtering, fusing, and terminal connections. There is no firmware, microprocessor, or flash memory to update.

What torque specification applies to the terminal block screws?

Refer to the 3500 System Installation and Maintenance Manual for exact torque values. Over-tightening can strip terminal threads; under-tightening increases contact resistance and heat generation under load.
