Product Overview

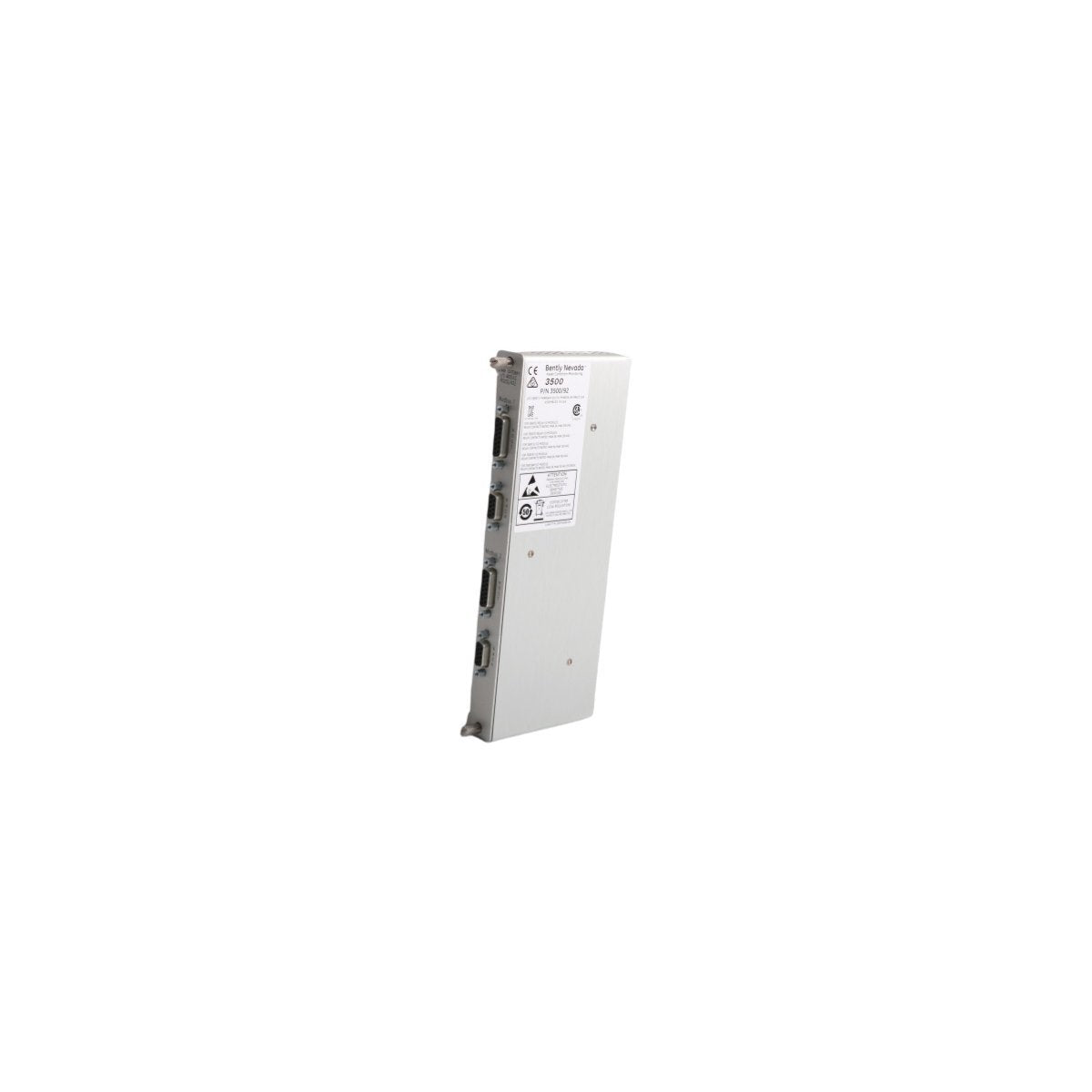

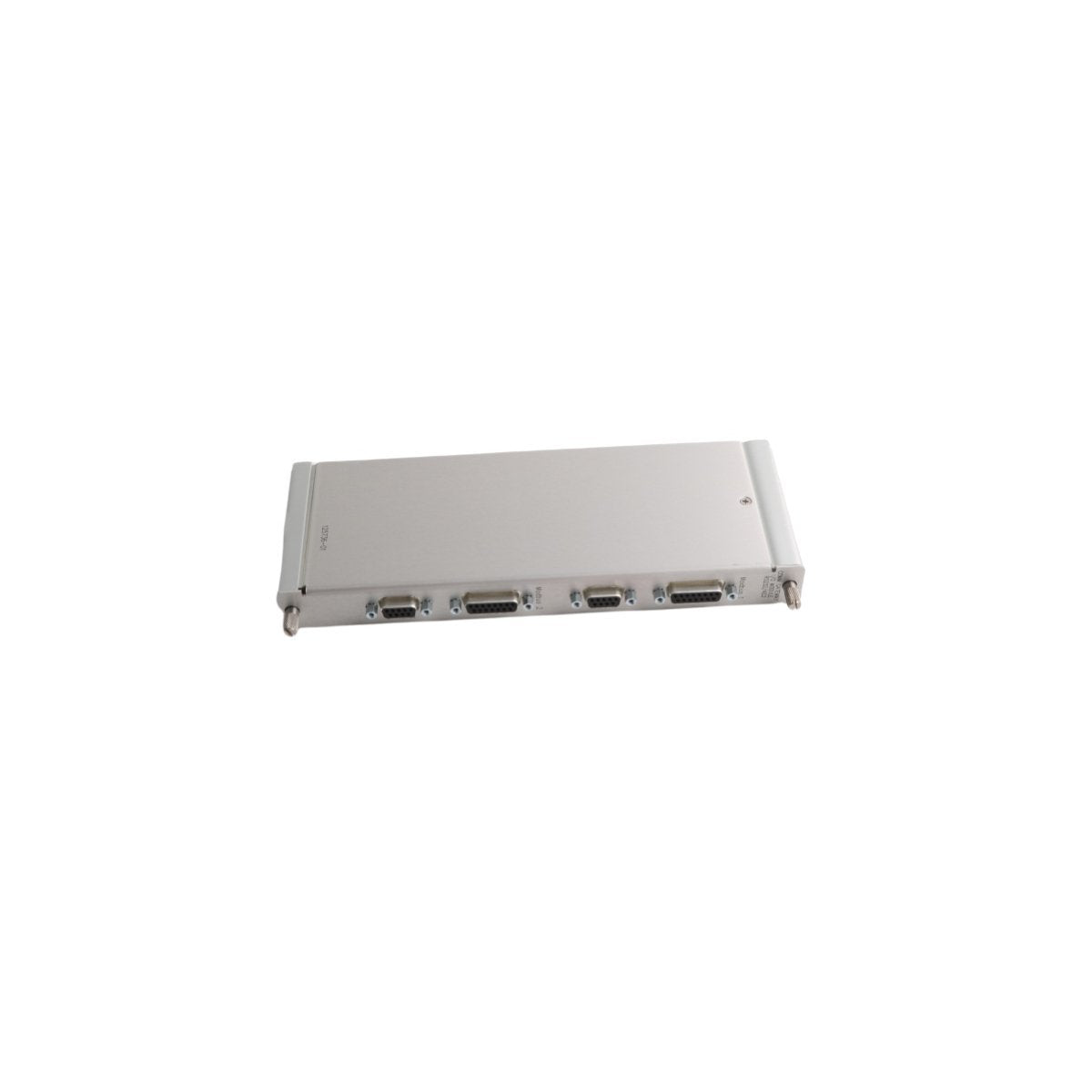

The 125736-01 is a high-performance Communication Gateway I/O module designed specifically for the Bently Nevada 3500 series Machinery Protection System. This module acts as the digital bridge between the 3500 rack's internal backplane and external monitoring environments, such as Distributed Control Systems (DCS) or Programmable Logic Controllers (PLC). By utilizing Modbus RS232 and RS422 protocols, it enables the high-speed export of static and dynamic machine data, including vibration levels, setpoints, and system statuses. Its primary function is to provide plant operators with a centralized view of turbine and rotating equipment health, supporting both proactive maintenance and real-time safety monitoring.

Technical Hardware Parameters

Strategic Industrial Implementations

The integration of the 125736-01 is critical for industries relying on Turbine Supervisory Instrumentation (TSI). Key deployment scenarios include:

• Remote Asset Management: Facilitating the transmission of vibration data from remote pumping stations to a central control room via Modbus serial links.

• Predictive Maintenance Integration: Providing high-resolution data to external software suites for trend analysis and bearing life prediction in power plants.

• Safety Interlocking: Exporting status registers to emergency shutdown systems to ensure coordinated plant responses during machinery excursions.

• Data Archiving: Enabling long-term storage of machine health history by interfacing with plant historians and SCADA systems.

FAQ

Q: Can the 125736-01 support both RS232 and RS422 simultaneously?

A: The hardware supports both standards, but the specific communication path is typically selected based on the wiring of the I/O module and the requirements of the receiving master device.

Q: Is this module compatible with older Bently Nevada 3500 racks?

A: Yes, as part of the 3500/92 system, it is designed for backward compatibility within the standard 3500 rack frame, provided the corresponding gateway monitor module is present.

Q: What is the primary benefit of using this serial I/O module over an Ethernet-based gateway?

A: While Ethernet is common, the 125736-01 is preferred in environments where legacy serial Modbus infrastructure is already established or where physical isolation via RS422 is required for long-distance interference resistance.

Q: Does this unit come pre-configured for specific Modbus registers?

A: No, the Modbus register map is defined through the 3500 Rack Configuration Software, allowing the user to map specific rack data to the desired Modbus addresses.

Q: What is the condition and warranty of the 125736-01 in stock?

A: We supply this module in brand-new condition, sourced from the USA, and it includes a 12-month warranty to ensure reliable operation in critical monitoring applications.
