Product Overview

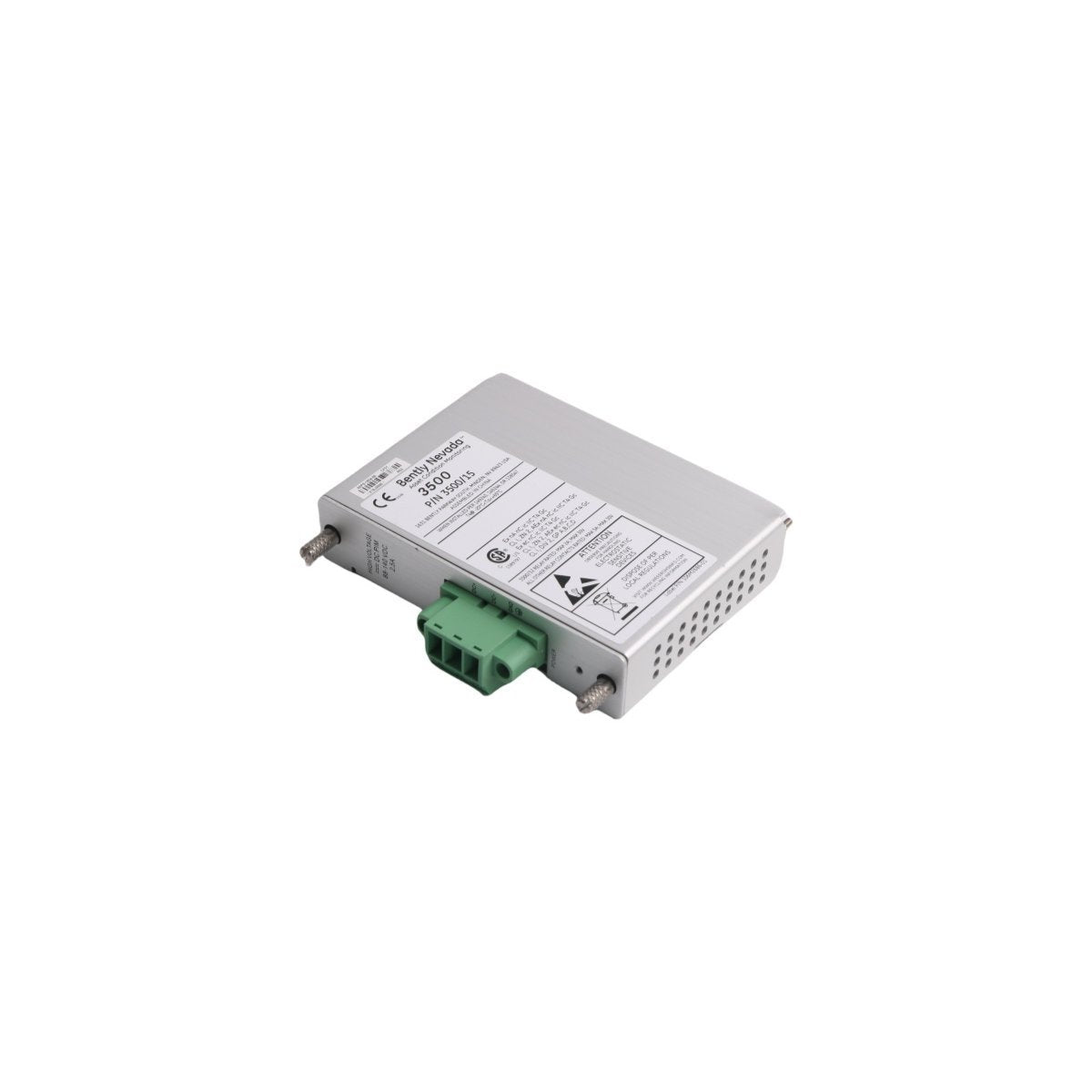

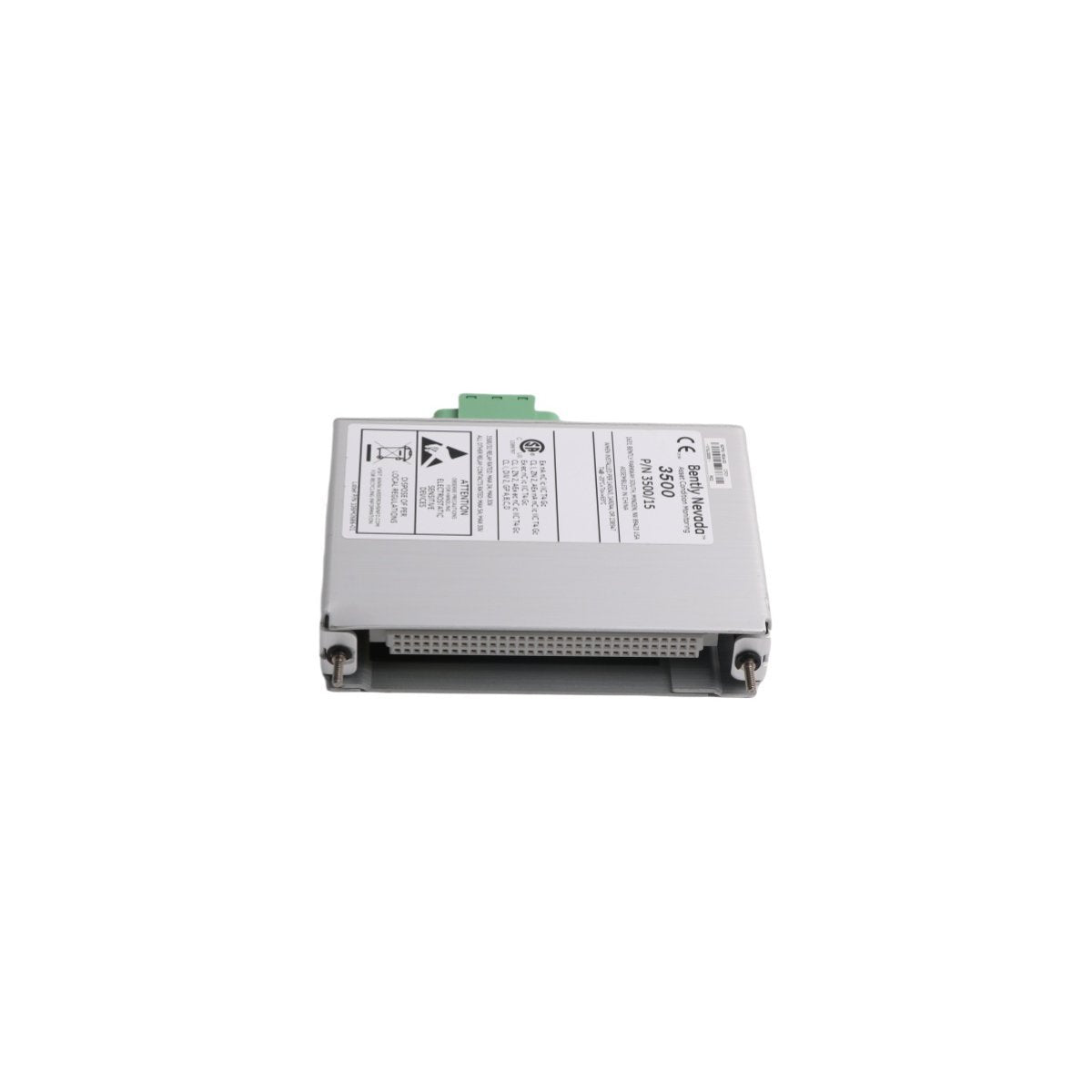

The Bently Nevada 115M7750-01 is a specialized Power Input Module (PIM) designed to manage the primary electrical feed for the 3500 Series Machinery Protection System. This module acts as the physical and electrical entry point for high-voltage DC power into the 3500 rack, providing essential filtration and surge suppression before distributing energy to the rack's power supply units. By ensuring a stabilized power source, the 115M7750-01 protects sensitive monitor cards from line noise and voltage transients. Its role is fundamental to maintaining the continuous uptime of Turbine Supervisory Instrumentation (TSI), where even momentary power instabilities could lead to false trips or compromised machinery protection data.

Hardware Parameters and Key Technical Characteristics

Engineered for high-integrity power distribution, the 115M7750-01 features a robust electrical design housed in a thermally efficient chassis.

• Manufacturer Bently Nevada (Baker Hughes)

• Model Number 115M7750-01 (3500/06 series component)

• System Compatibility 3500 Series Machinery Protection Rack

• Input Voltage Range High-Voltage DC (optimized for standard industrial DC buses)

• Filtering Characteristics Integrated EMI/RFI suppression to protect internal backplane

• Chassis Construction High-grade aluminum alloy for enhanced heat dissipation

• Operating Temperature -40°C to +85°C (-40°F to +185°F)

• Safety Compliance Fully certified for CE and UL electrical safety standards

• Isolation Integrity Galvanic isolation between primary input and system logic

• Physical Weight 0.32 kg

• Module Dimensions 2.5 x 12.0 x 12.0 cm

Industrial Applications and Operational Use Cases

The 115M7750-01 is a critical requirement for facilities utilizing DC battery banks or high-voltage DC distribution systems for their control infrastructure.

• Power Plant DC Bus Integration Interfacing the 3500 protection rack directly with 110V or 125V DC emergency battery backup systems to ensure monitoring remains active during AC power loss.

• Remote Oil and Gas Substations Providing reliable power input for machinery protection systems in locations where high-voltage DC is the primary available utility.

• Offshore Platform Protection Operating in extreme marine environments where the aluminum alloy housing prevents corrosion and manages heat in confined control cabinets.

• Mission-Critical Machinery Safeguarding Supplying clean power to vibration and position monitors on large-scale steam turbines and centrifugal compressors.

• Harsh Environment Deployment Ensuring stable system performance in unconditioned field enclosures subject to significant temperature fluctuations.

By incorporating the 115M7750-01 into the rack configuration, reliability engineers secure the first line of defense against power-related system failures, ensuring that the machinery protection system remains vigilant under all operational conditions.
