Product Overview

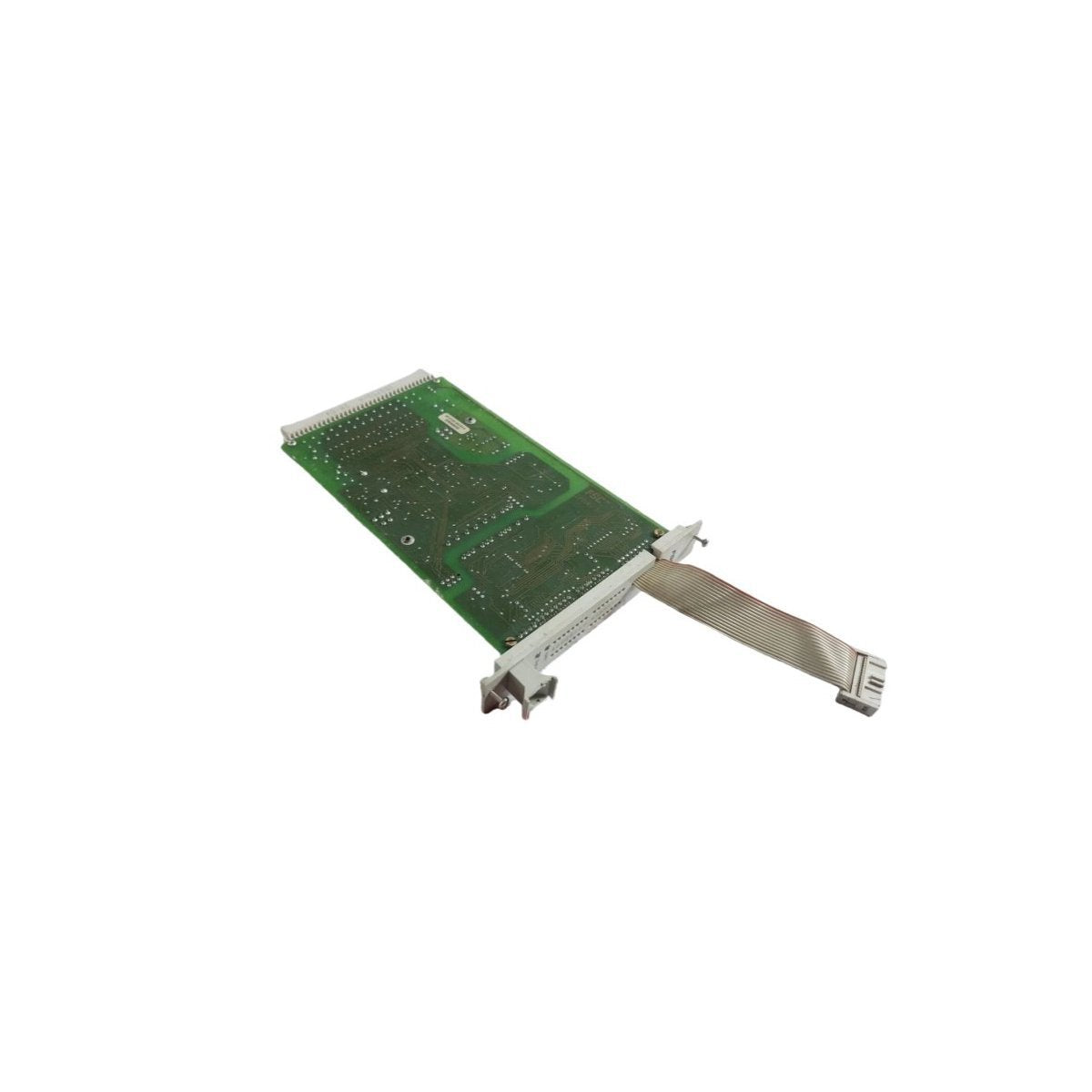

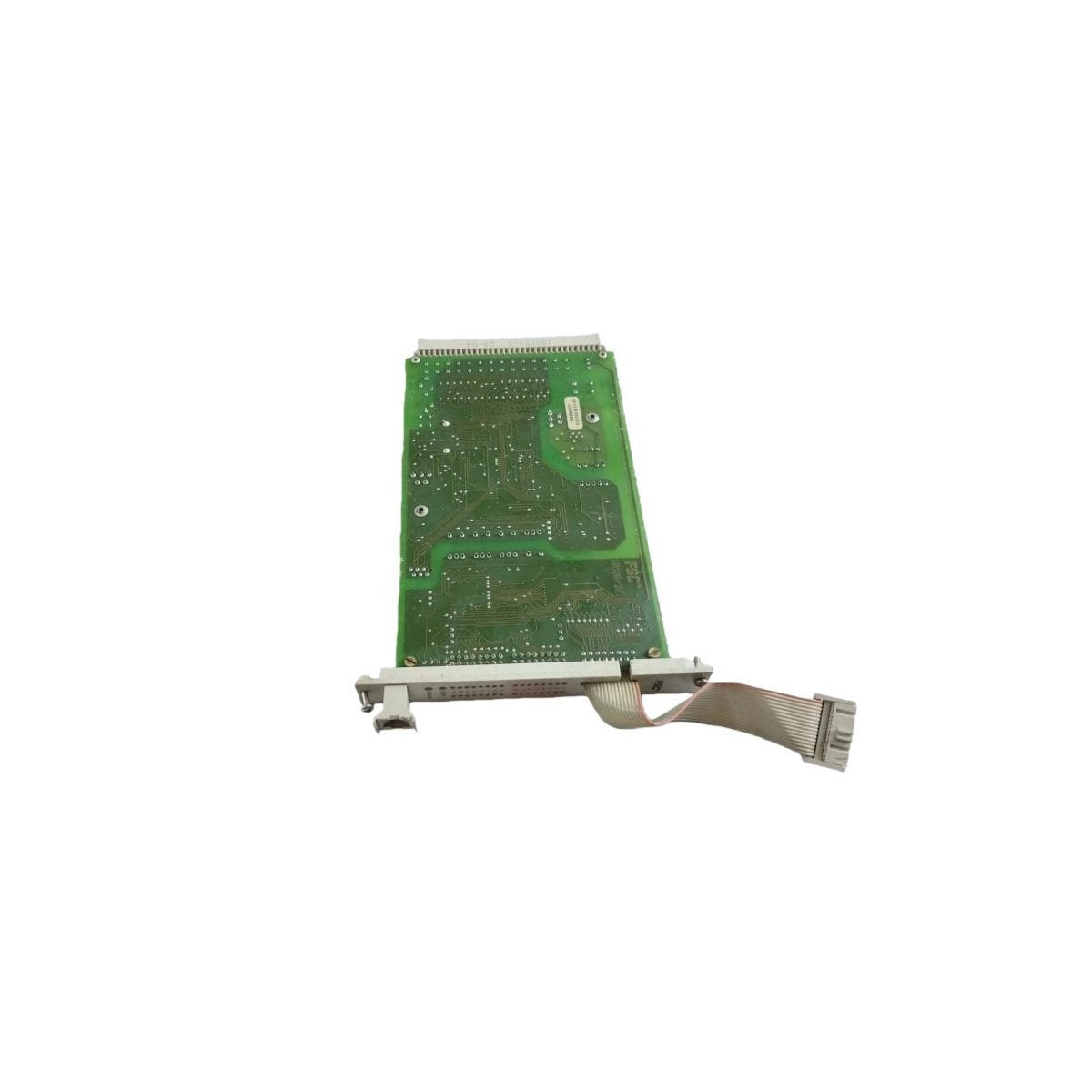

The 10106/2/1 is a Honeywell FSC System control module used to acquire discrete field signals and present them to the control or safety logic layer. It is applied as a 16-point digital input interface for typical plant devices such as limit switches, pushbuttons, proximity switches (with suitable interfacing), relay contacts, and status outputs from packaged equipment. The module is designed for control panel installation where high point density and consistent signal conditioning are required for reliable state monitoring.

This part is commonly selected for systems that need stable 24 VDC discrete input handling with predictable behavior in industrial environments, supporting maintenance by reducing nuisance input states caused by electrical noise and wiring issues.

Data correction note
An IP65 rating is normally associated with an enclosure or fully sealed device, not an internal I/O module mounted in an open cabinet. Unless the module is installed inside an IP-rated housing, the overall protection rating depends on the cabinet and installation.

Hardware Parameters

• Input type: 24 VDC digital/discrete inputs

• Channel count: 16 inputs (as provided)

• Per-channel current: 100 mA (as provided; verify against project documentation, as many DI modules are lower current depending on input circuitry)

• Input impedance: 10 kΩ (as provided)

• Operating temperature: -25°C to +60°C (as provided)

• Functional role: Discrete state acquisition for control and safety logic execution

Installation note
The module is typically installed in a control cabinet with appropriate grounding, segregation of noisy power wiring, and correct field termination practices to maintain input integrity.

Industrial Applications

• Discrete status monitoring for valves, motors, pumps, and packaged skid alarms

• Interlock permissive inputs and shutdown condition inputs in FSC architectures

• Plant-wide digital point collection for control panels with limited space

• Replacement module for restoring digital input capacity in installed Honeywell FSC systems

• Continuous process industries requiring dependable 24 VDC contact/state sensing
