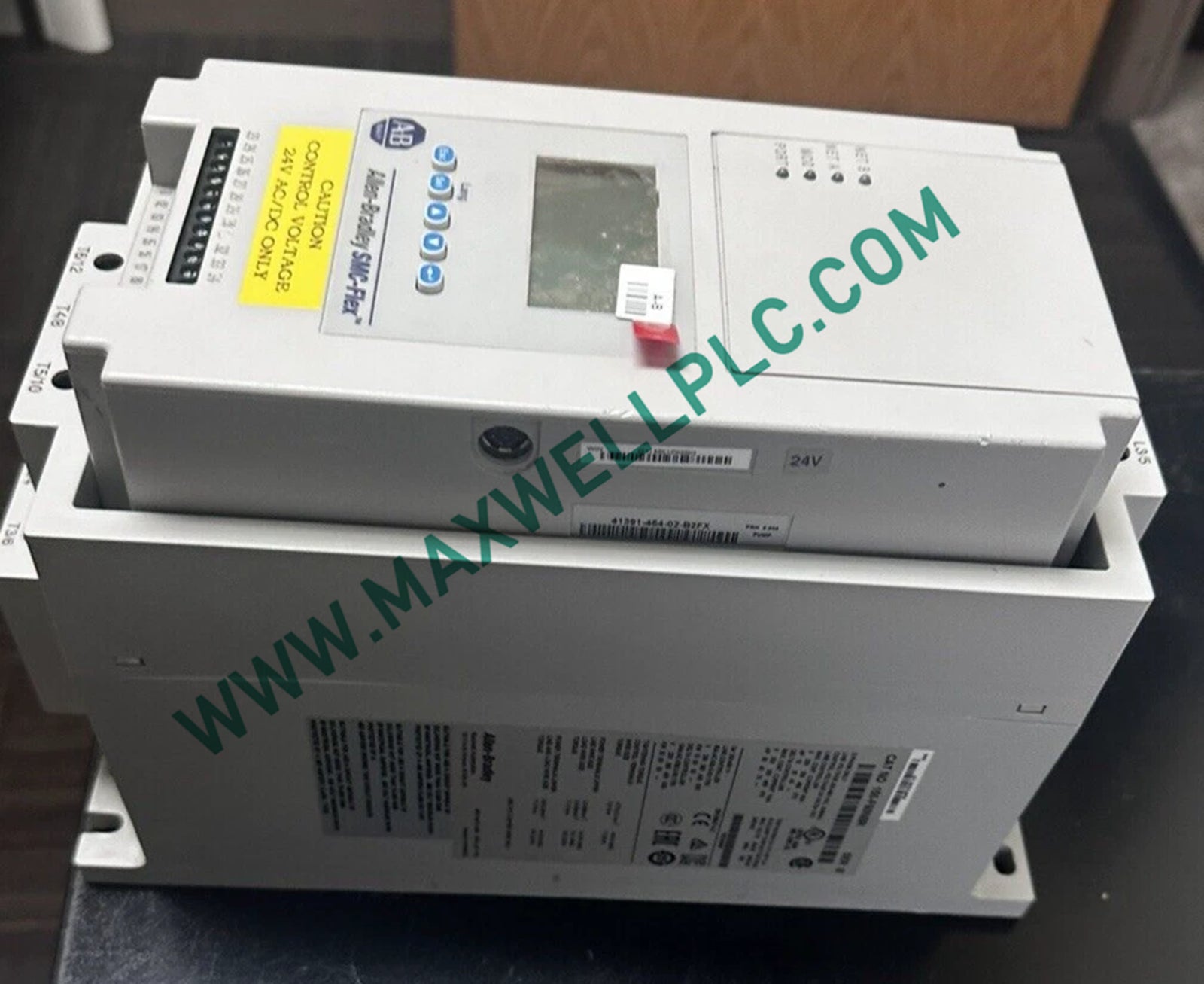

Configured for solid-state motor starting and braking control in heavy industrial drive architectures, the Allen-Bradley 150-F780NBAD (150F780NBAD SMART MOTOR CONTROLLER) provides direct physical/electrical execution.

Nomenclature Breakdown & Identifier Configuration

• Base catalog model: 150-F780NBAD
• Controller series type: Bulletin 150 solid-state motor controller
• Input line voltage rating: 200 to 480 V AC, 3-phase, 50/60 Hz
• Control circuit voltage: 100 to 240 V AC supply rating
• Integrated option: Braking control enabled

Hardware Specifications

Drive Backplane Communication & Firmware Architecture

The controller processes backplane bus communication velocity metrics to maintain precise synchronization across industrial drive nodes. Profinet and EtherNet/IP deterministic networks integrate seamlessly with internal register maps via firmware flash compatibility protocols. Input and output density scaling parameters adjust dynamically to accommodate variable motor load profiles without sacrificing bus transmission integrity.

Ordering Information

• 1 x 150-F780NBAD Smart Motor Controller hardware unit
• 1 x Removable control terminal block connector set

Physical Installation & Electrical Wiring Guidelines

• Mount the open-style solid-state controller vertically inside a ventilated industrial enclosure, keeping adequate clearance above and below the chassis for thermal dissipation.
• Terminate incoming 3-phase power lines securely to the main power terminals, verifying that supply parameters remain within the 200 to 480 V AC operational envelope.
• Connect the independent control power source to the low-voltage terminal blocks, keeping wiring physically separated from high-current motor leads.
• Verify proper low-impedance earth grounding continuity across the internal mounting chassis prior to system energization.

Frequently Asked Questions

• Q: Does this solid-state controller support live hot-swapping under active motor load conditions?
• A: No, hot-swapping is strictly prohibited. All primary line and control power must be completely locked out and verified dead before performing physical maintenance.
• Q: What is the primary function of the integrated braking control feature on this model?
• A: The braking control option provides electronic stopping functionality to decelerate heavy rotating motor loads smoothly without relying solely on mechanical brakes.
• Q: Can this unit operate on single-phase industrial power distribution systems?
• A: No, the controller requires a balanced 3-phase 50/60Hz input line voltage configuration ranging from 200 to 480 V AC.
• Q: What is the specified control voltage requirement for the internal logic circuitry?
• A: The control circuit requires an external supply voltage ranging between 100 and 240 V AC.
• Q: How are internal semiconductor firing states cooled during extended motor operations?
• A: Thermal energy is dissipated through natural convection across the integrated heatsink profile, requiring adequate ambient airflow inside the protective cabinet.
• Q: What maximum motor horsepower does this specific controller configuration support?
• A: The unit supports a nominal power rating of 200 hp when operating at an input voltage of 460 V AC.
• Q: Are firmware updates compatible with standard Allen-Bradley programming tools?
• A: Yes, firmware flash compatibility allows version updates using authorized configuration software connected through the internal communication port.
• Q: What physical environmental limits apply to the open-type enclosure design?
• A: The controller must be housed within a protective cabinet rated for the specific industrial environment, maintaining an ambient temperature range of 0 deg C to +50 deg C.
