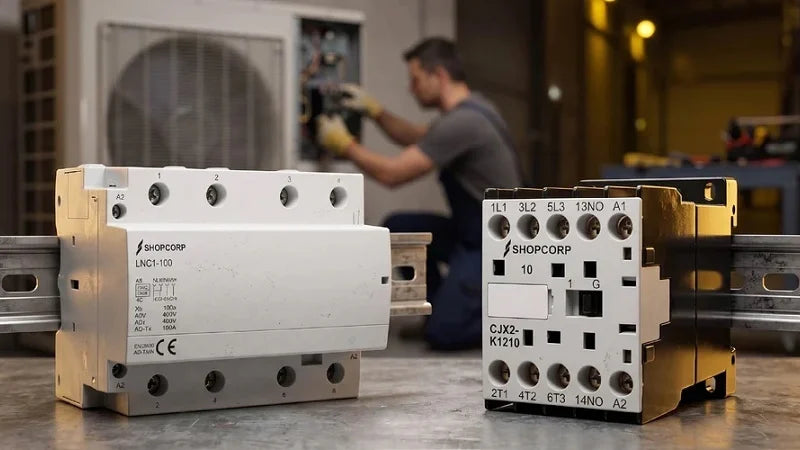

Engineering Fail-Safe Motor Control: A Practical Design Framework
Designing robust fail-safe solutions for motor control systems requires shifting the engineering focus from default catalog configurations to a hazard-based analysis of the "safe state." By meticulously documenting what each motor should do during control power loss or component failure, engineers can implement circuit architectures that prioritize protection over simple operation. This approach utilizes NC (Normally Closed) behavior—often implemented through energize-to-open isolation or series-wired interlocks—to ensure that systemic faults naturally push the system toward a de-energized, non-hazardous state.
Achieving high-integrity feedback is central to this methodology. Rather than relying solely on the PLC's command output, modern control systems must incorporate dedicated auxiliary points and mirror-type contacts that provide real-time validation of the power path's state. When feedback fails to match the commanded state, or when a mismatch between speed and contact status occurs, the logic must trigger a latched fault that inhibits automatic restarts. Treating contact welding as a statistical inevitability rather than a remote possibility transforms how diagnostic logic is written, ensuring that welded poles are promptly annunciated and investigated through manual measurement.
Beyond component selection, the verification process serves as the ultimate litmus test for reliability. Before final deployment, circuits must undergo rigorous commissioning, including continuity checks, mechanism exercise, and deliberate mismatch simulation. By testing how the system reacts to simulated stuck feedback or loss of control power during the SAT (Site Acceptance Testing) phase, teams can confirm that their predictive maintenance strategies align with the actual physical behavior of the hardware. This proactive documentation of state tables—normal, fault, and power-loss scenarios—creates a permanent reference for maintenance personnel, reducing the risk of human error during future system modifications.
The successful implementation of fail-safe designs often involves integrating sophisticated components, such as those found in modern Schneider Electric solutions or specialized variable speed drive and isolation assemblies. Whether applying energize-to-open isolation stages or using forcibly guided contacts in safety relays, the objective remains the same: the system must be deterministic. By standardizing these design patterns and separating command, feedback, and weld-fault tags within the PLC, engineers ensure that the safety intent remains visible and maintainable throughout the entire lifecycle of the industrial machine.
