Bently Nevada Reaffirms 3500/22M Transient Data Interface to Advance Machine Protection Standards

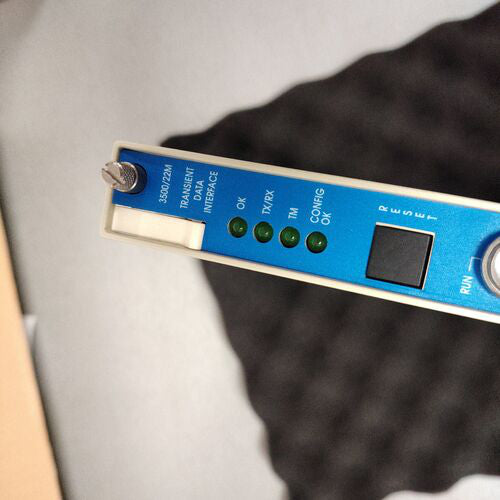

Bently Nevada, an industry-leading brand in industrial asset condition monitoring, has highlighted the continuous evolution of its 3500/22M Transient Data Interface (TDI) module. Operating as the primary communication and data orchestration hub for the globally deployed 3500 Machinery Protection System, the 3500/22M TDI serves as the critical hardware link connecting physical machinery sensors to enterprise-level predictive analytics software, including the proprietary System 1 platform. By capturing high-fidelity steady-state and dynamic transient waveforms, the module provides heavy industries with the granular insights required to optimize rotating equipment reliability.
The 3500/22M TDI utilizes a modular architecture designed to slot directly into a standard 3500 instrument rack, positioned adjacent to the power supply modules to streamline backplane communications. It interfaces continuously with M-series monitors, capturing crucial vibration, thrust, and speed inputs. The latest configuration of the interface module incorporates advanced, high-speed communication protocols and enhanced data packet processing rates. This optimization facilitates seamless data exchange with modern distributed control systems (DCS), supervisory control and data acquisition (SCADA) networks, and industrial internet of things (IIoT) edge architectures, eliminating data latency during critical startup and shutdown phases.
High-Resolution Waveform Capture and Network Orchestration
A core differentiator of the 3500/22M architecture is its capability to capture continuous, un-gapped transient data when machinery undergoes a change in operating state, such as thermal growth or speed ramp-ups. This high-resolution data acquisition allows engineering teams to identify complex mechanical pathologies—including sub-synchronous rub, hydrodynamic bearing degradation, structural resonance, and rotor fatigue—long before these issues cross critical alarm thresholds. Data is streamed via standard real-time Ethernet or an optional fiber-optic I/O interface, providing robust electromagnetic interference (EMI) isolation in high-voltage industrial environments.
Engineered to comply with the stringent requirements of the API 670 standard for machinery protection systems, the module features a reliability rating exceeding 99.9%. This deterministic performance makes it an essential component within critical infrastructure installations across the oil and gas upstream and downstream sectors, thermal and nuclear power generation plants, heavy metallurgical facilities, and municipal water treatment operations. The physical layer is further ruggedized to handle extreme thermal gradients and corrosive atmospheric variables common to harsh processing environments.
Enterprise Asset Management and Integration
Beyond its roles in safety interlocking and emergency trip logging, the TDI streamlines automated maintenance workflows. By converting complex analog sensor data into digital registers compatible with plant-wide asset management platforms, the hardware supports proactive risk-mitigation strategies. Plant operators can leverage this continuous data stream to align outage schedules with actual machine wear, reducing unnecessary manual inspection intervals and maximizing the mean time between failures (MTBF) for high-value turbomachinery trains.
Controls Infrastructure Engineering Insights
"Capturing steady-state vibration metrics is insufficient for high-speed turbomachinery. The true diagnostic value lies in the transient waveforms captured during startup and coast-down phases. The 3500/22M TDI handles this high-bandwidth data acquisition at the hardware layer, ensuring that critical edge diagnostics are preserved and instantly delivered to analytical software frameworks."
Written by: Julian Vance, a senior machinery diagnostics engineer and asset management specialist with over fifteen years of experience deploying API 670 compliant protection loops, rotordynamic diagnostic systems, and high-speed telemetry interfaces for petrochemical complexes.
Tags: Machinery Protection Systems, Transient Data Acquisition, Industrial Asset Reliability, API 670 Compliance
