Industrial automation specialist Banner Engineering has expanded its asset health portfolio with the launch of the Q45x 3-Axis Vibration Monitoring Sensors. This battery-powered wireless series is engineered to deliver high-resolution dynamic data acquisition, establishing a scalable framework for plant-wide predictive maintenance protocols without the capital expenditure associated with conventional wired accelerometers. By capturing orthogonal triaxial acceleration and velocity parameters, the system isolates mechanical anomalies—such as structural looseness, shaft misalignment, and rotational unbalance—prior to catastrophic component degradation.

The hardware utilizes an ultra-low-power micro-architecture, enabling continuous edge-side sampling for over two years on a single primary battery cell. For specialized asset topologies, engineers can program variable transmission and reporting intervals to further extend the operational duty cycle. This decoupled power infrastructure allows a "peel-and-stick" deployment methodology, eliminating the need to route rigid conduit or manage complex cable topologies across crowded field instruments.

Advanced Signal Processing and Enveloping Algorithms

To ensure precise asset diagnostics within high-noise industrial environments, the Q45x series incorporates onboard High-Frequency Enveloping (HFE) capabilities. This signal-conditioning technique applies a bandpass filter to eliminate high-amplitude, low-frequency structural vibrations, subsequently demodulating the remaining high-frequency bursts. This allows reliability teams to isolate micro-shocks caused by sub-surface bearing race defects, cage degradation, and lubrication breakdown long before these faults manifest as severe broad-spectrum velocity spikes.

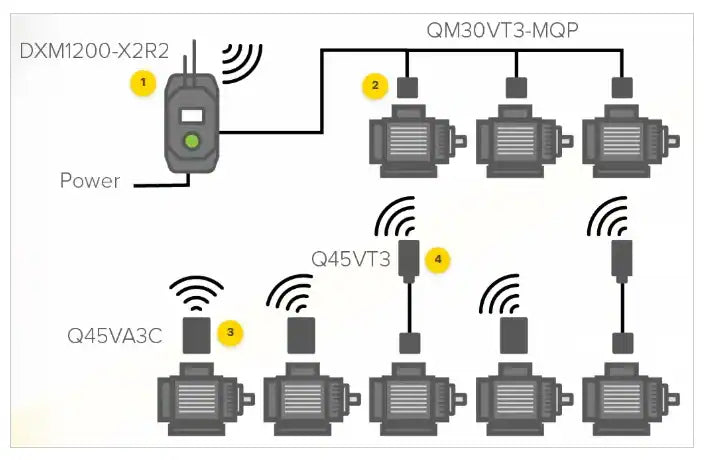

The series is delivered in two distinct hardware configurations to accommodate varying machine footprints and thermal constraints:

• Q45VA3C Integrated Node: An all-in-one, self-contained architecture integrating the triaxial accelerometer, wireless transceiver, and a high-capacity C-cell battery within a single housing.

• Q45VT3 Split-Topology Node: A D-cell powered wireless node that decouples the radio assembly from the sensing element, interfacing via a standardized M12 cordset with a remote QM30VT3 sensor head for low-profile or high-temperature mounting locations.

Deterministic Wireless Mesh and Ruggedized Physical Layer

Data telemetry is managed via Banner’s proprietary Sure Cross wireless system, available in either 900 MHz or 2.4 GHz industrial, scientific, and medical (ISM) radio bands. The wireless physical layer utilizes Frequency Hopping Spread Spectrum (FHSS) technology combined with Time Division Multiple Access (TDMA) synchronization to guarantee deterministic data packet delivery through dense structural steel networks. The nodes seamlessly scale within a MultiHop wireless mesh architecture, routing multi-axis vibration registers back to a central gateway for upstream ingestion by enterprise-level predictive analytics software.

Constructed to withstand severe processing environments, the sensor assemblies feature an IP67-rated co-polymer housing that provides total ingress protection against dust, moisture, and corrosive chemical washdowns. This structural ruggedization, paired with advanced edge processing, allows industrial facilities to implement continuous, granular health monitoring across both critical and balance-of-plant rotating assets.

Control and Reliability Systems Insight

"Isolating early-stage bearing degradation from baseline machine noise is fundamentally an edge-processing challenge. By embedding high-frequency enveloping algorithms directly into a low-power wireless node, the physical layer converts raw acceleration into high-fidelity diagnostic metrics before it ever hits the network."

Written by: Kenneth Mercer, a senior instrumentation engineer and asset reliability consultant with over fourteen years of experience designing deterministic wireless networks, vibration telemetry arrays, and edge-computing topologies for heavy chemical and power generation facilities.
