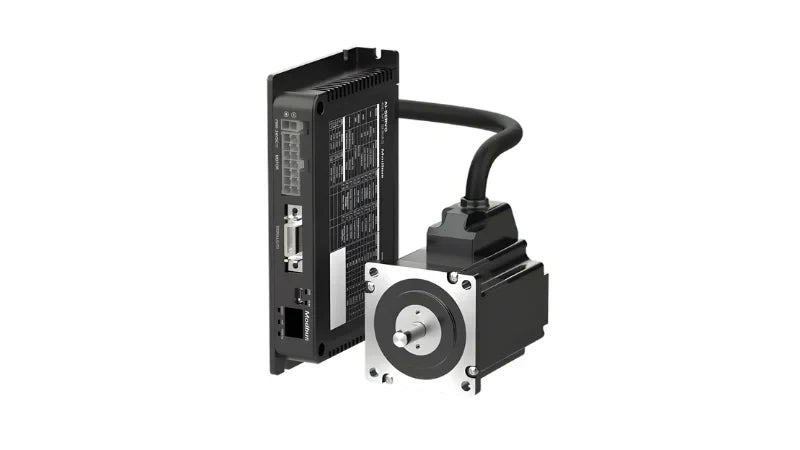

Autonics Launches AiC-MT Closed-Loop Stepper System for Precision Control
In the evolving landscape of industrial motion control, the traditional divide between low-cost, open-loop stepper systems and high-performance servo architectures is narrowing. Autonics has officially entered this space with the introduction of the AiC-MT series, a closed-loop stepper system designed to bridge the gap by offering the simplified implementation of a stepper with the position-verification accuracy typically reserved for servo-driven solutions.
The AiC-MT architecture is a direct response to the increasing demand for motion systems that can guarantee stability under load without the notorious tuning headaches that often plague complex servo drives. By integrating a high-resolution encoder, a motor, and a dedicated controller into a unified, compact platform, Autonics has significantly minimized the external wiring and configuration overhead that usually burdens multi-axis installations. This level of hardware consolidation is particularly attractive for machine builders looking to standardize their motion components as configurable building blocks rather than managing disparate, proprietary subsystems.
Central to the system’s utility is its robust Modbus TCP connectivity, which supports the synchronization of up to 254 axes. This capability positions the AiC-MT as a strong candidate for complex, coordinated motion environments, including high-speed packaging lines, automated assembly, and precision inspection stations. Because the system continuously verifies position accuracy in real-time, it effectively eliminates the risk of missed steps—an inherent weakness in open-loop systems that can result in costly scrap and process drift. Engineers can manage these parameters via fieldbus communication or the company’s atMotion software, which streamlines commissioning and helps reduce the total time-to-market for complex equipment.
Mechanical flexibility is another standout feature, with the AiC-MT series offering frame sizes from 20 mm to 60 mm. The availability of optional gearboxes and integrated braking systems provides the holding stability necessary for vertical axes and load-sensitive applications. Furthermore, because the system avoids the constant "hunting" or micro-vibration behavior often found in traditional servo-driven systems during stationary phases, it provides a superior holding solution for vision alignment and pick-and-place robotics.
In modern, hybrid automation environments, these drives complement broader ecosystem architectures. They often operate alongsideSiemensautomation systems, providing a mid-range motion solution that fits perfectly between high-end servo control and basic stepping. As production requirements become more variable and the need for modular automation increases, the AiC-MT series offers a pragmatic engineering compromise: it provides the essential feedback loop required for industrial-grade reliability without the unnecessary complexity of full-scale servo dynamics. This shift highlights a broader industry trend toward reducing engineering overhead while simultaneously pushing reliability closer to the point of actuation.
Written by: Daniel Mercer, an Industrial Motion Systems Analyst with over 12 years of deep-field experience. Having managed complex integration projects involving Siemens, Rockwell Automation, and Emerson drives, Daniel specializes in evaluating the technical trade-offs between servo and stepper architectures in high-precision factory automation environments.
