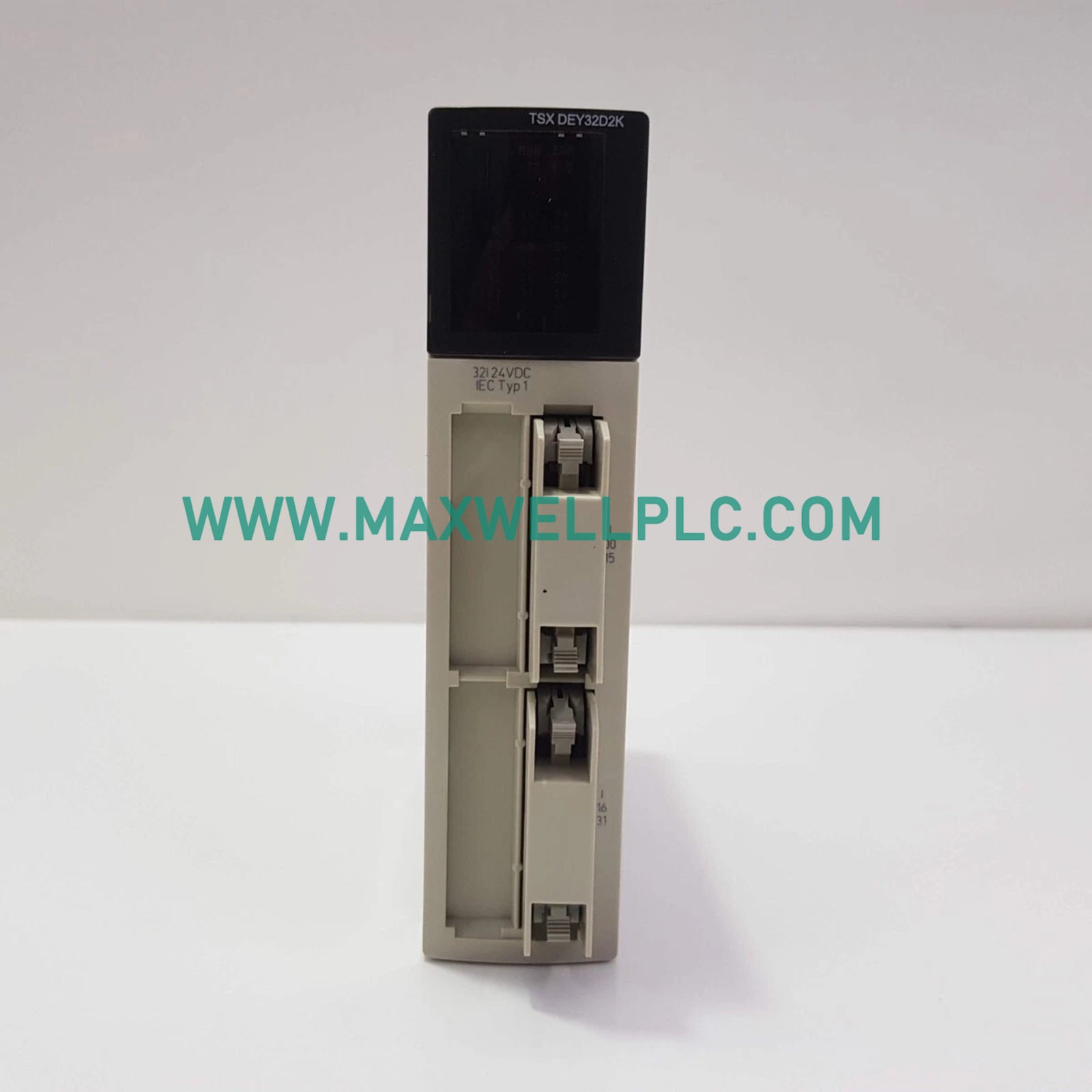

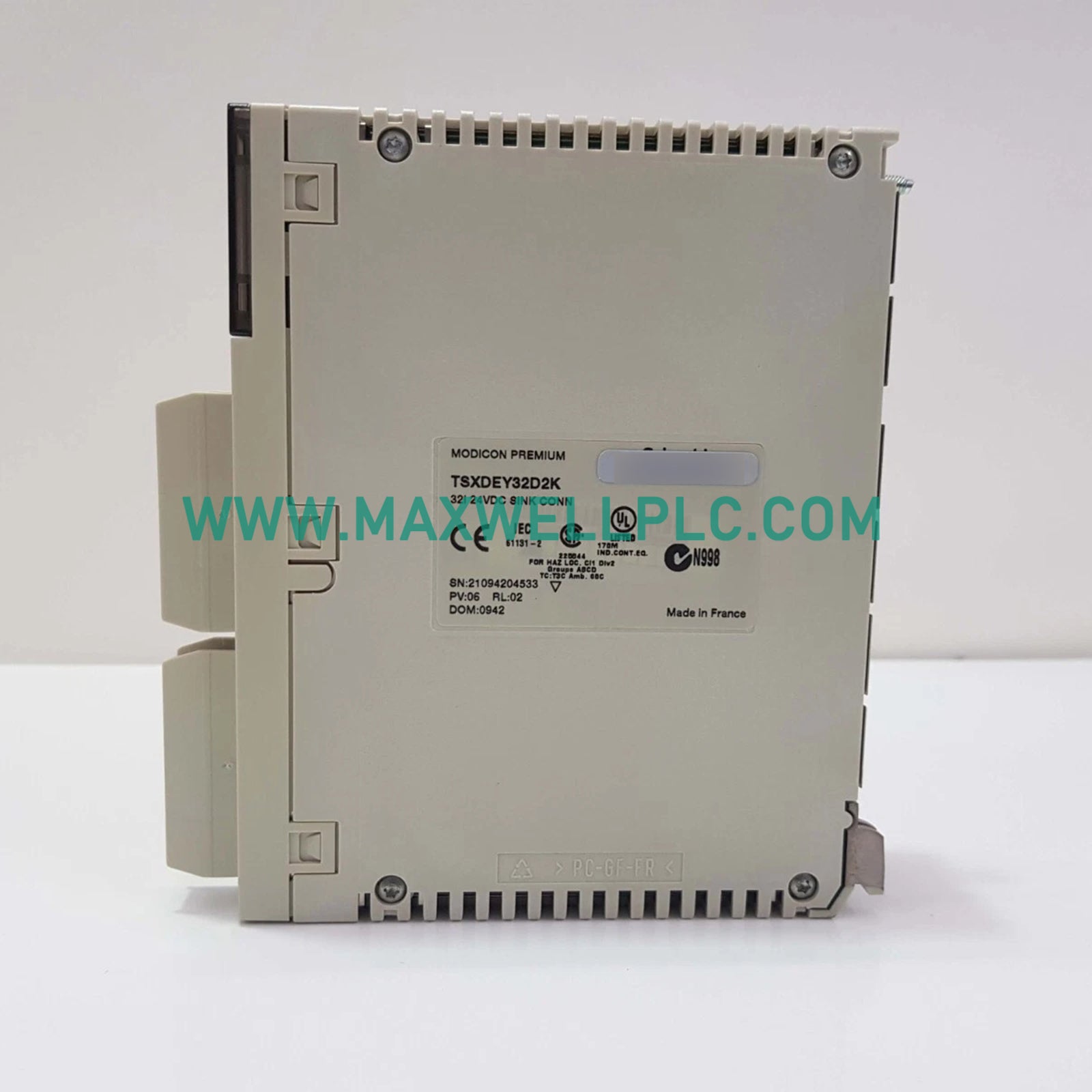

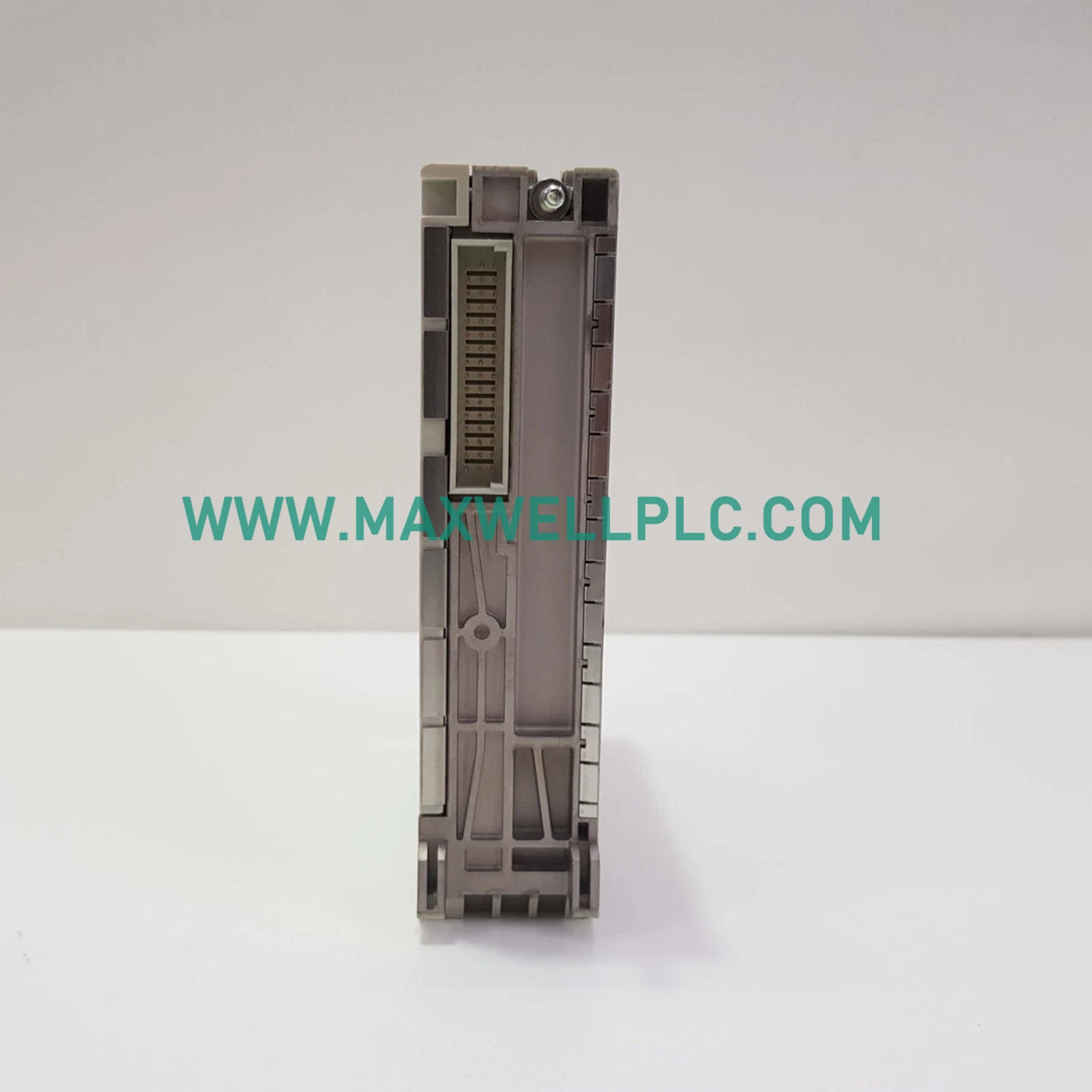

Configured for discrete signal execution in Modicon Premium automation platforms, the Schneider Electric TSXDEY32D2K (TSXDEY32D2K Discrete Input Module) provides direct physical electrical execution for 32 current sink isolated inputs.

Suffix Breakdown & Model Matrix

The TSXDEY32D2K designates a standard-format module utilizing 24 VDC positive logic. The suffix identifies the specific I/O density and hardware interface type, facilitating integration into rack-based backplane configurations consistent with the Modicon Premium series architecture.

Hardware Specifications

PLC Deterministic Control and Connectivity

The Modicon Premium platform utilizes a high-speed backplane bus to ensure consistent I/O scan timing. The TSXDEY32D2K module is optimized for deterministic input acquisition, supporting I/O density scaling across the rack. Firmware flash compatibility and bus communication velocity are managed via the host processor, ensuring that the 7 ms response time requirement is maintained for integrated proximity sensor logic.

Ordering Info

• 1 x TSXDEY32D2K Discrete input module

• 1 x User documentation set

• Note: Field wiring requires an HE-10 connector interface kit, which must be ordered according to the specific cable length and shielding requirements of the application.

Field Installation Guidelines

• Mounting: Install the module in a standard Modicon Premium rack slot. Verify the mechanical alignment of the backplane connector before engaging the locking mechanism.

• Connections: Utilize the HE-10 connector for signal wiring. Maintain consistent routing paths to minimize noise coupling, as the module features IP20 protection.

• Grounding: Bond the rack chassis to a stable earth ground point to ensure the effectiveness of the dielectric strength (1500 VAC) and electrostatic immunity profiles.

• Environment: Adhere to specified relative humidity (10% to 95%) and pollution degree 2 limits to prevent degradation of internal components.

Frequently Asked Questions

• Q: Is the TSXDEY32D2K module hot-swappable?

  A: No, the module does not support hot-swapping. Ensure the rack power is disconnected before installing or removing the unit to prevent backplane damage.

• Q: What input type does this module support?

  A: The module supports 32 current sink inputs conforming to the EN/IEC 61131-2 Type 1 standard.

• Q: What is the required sensor power supply range?

  A: The connected sensors must be supplied with a voltage ranging between 19 VDC and 30 VDC.

• Q: How is the module connected to field devices?

  A: The module utilizes a standard HE-10 connector for all 32 discrete input channels.

• Q: What is the maximum operating altitude?

  A: The hardware is rated for reliable operation up to an altitude of 2000 m.

• Q: What happens if input voltage falls below 5 VDC?

  A: The module registers a State 0 status, as 5 VDC is the guaranteed threshold for the OFF state.

• Q: Is the module compatible with both 2-wire and 3-wire sensors?

  A: Yes, the input circuitry is compatible with standard 2-wire and 3-wire proximity sensors.

• Q: What is the isolation resistance specification?

  A: The isolation resistance is specified as less than 10 MOhm at 500 VDC.
