Product Overview

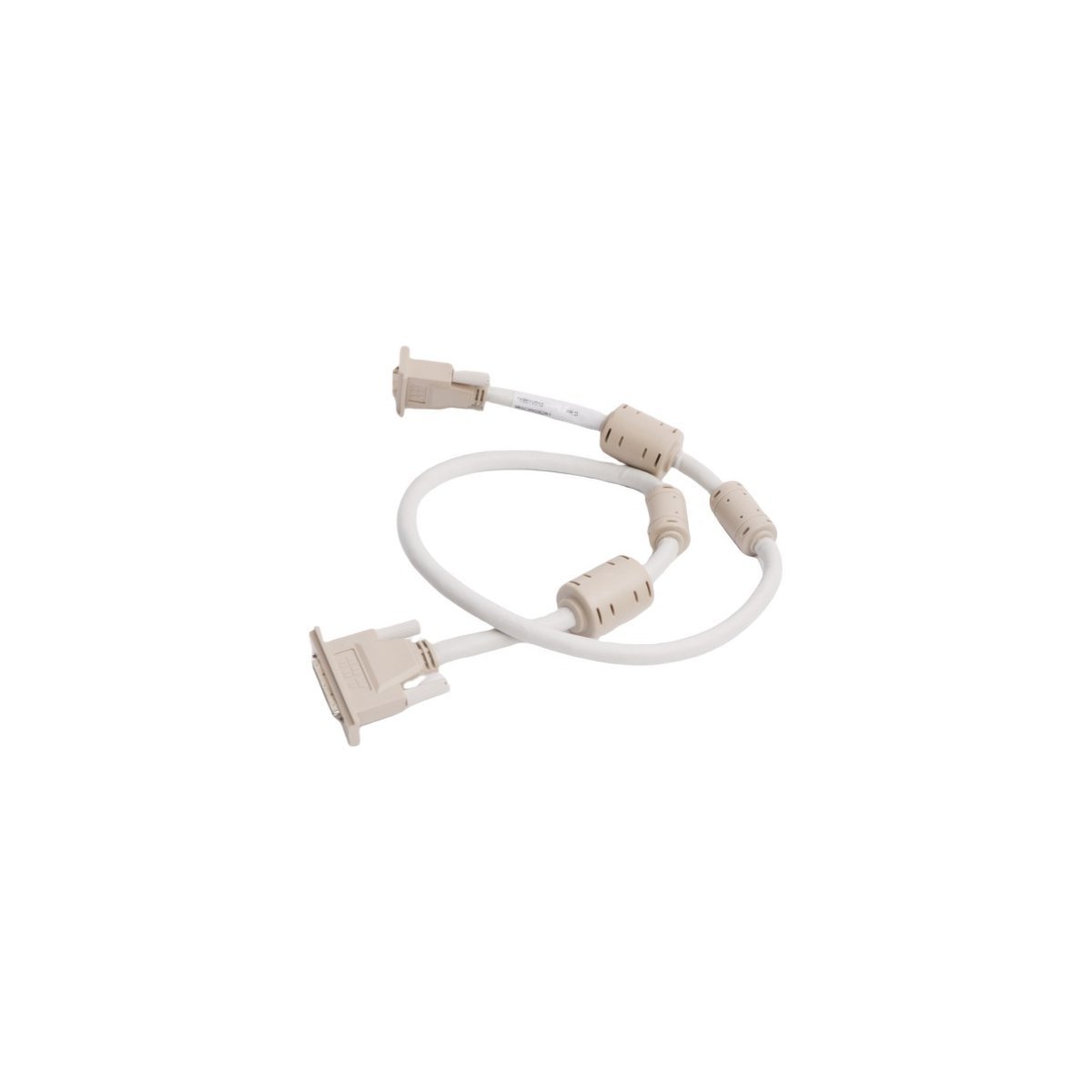

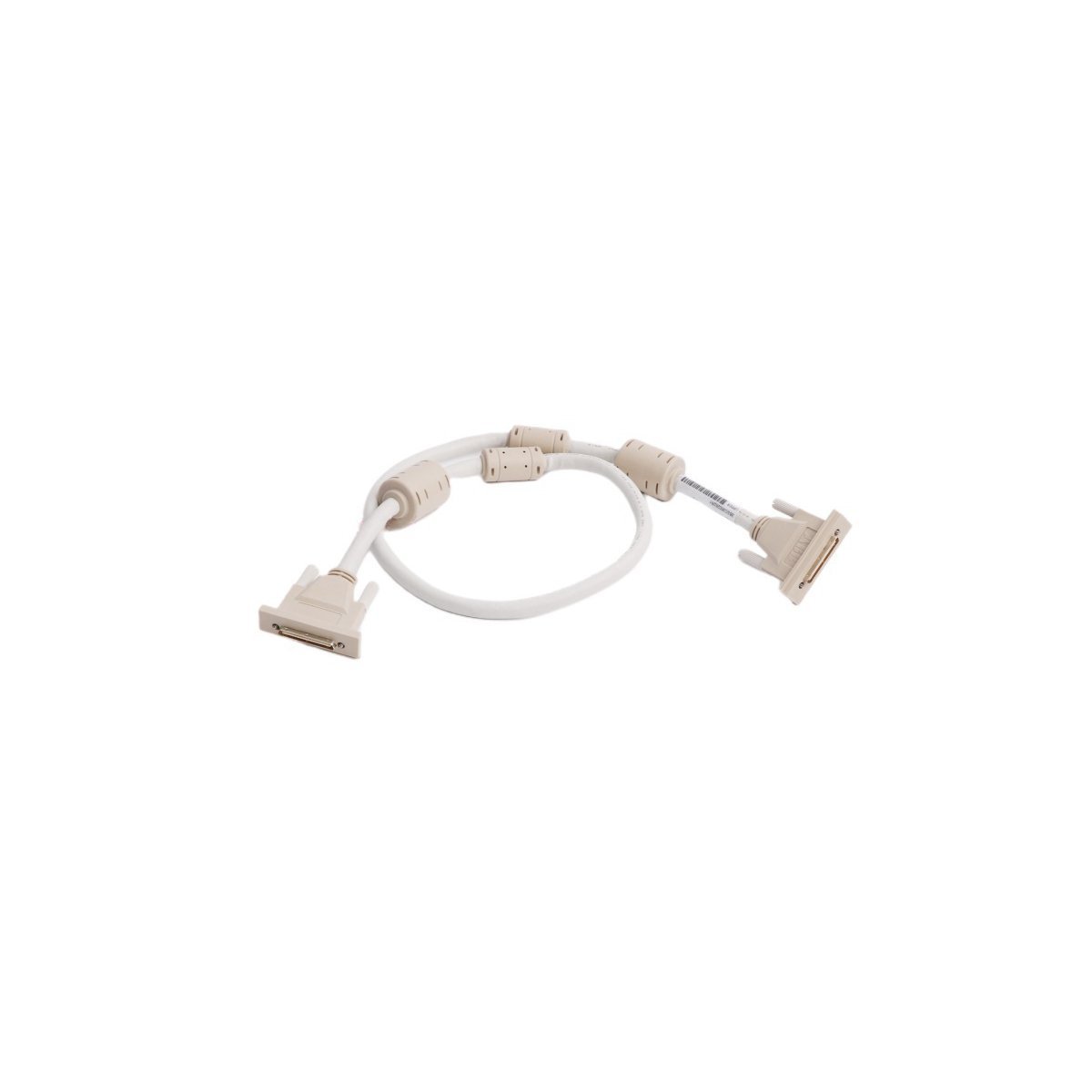

The ABB TK851V010, identified by part number 3BSC950262R1, is a precision-engineered prefabricated cable designed specifically for the AC 800M controller series. This high-integrity interconnect serves as a vital communication link within Distributed Control Systems (DCS), facilitating the seamless transfer of data between processor units and peripheral communication interfaces. By utilizing factory-terminated connectors, the TK851V010 eliminates the risks associated with manual field wiring, ensuring optimal impedance matching and signal clarity. This cable is a fundamental component for maintaining the deterministic communication required in high-availability industrial automation environments where data latency and signal degradation must be strictly avoided.

Hardware Configuration and Physical Attributes

• Component Designation Prefabricated Interconnect Cable

• Model Identifier TK851V010

• Order Number 3BSC950262R1

• System Family AC 800M / DCS

• Connector Type Dual-end industrial-grade connectors

• Cable Length 1.0 Meter (100cm)

• Networking Compatible with Ethernet Router and System Bus interfaces

• Mass / Weight 0.42kg

• Physical Dimensions 100cm x 5.8cm x 3cm

• Manufacturing Origin Sweden

• Tariff Code (HS) 8537101190

Industrial Applications and Integration Scenarios

The 3BSC950262R1 cable is predominantly utilized in large-scale process industries such as oil and gas, power generation, and chemical manufacturing. Within an AC 800M cabinet, the TK851V010 is used to link CPU modules to communication gateways, enabling synchronized data exchange across the plant-wide network. Its 100cm length is optimized for internal rack routing, providing enough flexibility for organized cable management without excessive slack. Because it is built to Swedish industrial quality standards, the cable features superior shielding properties that protect sensitive data packets from the high levels of electromagnetic interference (EMI) commonly found in industrial control rooms. This makes it an essential asset for ensuring continuous monitoring and reliable fault-tolerant operation of critical process loops.

FAQ

Q: Why should I use a prefabricated TK851V010 instead of making a custom cable on-site?

A: Prefabricated cables like the TK851V010 are factory-tested for continuity, shielding integrity, and signal attenuation. Using 3BSC950262R1 prevents common field-wiring errors, such as poor crimping or incorrect pinouts, which can lead to intermittent DCS communication failures.

Q: Is the TK851V010 3BSC950262R1 compatible with older AC 800 series hardware?

A: This specific cable is engineered for the AC 800M architecture. While it may appear similar to other serial or communication cables, you must verify the specific connector pinouts and voltage ratings against your hardware documentation to ensure compatibility.

Q: How does the cable's shielding handle high-vibration environments?

A: The TK851V010 is constructed with a ruggedized outer jacket and reinforced connector strain reliefs. These features are specifically designed to maintain electrical contact and signal integrity in unconditioned industrial zones subject to mechanical vibration.

Q: Can this cable be used for direct Ethernet communication between a PC and a controller?

A: The TK851V010 is a specialized system interconnect. While it supports data transmission within the DCS environment, it is typically used for proprietary bus or localized communication between ABB modules rather than as a standard commercial RJ45 Ethernet patch cable.

Q: What is the recommended bend radius for the 3BSC950262R1 during installation?

A: To maintain the internal shielding and wire integrity, it is recommended to avoid sharp 90-degree bends. A gradual bend radius ensures that the data transmission properties remain within the factory-specified tolerances for the life of the cable.
