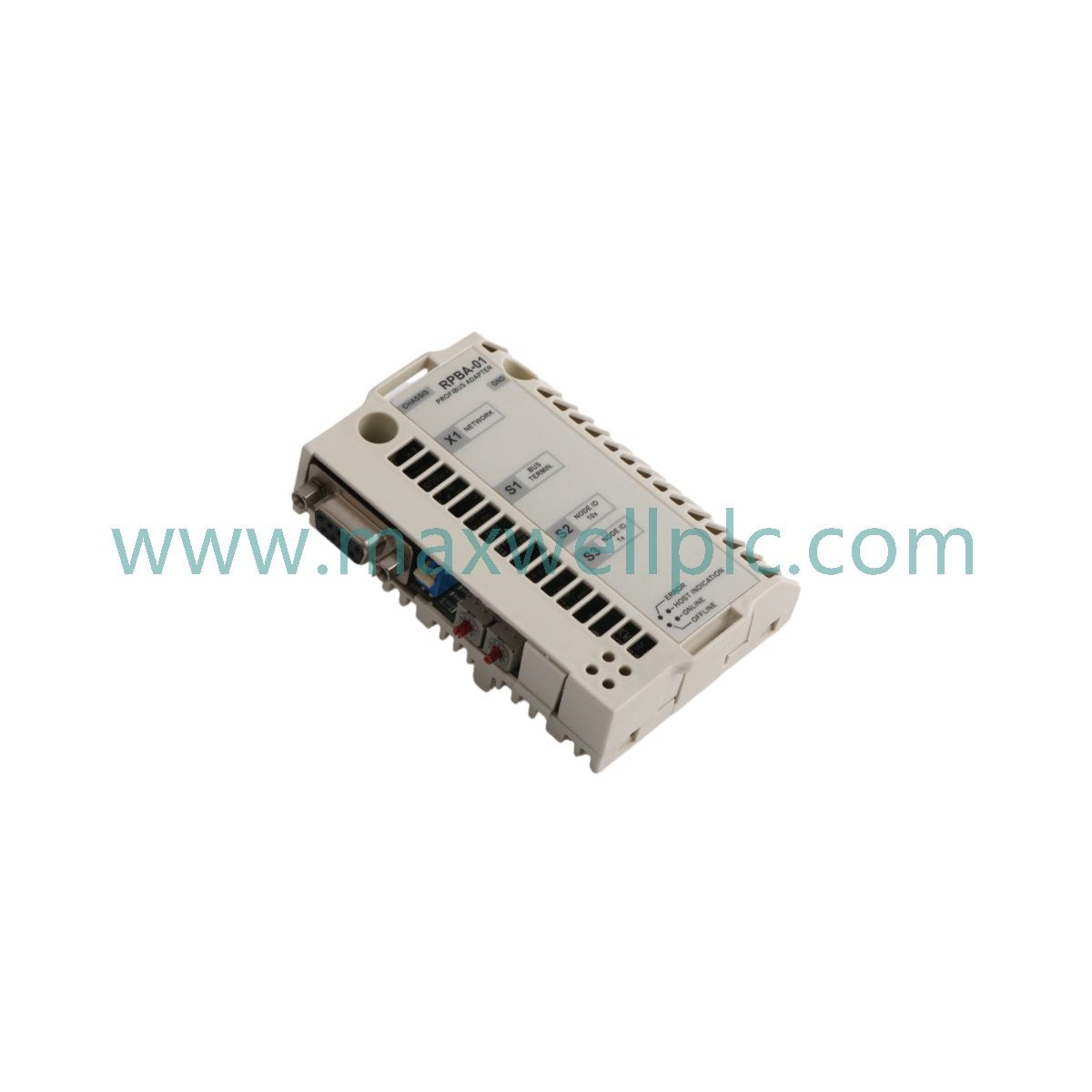

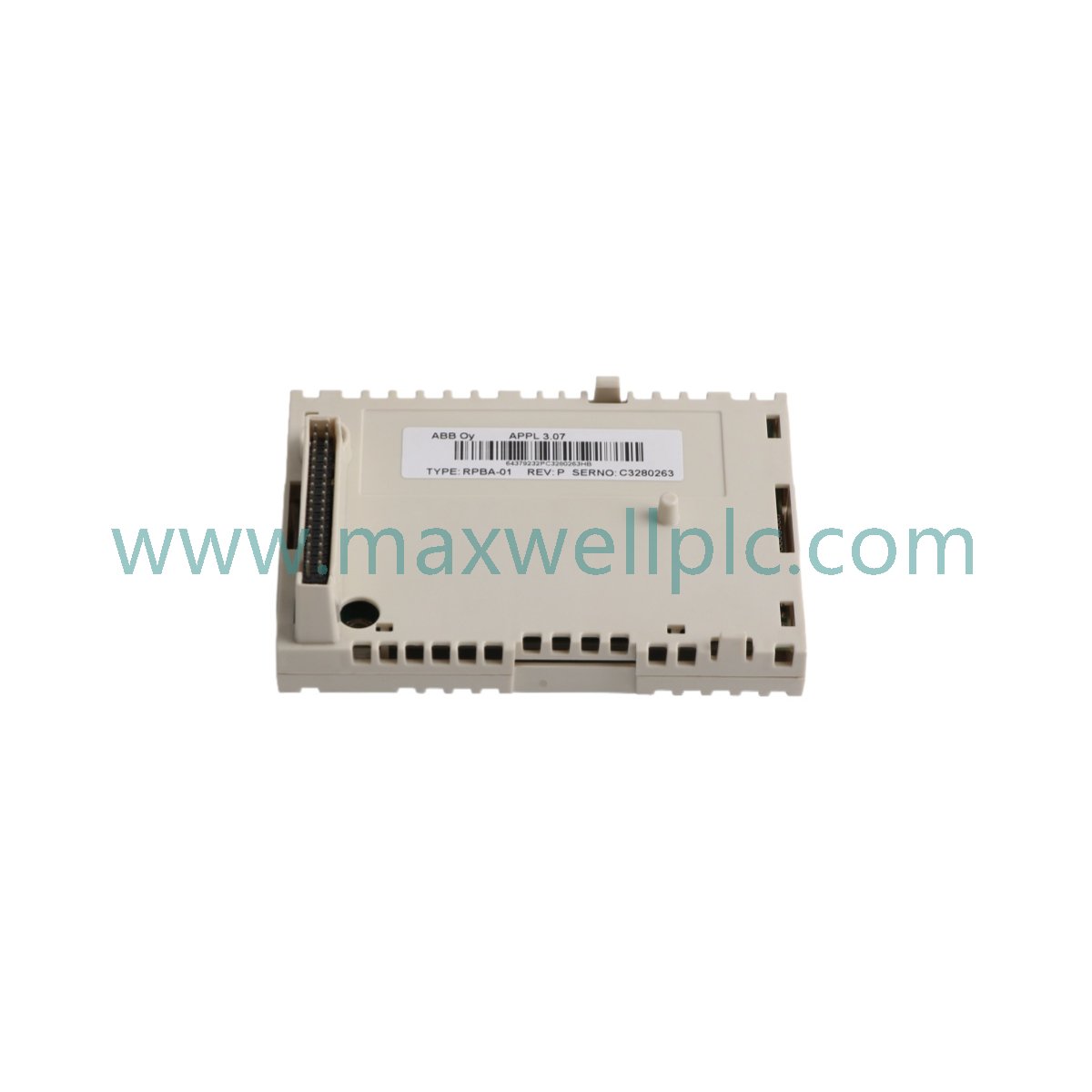

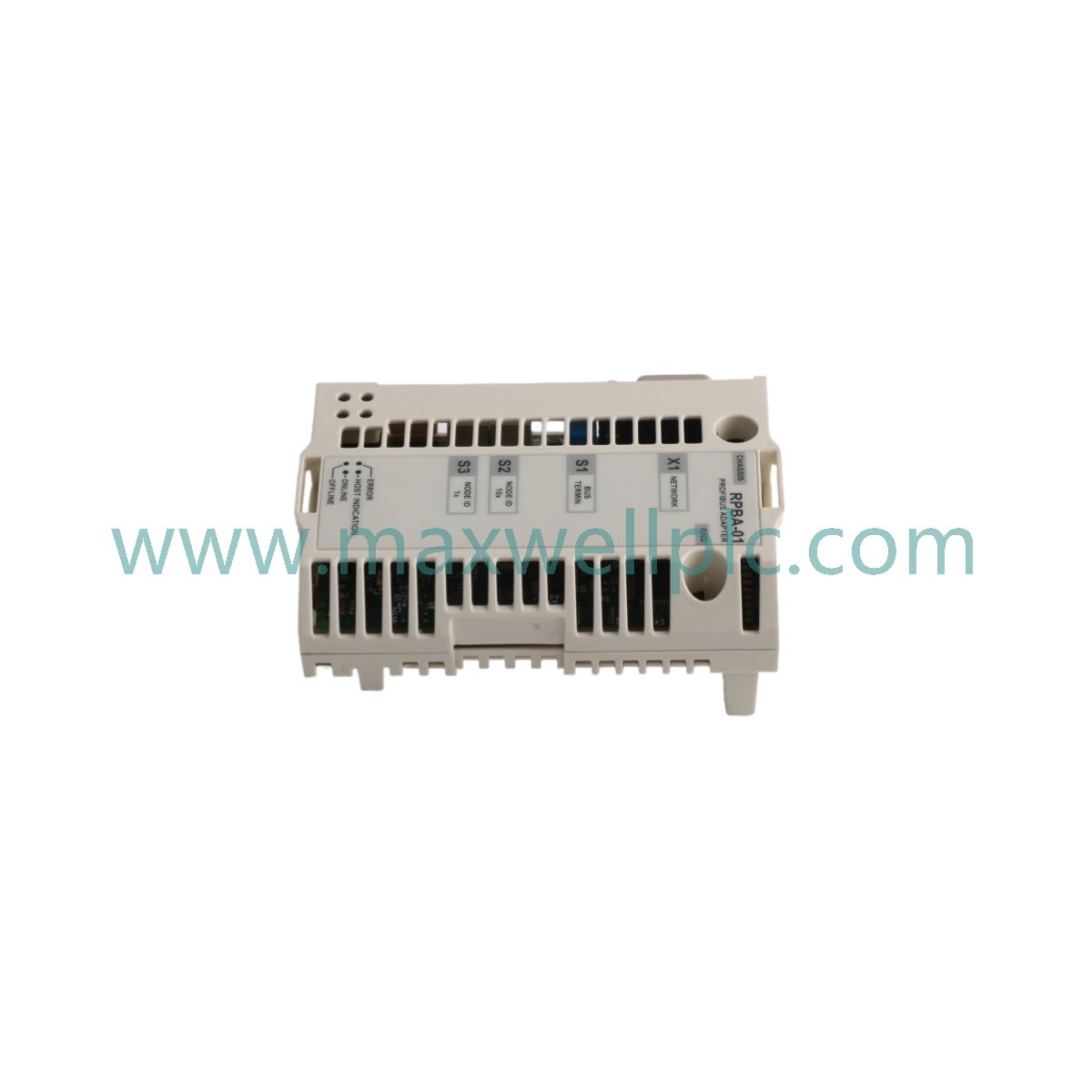

Configured for fieldbus network integration, the ABB RPBA-01 (RPBA-01 Profibus Interface) provides direct physical execution of cyclic and acyclic data transfer between DP masters and drive control units. This hardware component serves as a communication bridge to facilitate real-time control command transmission and diagnostic data exchange.

Module Configuration

The RPBA-01 is a communication interface module designed for PROFIBUS DP-V0 and DP-V1 protocols. It facilitates high-speed data exchange with automated equipment, supporting a maximum capacity of 244 input bytes and 244 output bytes.

Hardware Specifications

ABB Industrial Control & Drive Communication

The RPBA-01 utilizes deterministic backplane bus communication velocity to maintain synchronization within industrial drive networks. It features firmware flash compatibility for protocol alignment and I/O density scaling according to the requirements of the PROFIBUS master. The module architecture is optimized for integration with Profibus-certified fieldbus topologies, ensuring that control variables, status words, and fault registers are processed within established network latency windows for coordinated motion control and monitoring.

## Ordering info

• RPBA-01 Profibus Fieldbus Interface Module.

• Connector interface kit.

• Technical installation and network configuration manual.

Field Installation Guidelines

Mounting

• Secure the RPBA-01 within the drive option slot, ensuring mechanical alignment with the internal bus pins.

• Ensure the module housing is properly seated to maintain the IP20 protection rating within the control cabinet.

Wiring

• Utilize standard PROFIBUS shielded cables connected to the 9-pin D-sub female interface.

• Apply correct bus termination at both ends of the segment to ensure signal integrity at baud rates up to 12 Mbit/s.

Frequently Asked Questions

• Q: Is the module hot-swappable?

  A: No. The drive must be isolated from the power supply before installing or removing the interface module to avoid potential damage to the internal bus pins.

• Q: What is the maximum data transfer rate?

  A: The module supports automatic baud rate detection, enabling operation at speeds up to 12 Mbit/s.

• Q: Does the module require an external power supply?

  A: No. The RPBA-01 is powered directly via the internal bus of the host drive.

• Q: Which PROFIBUS versions are supported?

  A: The module supports standard PROFIBUS DP-V0 and DP-V1 communication protocols.

• Q: Can I use this with non-ABB controllers?

  A: The module is designed to function as a PROFIBUS DP-compliant device and will communicate with any standard PROFIBUS DP master controller.

• Q: How are diagnostic faults reported?

  A: Fault signals are transmitted cyclically through the PROFIBUS network to the master controller and can be accessed via the drive's control parameters.

• Q: Is the firmware updateable?

  A: Yes. The module hardware supports firmware flash procedures to ensure compatibility with updated network protocol requirements.

• Q: How do I verify communication status?

  A: Communication status is monitored via the PROFIBUS master controller and through diagnostic parameters accessible within the ABB drive firmware.
