Omron S8VK-T96024 Switch Mode Power Supply S8VK Series
Omron S8VK-T96024 Switch Mode Power Supply S8VK Series
Omron S8VK-T96024 Switch Mode Power Supply S8VK Series
Omron

Omron S8VK-T96024 Switch Mode Power Supply S8VK Series

SKU: S8VK-T96024
Categories : All Products
In Stock
  • Dimensions: 20.00 cm x 18.00 cm x 18.00 cm
  • Country of origin: Japan
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

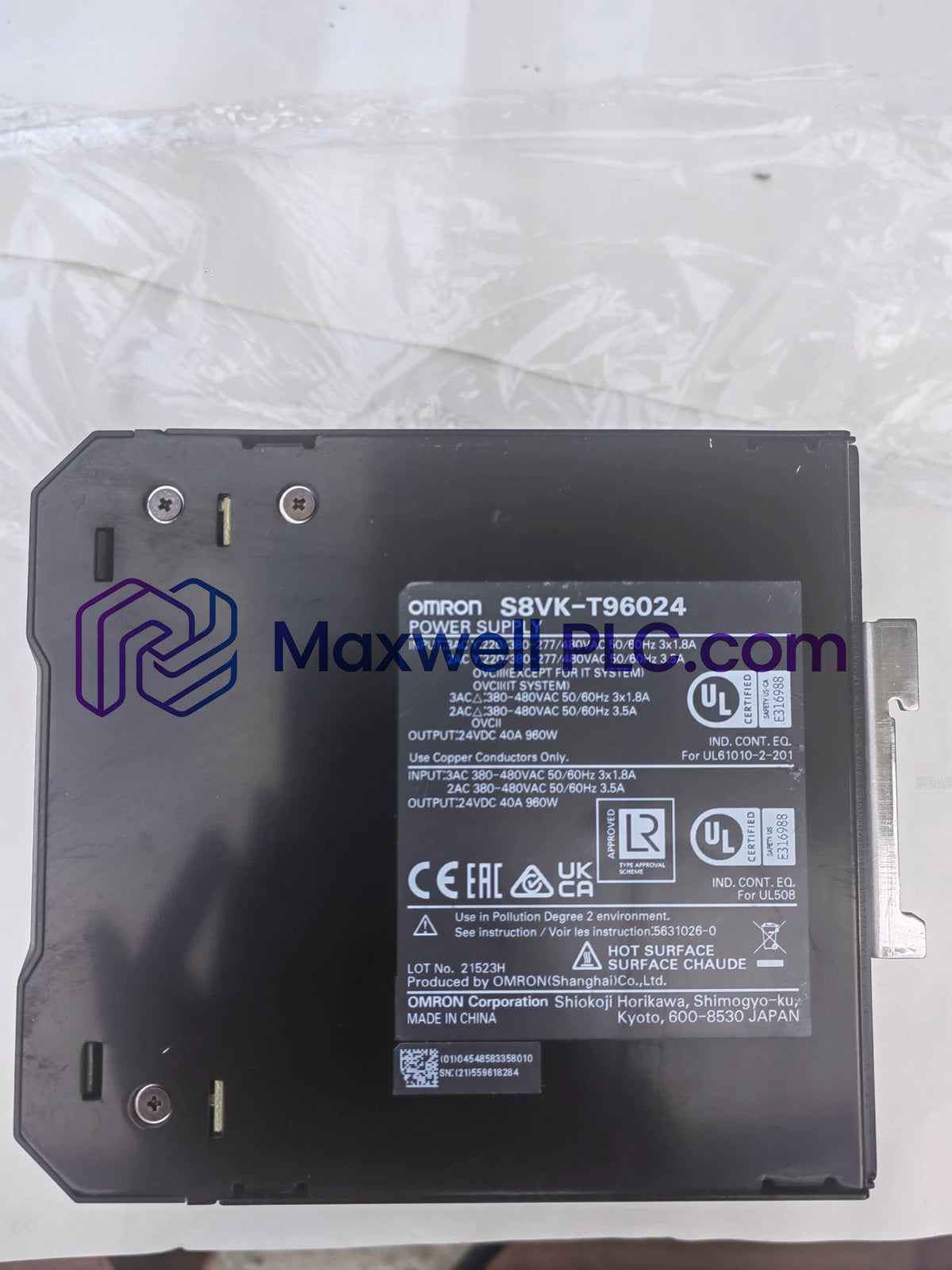

The Omron S8VK-T96024, also cataloged as the S8VK-T96024 Switch Mode Power Supply, operates as a dedicated hardware component for 24 VDC industrial power conversion within cabinet distribution architectures.

System Model Architecture

The hardware designation specifies key operational and physical characteristics:

  • S8VK: Standard DIN-rail industrial power supply product platform.
  • T: Three-phase AC input voltage capability.
  • 960: 960 W nominal power output rating.
  • 24: 24 VDC regulated output voltage parameter.

Physical & Electrical Parameters

Parameter Specification
Model S8VK-T96024
Brand Omron
Origin Japan
Weight 3.200 kg
Shipping Weight 3.800 kg
Product Dimensions (W x H x D) 125.0 mm x 125.0 mm x 150.0 mm
Shipping Dimensions 20.00 cm x 18.00 cm x 18.00 cm
Input Voltage 3-Phase 380 to 480 VAC / 2-Phase 380 to 480 VAC
Output Voltage 24 VDC
Output Current 40 A
Power Rating 960 W
Efficiency 91% typical
Operating Temperature -40 to 70 deg C
Storage Temperature -40 to 85 deg C
Power Consumption Power loss approx. 94 W at rated load

Backplane Power Distribution & System Integration

The unit delivers 24 VDC power directly to field devices, PLC racks, and remote I/O modules, supporting deterministic networks such as EtherNet/IP and Profinet by suppressing bus voltage ripple. Designed for high I/O density scaling, the power supply maintains regulated DC voltage under transient peak load demands while preserving backplane bus communication velocity and preventing firmware reload cycles triggered by voltage sags.

Shipping & Component Package

  • 1 x Omron S8VK-T96024 Switch Mode Power Supply

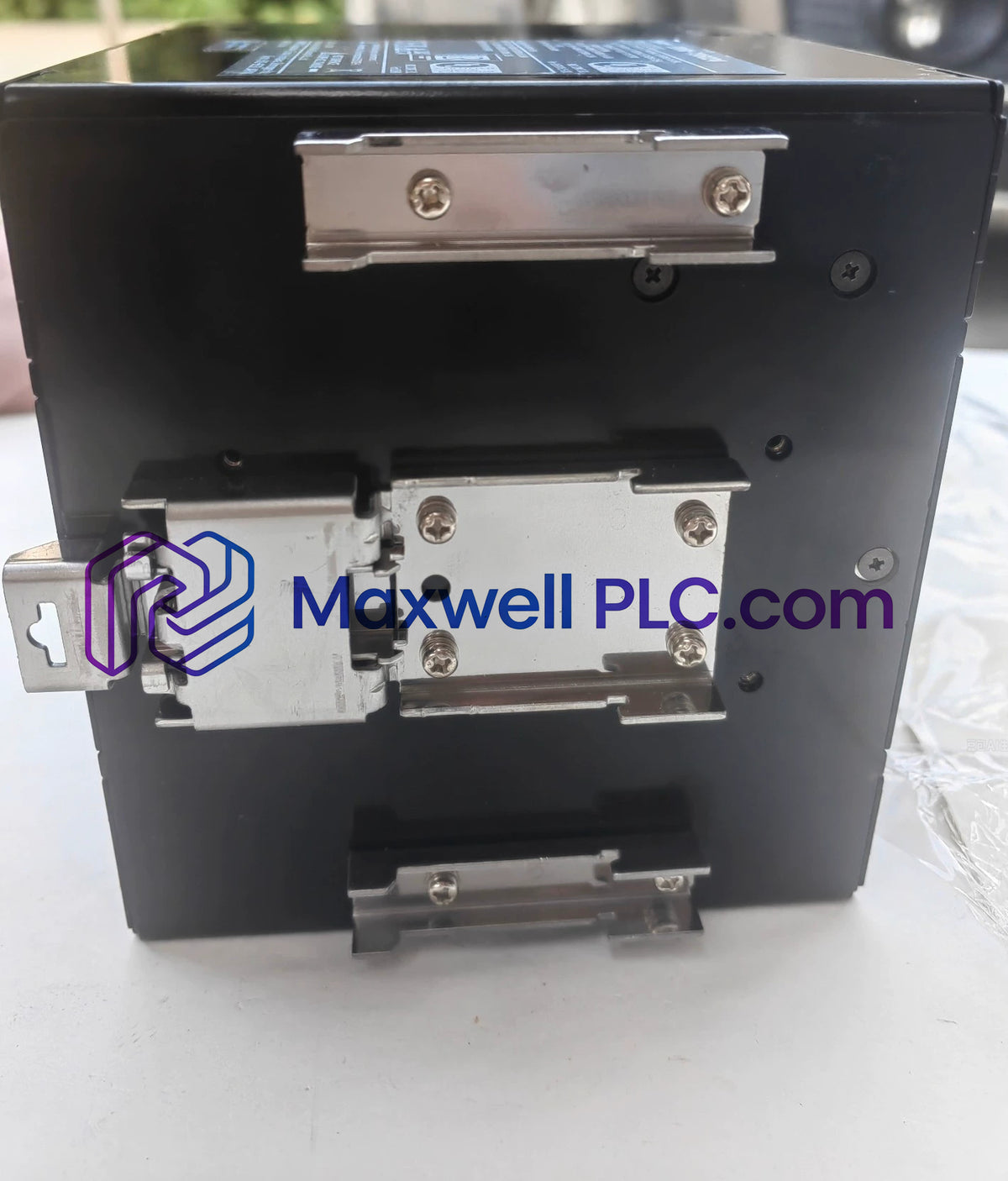

  • 1 x DIN-rail mounting clip assembly (pre-installed)
  • 1 x Instruction manual sheet

Mounting & Field Wiring Execution

  • Mount vertically on a standard 35 mm DIN rail to maintain natural convection airflow through vertical cooling vents.
  • Maintain a minimum physical clearance of 20 mm above and below the housing for heat dissipation.
  • Strip 10 mm to 11 mm of insulation from incoming 3-phase AC power wires and connect securely to screw terminals.
  • Connect PE (Protective Earth) to the dedicated ground terminal to prevent common-mode electrical noise propagation.
  • Ensure output cabling is sized appropriately to handle 40 A continuous load current without excessive line drop.

Field Engineering FAQ

  • What happens during output overload conditions?

    The power supply enters constant-current limit protection mode and automatically recovers when the load drop is cleared.

  • Can the unit operate on a 2-phase AC input supply?

    Yes, 2-phase input operation at 380 to 480 VAC is supported, though output current derating may apply depending on ambient temperature.

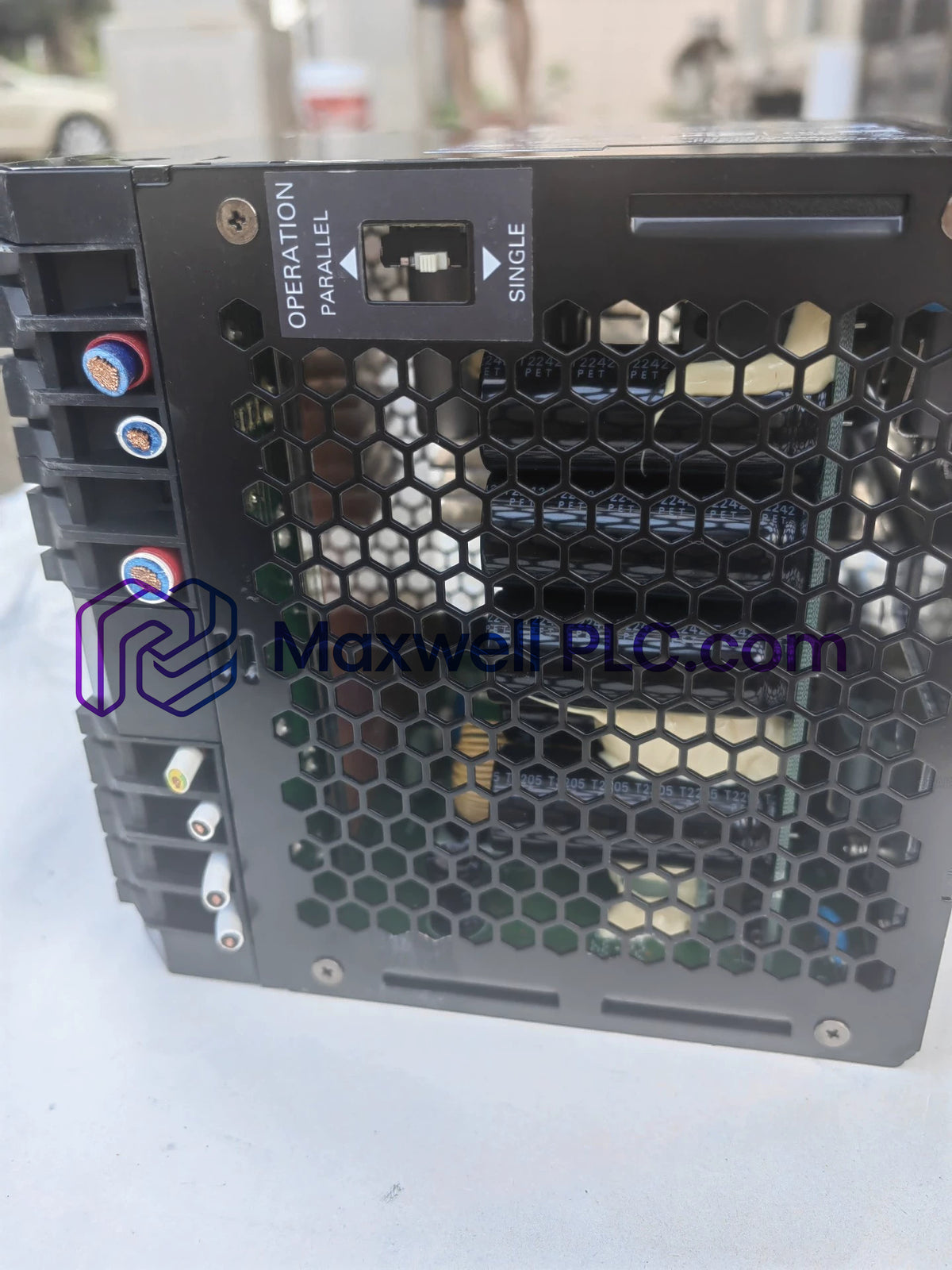

  • Does the S8VK-T96024 support parallel operation for capacity expansion?

    Parallel operation is permitted for up to two units when configured with external decoupling diodes.

  • What is the recommended terminal tightening torque for input wiring?

    Tighten the terminal screw block connections to a torque setting between 0.5 and 0.6 N m.

  • Is forced-air fan cooling required for full load execution?

    No, the power supply utilizes natural air convection and does not require internal or external cooling fans.

  • What is the output voltage adjustment range?

    The front-panel potentiometer allows output voltage tuning across a range from 22.5 VDC to 28.0 VDC.

  • What is the operating temperature range before derating occurs?

    Full rated operation runs from -40 deg C up to 60 deg C, with linear power derating applied up to 70 deg C.

  • How does the unit handle input line surge voltages?

    Integrated varistors and internal dielectric isolation protect downstream DC loads against transient line voltage spikes.
