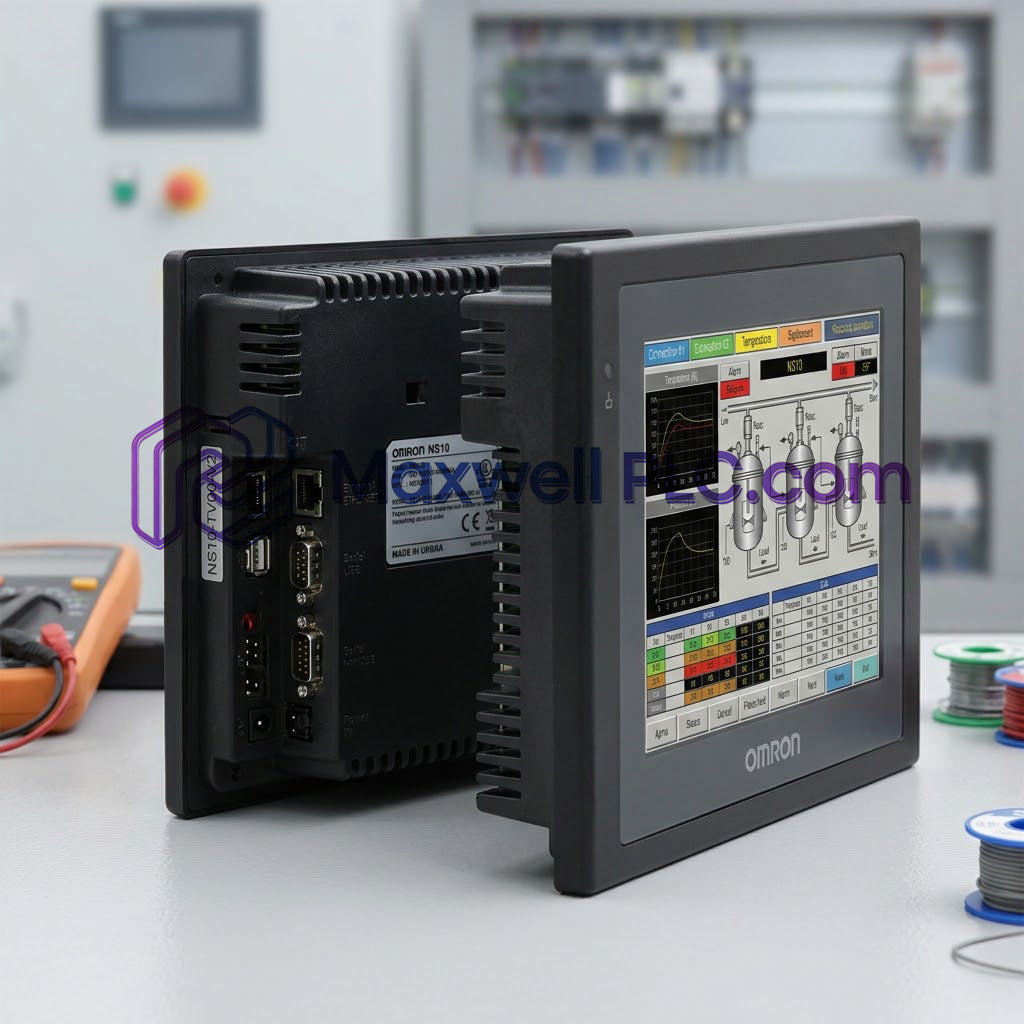

NS10-TV00B-V2 Omron NS Touch-Screen HMI Terminal
NS10-TV00B-V2 Omron NS Touch-Screen HMI Terminal
NS10-TV00B-V2 Omron NS Touch-Screen HMI Terminal
Omron

NS10-TV00B-V2 Omron NS Touch-Screen HMI Terminal

SKU: NS10-TV00B-V2
Categories : All Products
In Stock
  • Dimensions: 28.50 cm x 22.20 cm x 4.80 cm
  • Country of origin: Japan
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Omron NS10-TV00B-V2 serves as the primary NS10-V2 Touch-Screen HMI Terminal utilized to execute graphic runtime display and real-time register polling across serial automation platforms. Operating on an external 24 VDC power supply, the unit renders machine parameters on a 10.4-inch VGA TFT matrix and translates operator touch inputs into serial register write commands for linked host PLCs.

Part Number Code & Hardware Variant Structure

  • NS10: 10.4-inch display size class within the NS operator interface platform
  • TV00: High-resolution VGA TFT display configuration without onboard Ethernet interface
  • B: Matte black front panel bezel housing variant
  • V2: Version 2 enhanced processing engine and expanded flash memory hardware revision

Physical, Electrical, & Operational Specifications

Parameter Specification
Model NS10-TV00B-V2
Brand Omron
Origin Japan
Weight 2.30 kg max.
Shipping Dimensions 28.50 cm x 22.20 cm x 4.80 cm
Operating Temp 0 to 50 deg C
Power Consumption 25 W max.
Supply Voltage 24 VDC
Allowable Voltage Range 20.4 to 27.6 VDC
Display Element 10.4-inch TFT color LCD
Display Resolution 640 x 480 dots (VGA)
Front Panel Protection IP65 oil-proof equivalent
Battery Backup Life 5 years at 25 deg C

Hardware Architecture & Firmware Flash Compatibility

The terminal processes vector graphics, trend objects, and alarm logs stored within onboard non-volatile memory. Maintaining firmware flash compatibility between the programming toolchain and internal system flash guarantees deterministic register polling intervals. Direct memory bit manipulation across serial field networks preserves backplane bus communication velocity Licences without imposing transmission overhead on distributed I/O buses.

Supply Scope & Standard Accessories

  • 1 x Omron NS10-TV00B-V2 operator interface unit
  • 4 x Panel mounting bracket clips
  • 1 x Removable 3-pin DC power supply screw terminal block
  • 1 x Rear water-resistant panel sealing rubber gasket
  • 1 x Standard hardware mounting sheet

Panel Installation & Field Wiring Procedures

Enclosure Mounting and Cutout Alignment

  • Prepare the control panel cutout according to standard mechanical enclosure tolerances, removing burrs along the cut edges.
  • Fit the sealing gasket onto the rear perimeter rim of the unit before inserting it into the cutout, tightening all four clamp screws evenly.

DC Power Line & Grounding Termination

  • Connect 24 VDC power wires to the dedicated 3-pin terminal plug, ensuring correct polarity before applying system voltage.
  • Run a dedicated earth conductor from the functional ground terminal lug to the cabinet ground bar to mitigate high-frequency electrical noise.

Technical Frequently Asked Questions

  • What nominal supply voltage is required to power the NS10-TV00B-V2 unit?

    The unit operates on a regulated 24 VDC input within an allowable operating voltage range of 20.4 VDC to 27.6 VDC.

  • Does the NS10-TV00B-V2 terminal include a native Ethernet interface port?

    No, the TV00 variant is designed for serial communication setups and does not include an onboard RJ45 Ethernet port.

  • What display technology and screen resolution are used on this terminal?

    The hardware utilizes a 10.4-inch TFT color LCD matrix featuring a display resolution of 640 x 480 dots (VGA).

  • How does firmware flash compatibility impact project transfer operations?

    The system runtime firmware stored in internal flash memory must match the compiler version to ensure tag mappings function correctly.

  • What function is served by the internal lithium battery during power loss?

    The backup battery maintains internal real-time clock (RTC) data and preserves retentive alarm logs when 24 VDC power is isolated.

  • What ingress protection rating is provided on the front interface bezel?

    The front panel bezel meets IP65 oil-proof equivalent enclosure standards when properly seated with its rubber mounting gasket.

  • Is live insertion or hot-swapping of serial communications cabling permitted?

    No, serial port cables must not be connected or removed while power is applied to prevent electrical damage to communication transceivers.

  • What cable routing layout minimizes electrical noise pickup on data lines?

    Communication cables must be routed in separate wireways away from high-voltage AC lines, motor leads, and variable frequency drive cabling.
