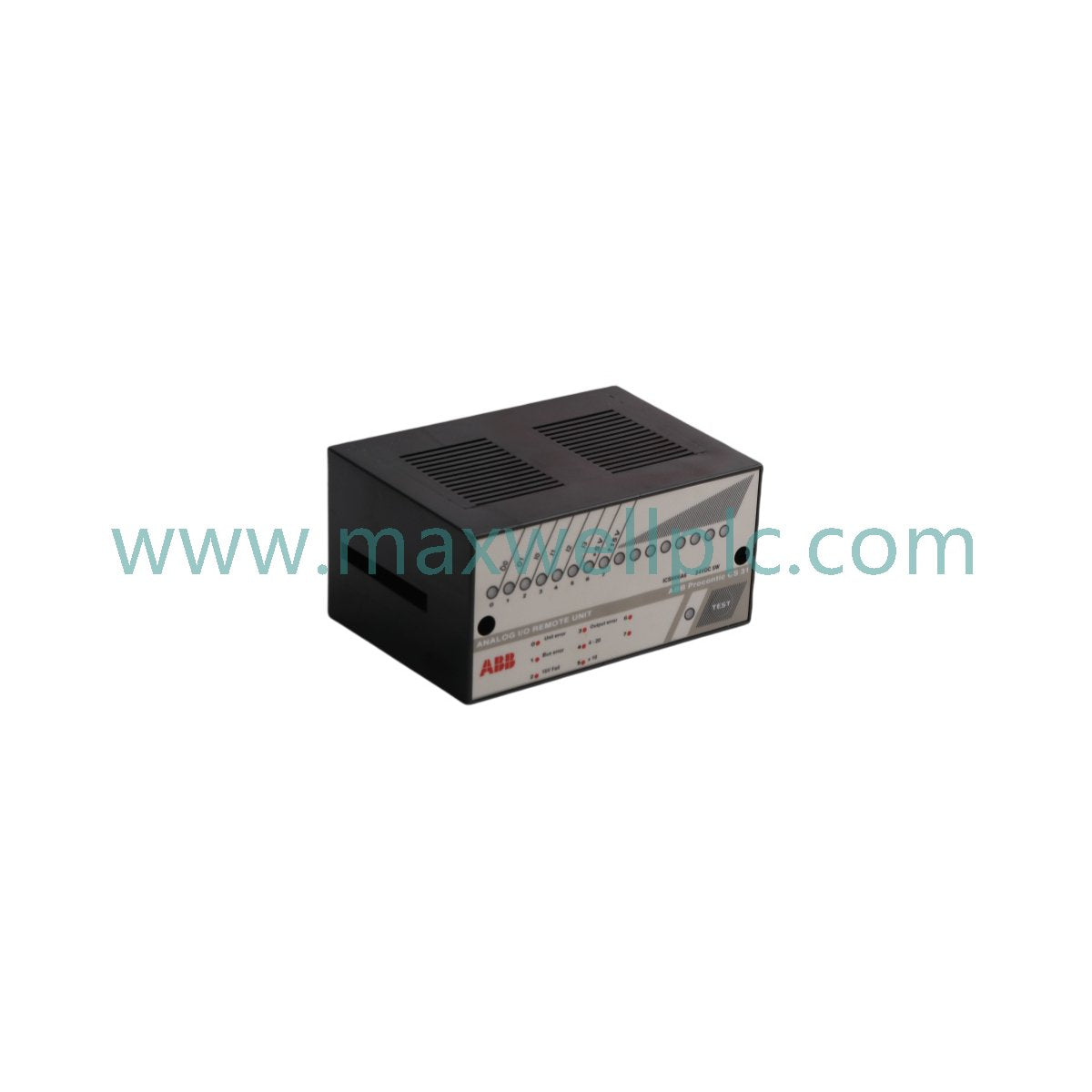

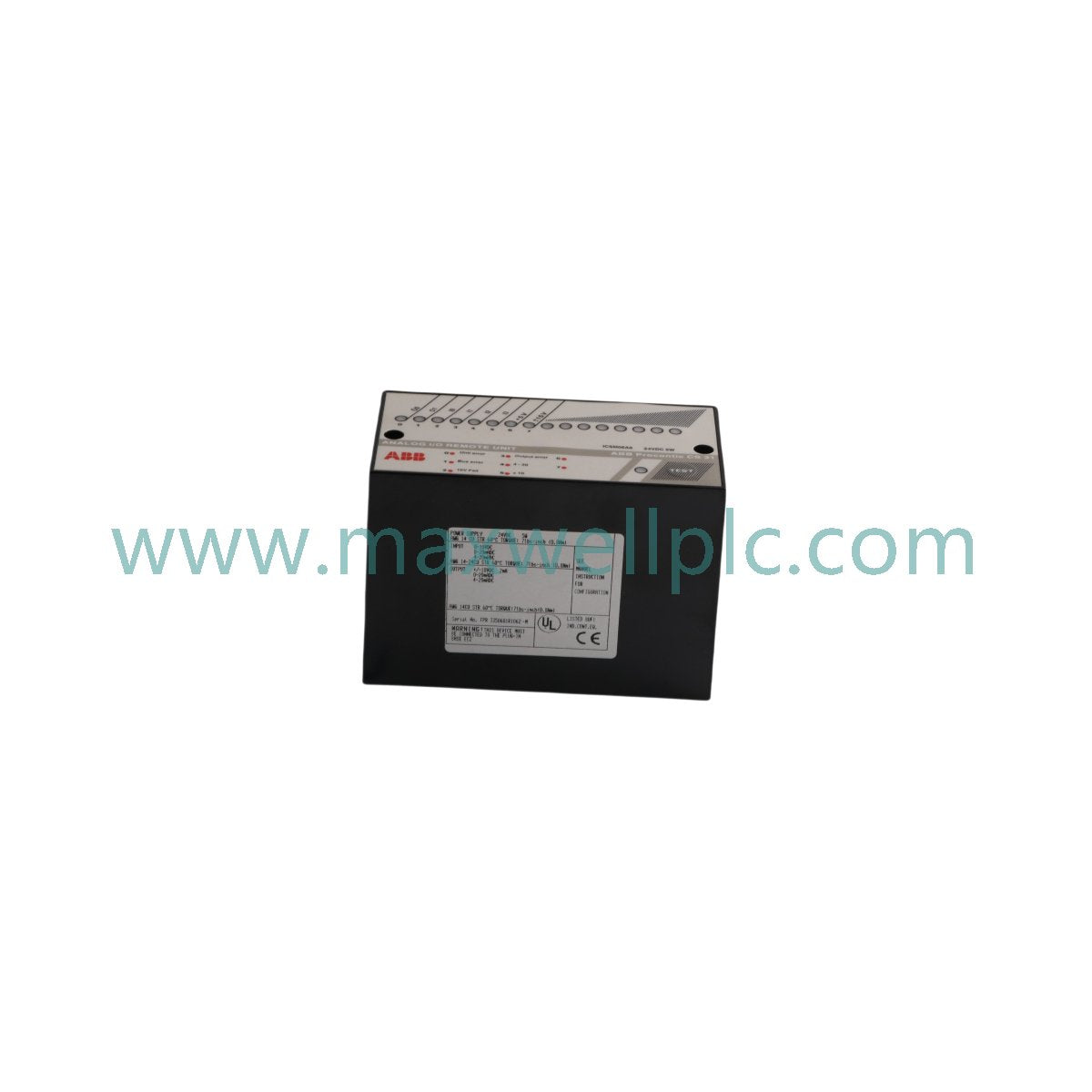

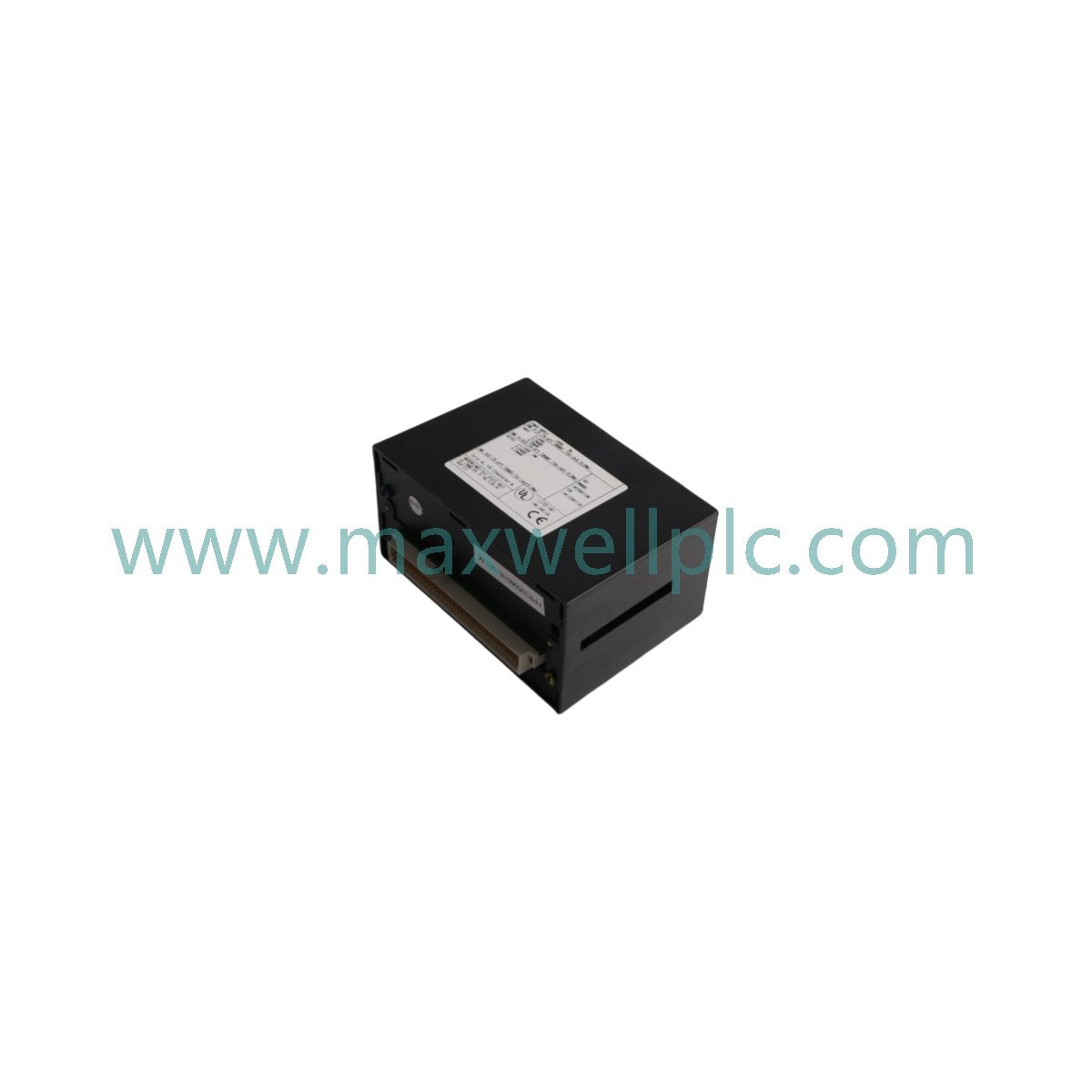

Configured for analog signal processing in Procontic CS31 automation networks, the ABB ICSM06A6 FPR3350601R1062 (ICSM06A6 FPR3350601R1062 Analog I/O Remote Unit) provides direct electrical execution of sensor data acquisition and output control. This hardware component interfaces with distributed field devices to perform analog signal conversion across industrial control platforms.

Model Identification

The ICSM06A6 FPR3350601R1062 represents a unified I/O module within the Procontic CS31 product family. This unit integrates six analog inputs and six analog outputs into a single hardware footprint, supporting specific voltage or current loops as dictated by the CS31 system bus topology.

Hardware Specifications

ABB Industrial Control & Drive Communication

The ICSM06A6 supports deterministic network communication, enabling integration within Profinet or EtherNet/IP-based architectures. The module handles high-speed backplane bus communication to ensure minimal latency between signal acquisition and PLC processing cycles. I/O density is optimized for compact control panel footprints, providing sufficient channel capacity while maintaining standard firmware flash compatibility for system-wide updates.

## Ordering info

• ICSM06A6 FPR3350601R1062 I/O module unit.

• Product delivered in anti-static industrial packaging.

• Standard technical documentation included.

Field Installation Guidelines

Mounting

• Secure the unit on a standard DIN-rail, ensuring proper tension to prevent vibration-induced loosening.

• Maintain adequate clearance around the module to allow for natural convection cooling within the cabinet.

Wiring

• Connect the 12 VDC power supply to the designated terminals, verifying polarity before energizing.

• Utilize shielded twisted-pair cabling for all analog I/O to reduce electromagnetic interference.

• Terminate shields at the common grounding bar within the control cabinet.

Frequently Asked Questions

• Q: Is this module capable of hot-swapping?

  A: No, the module requires power to be disconnected before insertion or removal from the CS31 bus to prevent electrical arcing at the backplane.

• Q: Does the module support channel-to-channel isolation?

  A: The module provides standard galvanic isolation between the field-side I/O and the CS31 logic circuits.

• Q: Can the input range be configured via software?

  A: Range configuration is determined by the specific hardware revision and firmware parameters defined in the PLC programming environment.

• Q: How are communication errors signaled?

  A: The front-panel LED indicators provide diagnostic status codes for communication link loss or power supply deviations.

• Q: Is firmware updatable in the field?

  A: Yes, the module supports firmware flashing via the dedicated service port for system compatibility maintenance.

• Q: What is the maximum cable length for analog inputs?

  A: Cable length is determined by the signal type and impedance; typically, lengths up to 100 meters are supported with shielded cabling.

• Q: How does the module handle power supply fluctuations?

  A: The module operates within a 12 VDC (+/- 10%) tolerance; outside this range, the module initiates a hardware-based safety shutdown.

• Q: Is the module compatible with third-party masters?

  A: Yes, provided the master supports the Procontic CS31 protocol definitions and communication timing parameters.
