Configured for pulse totalization and high-speed process event batching in machine automation panels, the Omron H7CC-AWS (H7CC Digital Counter) provides direct physical/electrical execution. It converts incoming voltage or no-voltage input pulses into visual 6-digit counts and triggers discrete solid-state transistor switching across 2-stage setpoint thresholds.

Designation & Configuration Code Structure

• H7CC: Standard 48 x 48 mm DIN digital counter platform
• A: Standard functional type unit
• W: 2-stage preset configuration support
• S: Transistor output stage (DSPT)
• Supply: 100 to 240 VAC direct operational input voltage

Electrical & Mechanical Specifications

Memory Integrity & Deterministic Logic Processing

The counter architecture processes high-frequency input transitions through an embedded logic control engine. Internal EEPROM non-volatile memory retains setpoint values and cumulative count records during control supply interrupts. Maintained firmware flash compatibility ensures synchronized parameter register handling, keeping local count updates aligned with backplane bus communication velocity Licences across broader PLC-driven control networks.

Supplied Components

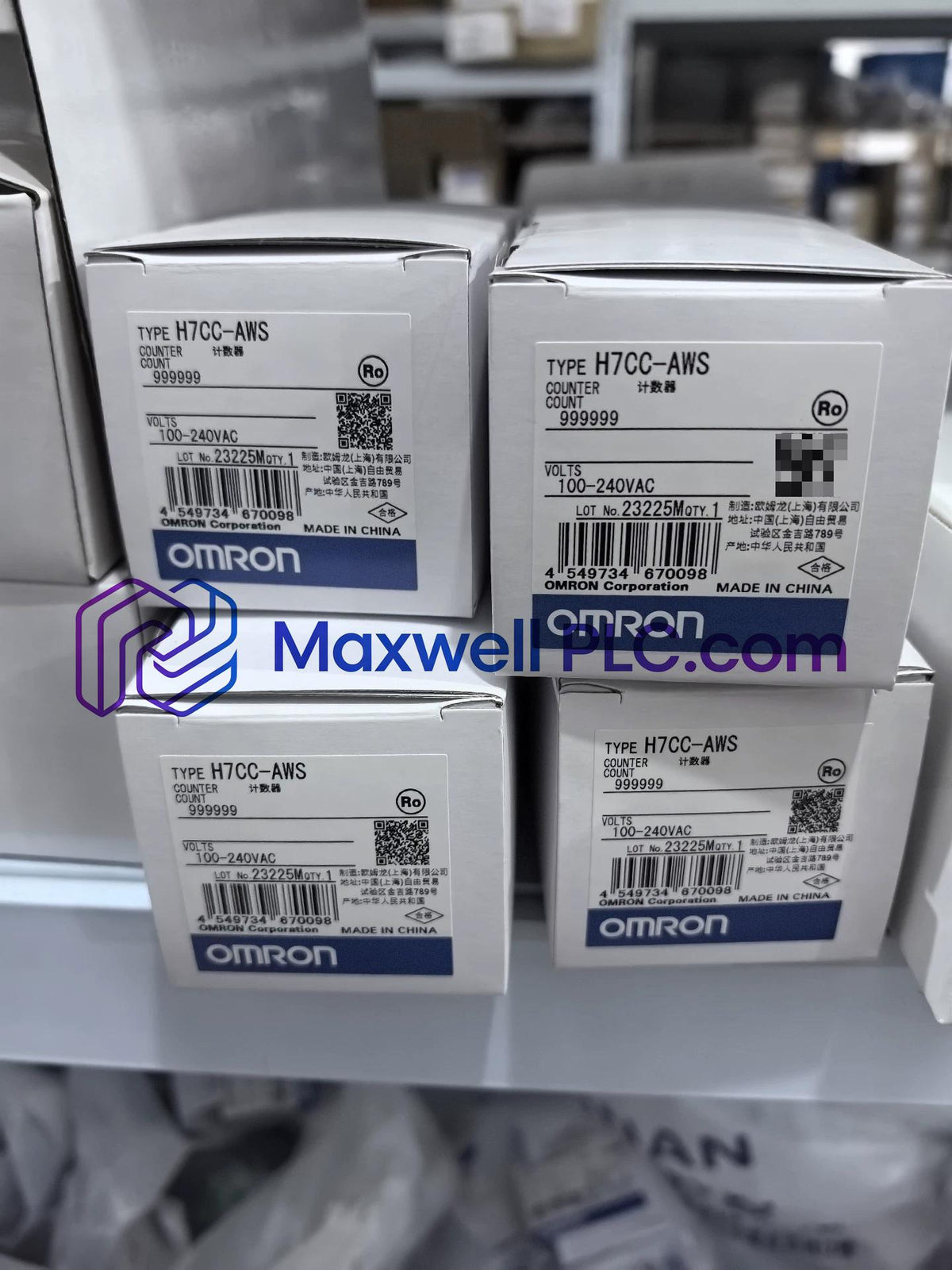

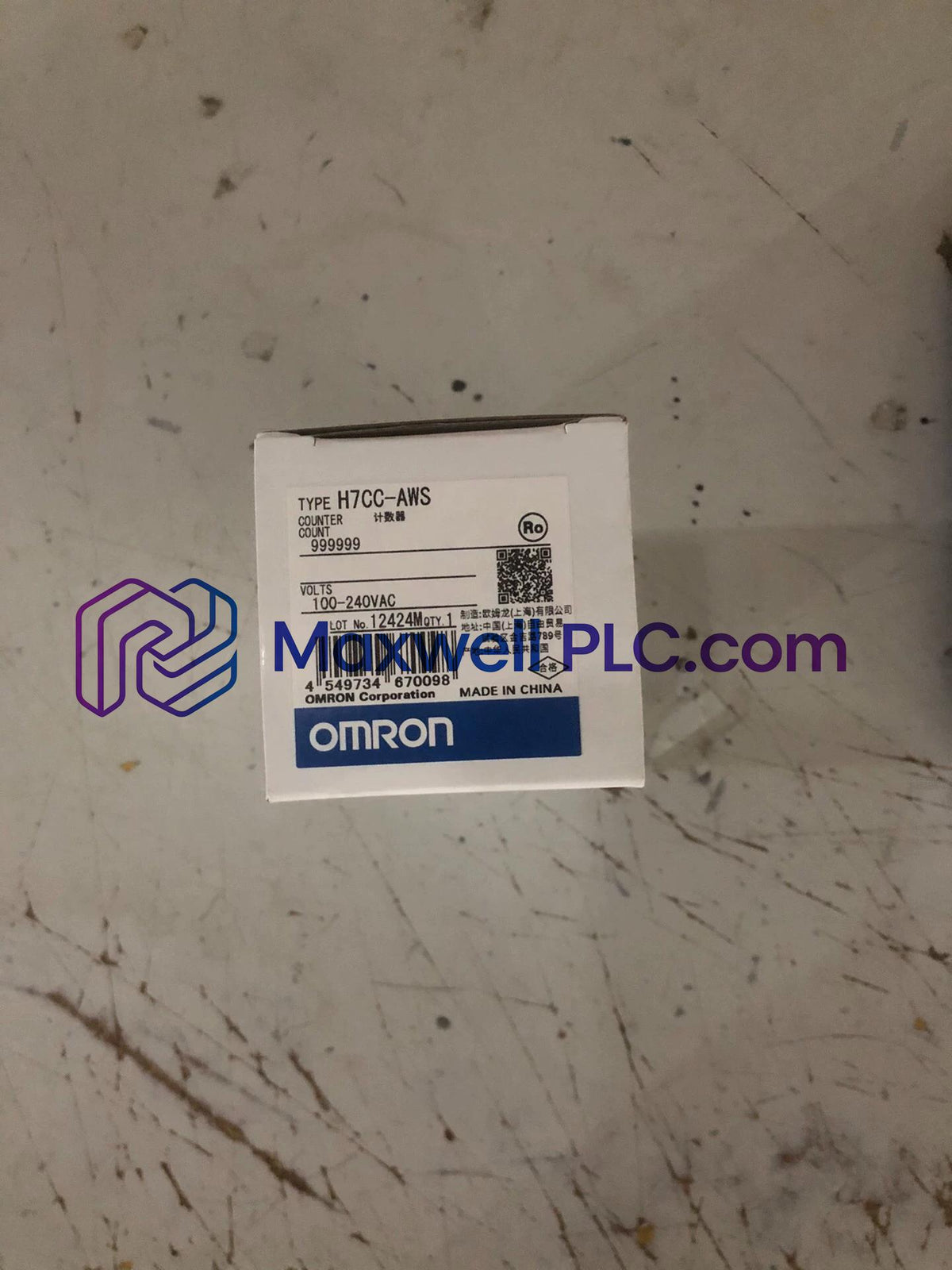

• 1 x Omron H7CC-AWS 6-digit preset counter unit
• 1 x Flush mounting adapter sleeve
• 1 x Waterproof packing gasket
• 1 x Terminal block cover plate
• 1 x Instruction manual sheet

Panel Mounting & Terminal Wiring Protocols

Cutout Assembly & Waterproof Sealing

• Prepare a standard 45 x 45 mm DIN cutout in the enclosure panel face, ensuring clean edges without burrs.
• Fit the rubber gasket over the housing body before pushing the terminal through the panel cutout, then slide the rear mounting adapter forward until firmly locked.

Power & Signal Connection Guidelines

• Connect 100 to 240 VAC operating power to the designated supply terminals using isolated copper conductors.
• Route high-speed sensor input lines in separate shielded conduits away from AC power lines and heavy inductive switching circuits to mitigate signal noise.

Technical FAQs

• What primary operating voltage is supported by the H7CC-AWS counter?

  The unit operates directly on an AC line supply ranging from 100 to 240 VAC at 50/60 Hz.

• What output switching type is integrated into the H7CC-AWS module?

  The hardware utilizes a discrete NPN/PNP transistor output stage configured for 2-stage preset control.

• How many display digits are provided on the front viewing panel?

  The front panel features a 6-digit visual display capable of presenting values from -99999 to 999999.

• Which functional counting configurations can be selected in the setup menu?

  Modes include 1-stage, 2-stage, total/preset, batch, dual, twin counting, and tachometer frequency display.

• How are field signal wires terminated on the rear of the device?

  All electrical connections attach to standard finger-safe screw terminals located on the rear chassis.

• What mechanism retains count data during an AC supply power outage?

  An internal non-volatile EEPROM automatically preserves preset values and active count counts without batteries.

• Does the counter require specific firmware flash compatibility for program loading?

  Internal firmware must match hardware toolchain parameters to support configuration programming and data validation.

• What physical mounting standard does the counter enclosure conform to?

  The device conforms to the standard 48 x 48 mm DIN panel front-mounting footprint.
