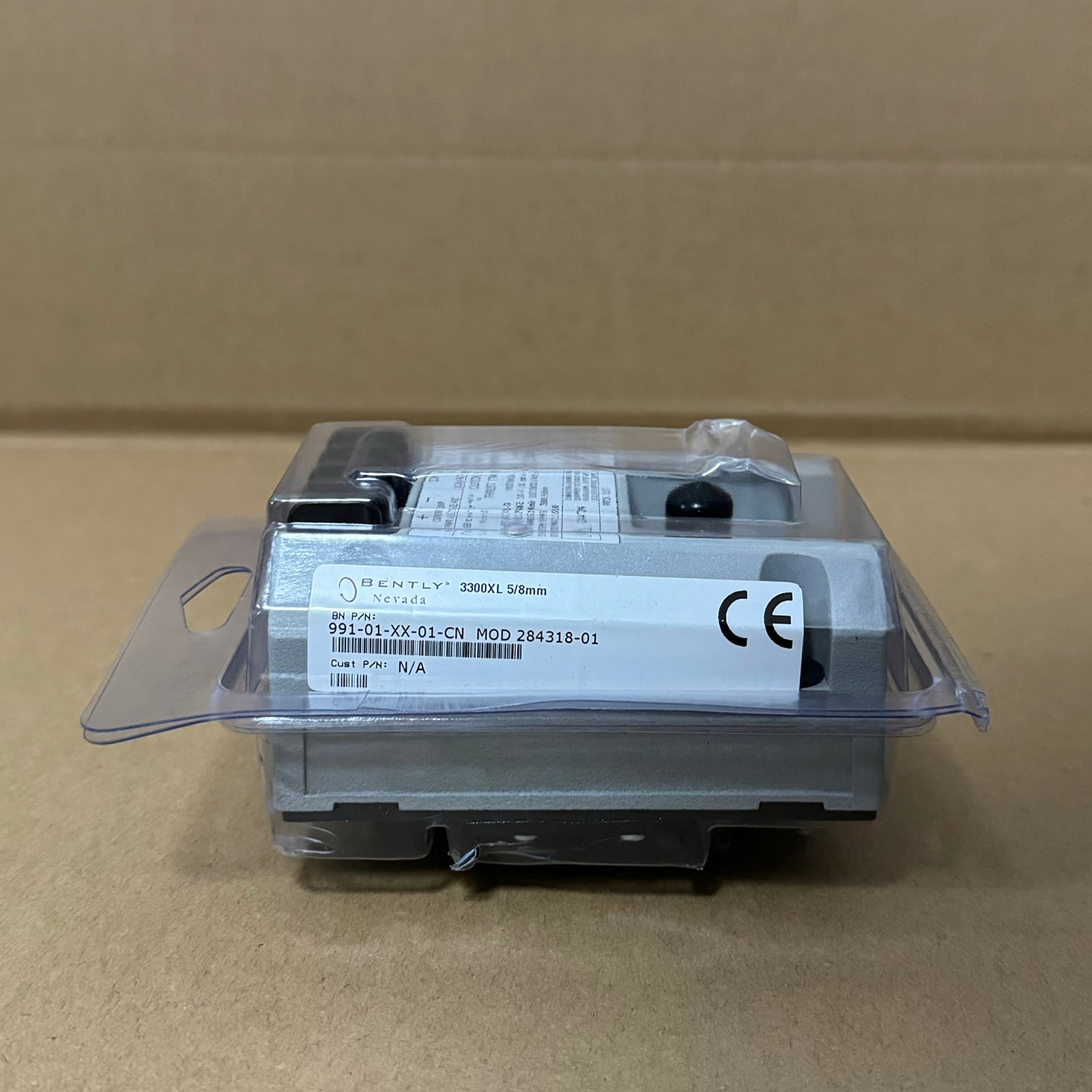

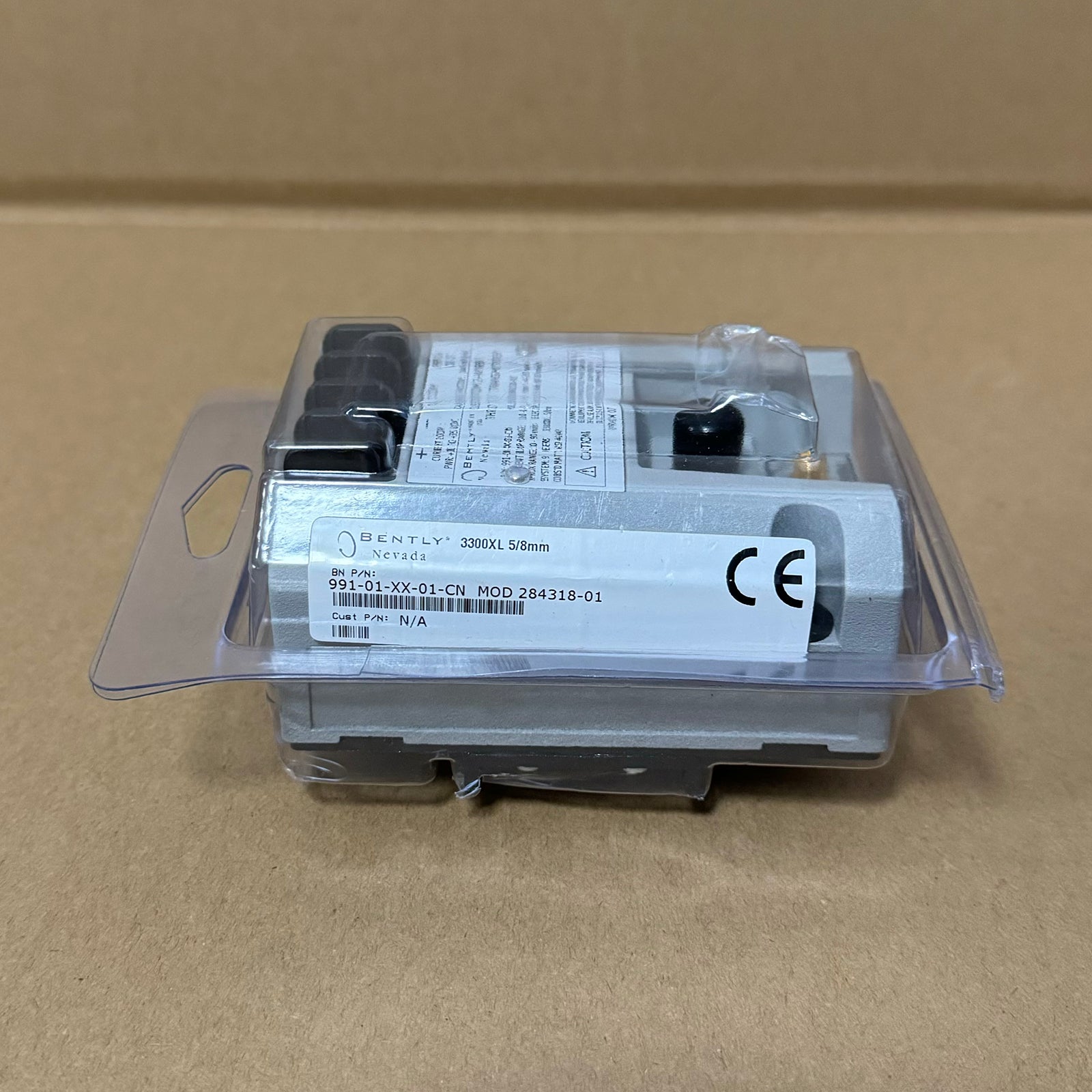

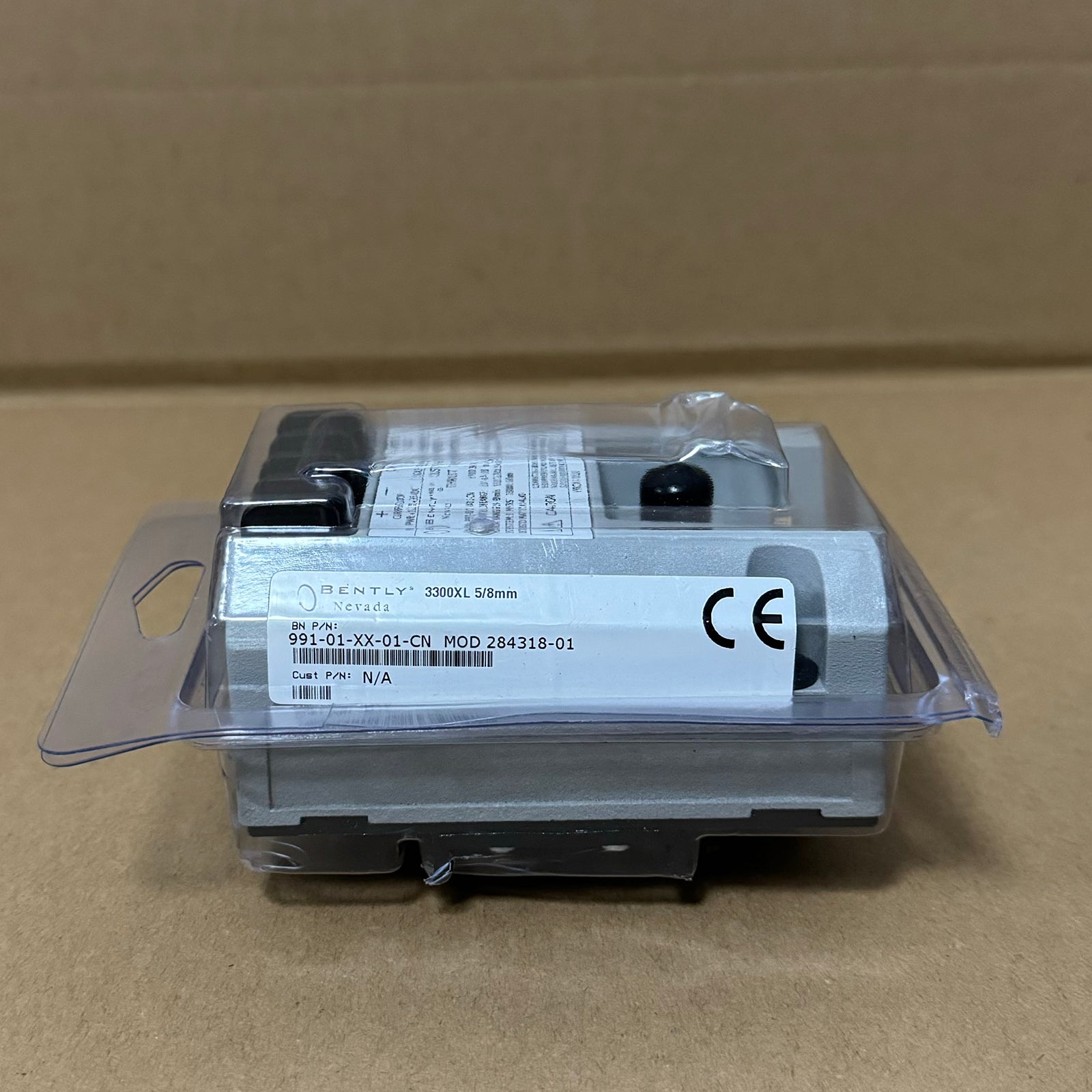

The Bently Nevada 991-25-XX-01-CN, also cataloged as the 991 Thrust Transmitter, operates as a dedicated hardware component for axial position signal conversion within machine monitoring systems.

Suffix Breakdown & Configuration

• 25: 25-0-25 mils measurement range.
• XX: System length options (50: 5.0 m, 70: 7.0 m).
• 01: 35 mm DIN-rail mounting clips.
• CN: Country-specific regulatory configuration.

Hardware Specifications

Mechanical Monitoring and Eddy-Current Scaling

The 991 transmitter performs signal processing for thrust position monitoring, interfacing directly with a 3300 NSv eddy-current probe. The unit manages the probe-to-target gap by maintaining appropriate eddy-current probe scaling to ensure linear output relative to shaft displacement. Field commissioning requires gap voltage validation to ensure the transmitter operates within its defined calibration window, typically centered at -10 VDC. The transmitter's design facilitates cross-talk suppression through optimized internal filtering, which prevents electrical noise coupling between neighboring probe channels in high-density rack environments.

Ordering info

• 1 x 991-25-XX-01-CN Thrust Transmitter
• 1 x DIN-rail mounting kit

Field Installation Guidelines

• Mounting
  • Secure the transmitter to a standard 35 mm DIN-rail in a climate-controlled enclosure.
  • Ensure adequate clearance around the module for thermal dissipation.
• Electrical Termination
  • Connect the transmitter to a +12 VDC to +35 VDC loop power supply.
  • Use shielded cable for the probe input to minimize EMI/RFI interference.
• Calibration
  • Utilize external zero and span potentiometers to calibrate the 4-20 mA output against the target mechanical displacement.

Frequently Asked Questions

• Can this transmitter be used with 8 mm standard probes?

  No. The 991 series transmitter is designed exclusively for 3300 NSv proximity probes due to specific coil frequency matching requirements.

• What is the effect of exceeding the maximum loop resistance?

  Exceeding 1,000 Ohm will cause the 4-20 mA current loop to saturate, resulting in inaccurate thrust readings and potential loop failure.

• Is the zero and span adjustment non-interacting?

  Yes. The external adjustment potentiometers are designed to be non-interacting, allowing for independent calibration of the measurement range.

• How does the transmitter handle current limiting?

  The device features built-in current limiting, capping the output at 23 mA typical to protect the loop circuitry during fault conditions.

• Can the transmitter be mounted in a hazardous area?

  The unit must be installed in a suitable protective enclosure if the area classification requires it; verify your local regulatory compliance.

• How should the shield be grounded?

  The probe shield should be grounded at the transmitter terminal block to provide a continuous path for noise and prevent ground loops.

• Does the transmitter require a separate power supply for the probe?

  No. The 991 transmitter provides the necessary excitation voltage to the 3300 NSv probe via the coaxial cable connection.

• What happens if the gap voltage is outside the linear range?

  The transmitter output will deviate from the linear 4-20 mA scale, likely causing the monitoring system to trigger a "Not OK" or out-of-range alarm.
