PRODUCT OVERVIEW

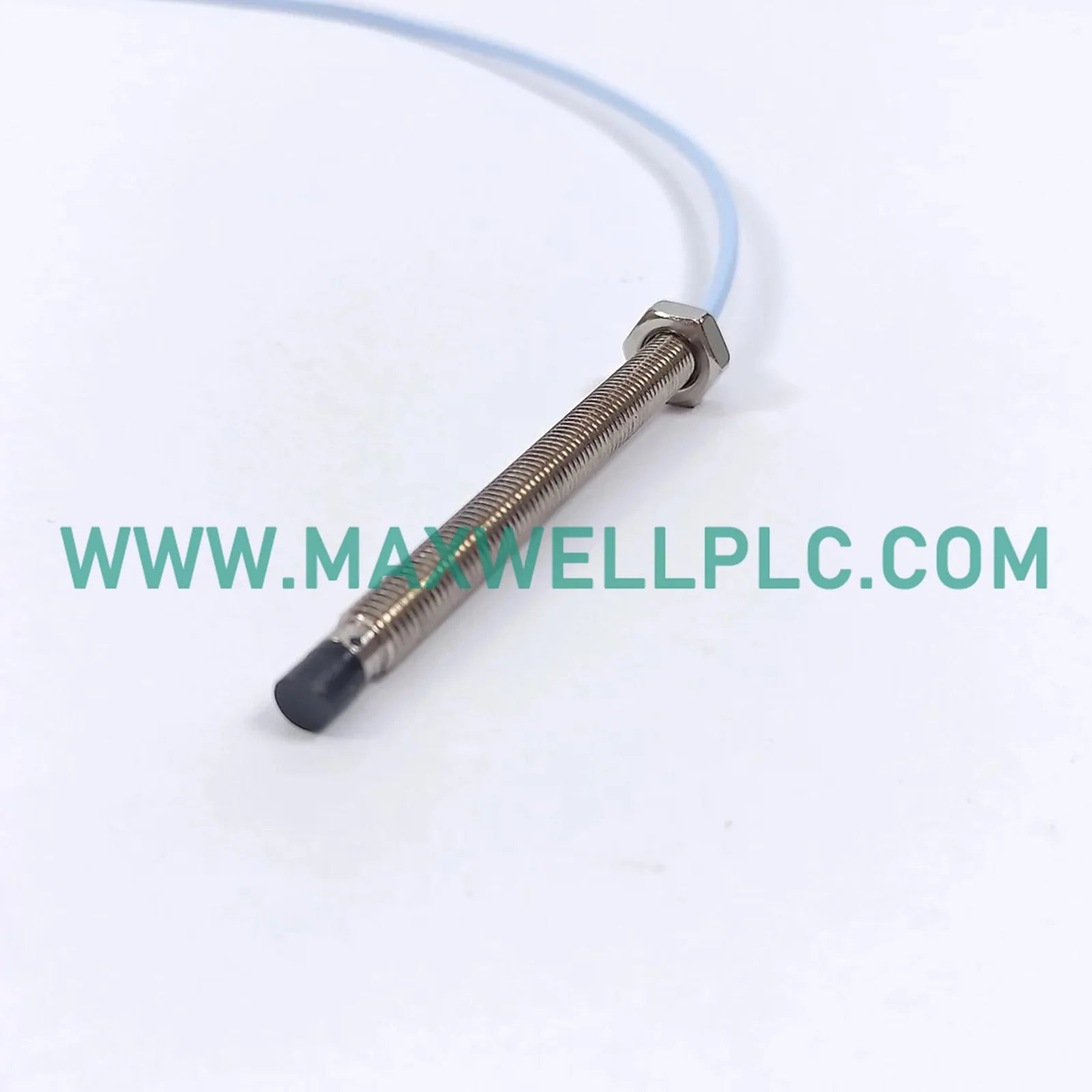

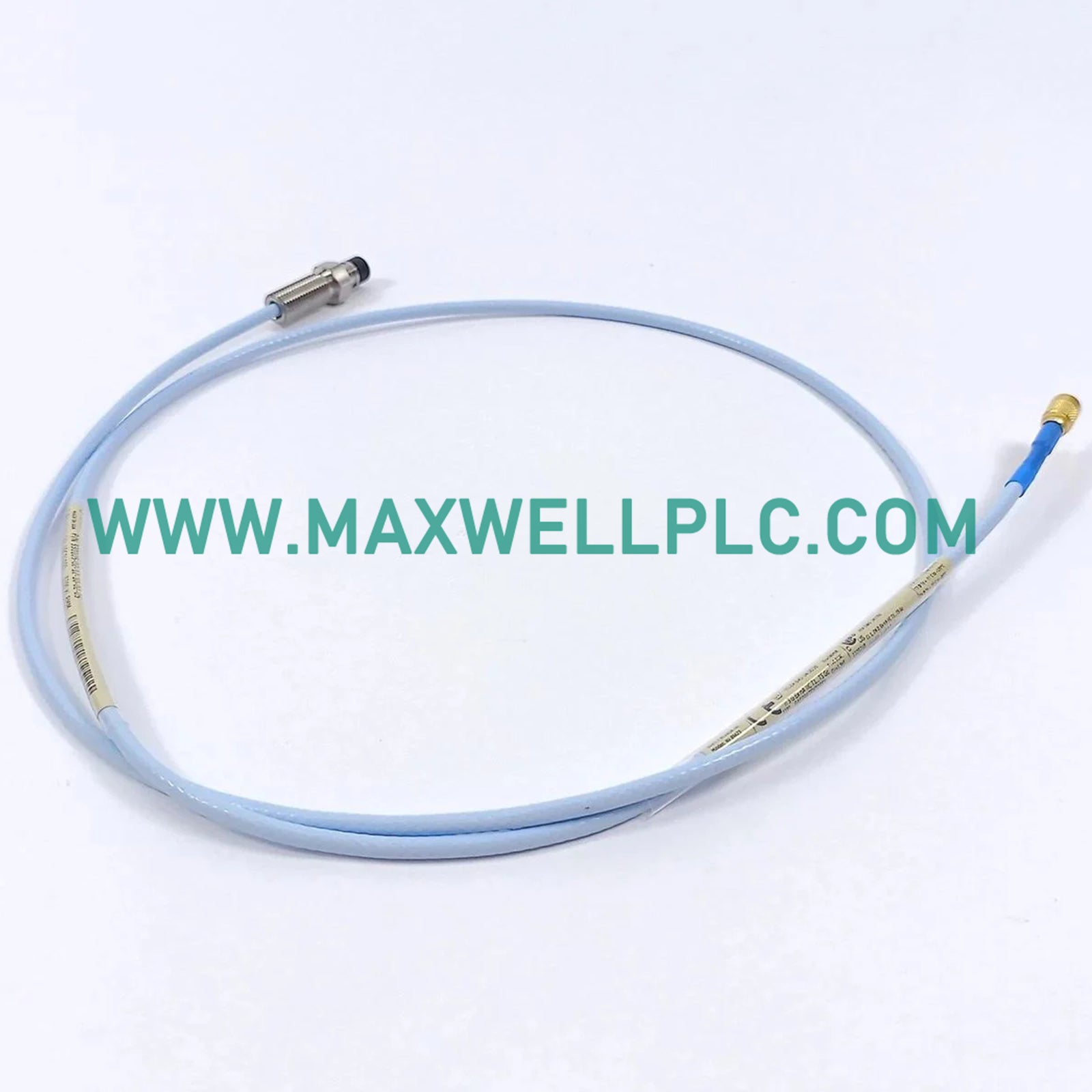

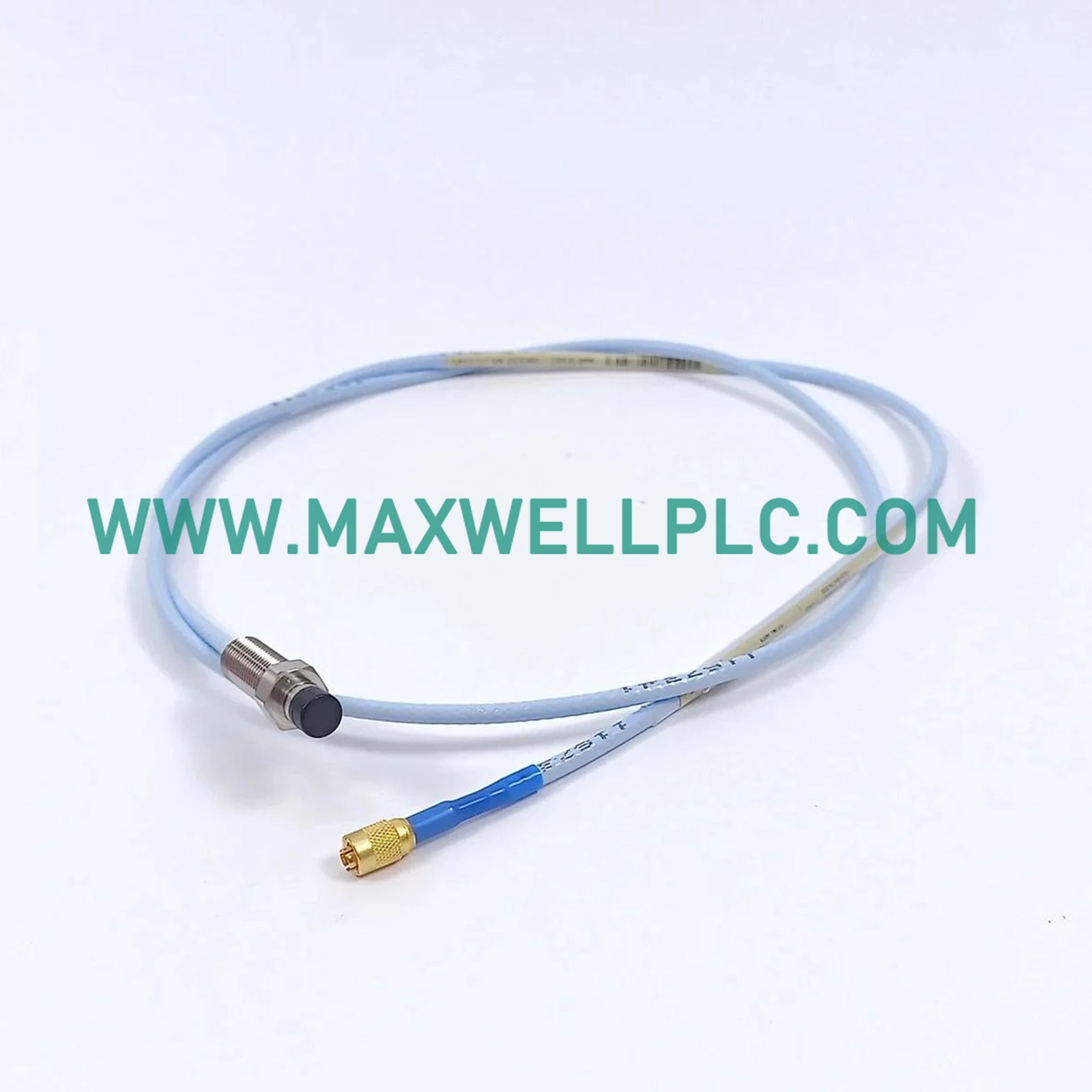

The Bently Nevada 330103-00-07-10-12-05, also cataloged as the 330103-00-07-10-12-05 Proximity Probes, operates as a dedicated hardware component for signal processing or control execution within industrial automation architectures. This transducer system is engineered to provide precise, non-contact measurement of shaft displacement and vibration. By utilizing high-frequency electromagnetic fields, it detects variations in the gap between the probe tip and a conductive target. The unit functions as an integral part of a complete loop, requiring specific impedance matching with the extension cable and Proximitor sensor to maintain accurate signal output and linear response characteristics.

SUFFIX BREAKDOWN

• 330103: 3300 XL 8 mm standard probe
• 00: Unthreaded length (0 mm)
• 07: Overall case length (70 mm)
• 10: Total length (1.0 meter)
• 12: Connector type (Miniature coaxial ClickLoc connector with connector protector)
• 05: Agency approval (CSA/NRTL/C Class I, Div 2)

TECHNICAL SPECIFICATIONS

MECHANICAL MONITORING AND SIGNAL PROCESSING

The 3300 XL system relies on eddy current probe scaling to convert target proximity into a voltage signal. To maintain measurement integrity, technicians must perform gap voltage validation, targeting a -10 VDC bias at the center of the mechanical range. This reference point ensures that the transducer output remains within the linear region for both peak-to-peak vibration measurements and DC shaft position monitoring. In rotating machinery, rotor dynamics analysis depends on this precise scaling. Cross-talk suppression is managed by strictly adhering to installation spacing guidelines to prevent electromagnetic interference between adjacent probes, which can otherwise cause signal distortion and false vibration alarms.

ORDERING INFORMATION

• 1 x 330103-00-07-10-12-05 3300 XL 8 mm Proximity Probe
• 1 x Connector protector (factory installed)
• 1 x Installation datasheet and identification tag

INSTALLATION GUIDELINES

• Grounding: The probe casing and cable shield must be grounded at the monitor end to prevent ground loop currents induced by machine frame electrical potentials.
• Wiring: Do not exceed the minimum bend radius of 25 mm for the coaxial cable to avoid characteristic impedance shifts.
• Shielding: Ensure the coaxial cable is routed in dedicated conduit, separated from high-power AC lines to prevent induced noise.
• Mechanical Mounting: The probe must be mounted rigidly to the machinery bracket. Use the provided locknuts to ensure proper thread engagement and prevent loosening due to machine vibration.
• Environmental: Verify the target material composition, as non-conductive or magnetic materials will shift the probe scale factor and frequency response.

FREQUENTLY ASKED QUESTIONS

Q: Can the probe be hot-swapped while the system is energized?

A: No. Disconnecting the ClickLoc connector under power can cause transient voltage spikes in the Proximitor circuit and may result in erroneous vibration readings.

Q: How does the cable length affect system calibration?

A: The probe, extension cable, and Proximitor are matched as a tuned system. Changing the cable length alters the LC resonant frequency, rendering the factory-calibrated scale factor invalid.

Q: Is the probe tip sensitive to high ambient temperatures?

A: The PPS probe tip is rated for operation up to 177 deg C. Exposure exceeding this threshold will permanently degrade the electrical characteristics of the coil assembly.

Q: How is signal isolation maintained?

A: The probe system is galvanically isolated from the probe casing ground via the Proximitor interface, which prevents potential differences between the shaft and machine frame from affecting output.

Q: What is the purpose of the 7.87 V/mm scale factor?

A: This scale factor represents the standard output voltage change per unit of distance for 8 mm proximity systems, ensuring compatibility with Bently Nevada monitoring hardware.

Q: Can the coaxial cable be shortened in the field?

A: No. The cable is factory-molded to the probe. Any field modification will introduce impedance discontinuities, causing high-frequency reflections and signal inaccuracy.

Q: What causes non-linear output at the end of the range?

A: Non-linearity occurs when the probe tip reaches the saturation point of the eddy current field or physical contact with the target, typically beyond the 2 mm linear range.

Q: How do I identify a faulty probe connection?

A: A faulty connection is typically identified by an out-of-range gap voltage (typically approaching 0 V or -24 V DC) at the Proximitor output terminal.
