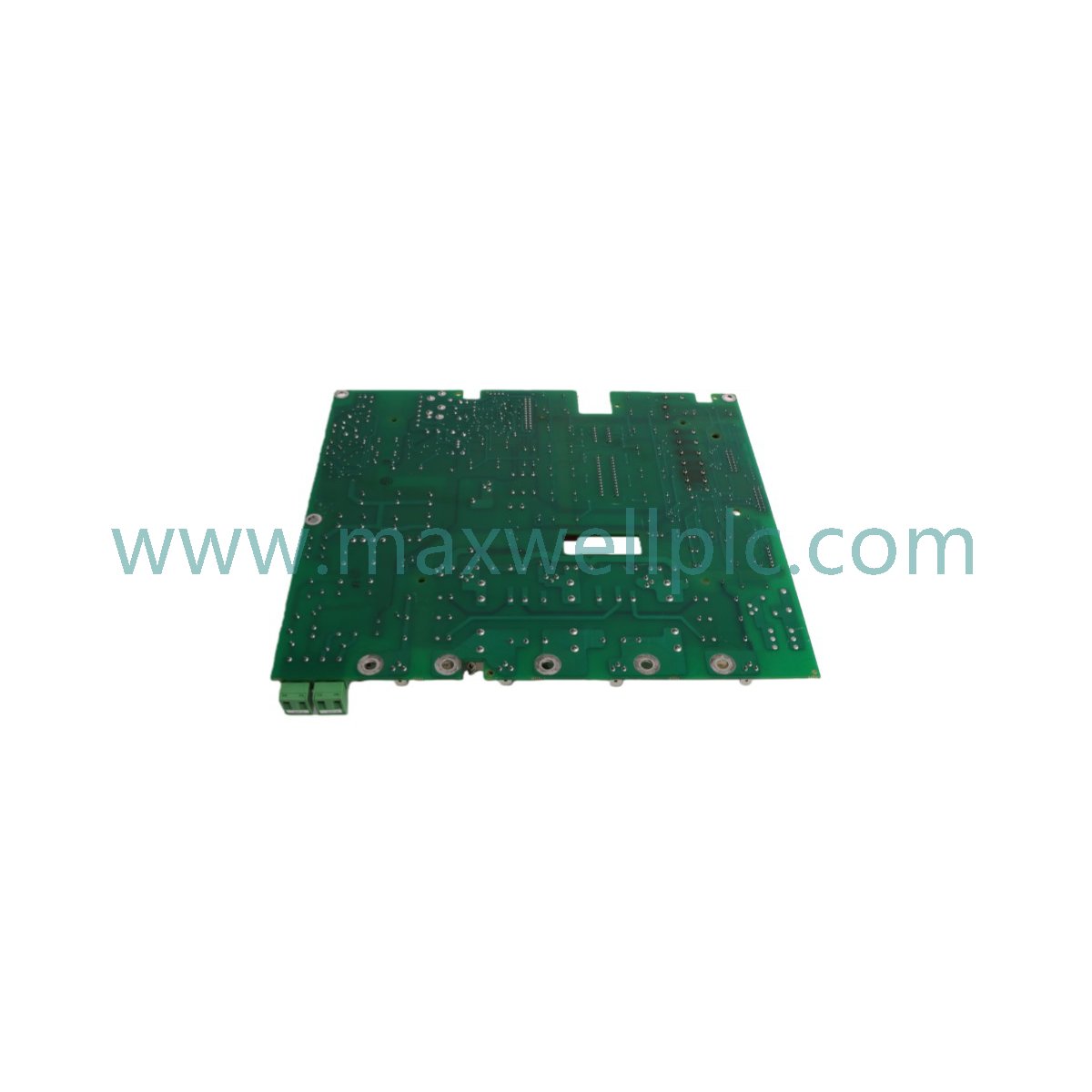

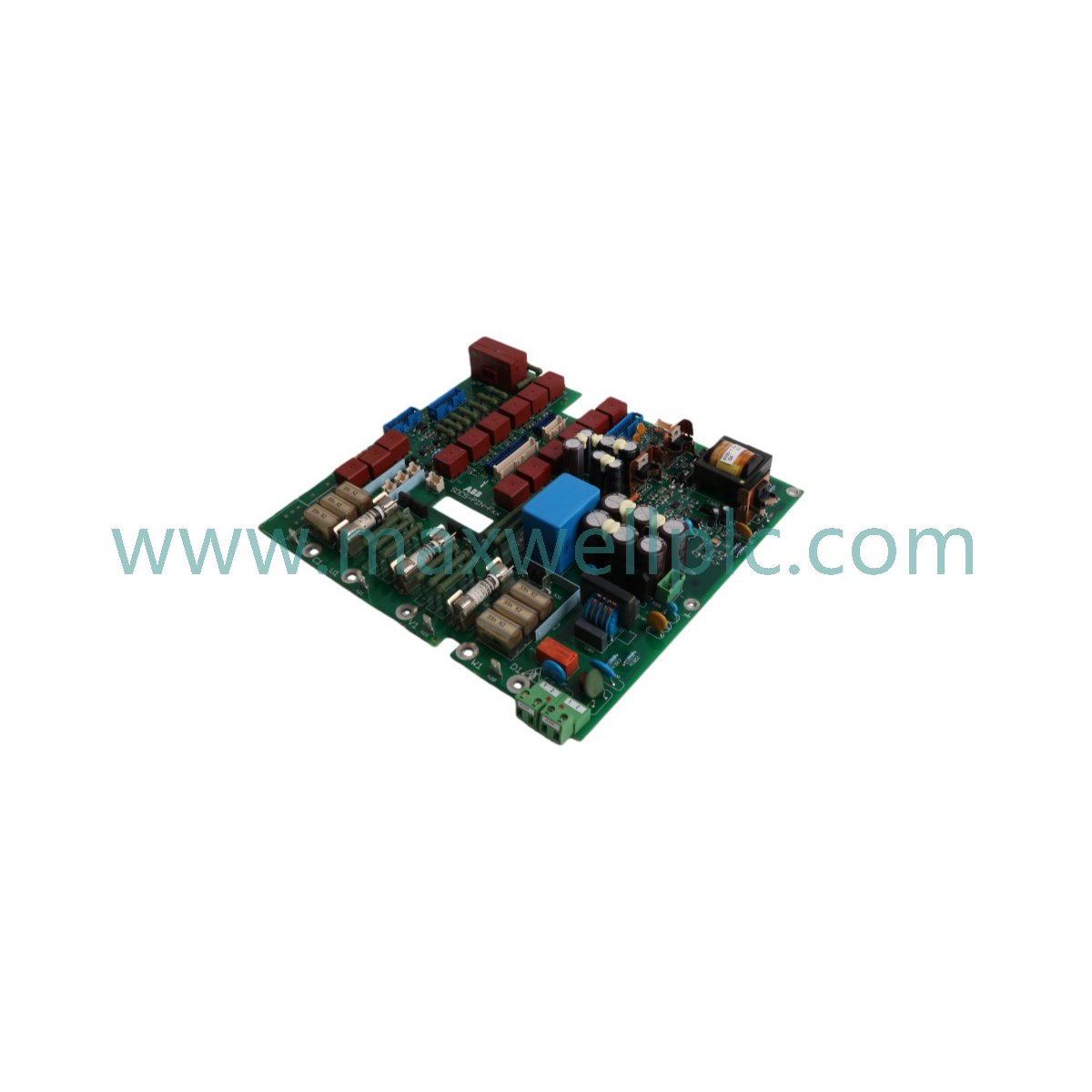

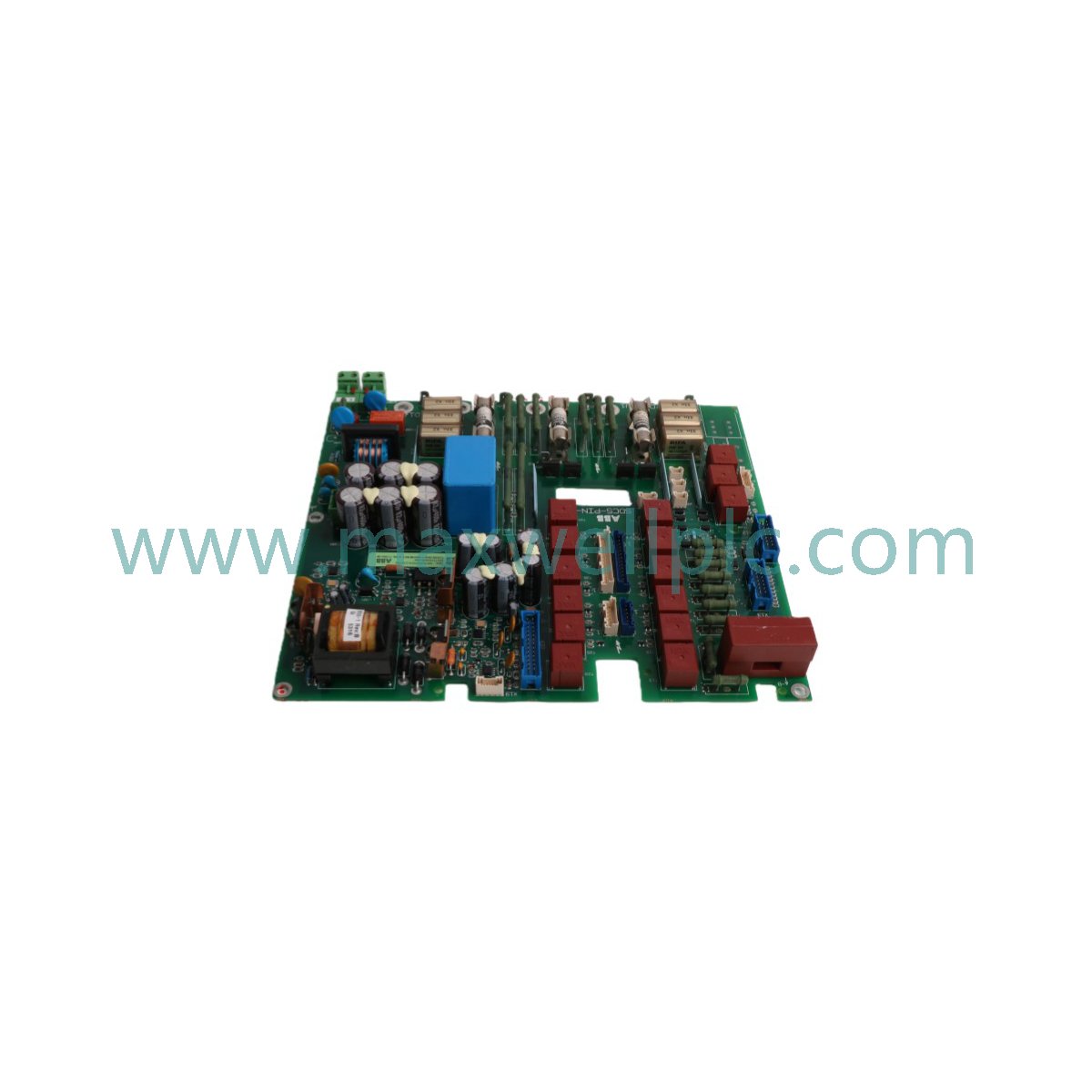

3ADT316300R1502 ABB SDCS-PIN-F01A Drive Board DCS550

SKU: 3ADT316300R1502
Categories : ABB
In Stock
  • Dimensions: 24 x 19 x 5.3cm
  • Country of origin: Sweden
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Configured for power conversion and control signal management in DCS550 drive systems, the ABB 3ADT316300R1502 (SDCS-PIN-F01A Drive Board) provides direct physical execution of thyristor firing pulse generation. This hardware component functions as the primary interface between the drive control electronics and the power stack, ensuring gate signal timing and electrical isolation.

Suffix Breakdown

The SDCS-PIN-F01A (3ADT316300R1502) is a specific interface board designed for the DCS550 platform. It supports both 2-Q and 4-Q drive configurations, with hardware requirements scaling based on the specific power stack architecture—single board for 2-Q and dual board configuration for 4-Q applications.

Hardware Specifications

Parameter Specification
Model 3ADT316300R1502 SDCS-PIN-F01A
Brand ABB
Origin Sweden
Weight 1.22 kg
Shipping Dimensions 24.0 x 19.0 x 5.3 cm
Operating Temp 0 deg C to 70 deg C
Power Consumption 5 - 15 W
Electrical Isolation 1500 - 2500 V AC

ABB Industrial Control & Drive Communication

The SDCS-PIN-F01A board utilizes deterministic communication paths to ensure firing pulse synchronization with the drive control logic. It features firmware flash compatibility, allowing for updates to control algorithms and pulse-width modulation strategies. The board supports I/O density scaling within the drive cabinet, ensuring precise current regulation and field-oriented vector control execution. Its integration with Ethernet-based network topologies enables real-time diagnostic reporting and status monitoring of the power stack through the DCS550 control system.

## Ordering info

  • 3ADT316300R1502 SDCS-PIN-F01A Drive Board.

  • Interface and technical integration manual.

  • Anti-static protective shipping container.

Field Installation Guidelines

Mounting

  • Secure the board within the DCS550 drive assembly using the designated stand-offs to maintain required clearance.

  • Ensure all backplane connectors are fully seated to prevent intermittent signal paths during operation.

Wiring

  • Route control and power wiring through separate conduits to maintain the integrity of the 1500 - 2500 V AC isolation barrier.

  • Verify proper terminal connections to the thyristors or BCTs before applying control power to the drive stack.

Frequently Asked Questions

  • Q: Is this board compatible with both 2-Q and 4-Q DCS550 drives?

    A: Yes. A single board is used for 2-Q configurations, while 4-Q configurations require two boards to manage the additional power stack components.

  • Q: Can I replace this board while the drive is powered?

    A: No. All power must be disconnected from the drive and the board must be fully de-energized to prevent electrical shock or hardware damage.

  • Q: What is the purpose of the 2500 V AC isolation?

    A: The isolation protects the low-voltage control logic (3.3 V / 5 V) from the high-voltage potential of the power stack during thyristor firing.

  • Q: Does the board require manual calibration?

    A: No. The board functions as a pulse interface; all firing parameters are managed by the DCS550 control software and firmware.

  • Q: How do I identify a communication error with the board?

    A: Errors are reflected in the DCS550 drive diagnostic registers, which can be monitored via the Ethernet interface or the local control panel.

  • Q: Is this board sensitive to ambient humidity?

    A: It is designed for operation in environments with 5 - 95 % non-condensing humidity; verify panel seals if operating near the upper limit.

  • Q: Can I use this board in drives other than the DCS550?

    A: No. The SDCS-PIN-F01A is engineered specifically for the DCS550 drive architecture and is not interchangeable with other series.

  • Q: What should I check during periodic maintenance?

    A: Inspect terminal blocks for signs of oxidation or looseness and ensure that the board surface is free of accumulated dust or conductive debris.
