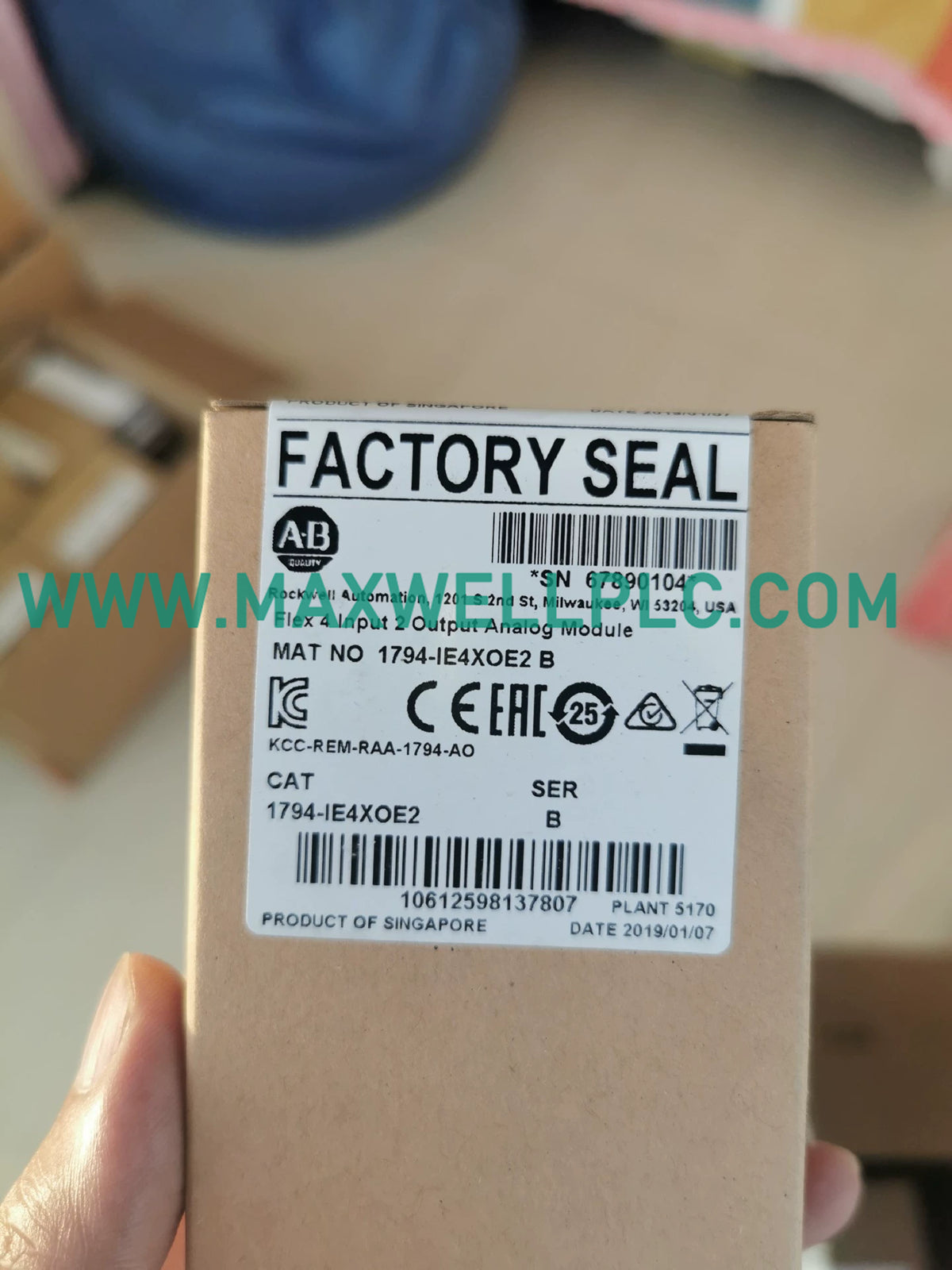

Configured for concurrent multi-channel analog signal acquisition and loop actuation in automation networks, the Allen-Bradley 1794-IE4XOE2 (1794-IE4XOE2 Analog Combination Module) provides direct physical/electrical execution. The instrument converts continuous industrial current or voltage sensor variants via a 12 bit internal resolution conversion pipeline. It transfers digitized metrics across the localized rack infrastructure directly to the designated interface adapter or centralized process manager while driving real-time control variables to field actuation equipment.

Structural Label Definition

The specific alphanumeric identifier tracks the functional scaling and mechanical layout of the internal conversion matrix. The initial code string "1794" determines physical layout compliance with standard industrial modular FLEX I/O termination base configurations. The parameter code "IE4" designates 4 independent high-resolution input tracking loops, the connecting variable "X" indicates a mixed combination topology, and the suffix "OE2" verifies 2 integrated analog voltage or current sourcing channels.

Performance Properties

Deterministic Sub-Bus Logic

The modular internal hardware acts in alignment with backplane bus communication velocity Licences criteria to secure steady signal refresh periods across multi-channel I/O configurations. Data registers interface with the remote or local chassis bus logic without producing data conversion delays or buffer dropouts. The device circuitry follows precise factory tracking properties to guarantee complete firmware flash compatibility with upstream EtherNet/IP or ControlNet interface modules.

Factory Shipment Items

• 1 x 1794-IE4XOE2 analog combination hardware unit
• 1 x technical data sheet for field instrumentation wiring

Grounding & Panel Mounting Guidelines

• DIN Rail Attachment Sequence

  Rest the upper alignment hook of the IP20 chassis over the upper edge of the standard DIN rail, then drive the lower component section downward until the spring latch clicks.

• Terminal Base Insertion Path

  Align the structural guide keys on the module lower panel with the matching grooves on the terminal base block, pressing straight down to engage the multi-pin connector.

• Analog Loop Conductor Routing

  Strip the signal wires and terminate the loop circuits into the appropriate channel terminals, separating low-level analog inputs from high-frequency power switching links.

• Equipotential Shield Path Bonding

  Direct all instrument cable shield links to the designated terminal base grounding bar, maintaining a low-impedance connection from the DIN rail to the main panel earth bus.

Frequently Asked Questions

• What direct physical limits restrict the hot-swapping sequence of this combination card?

  Removal and Insertion Under Power (RIUP) is supported when using a compatible terminal base, but external 24 VDC loop paths must be isolated to protect the connection pins from electrical arcing.

• How does the 12 bit digital converter handle conversion scaling between current and voltage profiles?

  The internal microcode segments the analog current or voltage range into specific integer steps based on the channel layout values assigned in the master controller project tree.

• Does this analog module execute built-in channel-to-channel isolation between the 4 input paths?

  No. The input channels share common return pathways through the internal field-side circuitry, requiring proper wiring consideration to prevent ground loops across field sensors.

• What state failure signature occurs at the main processor if the remote rack bus link encounters an error?

  A bus communication dropout forces the network adapter to flag a slot timeout error, shifting the analog outputs to their programmed safe states or unpowered parameters.

• What physical step resets a channel error after clearing an external current loop shorted condition?

  The module automatically reads the active analog field signal parameters once the external electrical short is removed, updating data words without a manual hardware reset.

• How does concurrent activation of all inputs and outputs affect thermal dissipation inside the housing?

  Running all 6 channels under maximum voltage or current load elevates localized heat generation, requiring compliance with the 55 deg C operating limit and panel clearance spaces.

• Can this module track non-linear high-speed signal inputs from vibration tracking sensors?

  No. The internal 12 bit converter is designed for steady process loops like flow, pressure, and level, making it unsuitable for high-frequency turbine tracking or vibration signals.

• What approach fixes an electronic keying verification error during module version replacement?

  The software engineer must update the I/O configuration setup inside the PLC application to verify correct firmware flash compatibility values match the physical module label.
