Product Overview

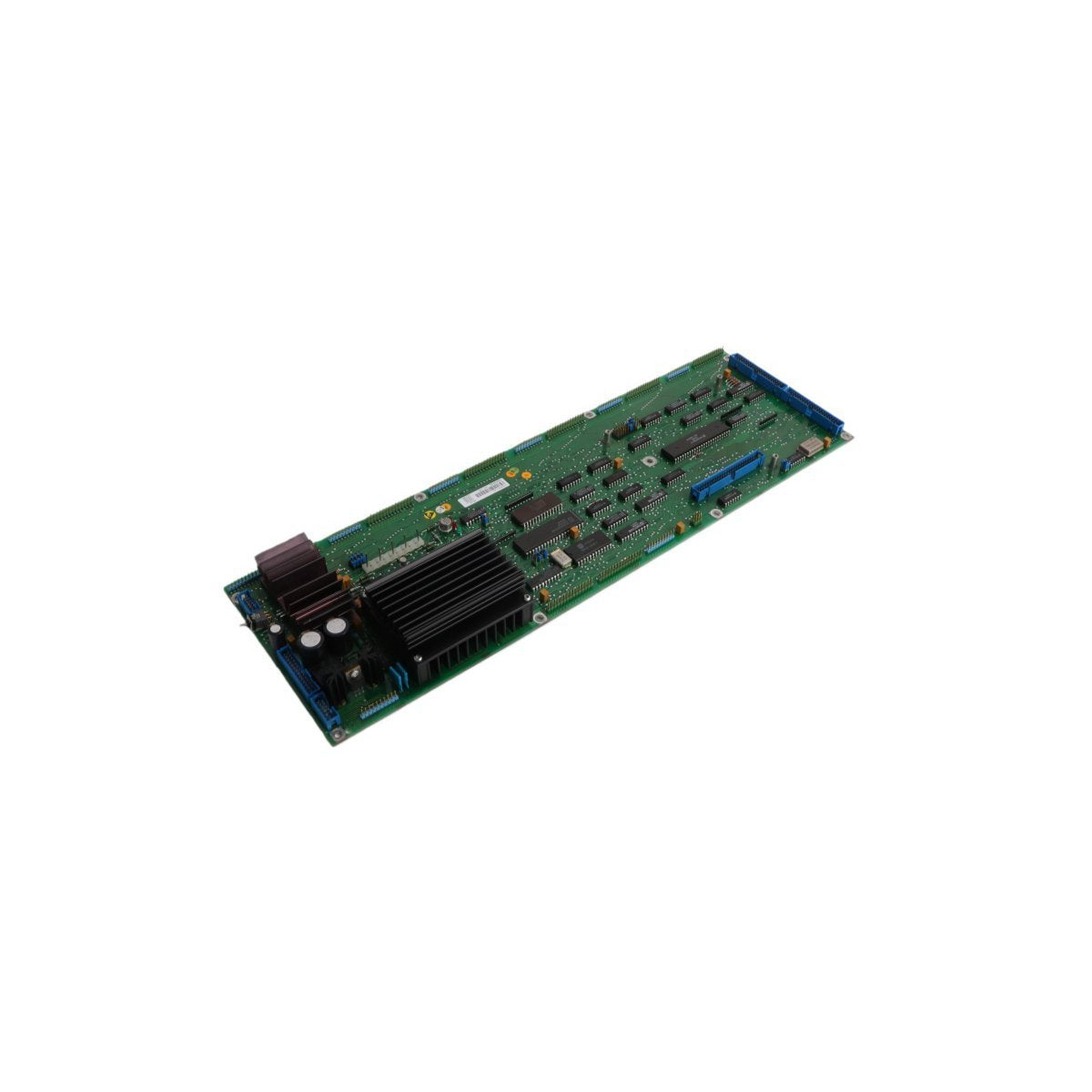

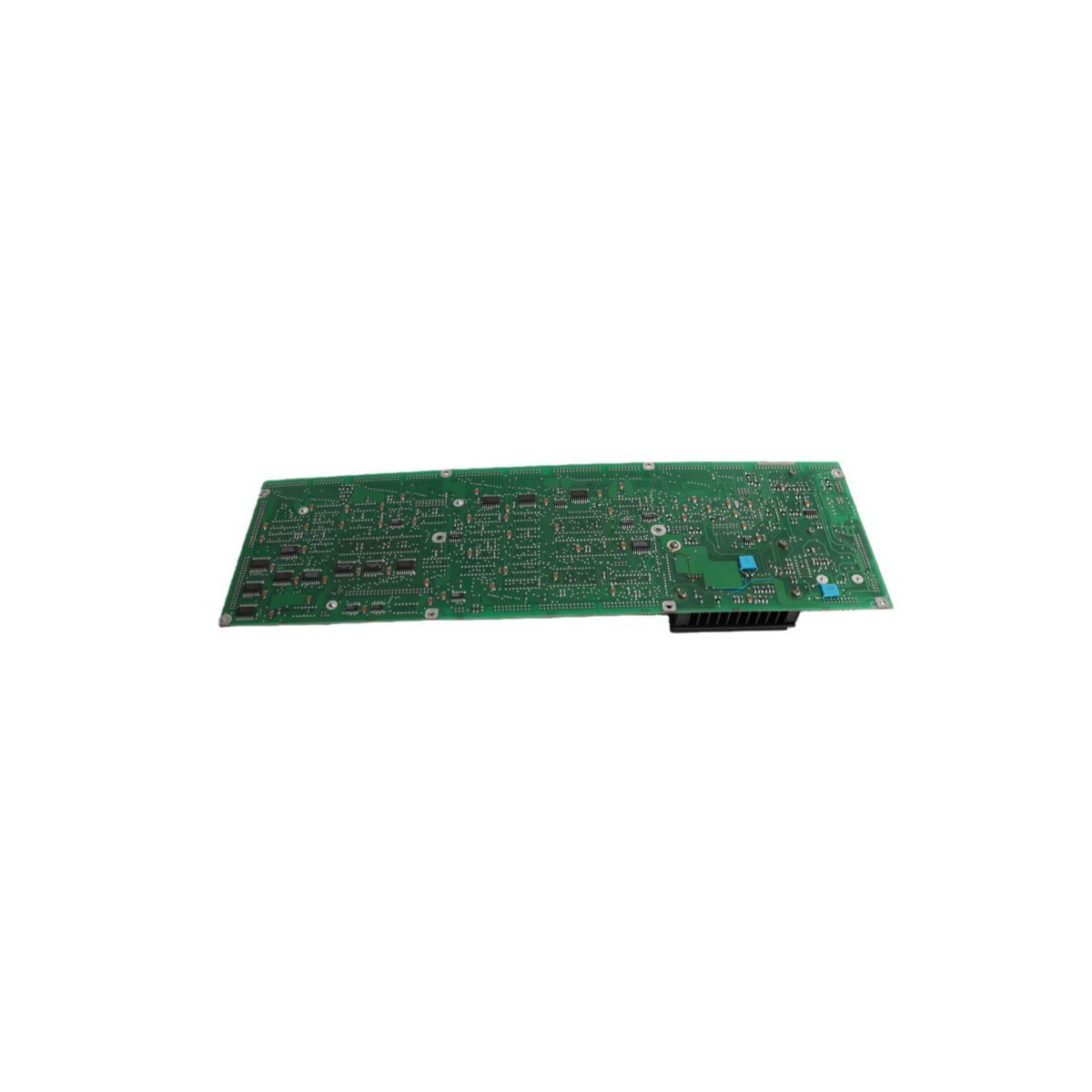

The ABB YPP105F, cataloged under part number YT204001-JN, is a high-performance industrial computer unit and robotic control card designed for the Advant OCS and 800xA distributed control architectures. This sophisticated PC board serves as a localized computational engine, managing complex multi-axis motion sequences and high-density I/O signal processing. By integrating a dedicated processor with onboard memory, the YPP105F offloads real-time logic execution from the primary controller, ensuring zero-latency responsiveness for precision robotics and high-speed automation tasks. Its ruggedized Swedish design is specifically tailored to maintain system stability in environments characterized by significant electromagnetic interference and continuous duty cycles.

Key Technical Characteristics and Hardware Parameters

The YPP105F architecture is optimized for high-speed data throughput and seamless backplane integration within ABB controller racks.

• Model Identification YPP105F

• Part Number YT204001-JN

• Module Category Robotic Control Card / PC Computer Unit

• Onboard Memory Integrated high-speed RAM for real-time buffer management

• Processing Capability 32-bit architecture optimized for motion control algorithms

• System Compatibility Advant OCS, Advant-800xA, and ABB Robotic Controllers

• Input/Output Management Multi-channel signal handling for sensors and actuators

• Communication Interface Standardized bus connectivity for Ethernet and serial routing

• Physical Mass 1.22 kg

• Module Dimensions 24 x 19 x 5.3 cm

• Manufacturing Origin Sweden

• Environmental Tolerance Designed for vibration-heavy industrial settings

Industrial Applications and Operational Use Cases

The YT204001-JN is a critical component for facilities requiring advanced trajectory planning and synchronized automation.

• High-Precision Robotic Assembly Controlling the intricate movements of ABB robotic arms in electronics or automotive assembly lines, where millimetric accuracy is required.

• Complex Motion Interpolation Managing multi-axis synchronization for CNC-style machining or specialized material handling equipment.

• Distributed Processing in DCS Serving as a localized "smart" node in an 800xA system to process high-frequency signals before transmitting data to the central server.

• System Modernization Acting as a drop-in upgrade for legacy Advant OCS systems to enhance computational speed and memory capacity without a full system overhaul.

• Automated Palletizing and Logistics Coordinating high-speed sorting and packing robots in large-scale distribution centers to maximize throughput and minimize downtime.
