Product Overview

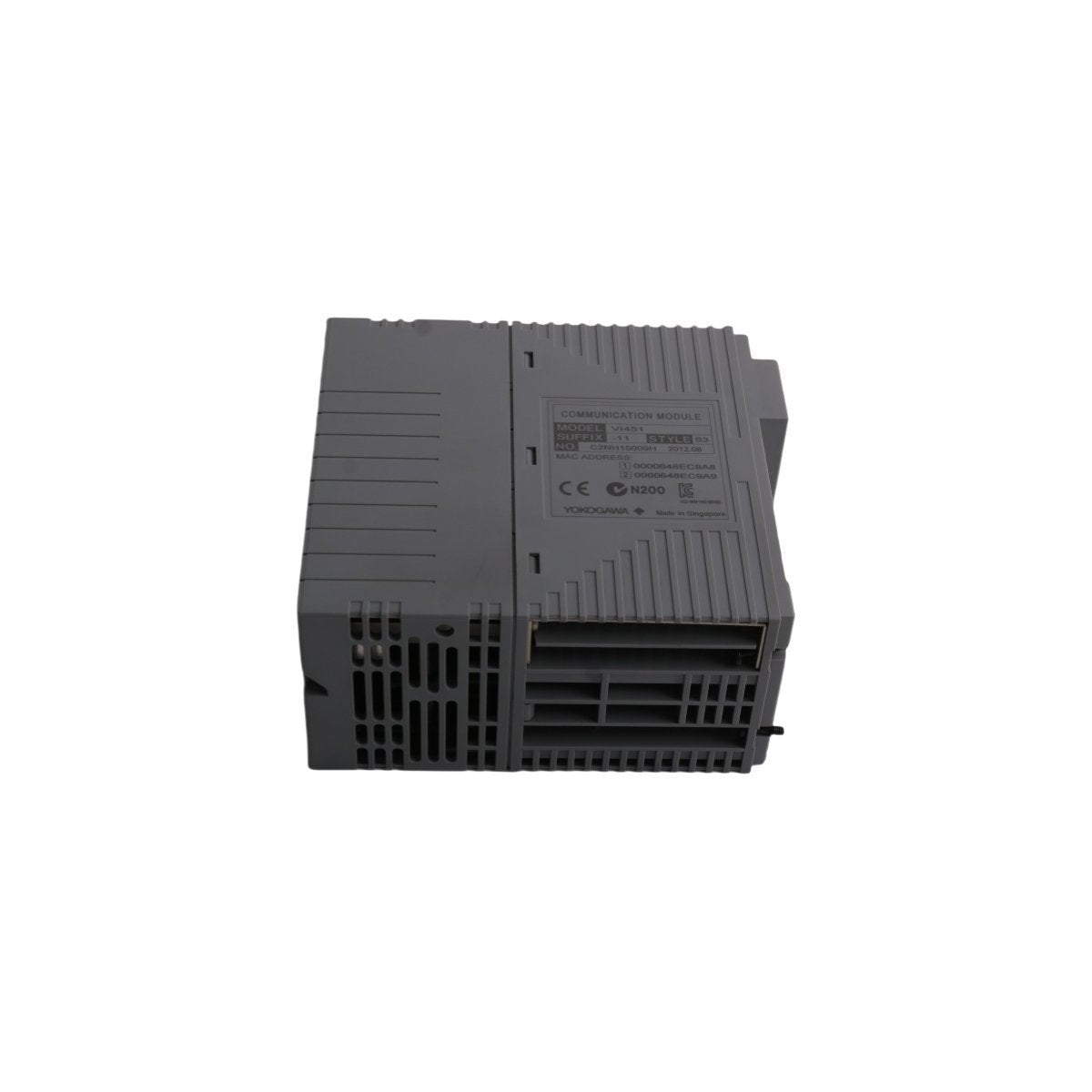

The Yokogawa VI451-11 is a high-performance Vnet/IP Communication Module designed specifically for the CENTUM VP Distributed Control System (DCS). This module serves as a sophisticated Sequence of Events (SOE) manager, providing the capability to capture, timestamp, and record discrete state changes across the industrial network with ultra-high precision. By integrating directly with the Vnet/IP control bus, the VI451-11 enables plant operators to reconstruct the exact timeline of events leading up to a system trip or process upset.

Unlike standard communication cards, the VI451-11 is optimized for high-speed data acquisition, offering a 1-millisecond resolution for event logging. This level of detail is essential for root cause analysis (RCA) in safety-critical environments such as power plants, refineries, and chemical processing facilities. The module ensures that all captured SOE data is perfectly synchronized across the entire system, allowing for a unified view of process alarms and mechanical failures through the Human Interface Station (HIS).

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: VI451-11

• Module Type: Vnet/IP Communication Interface

• Timestamp Resolution: 1 millisecond

• Network Protocol: Vnet/IP (Gigabit Ethernet based)

• Time Synchronization: SNTP (Simple Network Time Protocol) support

• Redundancy: Supports dual-redundant Vnet/IP configurations

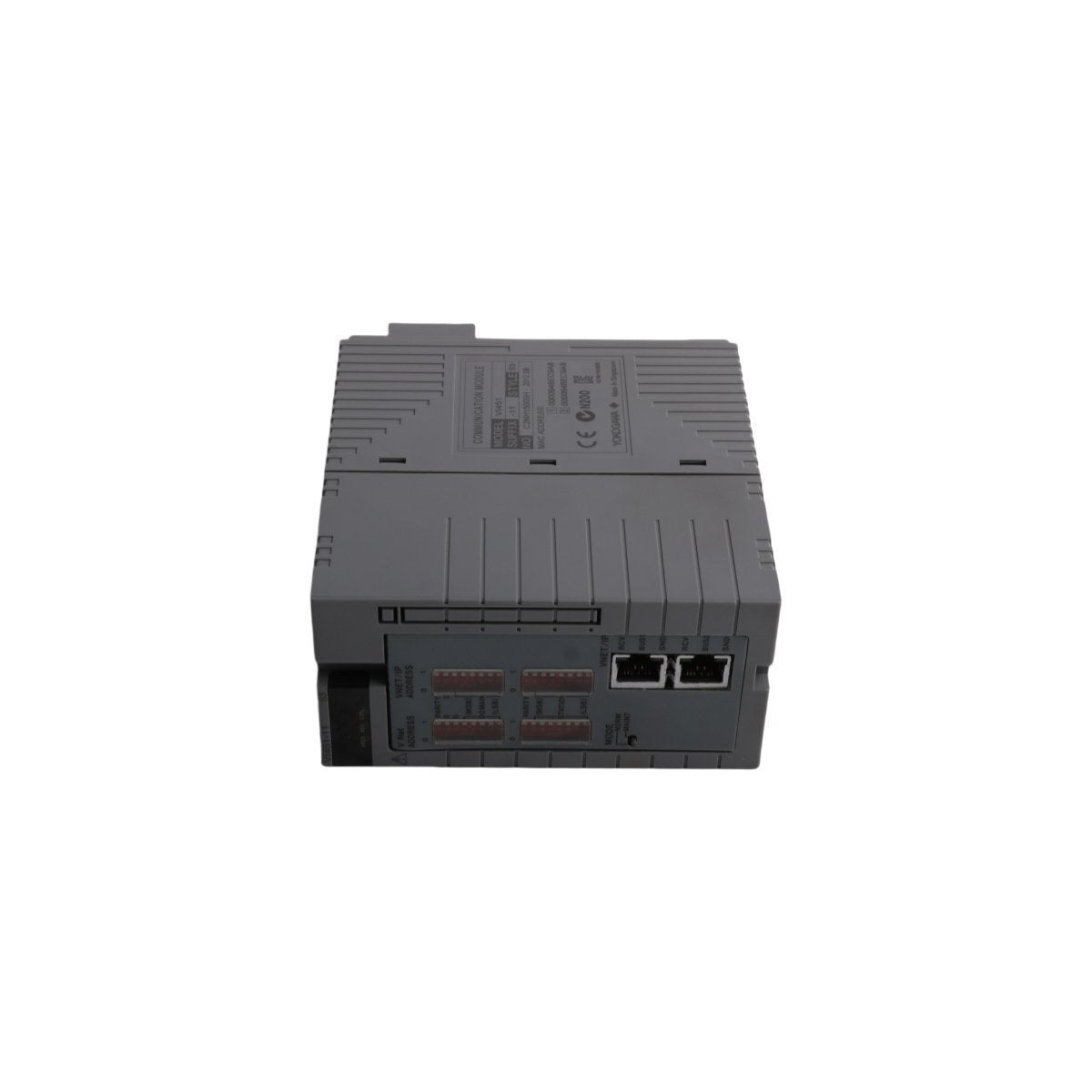

• Interface: Dual 1000Base-T Ethernet ports

• Weight: 0.74 kg

• Dimensions: 32.8 mm x 141.5 mm x 200 mm

• System Integration: Fully compatible with CENTUM VP and ProSafe-RS

• Origin: Japan

Key Technical Characteristics

• Precision Event Chronology: Records discrete inputs at 1-ms intervals, providing the granular data required to distinguish between cause and effect during high-speed industrial sequences.

• Unified Diagnostic Visibility: Seamlessly integrates SOE messages with standard process alarms, allowing engineers to view a single, chronological report of all system activities on any Ethernet-connected PC or HIS.

• Seamless Network Synchronization: Leverages Vnet/IP architecture to maintain time consistency across distributed control nodes without the need for additional specialized synchronization hardware.

• Automated Trip Reporting: Includes logic for user-defined triggers that automatically generate detailed trip reports, which can be exported to Exaquantum or other OPC-compliant plant information systems for long-term storage.

• Industrial Reliability: Engineered for continuous operation in demanding environments, ensuring that critical data is captured even during major plant upsets or power fluctuations.

• Dual-Purpose Functionality: Beyond event recording, the captured signals remain available for real-time control and monitoring, maximizing the utility of the hardware within the DCS environment.
