Product Overview

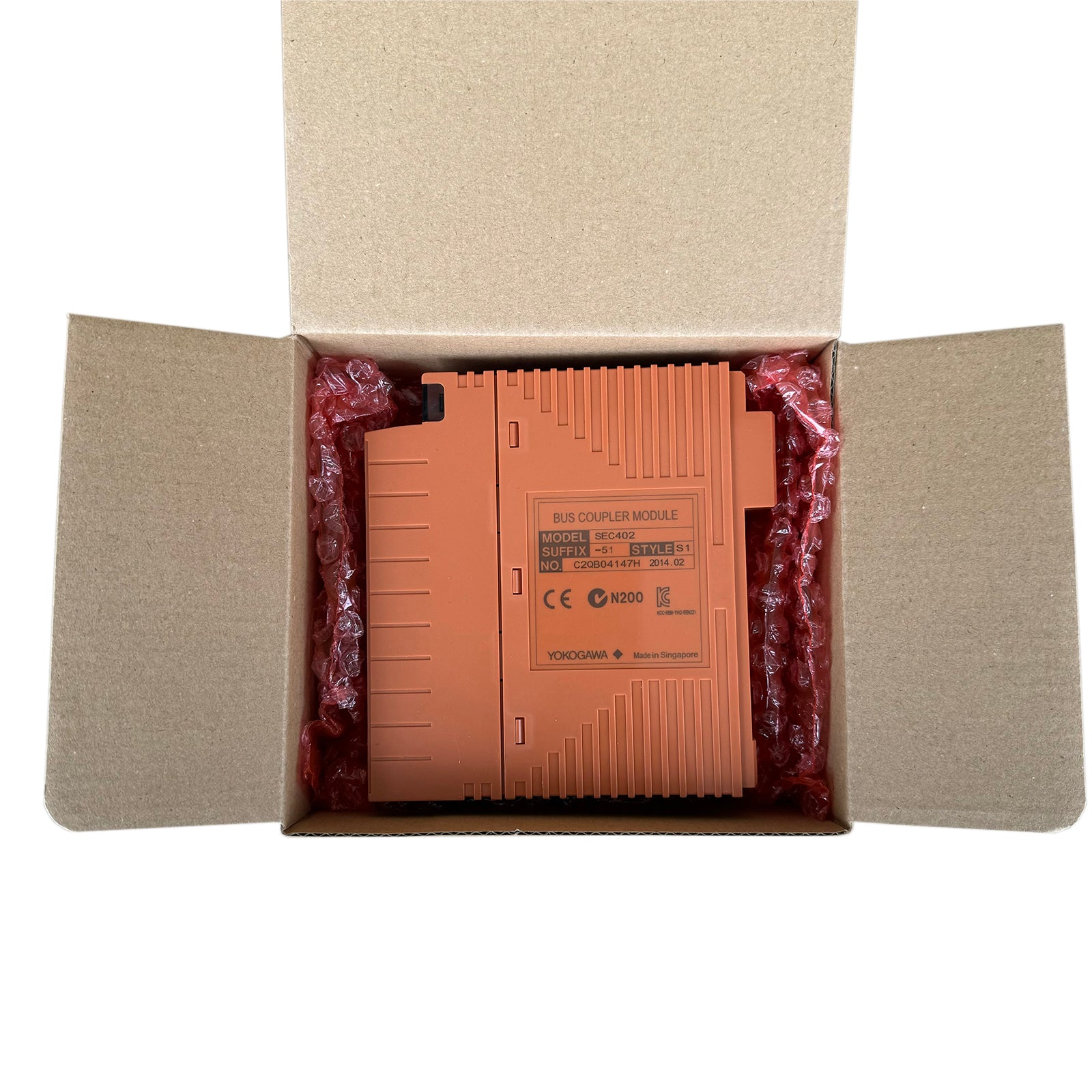

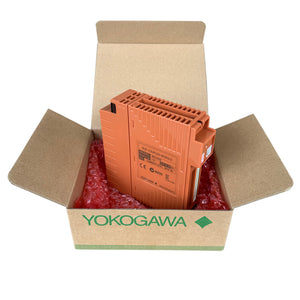

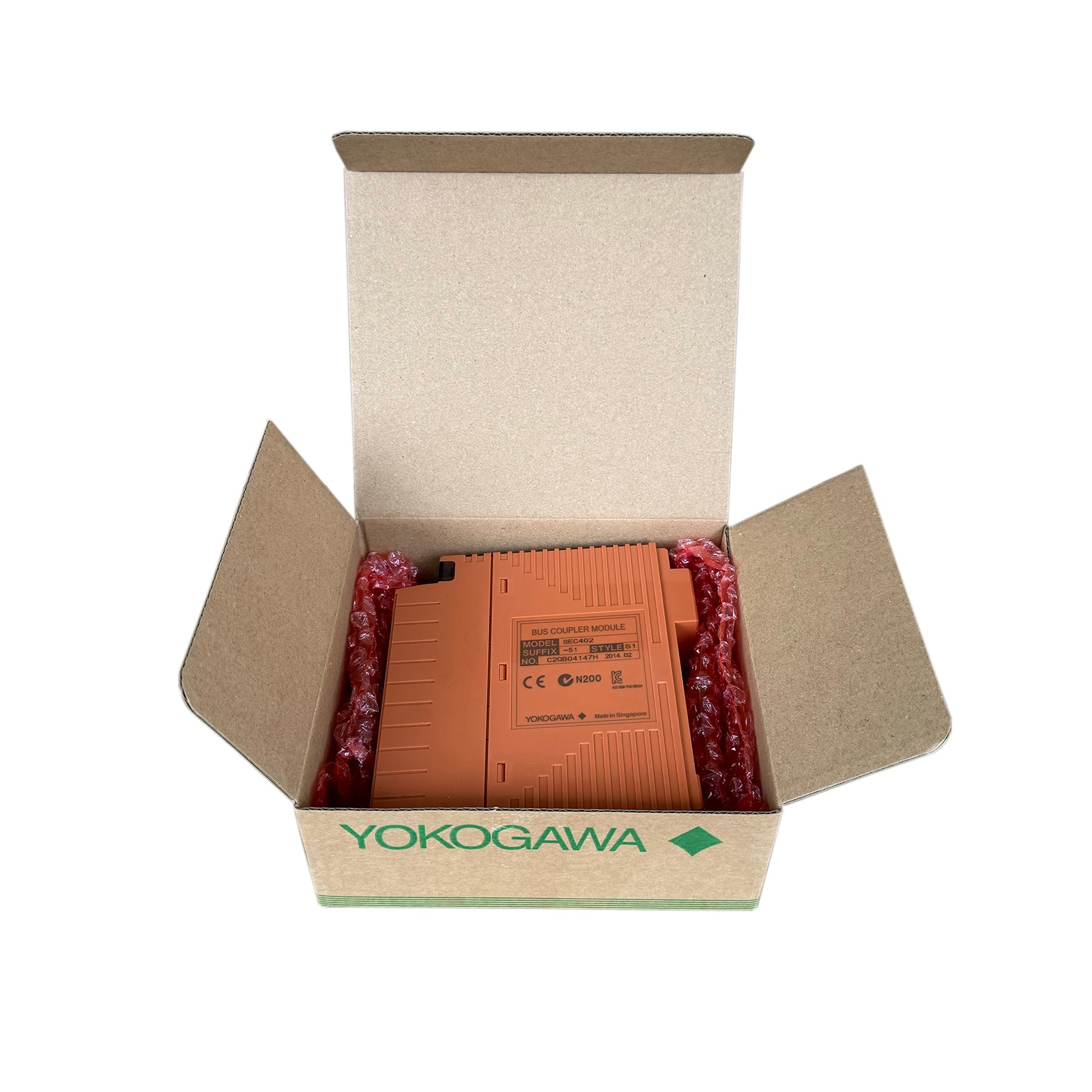

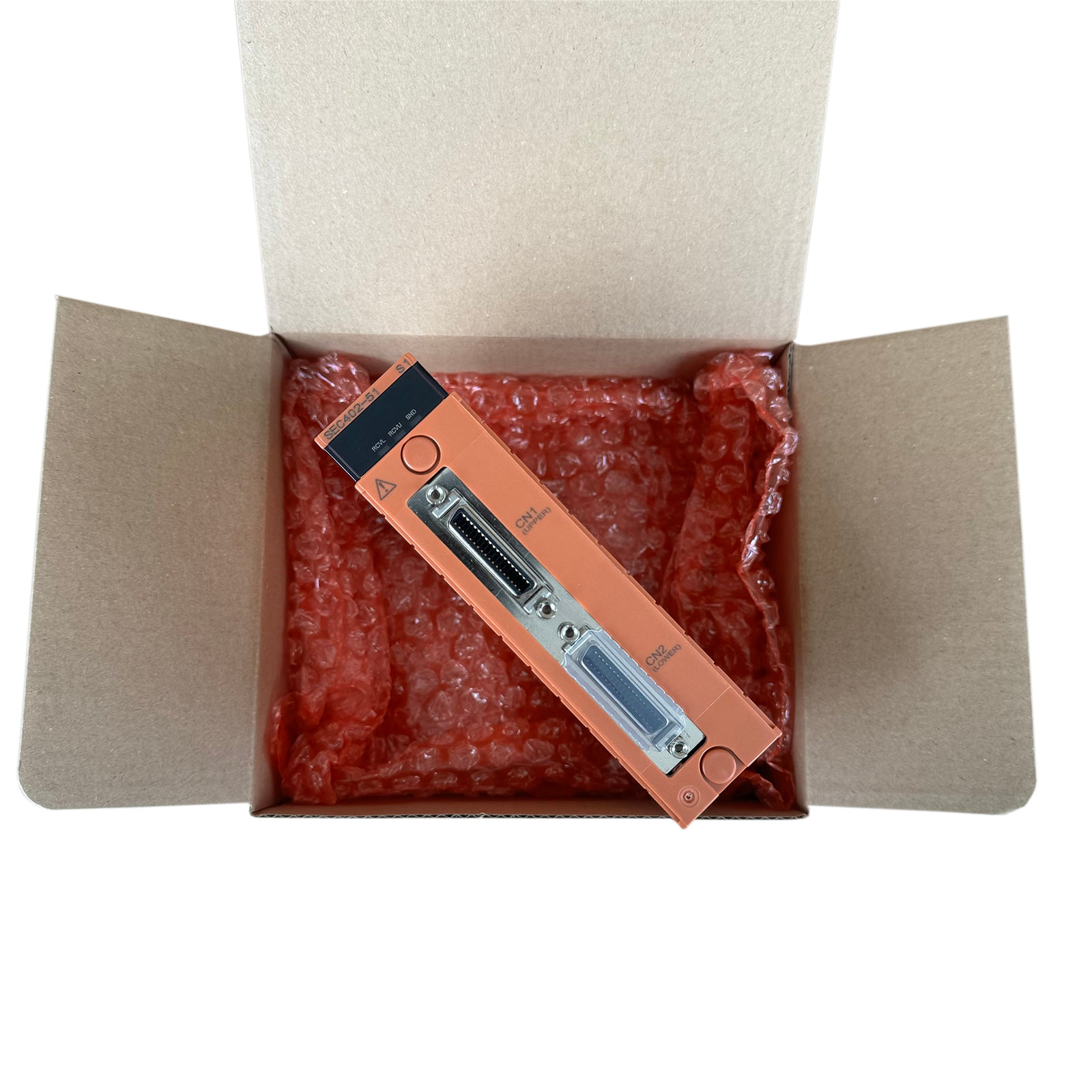

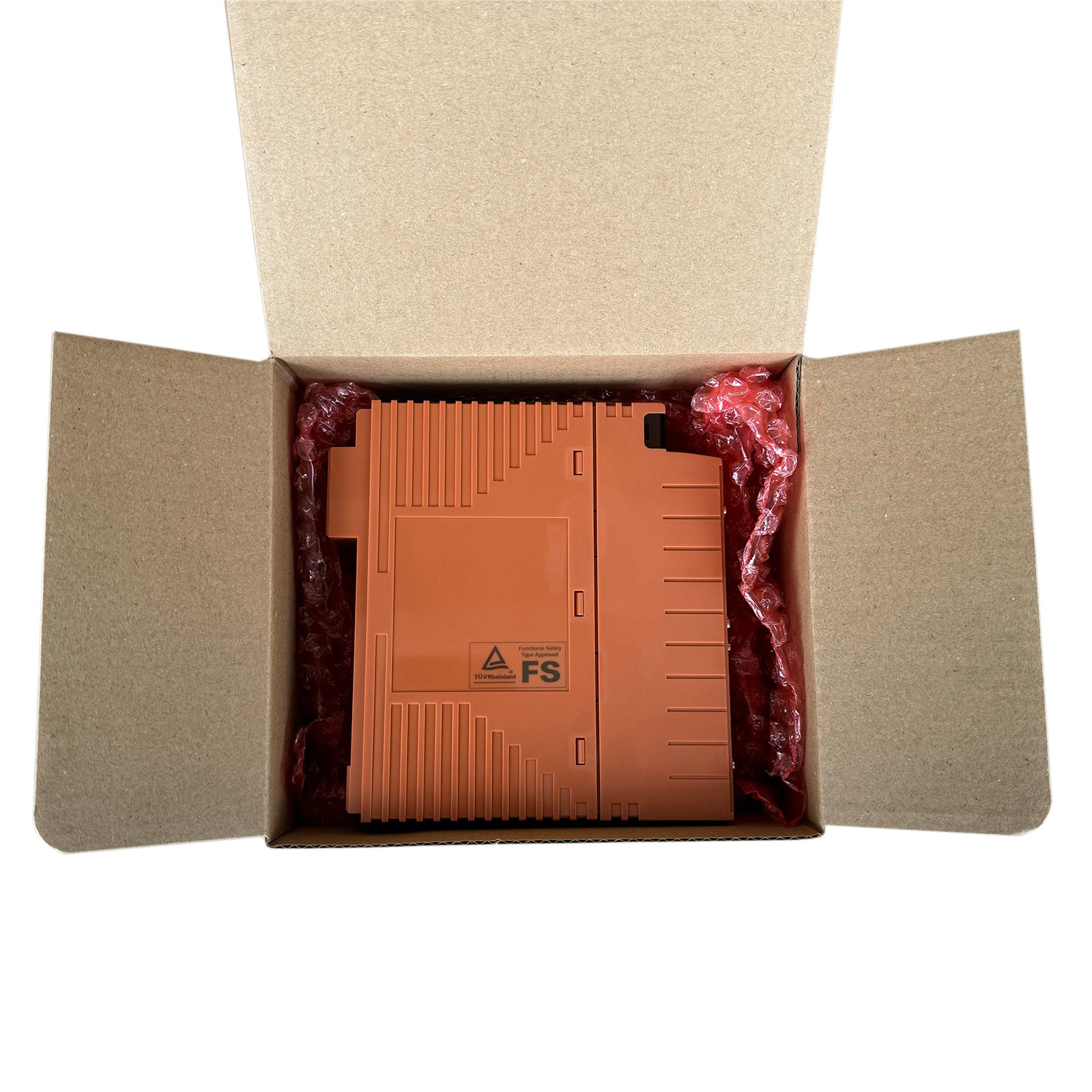

The Yokogawa SEC402-51 serves as a high-speed communication backbone for the CENTUM VP distributed control system. This ESB Bus Coupler Module acts as the master interface between the Field Control Unit (FCU) and various localized Node Units. Its primary function is to manage the flow of I/O data across the ESB bus, providing a 2-port connection that allows for systematic expansion of the control architecture. By facilitating real-time synchronization between the main controller and the I/O modules, the SEC402-51 ensures that process variables are updated with the high-speed precision required for complex automation sequences.

Architecture Performance and Hardware Details

This module is designed for dense cabinet installations where high throughput and low latency are critical for system performance.

• Interface Category: ESB Bus Master Function (2-Port)

• Data Throughput: 128 Mbps for I/O module transmission

• Node Expansion Capacity: Supports up to 9 units on the upper branch and 9 units on the lower branch

• Connectivity Reach: 10 meters maximum for each port (Upper/Lower cables)

• Power Demand: 0.5 A current consumption

• Chassis Net Weight: 0.24 kg (Approx. 240g)

• Physical Dimensions: 130 mm x 130 mm x 30 mm

• Environmental Protection: Available with ISA Standard G3 conformal coating for corrosive environments

• Redundancy Capability: Supports dual-redundant configurations for high-availability systems

Strategic Industrial Deployment

The SEC402-51 is a foundational component for centralized control rooms and satellite instrument houses.

• Petrochemical and Refining: Coordinating massive amounts of I/O data from distillation and cracking units back to the main FCU.

• Redundant Control Backbones: Utilizing dual-module setups to eliminate single points of failure in safety-critical process loops.

• Localized Node Integration: Connecting multiple I/O nests within a single cabinet or across adjacent cabinets within the 10-meter cable limit.

• Harsh Industrial Conditions: Operating reliably in environments with atmospheric contaminants when specified with the G3 option.

FAQ

Q: What is the primary function of the SEC402-51 within the CENTUM VP system?

A: It acts as the master interface module, physically and logically connecting the Field Control Unit to the ESB bus nodes to allow for the expansion of I/O module capacity.

Q: Can I exceed the 10-meter transmission distance?

A: The electrical ESB bus is limited to 10 meters per port. If your nodes are located further away, an optical ESB bus repeater system (such as the ANT401/ANT502) must be used instead.

Q: What does the suffix -G3 signify for this coupler?

A: The -G3 suffix indicates that the module has been treated with a conformal coating to meet ISA Standard G3, protecting the electronic components from corrosive gases like Hydrogen Sulfide.

Q: Is the SEC402-51 compatible with redundant power supplies?

A: Yes, as a standard component of the Yokogawa FCU, it operates within the duplexed environment of the control station, drawing power from the redundant system bus.

Q: How many total node units can a single SEC402-51 manage?

A: It can manage a maximum of 18 units in total, split evenly with up to 9 units on the upper ESB bus port and up to 9 units on the lower ESB bus port.
