Product Overview

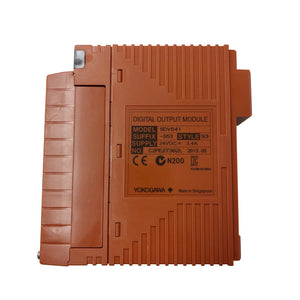

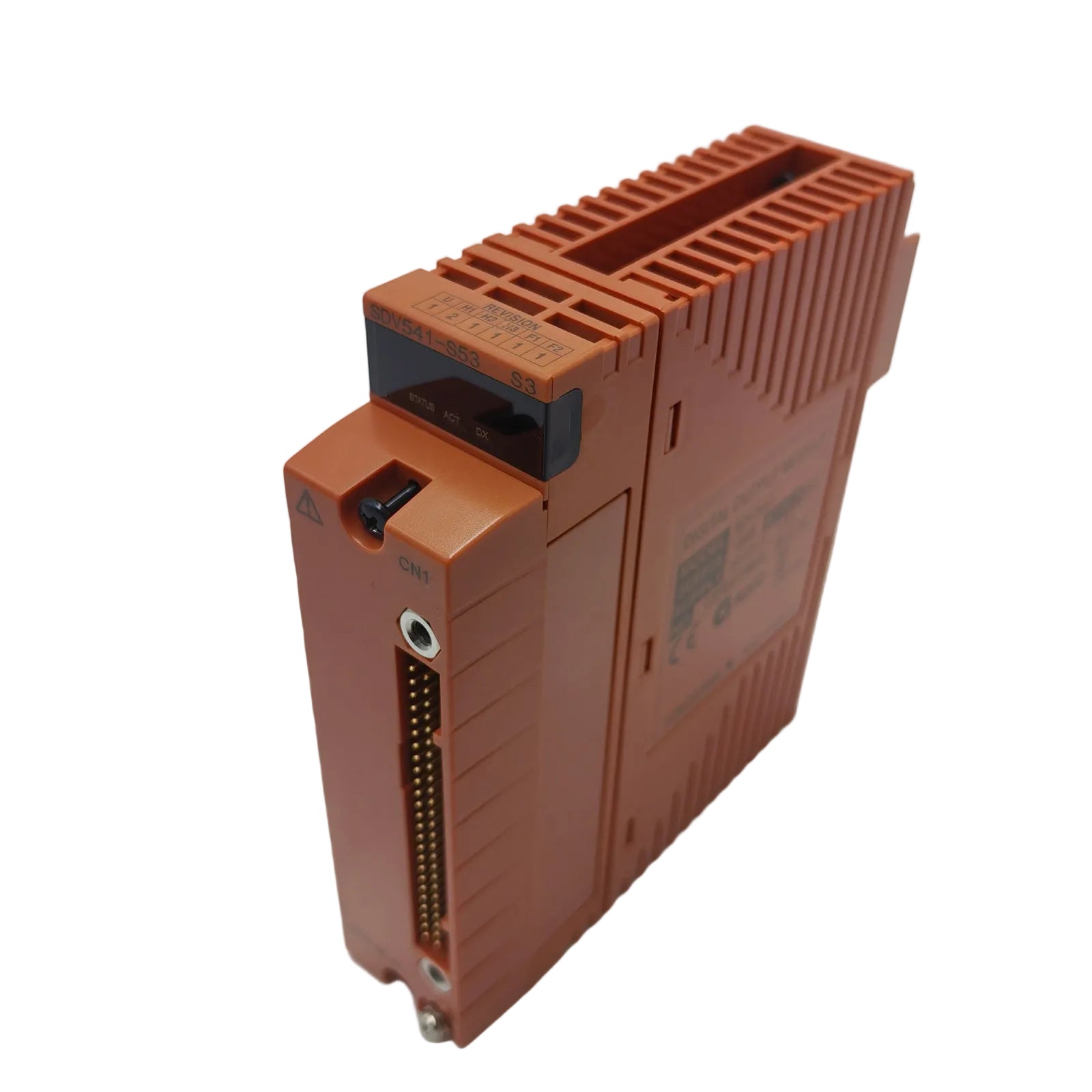

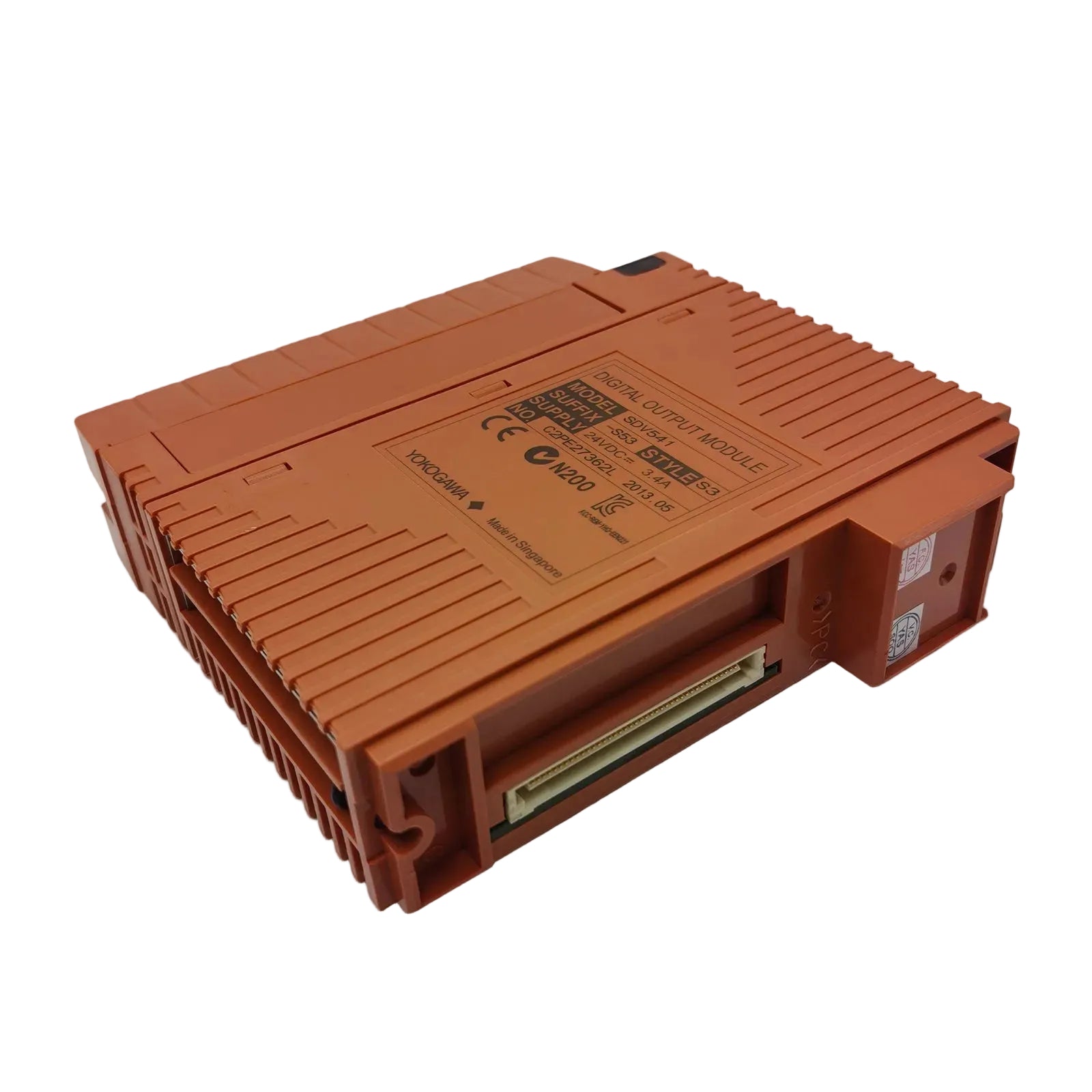

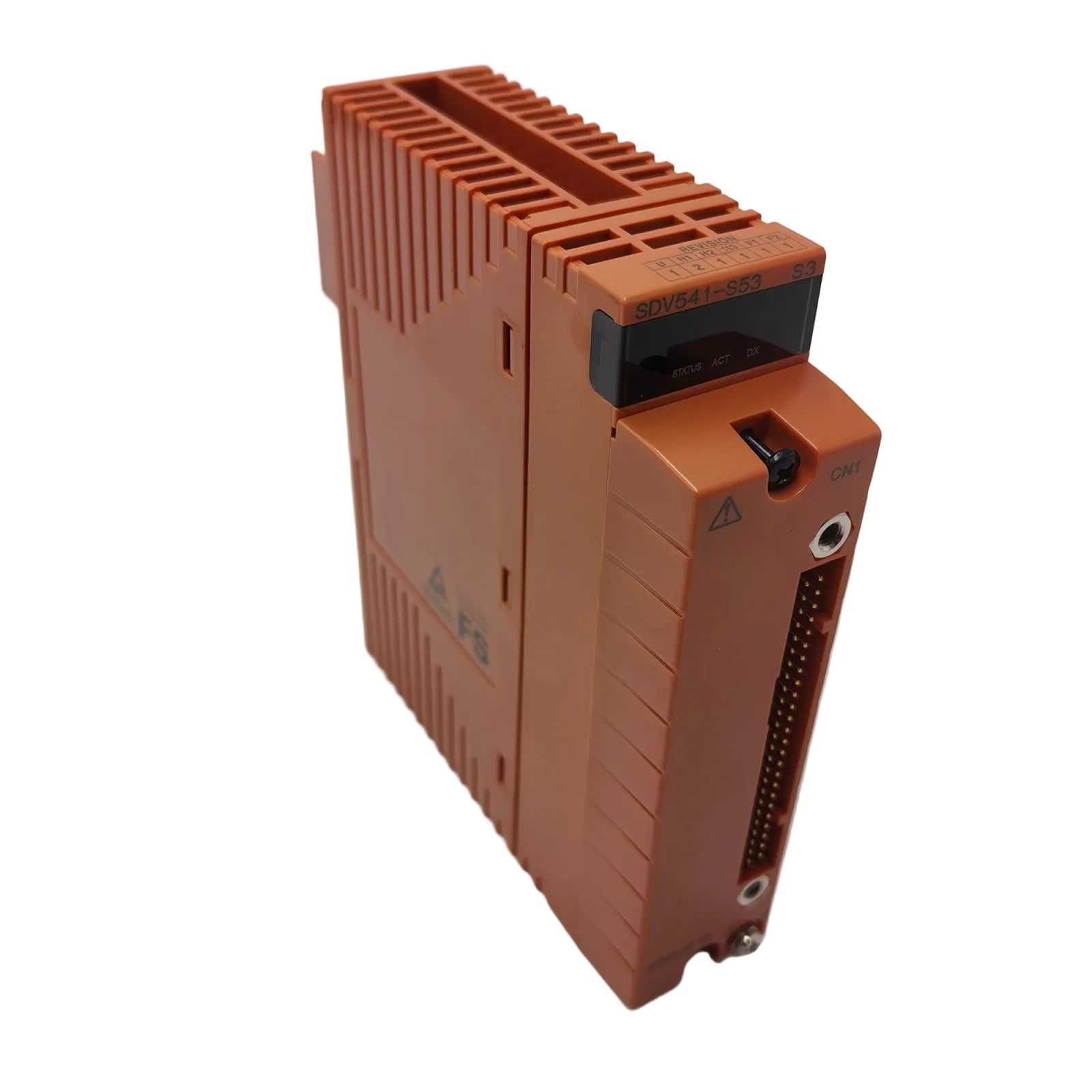

The Yokogawa SDV541-S53 serves as a high-reliability digital output module within the ProSafe-RS Safety Instrumented System (SIS). Engineered for critical safety loops, this module manages 16 isolated output channels, driving final control elements such as solenoid valves and emergency shutdown actuators with 24 V DC precision.

In demanding industrial environments—including petrochemical plants and power generation facilities—the SDV541-S53 ensures SIL3 level safety integrity. Its robust architecture facilitates continuous diagnostic monitoring of output circuits, detecting open or short circuits instantly to prevent unplanned downtime. By integrating advanced module isolation and current-source formatting, this unit maintains superior signal purity and system availability for large-scale integrated control systems (ICS).

Technical Configuration

The suffix codes for the SDV541-S53 define its specific hardware build and environmental resilience. Understanding these parameters ensures the module aligns with your cabinet wiring and site certification requirements.

Model Suffix Breakdown: SDV541 [ -S ] [ 5 ] [ 3 ]

-S | Standard Type

This designation identifies the module as a standard-speed execution unit for the ProSafe-RS environment, providing consistent 30 ms response times suitable for the vast majority of safety-related logic solvers.

5 | Termination & Protection

The "5" indicates the physical interface supports Pressure Clamp Terminal Blocks or MIL Cable connections. This version is designed for non-explosion-protected installations within safe-zone cabinets or via approved barriers.

3 | ISA Standard G3 & Extended Temperature

The "3" suffix confirms the module features Conformal Coating compliant with ISA Standard G3, offering enhanced protection against corrosive gases (such as $H_2S$ and $SO_2$). Additionally, it supports an extended operating temperature range of -20 to 70 °C, making it ideal for harsh outdoor enclosures or unconditioned field rooms.

Technical Specifications

Installation Guide

Proper installation of the SDV541-S53 is critical to maintaining the safety loop's integrity. Follow these engineering best practices for optimal performance.

Wiring and Connection

Utilize AKB331 or AKB651 dedicated signal cables when connecting to terminal boards. If using pressure clamp terminals, ensure the wire gauge matches the 3.4 A total current capacity of the module to prevent localized overheating.

External Power Sizing

The external 24 V DC supply must deliver at least 3.4 A to ensure all 16 channels operate at maximum load without voltage drops. Any drop exceeding 1 V at the output terminal may cause intermittent solenoid failure or diagnostic errors.

Environmental Sealing

Since the S53 variant supports G3 corrosion resistance, ensure the cabinet cable glands and door seals remain intact. Exposure to ambient air in high-sulfur environments can still degrade the connection points at the MIL cable interface, even if the internal PCB is coated.

Engineering Advantages

The SDV541-S53 offers a significant advantage in longevity and safety compliance. Unlike standard I/O modules, this unit undergoes rigorous self-testing to identify latent hardware faults that could lead to a "fail-to-danger" scenario.

The inclusion of the G3 coating and -20 to 70 °C rating ensures the module operates reliably in extreme geographic locations, from humid tropical refineries to frigid upstream processing units. It integrates seamlessly with the CENTUM VP and ProSafe-RS networks, allowing for unified plant management and simplified spare parts inventory.

Technical FAQs

Q1: Does the SDV541-S53 support "Hot Swapping" within the ProSafe-RS rack?

A1: Yes, the SDV541 module supports online replacement. However, you must follow the safety protocols within the ProSafe-RS engineering station to ensure the redundant partner (if applicable) takes over the logic before removal.

Q2: What is the primary difference between the -S50 and -S53 suffix?

A2: The -S50 is a standard temperature module without G3-level conformal coating. The -S53 is the superior choice for corrosive environments and supports a much wider temperature range (-20 to 70°C vs 0 to 50°C).

Q3: Can I use this module for high-current loads exceeding 0.2 A?

A3: Individual channels are rated for 0.2 A. If your load exceeds this, you must use an interposing relay. Exceeding the current rating will trigger the module’s internal protection and may result in a diagnostic fault.

Q4: Is the SDV541-S53 compatible with older ProSafe-RS versions?

A4: This module is backward compatible with most ProSafe-RS releases. However, we recommend checking your current software revision to ensure the specific G3 features and diagnostics are fully recognized by the system.
