Product Overview

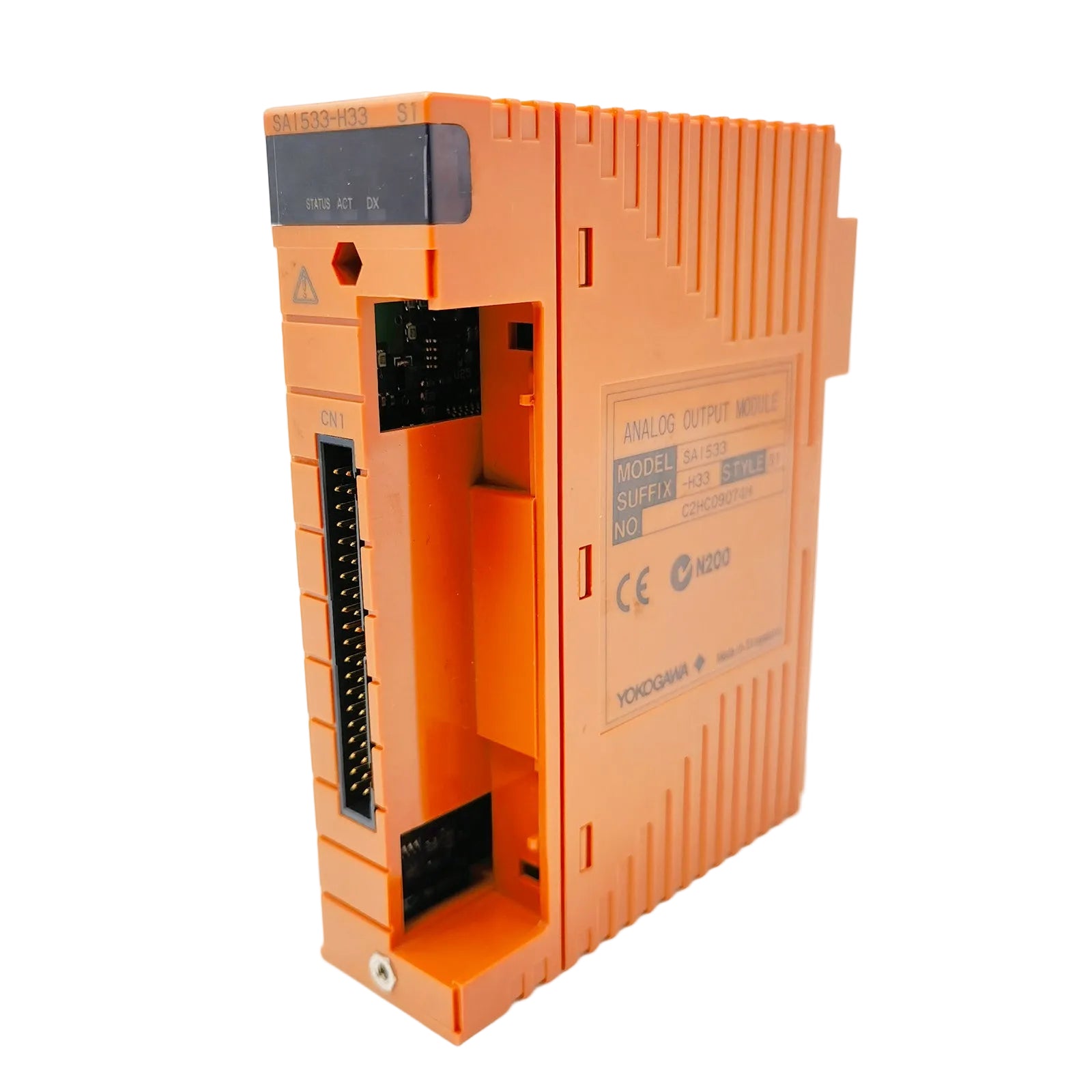

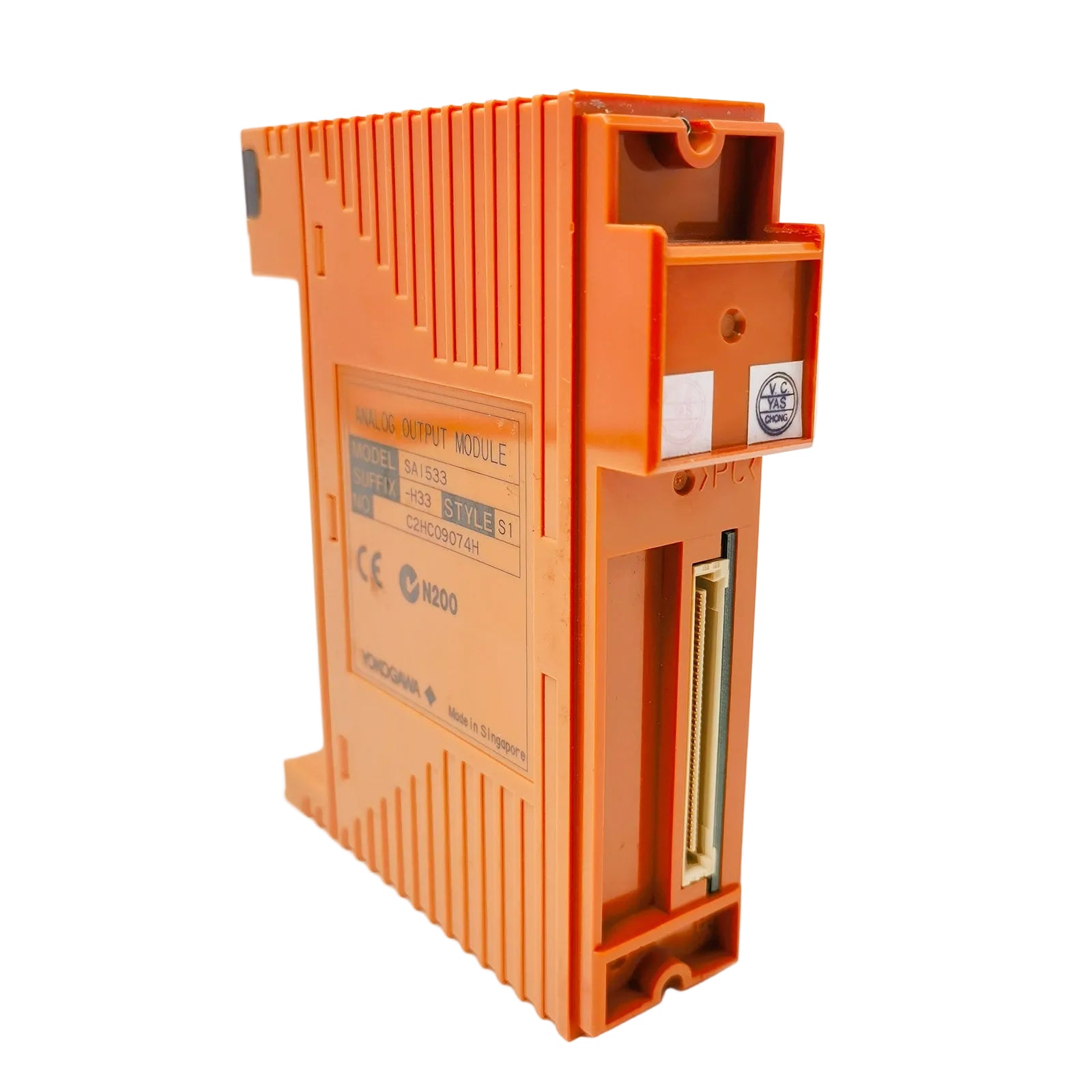

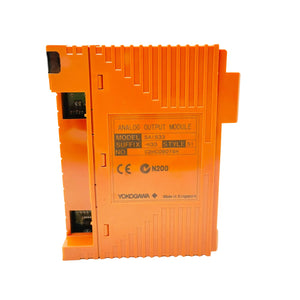

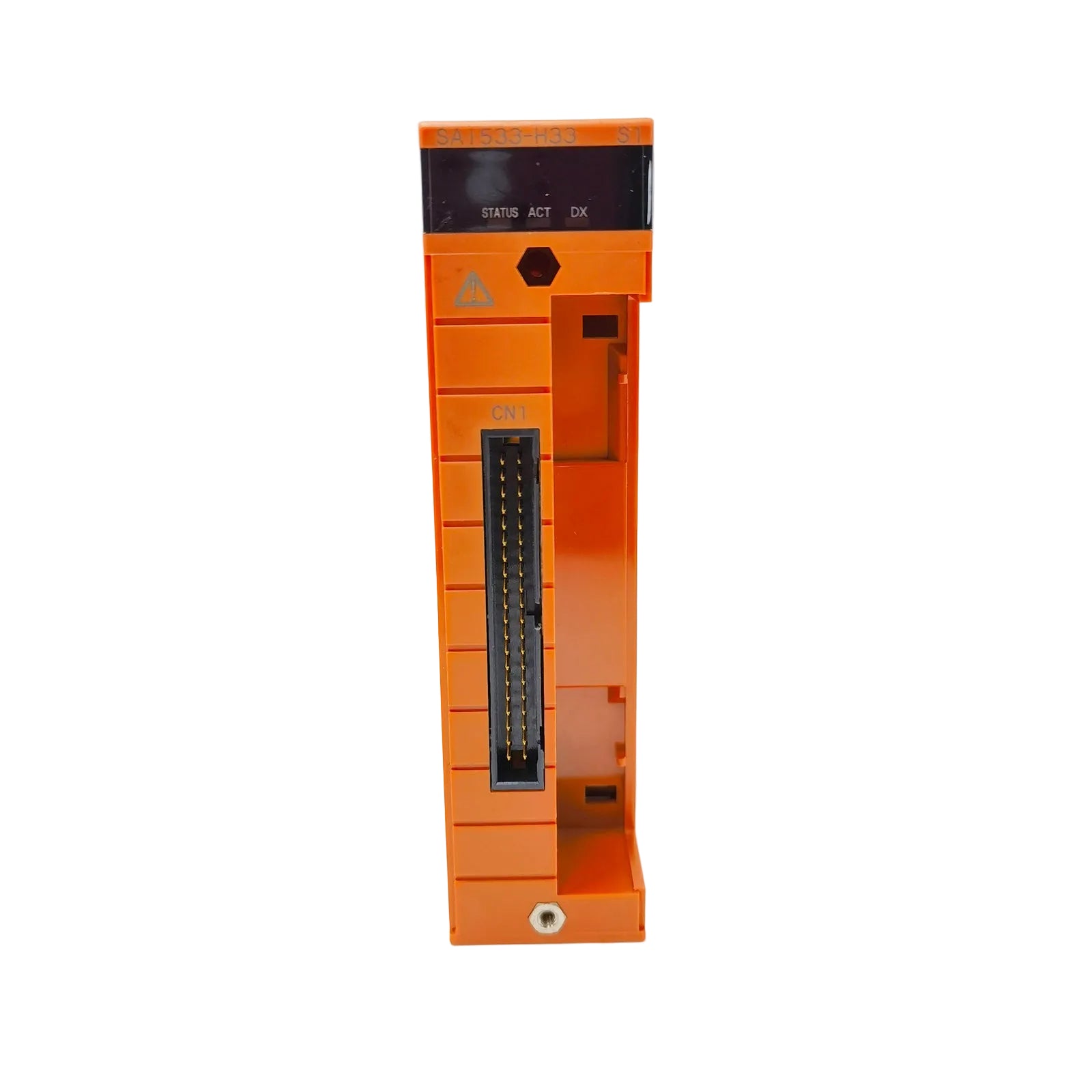

The Yokogawa SAI533-H33 serves as a high-performance analog output module designed for the CENTUM VP and ProSafe-RS control environments. This module drives final control elements, such as control valves and actuators, by converting digital signals into precise 4 to 20 mA analog currents. Integrated HART 7 communication capabilities allow for seamless bi-directional data exchange, enabling remote device configuration and advanced diagnostics without interrupting the primary signal.

Engineered for mission-critical industrial processes, the SAI533-H33 ensures maximum system availability through robust channel isolation and G3-compliant environmental hardening. It operates reliably in harsh conditions, maintaining signal integrity across long-distance cable runs. This module plays a vital role in stabilizing complex loops in refineries, chemical plants, and power generation facilities where precision and uptime are non-negotiable.

Technical Configuration

The suffix code -H33 defines the specific functional and environmental capabilities of this SAI533 unit. Understanding these parameters ensures correct system integration and hardware compatibility.

Suffix Code Breakdown

H: HART Communication Support

This designation confirms that the module supports HART variable communication. It allows the system to transmit and receive digital instrument data over the standard analog loop, facilitating asset management through Yokogawa’s PRM (Plant Resource Manager).

3: Standard Protection and Type

The "3" indicates the specific hardware revision and standard type designed for compatibility with specific I/O baseplates and terminal blocks. It ensures the module meets current safety and electromagnetic interference standards.

3: ISA G3 Corrosion Resistance

The final digit signifies that the module's printed circuit boards (PCBs) feature a conformal coating compliant with ISA Standard S71.04 Class G3. This protects the sensitive electronics against corrosive gases like Hydrogen Sulfide ($H_2S$) and Sulfur Dioxide ($SO_2$), which are common in heavy industrial sectors.

Technical Specifications

Installation Guide

Correct installation of the SAI533-H33 ensures long-term signal accuracy and hardware longevity. Follow these engineering best practices:

Mounting and Grounding

Always mount the module onto the compatible I/O unit (such as the A2FV50 or similar) ensuring the locking levers click firmly into place. Connect the system ground to the cabinet's busbar to minimize electromagnetic interference (EMI).

Wiring Precision

Maintain a minimum cable bending radius of 50mm to prevent internal conductor fatigue. When using HART communication, ensure the loop impedance remains between 230 and 600 Ω. If the load resistance is too low, the HART signal will be attenuated; if too high, the module may saturate.

Environmental Precautions

Although rated for G3 environments, always install the module in a dust-proof enclosure. Verify that the ambient temperature inside the cabinet does not exceed 70°C. For high-density I/O racks, ensure adequate vertical spacing for natural convection or forced-air cooling.

Engineering Advantages

Advanced Signal Integrity

The SAI533-H33 utilizes high-speed D/A converters that provide a 40ms update frequency. This responsiveness is critical for high-speed control loops where lag can result in process instability or mechanical vibration in valves.

Superior Environmental Durability

The G3 conformal coating allows this module to operate in "Harsh" environments without premature failure. This reduces the Total Cost of Ownership (TCO) by extending the replacement cycle in facilities plagued by high humidity or chemical fumes.

Intelligent Asset Management

By supporting HART pass-through, the SAI533-H33 transforms a standard I/O point into a diagnostic portal. Engineers can monitor valve positioner health and calibrate field devices directly from the control room, significantly reducing manual field inspections.

Delivery and Logistics

Delivery Time: 3-5 business days upon payment confirmation.

Shipping Methods: Worldwide express shipping via DHL, FEDEX, or UPS.

Packaging: Dispatched in original factory-sealed anti-static packaging to ensure product integrity during transit.

Technical FAQs

Q1: Does the SAI533-H33 support redundant configurations?

A1: Yes, when installed in a redundant-capable I/O baseplate, two SAI533 modules work in a dual-redundant pair to ensure continuous output even if one module fails.

Q2: How does the HART communication impact the 4-20mA signal?

A2: The HART signal is superimposed on the analog current as a high-frequency AC waveform. Because the average value of this waveform is zero, it does not interfere with the 4-20mA DC primary control signal.

Q3: Can I use this module with a load resistance lower than 230 Ω?

A3: While the module may still output current, a resistance below 230 Ω will prevent successful HART communication. If your actuator has low impedance, you must add a series resistor to bring the total loop resistance into the 230–600 Ω range.

Q4: Is the SAI533-H33 hot-swappable?

A4: Yes, you can replace this module while the system is powered (Hot Swap) without affecting other modules in the same I/O rack, provided you follow standard safety protocols for the specific DCS environment.
