Product Overview

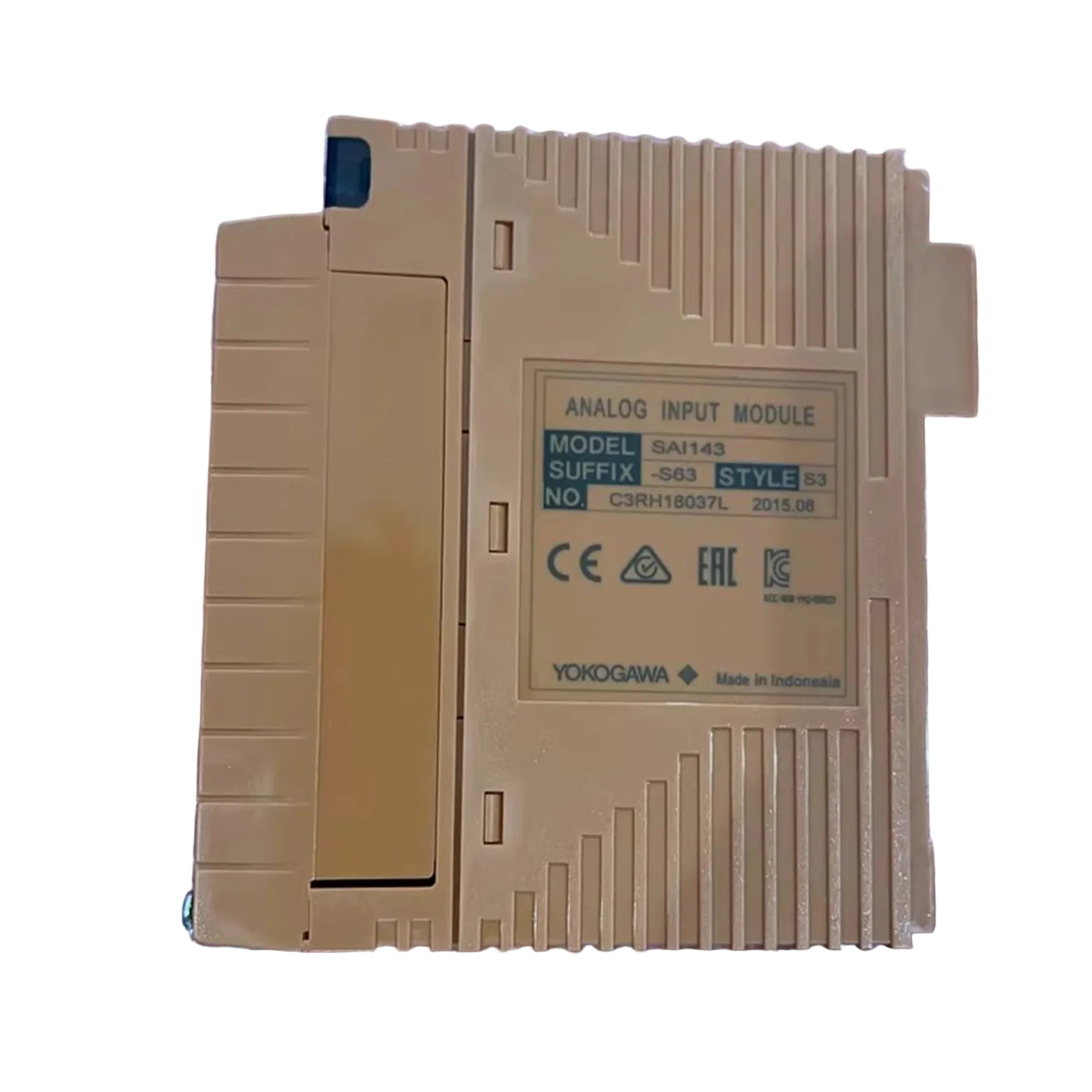

The Yokogawa SAI143-S63/PRP functions as a high-integrity analog input interface engineered specifically for the ProSafe-RS Safety Instrumented System (SIS). This module provides 16 isolated channels to monitor critical 4–20 mA process variables from field transmitters, ensuring the safe operation of high-value industrial assets like steam turbines, reactors, and high-pressure compressors. In mission-critical environments, the SAI143-S63/PRP delivers the laboratory-grade precision required to trigger emergency shutdowns (ESD) or fire and gas (F&G) logic with absolute reliability. By employing a 16-bit resolution architecture and rapid 10ms sampling, the module captures subtle process fluctuations instantly, allowing the safety controller to distinguish between normal operational noise and genuine hazardous excursions. This module acts as the definitive sensory layer for your plant's safety-instrumented functions, protecting both personnel and mechanical infrastructure.

Technical Configuration

The SAI143-S63/PRP utilizes a specialized suffix logic that defines its environmental resilience and connectivity for ProSafe-RS architectures.

Model Suffix Analysis

SAI143: Basic Model Code for the 16-channel isolated analog input module dedicated to safety-instrumented functions.

-S: Identifies the Standard Type, providing optimized performance for standard 4–20 mA safety loops.

6: Specifies the signal cable interface hardware. This configuration includes an integrated adapter for streamlined connection to field wiring while maintaining a non-explosion-proof rating on the module body itself.

3: Indicates the advanced environmental hardening. This code confirms the module features ISA Standard G3 conformal coating for corrosion resistance and an expanded operational temperature profile suitable for demanding industrial cabinets.

/PRP: Designates the "PRP" specialized sub-revision, often indicating enhanced internal diagnostic protocols or specific firmware versions required for high-availability redundant safety configurations.

Technical Specifications

Installation Guide

Strategic installation and wiring management preserve the Safety Integrity Level (SIL) of your ProSafe-RS system.

Wiring and Interface Management

Connect the 16 analog channels using the specialized signal cable interface adapter. Ensure that the field-side wiring utilizes shielded twisted-pair cables to eliminate electromagnetic interference. Tighten the interface screws to the factory-specified torque to maintain a vibration-proof connection, which is critical when the module resides near high-vibration rotating machinery like compressors.

Shielding and Grounding

Ground the cable shields at the safety system cabinet end only. This single-point grounding strategy prevents ground loops from introducing offsets into the 16-bit analog measurements. Maintain a minimum separation of 150mm between the safety I/O cables and high-voltage AC power lines to ensure the 10ms sampling rate remains free of electrical jitter.

Environmental Monitoring

While the ISA G3 coating protects the module from corrosive gases, ensure the internal cabinet temperature stays within the 0°C to 50°C range. Maintain a vertical clearance of 50mm above and below the module to facilitate natural convection cooling, as the SAI143-S63/PRP dissipates approximately 12 Watts during full-load operation.

Engineering Advantages

The SAI143-S63/PRP excels in "harsh" electrical environments where standard control hardware fails to meet safety benchmarks. Its 16-bit resolution ensures that safety thresholds are monitored with extreme granularity, allowing for "tight" safety margins that reduce nuisance trips while maintaining maximum protection. The module's internal diagnostic engine performs continuous self-tests on the input circuitry, identifying open-wire conditions or component degradation before they result in a "fail-to-danger" scenario. Furthermore, the G3-rated conformal coating provides a definitive defense against the sulfur and moisture typically found in paper mills and refineries, ensuring a 20+ year operational life within the ProSafe-RS ecosystem.

Shipping and Delivery

Delivery Time: 3-5 business days upon payment finish.

Carrier Partners: Fast global shipping via DHL, FEDEX, or UPS.

Product Status: Brand New, Original Factory Sealed, Export Packaging.

Technical FAQs

Q1: Can the SAI143-S63/PRP be used in a redundant configuration?

A1: Yes. The ProSafe-RS system supports mounting two SAI143 modules in a redundant I/O rack. The /PRP designation ensures the module supports the high-speed synchronization required for seamless failover in SIL3 safety loops.

Q2: What happens if a field wire is disconnected?

A2: The module features integrated open-circuit detection. If the input current falls below the threshold (typically 0.65 mA), the module triggers a diagnostic alarm to the safety controller, allowing maintenance teams to identify the fault immediately.

Q3: Is this module compatible with HART transmitters?

A3: The SAI143-S63/PRP is a standard analog safety module. While it can receive the 4-20mA signal from a HART transmitter, it does not pass through digital HART data. For HART asset management, you would typically select the SHAI143 series.

Q4: How does the G3 coating improve long-term reliability?

A4: The ISA G3 coating protects the internal PCB from atmospheric corrosion (such as H2S and SO2). This prevents "silver whiskering" and electrical leakage across traces, which are common causes of failure in un-coated modules located in chemical or coastal environments.
