Product Overview

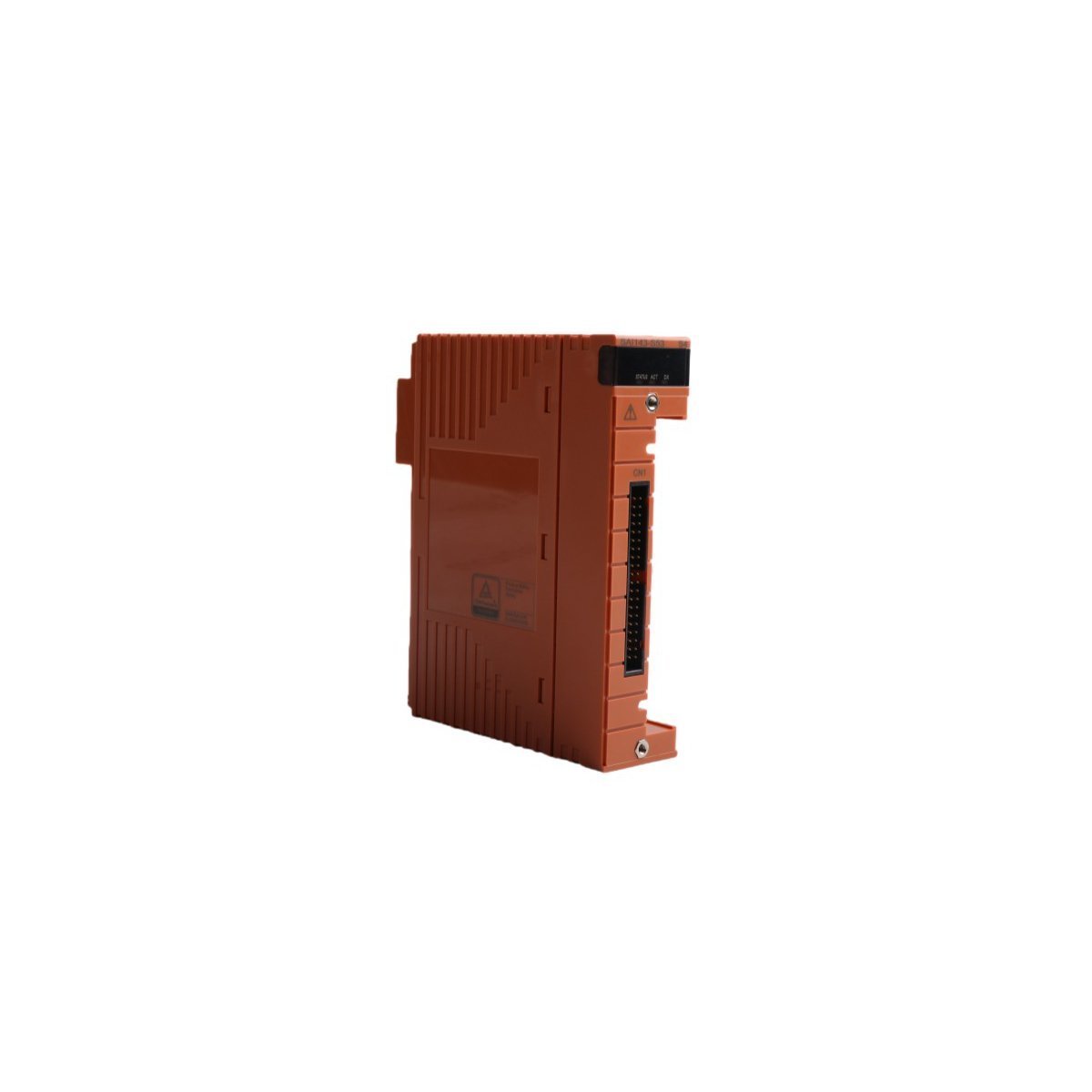

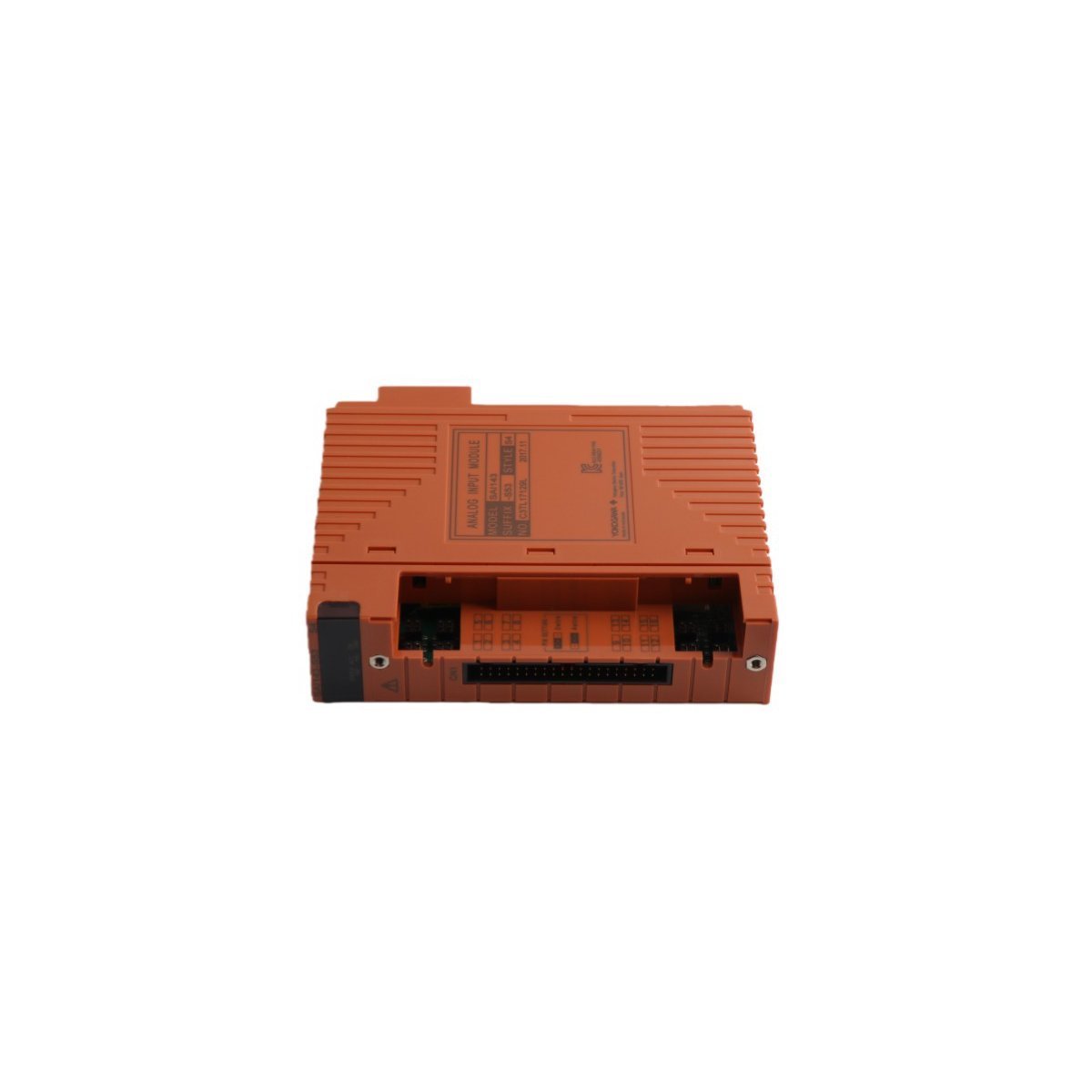

The Yokogawa SAI143-S53 is a professional-grade analog input module designed for high-availability requirements within the Centum VP Distributed Control System (DCS) architecture. This module serves as the primary interface for 1-5 V DC or 4-20 mA current signals, converting field instrument data into digital values for process logic execution. Featuring 16 isolated channels, the SAI143-S53 ensures high-precision signal acquisition by eliminating common-mode noise and preventing ground loop interference.

Engineered for mission-critical reliability, this module supports dual-redundancy. In a redundant configuration, two SAI143-S53 units work in tandem to provide bumpless failover, ensuring that process monitoring remains uninterrupted even if a single hardware fault occurs. Its versatile design is optimized for a wide range of industrial sensors, including flow meters, pressure transmitters, and temperature transducers.

Technical Specifications

• Manufacturer: Yokogawa Electric Corporation

• Model Number: SAI143-S53

• Module Type: Analog Input (16-Channel)

• Input Signal Range: 4 to 20 mA (current) or 1 to 5 V DC (voltage)

• Channel Isolation: Individual channel-to-channel isolation

• Redundancy: Supports dual-redundant configuration

• HART Communication: Supported (allows digital signal superimposed on 4-20mA)

• Accuracy: ±0.1% of span

• Current Consumption: 320 mA maximum (at 5V DC)

• Weight: 0.30 kg

• Dimensions: 33 x 107 x 130 mm

• Origin: Japan / Singapore (System Dependent)

Key Technical Characteristics

Advanced Signal Integrity

The SAI143-S53 utilizes sophisticated electrical isolation barriers for every channel. This protection is vital in industrial plants where electromagnetic interference (EMI) or voltage surges from field wiring could otherwise damage the controller backplane or corrupt sensitive process data.

HART Protocol Integration

This module is fully compatible with HART-enabled field devices. It allows the control system to access secondary variables and diagnostic data from "smart" instruments. This integration facilitates predictive maintenance strategies and remote device configuration without requiring additional handheld communicators.

Flexible Installation and Wiring

To accommodate various cabinet designs, the SAI143-S53 supports multiple connection methods. It can be interfaced via pressure clamp terminals for direct wiring or through KS1 cables for high-density MIL-connector installations. This flexibility reduces engineering time during both new plant startups and system migrations.

Industrial Applications

The SAI143-S53 is widely deployed in safety instrumented systems (SIS) and complex control loops within the oil and gas, chemical processing, and power generation sectors. Its robust build quality ensures stable performance in harsh environments characterized by thermal fluctuations and high electrical noise.
