Product Overview

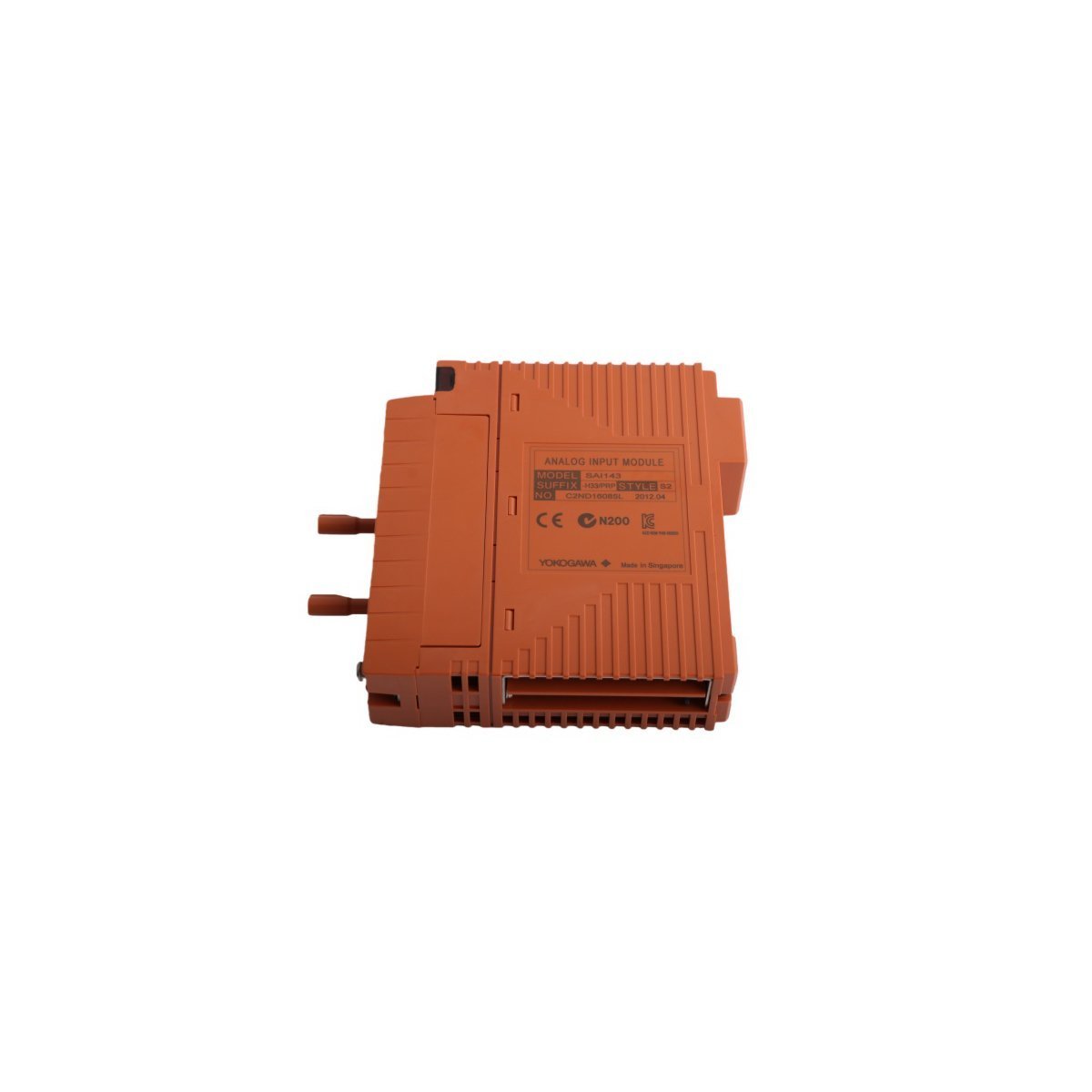

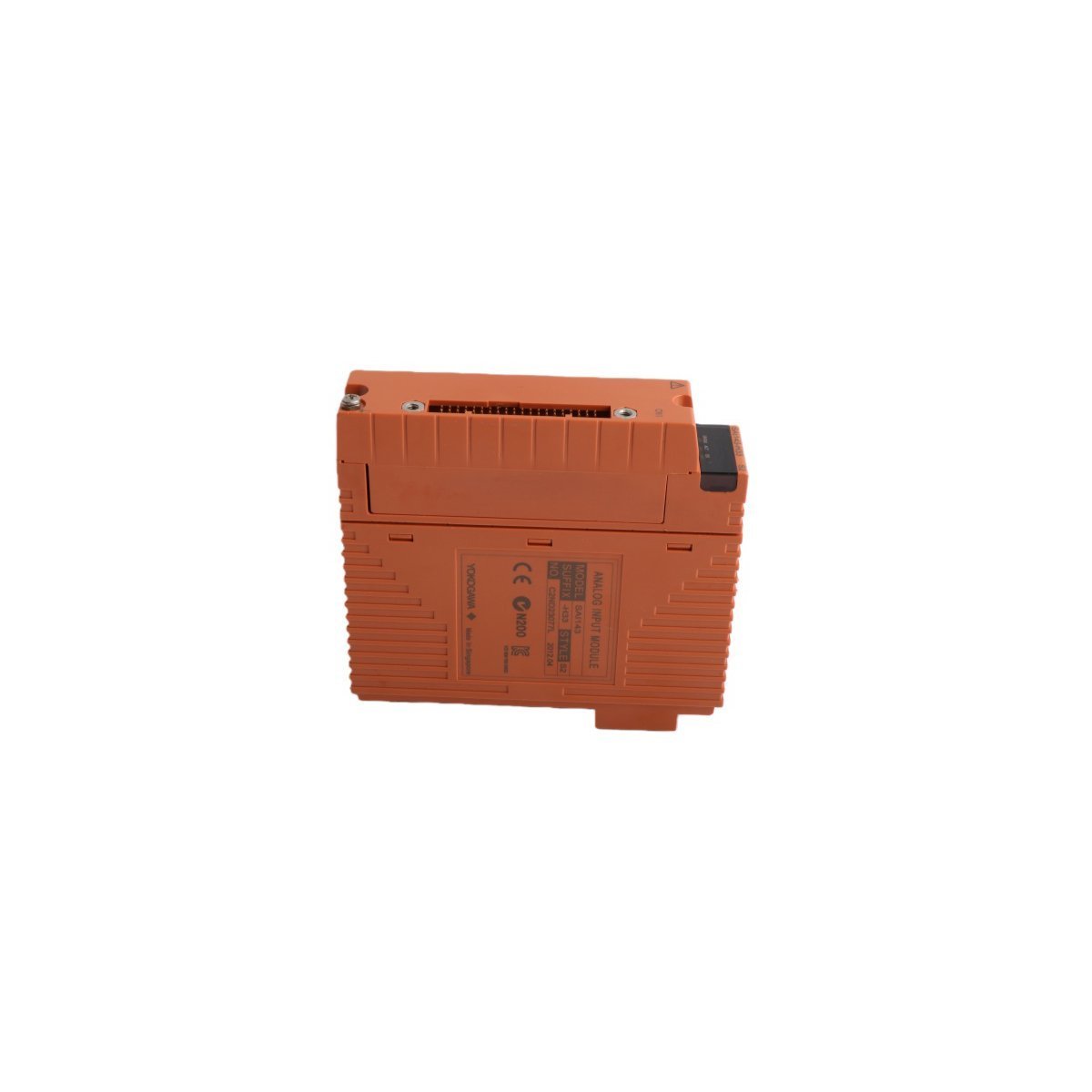

The Yokogawa SAI143-H33 S2 is a high-performance 16-channel analog input module designed for integration within the CENTUM VP Distributed Control System (DCS) and the ProSafe-RS Safety Instrumented System (SIS). This module serves as a primary data acquisition interface, converting analog signals from field transmitters—such as those measuring pressure, temperature, and flow—into digital data for the controller. Engineered for mission-critical applications, the SAI143-H33 S2 provides the high-fidelity signal conditioning required for both regulatory process control and emergency shutdown functions.

Technical Characteristics

The SAI143-H33 S2 is defined by its rigorous electrical protection and high-density architecture:

Superior Signal Isolation Each of the 16 channels features complete galvanic isolation, both channel-to-channel and channel-to-system. This architecture effectively eliminates ground loops and mitigates electromagnetic interference (EMI), ensuring that a fault on one field loop does not propagate to other channels or the system backplane.

Standardized Input Compatibility The module is optimized for standard industrial signals, primarily supporting 4-20 mA current loops or 1-5 V DC voltage inputs. This versatility allows it to interface with a broad spectrum of two-wire and four-wire field instruments across various plant sections.

Real-Time Diagnostics and Maintenance To simplify field troubleshooting, the SAI143-H33 S2 is equipped with individual status LEDs for every channel. These indicators provide immediate visual confirmation of signal health or wiring faults. Furthermore, the module's hot-swappable, rack-mounted design allows for maintenance and replacement without requiring a system-wide shutdown.

Industrial Grade Reliability Designed for the plant environment, the module operates reliably in ambient temperatures ranging from 0 to 60°C. Its robust construction meets the strict durability standards required for continuous-operation industries, such as offshore oil platforms and chemical refineries.

Technical Specifications

• Brand: Yokogawa

• Model Number: SAI143-H33 S2

• Product Type: Analog Input (AI) Module

• Number of Channels: 16 (Fully Isolated)

• Signal Types: 4-20 mA, 1-5 V DC

• System Compatibility: CENTUM VP / ProSafe-RS

• Operating Temperature: 0 to 60°C

• Weight: 0.3 kg

• Dimensions: 3.3 x 10.7 x 13.0 cm

• Origin: Japan

Application Areas

The Yokogawa SAI143-H33 S2 is a staple component in high-reliability automation architectures, specifically within:

• Oil and Gas: Monitoring wellhead pressures and separator levels.

• Petrochemical Refining: Precise temperature measurement for distillation columns.

• Power Generation: Coordinating feedwater and steam flow inputs for boiler control.

• Safety Instrumented Systems (SIS): Providing redundant inputs for emergency shutdown (ESD) logic.
