Product Overview

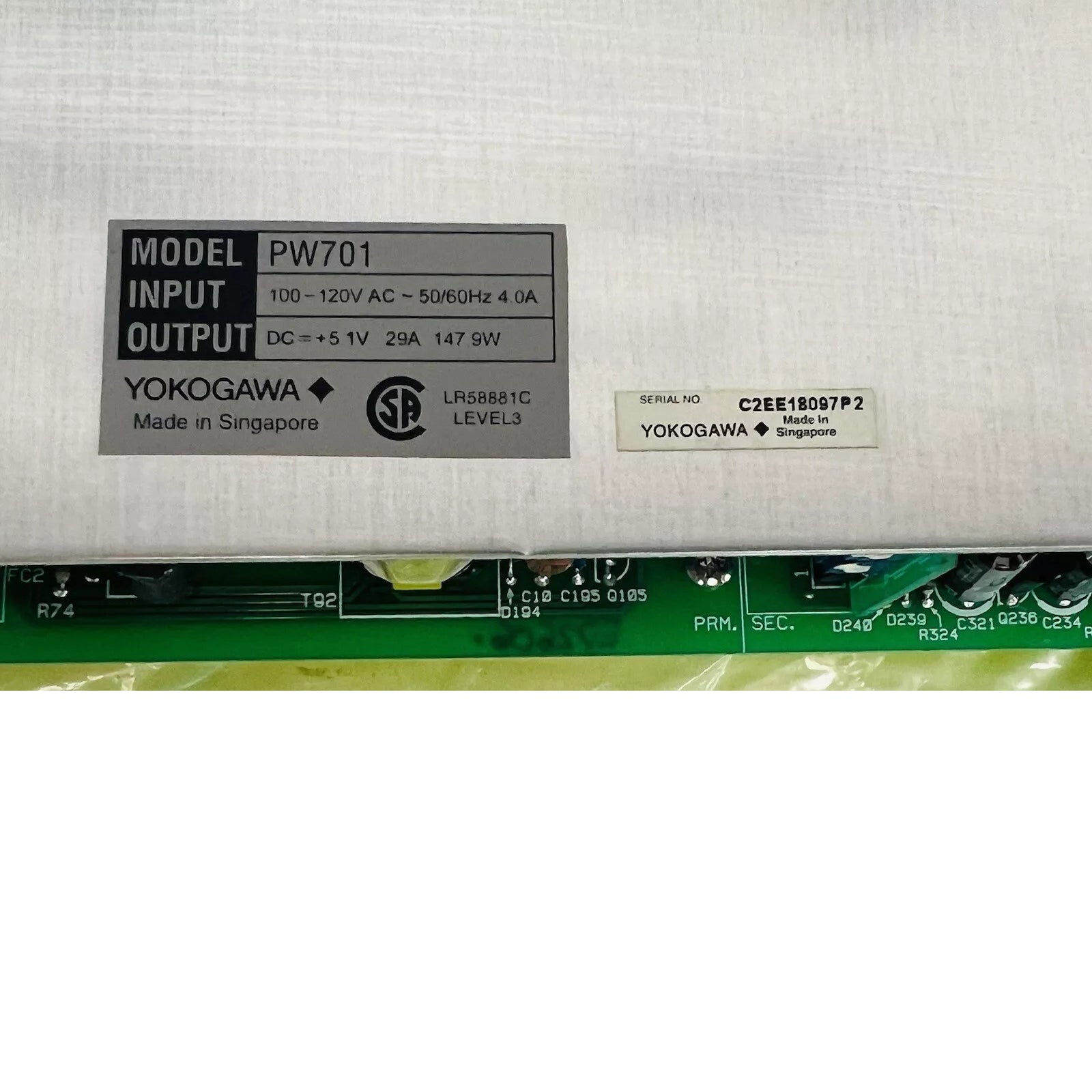

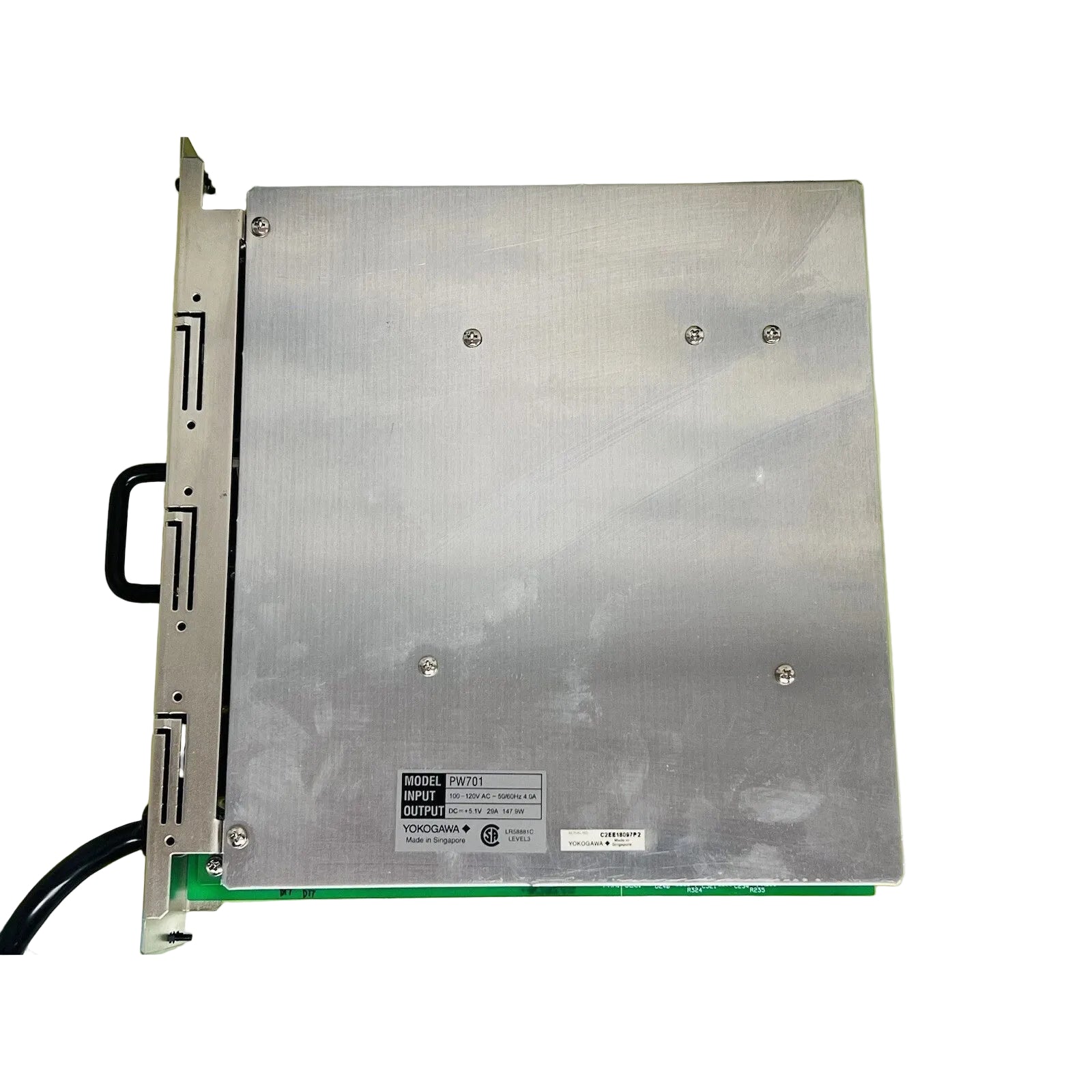

The Yokogawa PW701 serves as the foundational energy heart for the CENTUM VP Distributed Control System (DCS). This high-performance power supply module converts standard 100-120 V AC input into the stabilized DC voltage required to drive critical processor modules and I/O nests. In high-stakes industrial environments—such as petrochemical refineries and large-scale power utilities—the PW701 provides the unwavering stability needed to prevent system resets and data loss. Its advanced internal filtration circuitry suppresses electrical noise and voltage spikes, ensuring that sensitive logic components receive "clean" power even during grid fluctuations. By prioritizing thermal efficiency and electrical isolation, this module maintains the continuous uptime essential for complex process automation and safety-critical operations.

Technical Configuration

The PW701 architecture prioritizes modularity and fault tolerance within the CENTUM VP rack system. As a vital component of the hardware infrastructure, it utilizes a sophisticated design to support system-wide reliability:

High-Efficiency Power Conversion

The module utilizes high-frequency switching technology to maximize energy conversion while minimizing heat generation. This design extends the lifespan of adjacent modules in the rack by maintaining a lower internal cabinet temperature.

Redundancy Support

The PW701 supports dual-redundant configurations. When two modules install in a redundant power supply base, they share the load equally. In the event of a single unit failure, the healthy module instantly assumes the full load without causing a system dip or processor interruption, ensuring "zero-downspeed" transitions.

Integrated Status Monitoring

The front panel features dedicated LED indicators that provide immediate visual diagnostics of input status and output health. These signals also transmit to the HIS (Human Interface Station), allowing operators to monitor power integrity from the control room.

Technical Specifications

Installation Guide

To ensure optimal performance, install the PW701 in a well-ventilated cabinet with at least 50mm of clearance around the cooling vents. When connecting the AC input, utilize 2.0 mm² (AWG 14) or thicker wiring to minimize voltage drop and heat buildup at the terminals.

Engineers must verify the grounding resistance remains below 100 ohms (Class D grounding) to protect the module from surge damage. For redundant setups, connect each PW701 to a separate power circuit or UPS branch; this prevents a single upstream breaker trip from disabling the entire DCS node. During hot-swapping, ensure the locking screws are fully disengaged before pulling the module, and wait at least 30 seconds before re-inserting a module into the same slot to allow internal capacitors to discharge properly.

Engineering Advantages

The PW701 distinguishes itself through industrial-grade durability and seamless integration with the CENTUM series. Unlike generic power units, Yokogawa builds the PW701 with high-spec electrolytic capacitors rated for long-term continuous operation in high-humidity and high-vibration settings. The module’s design significantly reduces electromagnetic interference (EMI), which is crucial for preventing signal "jitter" in sensitive analog I/O loops. Its plug-and-play architecture allows for rapid field replacement, reducing Mean Time to Repair (MTTR) and ensuring that the overall control system maintains its high availability rating in the most demanding process applications.

Technical FAQs

Q1: Can I use the PW701 with 220V AC input?

A1: No. The PW701 is specifically rated for 100-120 V AC. For 220-240 V AC applications, you must use the PW702 model to avoid damaging the internal circuitry.

Q2: How does the module indicate a "Ready" status?

A2: A green "READY" LED on the front panel indicates the output voltage is within the normal operating range. If this LED is off while the input is live, it suggests an internal fault or an overcurrent condition.

Q3: Does this module require external cooling fans?

A3: The PW701 utilizes natural convection cooling. While it does not require dedicated fans, the cabinet must have adequate airflow to keep the ambient temperature below 55°C.

Q4: Is the PW701 compatible with both AFV10 and AFV30 stations?

A4: Yes, the PW701 functions as a standard power supply for various CENTUM VP field control station configurations, provided the power requirements of the installed modules do not exceed its capacity.
