Product Overview

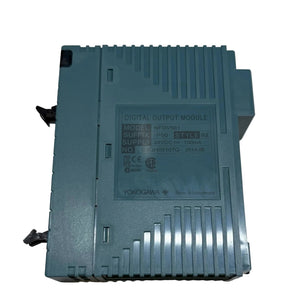

The Yokogawa NFDV561-P50 stands as a vital executive component within the ProSafe-RS Safety Instrumented System (SIS). This 16-channel digital output module provides the reliable switching power necessary to drive safety-critical final elements, such as solenoid valves, emergency shutdown (ESD) actuators, and signaling lamps. Unlike standard DCS modules, the NFDV561-P50 incorporates rigorous internal self-diagnostics to ensure that safety functions execute flawlessly when demand occurs. In high-stakes industrial sectors—including oil and gas refineries and offshore platforms—this module guarantees that emergency triggers translate into physical isolation or venting within milliseconds.

By utilizing a sourcing (positive logic) architecture, the NFDV561-P50 delivers a nominal 24V DC to field devices while maintaining total galvanic isolation from the system bus. This design prevents electrical faults in the field from compromising the integrity of the safety controller. Whether you are managing fire and gas systems or high-pressure protection loops (HIPPS), the NFDV561-P50 offers the high-resolution diagnostic feedback and ultra-fast response times required to protect personnel, assets, and the environment.

Technical Configuration

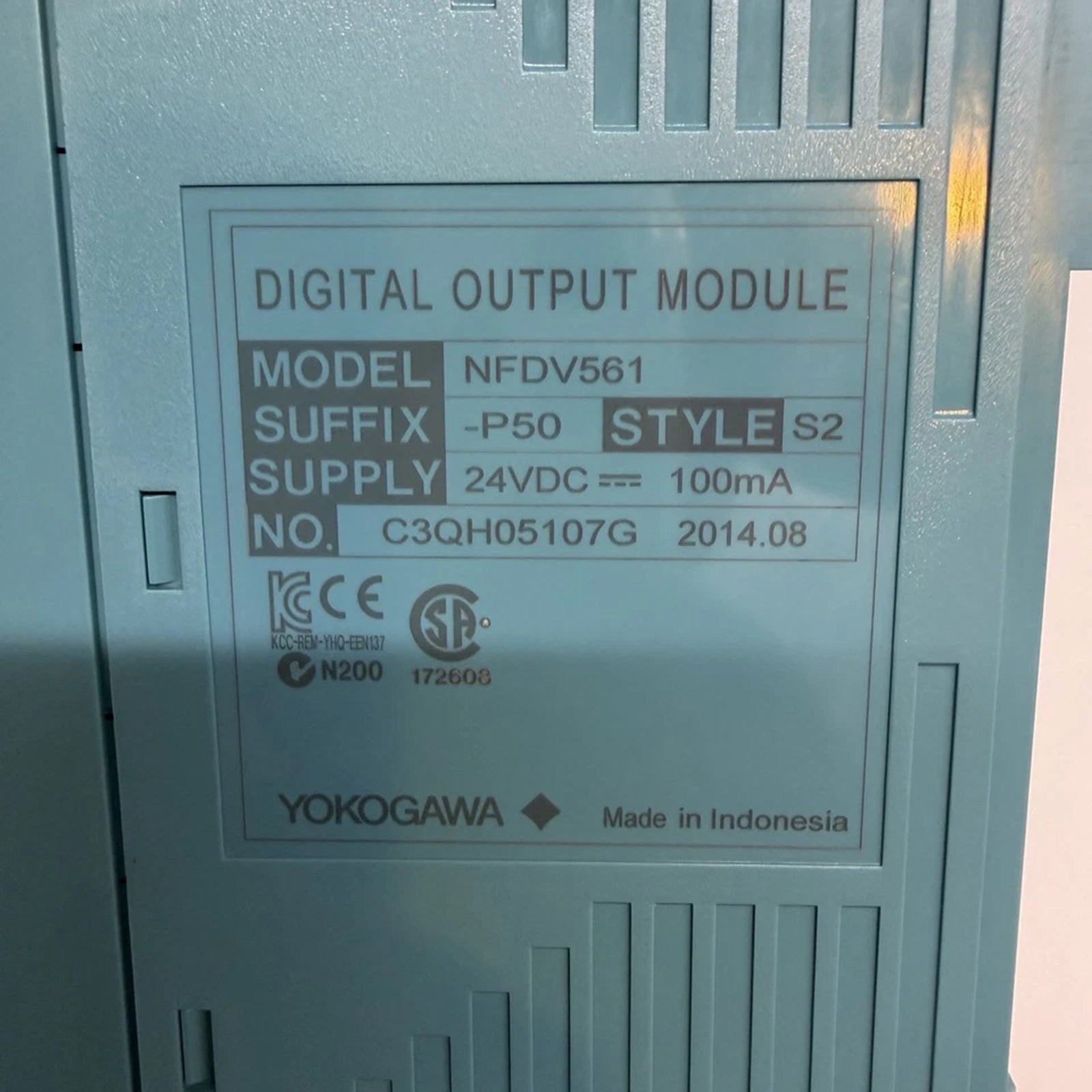

The NFDV561-P50 utilizes a specific alphanumeric coding system that defines its structural and safety capabilities for the ProSafe-RS environment.

NFDV561: Base Model Identifier

Identifies the unit as a high-performance Digital Output Module with 16 channels, optimized for the ProSafe-RS safety bus architecture.

P: Power Supply/Circuit Type

The "P" suffix designates a sourcing-type (Positive Logic) output. In this configuration, the module supplies the 24V DC potential directly to the load, which is the industry-standard for safety-critical wiring to ensure that a short-to-ground results in a fail-safe de-energized state.

5: Protection Criteria

The "5" digit indicates that the module features a specialized protective coating (Conformal Coating). This treatment allows the module to withstand corrosive atmospheres (G3 environments) containing H2S and SO2, common in chemical processing and offshore applications.

0: Functional Configuration

The final "0" designates the basic functional type for standard I/O node units. This ensures a "plug-and-play" replacement experience within Yokogawa safety nests, requiring no additional firmware tuning or specialized interface adapters.

Technical Specifications

Installation & Maintenance Guide

24V DC Power Integrity

Ensure the external 24V DC supply remains within the 20.4 to 28.8 V DC range. Safety modules like the NFDV561-P50 are sensitive to voltage fluctuations; a supply drop below 20V may trigger a "module failure" alarm in the SIS software.

Load Current Management

While each channel can drive 0.5 A, the total module current must not exceed 4 A. If your application requires driving 16 high-draw solenoids simultaneously, calculate the total current carefully. Overloading the module triggers the internal overcurrent protection, which may de-energize the safety loop unexpectedly.

Field Wiring and Diagnostics

Connect the load between the output terminal and the common ground. The NFDV561-P50 performs continuous line monitoring to detect open circuits or short circuits. When a fault occurs, the corresponding channel LED will flash or turn off, and a diagnostic message will appear on the ProSafe-RS maintenance station.

Environmental Sealing

Install the module within a cabinet that maintains the humidity levels below 95% (non-condensing). Although the P50 version features conformal coating, preventing moisture buildup on the terminal block prevents oxidation and ensures long-term signal integrity.

Engineering Advantages

SIL3 Certified Reliability

Designed from the ground up for functional safety, the NFDV561-P50 is a core component of SIL3-certified loops. It features internal redundancy and self-checking mechanisms that exceed the capabilities of standard industrial digital outputs, ensuring the system remains "fail-safe."

Ultra-Fast Executive Speed

With a switching time of ≤ 1 ms, this module provides the instantaneous action required for emergency shutdowns. This speed is critical for preventing pressure surges or hazardous chemical releases where every millisecond determines the outcome of a safety demand.

Robust Diagnostic Transparency

The module detects field-side faults including short circuits and overcurrents before they cause a failure on demand. This "hidden fault" detection is a cornerstone of ProSafe-RS, allowing maintenance teams to fix wiring issues during normal operation without tripping the plant.

Technical FAQs

Q1: What is the benefit of the "P50" suffix over a standard version?

A1: The P50 suffix indicates the presence of conformal coating. This makes the NFDV561-P50 resistant to moisture and corrosive gases, significantly extending the hardware's life in harsh environments like refineries or pulp and paper mills.

Q2: How does the module handle a short circuit in the field?

A2: Each channel features independent short-circuit detection. If a short occurs, the module limits the current to protect the internal circuitry and triggers a diagnostic alarm. Once the fault is cleared, the channel can be reset through the ProSafe-RS software.

Q3: Can I use this module for non-safety related outputs?

A3: While technically possible, it is cost-prohibitive. The NFDV561-P50 is engineered for Safety Instrumented Systems (SIS). Using it for general control tasks underutilizes its safety certifications and diagnostic capabilities.

Q4: Does the NFDV561-P50 support external relay boards?

A4: Yes. For loads exceeding 0.5 A, the module can drive an interposing relay board. Ensure the relay coil power consumption is within the 0.5 A limit to maintain proper diagnostic line monitoring.
