Product Overview

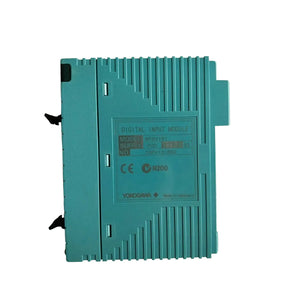

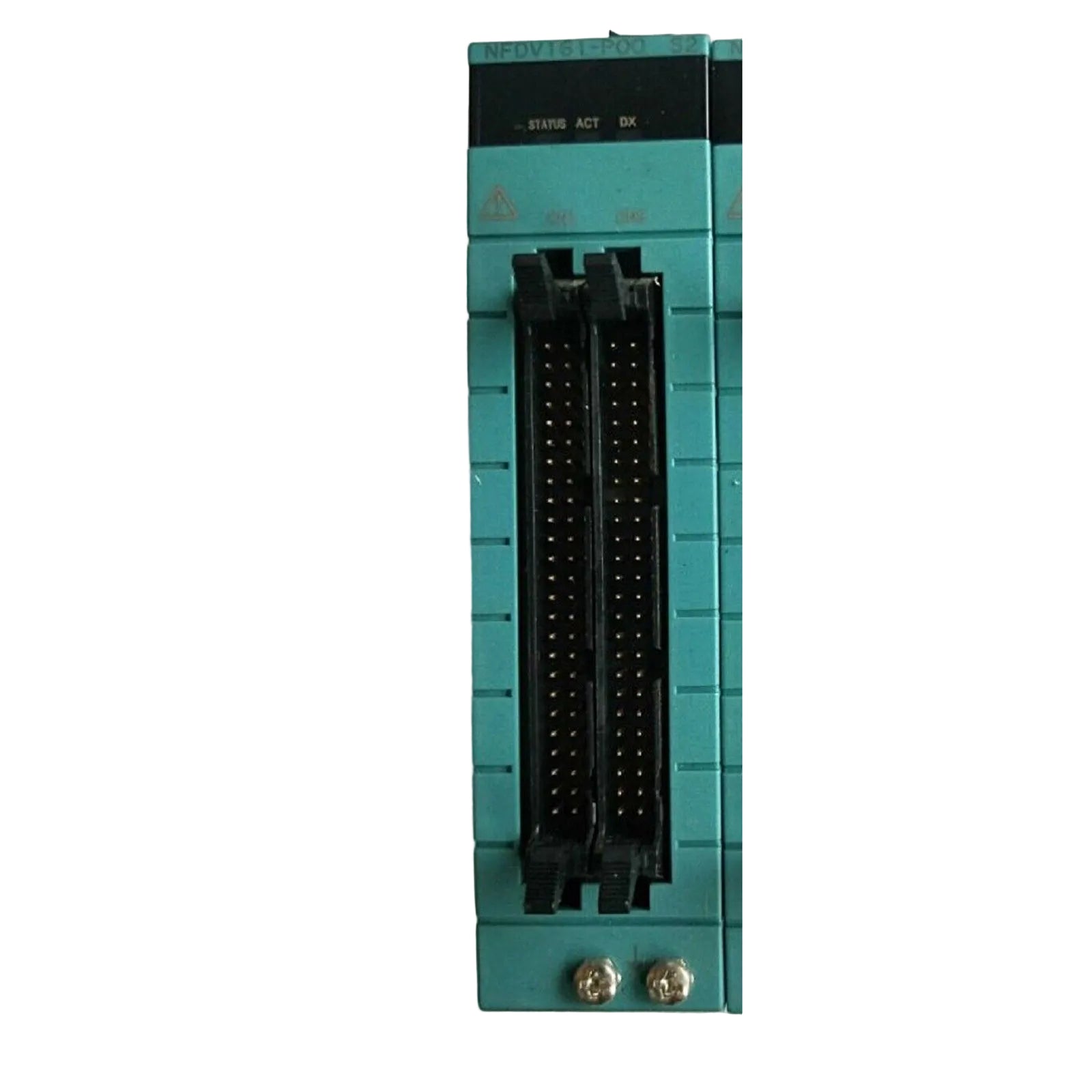

The Yokogawa NFDV161-P00 stands as a cornerstone component for the STARDOM autonomous controller network, specifically designed to bridge field-level discrete signals with high-level logic processing. This 16-channel digital input module excels in monitoring critical states of industrial machinery—such as valve positions, motor starters, and pressure switches—within oil & gas, water treatment, and power generation facilities.

Equipped with sophisticated optocoupler isolation, the NFDV161-P00 effectively shields the controller's CPU from field-side electrical surges and noise interference. Its high-speed data refresh cycle of approximately 10 milliseconds ensures that even the most rapid process fluctuations are captured and communicated to the FCN/FCJ controllers without delay. By supporting both dry contact and 24 VDC active signals, this module provides the flexibility required for complex B2B procurement specifications in modern smart factories.

Technical Configuration

The NFDV161-P00 utilizes a modular suffix architecture that determines its physical interface and environmental protection levels within the STARDOM hardware ecosystem.

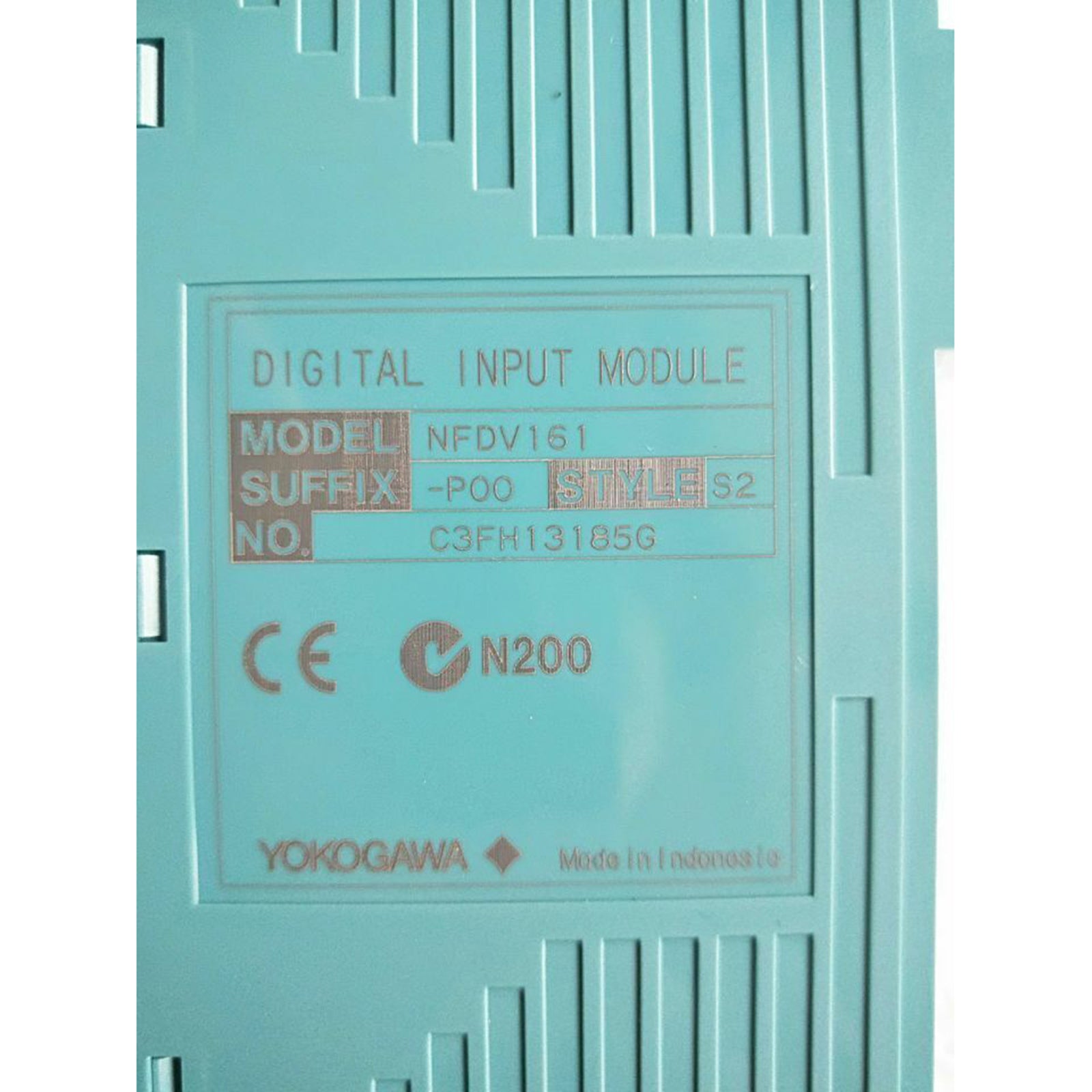

Suffix Breakdown: NFDV161 [ -P ] [ 0 ] [ 0 ]

-P | Power and Connection Type

The "-P" designation signifies the module's compatibility with standard STARDOM backplanes. It utilizes a robust connector interface designed for high-vibration environments, ensuring stable electrical contact even when installed near heavy rotating equipment.

0 | Protection Code

The first "0" confirms a standard protection build. This internal hardware configuration is optimized for standard industrial I/O tasks where high-frequency pulse counting is not required, focusing instead on reliable status monitoring (ON/OFF).

0 | Basic Specification

The final "0" indicates a standard functional specification with basic conformal coating. This ensures reliability in typical control room environments or sealed field cabinets, maintaining structural integrity against dust and moisture ingress.

Technical Specifications

Installation Guide

To ensure the longevity and accuracy of the NFDV161-P00, engineering teams must adhere to specific installation protocols during site commissioning.

Wiring and Signal Polarity

The module supports both sinking and sourcing configurations. When wiring dry contacts, ensure the 24 VDC loop is fused to prevent field-side shorts from damaging the terminal block. Maintain a minimum wire gauge of 0.5 $mm^2$ to minimize voltage drop across long cable runs.

Backplane Integration

Firmly seat the module into the FCN/FCJ backplane slot until the locking levers engage. A loose connection can cause "I/O Communication Error" alarms in the STARDOM logic. Ensure that the module's power consumption falls within the total power budget of the specific backplane power supply unit (NFPW44x series).

Noise Mitigation

Route signal cables away from high-voltage motor leads (480V or higher) to prevent electromagnetic induction. Even with optocoupler isolation, maintaining a 300mm separation between I/O wiring and power cables is standard best practice for STARDOM deployments.

Engineering Advantages

The NFDV161-P00 offers an exceptional MTBF (Mean Time Between Failures), reducing the total cost of ownership for facility operators. Its seamless integration with VDS (Versatile Data Management System) allows procurement managers and engineers to access real-time diagnostics via web-based interfaces.

The module’s ability to handle high-impedance inputs prevents the "ghost signaling" often found in cheaper I/O cards, providing definitive status updates for critical safety interlocks. Whether utilized in a centralized control room or a distributed RTU (Remote Terminal Unit) at a wellhead, the NFDV161-P00 guarantees industrial-grade performance under continuous 24/7 operation.

Technical FAQs

Q1: Can the NFDV161-P00 be used for pulse frequency measurement?

A1: No, this module is optimized for status (ON/OFF) detection. For high-speed pulse counting or frequency measurement, we recommend the Yokogawa NFCP series pulse input modules.

Q2: What happens if the input voltage exceeds the 24 VDC rating?

A2: The module features built-in protection, but sustained voltages above 30 VDC can cause heat buildup in the optocouplers. Always verify your power supply regulation before commissioning.

Q3: Is this module compatible with CENTUM VP systems?

A3: The NFDV161 is specifically designed for the STARDOM (FCN/FCJ) series. While STARDOM can communicate with CENTUM via GSGW, the module cannot be physically plugged into a CENTUM FIO node.

Q4: Does the module require an external 24V supply for the inputs?

A4: Yes, while the module logic is powered by the backplane, the input loop itself requires an external 24 VDC source to drive the field contacts and signal the "ON" state.
