Product Overview

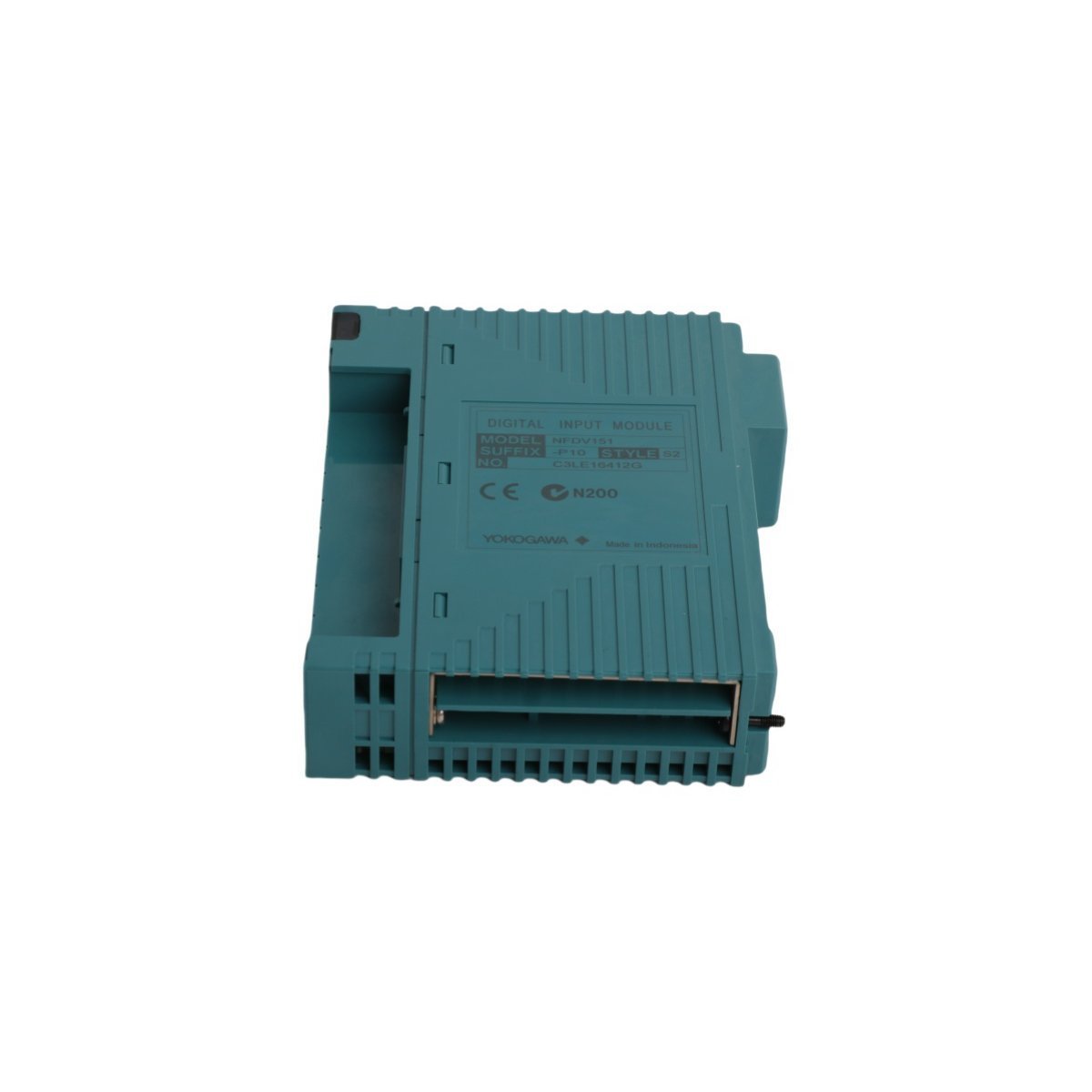

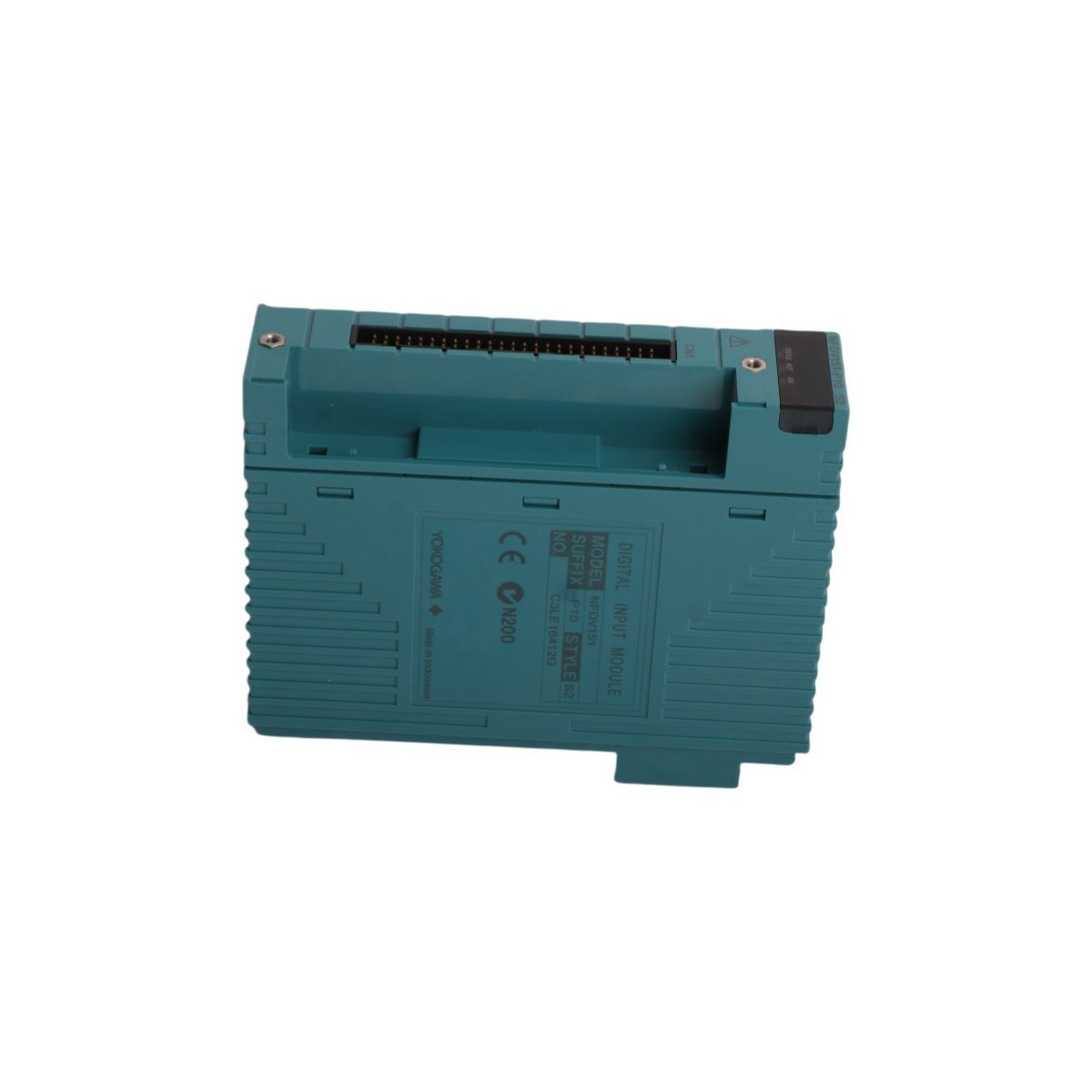

The Yokogawa NFDV151-P10 S2 is a high-density digital input module specifically developed for the ProSafe-RS Safety Instrumented System (SIS). This module acts as a critical interface for safety-related applications, capturing binary signals from field devices such as emergency stop buttons, flame detectors, and pressure switches. As an integral part of a functional safety architecture, the NFDV151-P10 S2 is designed to meet stringent reliability requirements, ensuring that process data is accurately communicated to the safety controller.

The S2 hardware revision signifies an enhanced design version, offering optimized signal processing and improved diagnostic coverage. This module is essential for industries where operational safety is paramount, including oil and gas, petrochemical refining, and chemical processing, as it facilitates the execution of safety loops and emergency shutdown (ESD) protocols.

Technical Specifications

• Manufacturer: Yokogawa Electric Corporation

• Model: NFDV151-P10 S2

• System Series: ProSafe-RS

• Input Type: Digital Input (Sink/Source type depending on wiring)

• Number of Channels: 32-channel, isolated

• Rated Input Voltage: 24 V DC

• ON Voltage Range: 18 to 26.4 V DC

• OFF Voltage: 5.0 V DC or less

• Input Current: 4.1 mA (typical per channel)

• Response Time: 8 ms or less (Standard input response)

• Internal Current Consumption: 500 mA maximum (at 5 V DC)

• Weight: 0.25 kg

• Dimensions: 32 x 106 x 130 mm

• Origin: Japan

Key Technical Characteristics

Safety-Grade Reliability and Diagnostics

The NFDV151-P10 S2 is engineered for use in Safety Integrity Level (SIL) rated loops. It features extensive internal self-diagnostics that monitor the health of the module’s circuitry. Any internal hardware discrepancies or faults are immediately reported to the ProSafe-RS controller, allowing for rapid intervention and maintaining the safety integrity of the overall system.

High-Density Signal Acquisition

By supporting 32 discrete input channels in a single compact slot, this module significantly reduces the required cabinet footprint. This high density allows for the efficient concentration of safety inputs, simplifying wiring and reducing the complexity of the safety rack architecture.

Enhanced Signal Integrity and Isolation

To ensure precise signal detection in harsh industrial environments, the module incorporates robust electrical isolation. This protects the internal system bus from external electrical noise, surges, and ground loops that are common in large-scale industrial plants. The 24V DC input logic is finely tuned to distinguish between valid signal states and electrical interference.

Seamless System Integration

As part of the Yokogawa safety portfolio, the NFDV151-P10 S2 integrates natively with the ProSafe-RS engineering station. It supports hot-swapping (subject to system configuration), which enables maintenance teams to replace modules without disrupting the continuous operation of the safety system, thereby increasing total plant uptime.
