Product Overview

The Yokogawa NFCP502-S05 serves as the high-performance intelligent core for the STARDOM FCN (Field Control Node) autonomous controller series. Engineered to bridge the gap between PLC flexibility and DCS reliability, this CPU module excels in complex regulatory control and high-speed discrete logic. By utilizing an Atom E3815 processor and 256MB of ECC-protected memory, it guarantees stable execution of large-scale control applications while preventing data corruption from soft errors. The inclusion of four integrated Ethernet ports provides unparalleled networking versatility, allowing simultaneous connections to HMI, SCADA, and peer-to-peer controller networks without the need for additional switching hardware. This module ensures maximum process uptime in demanding sectors such as water treatment, renewable energy, and oil and gas upstream facilities.

Technical Configuration

The NFCP502-S05 model utilizes a precise suffix-based architecture to define its functional capabilities and environmental protections.

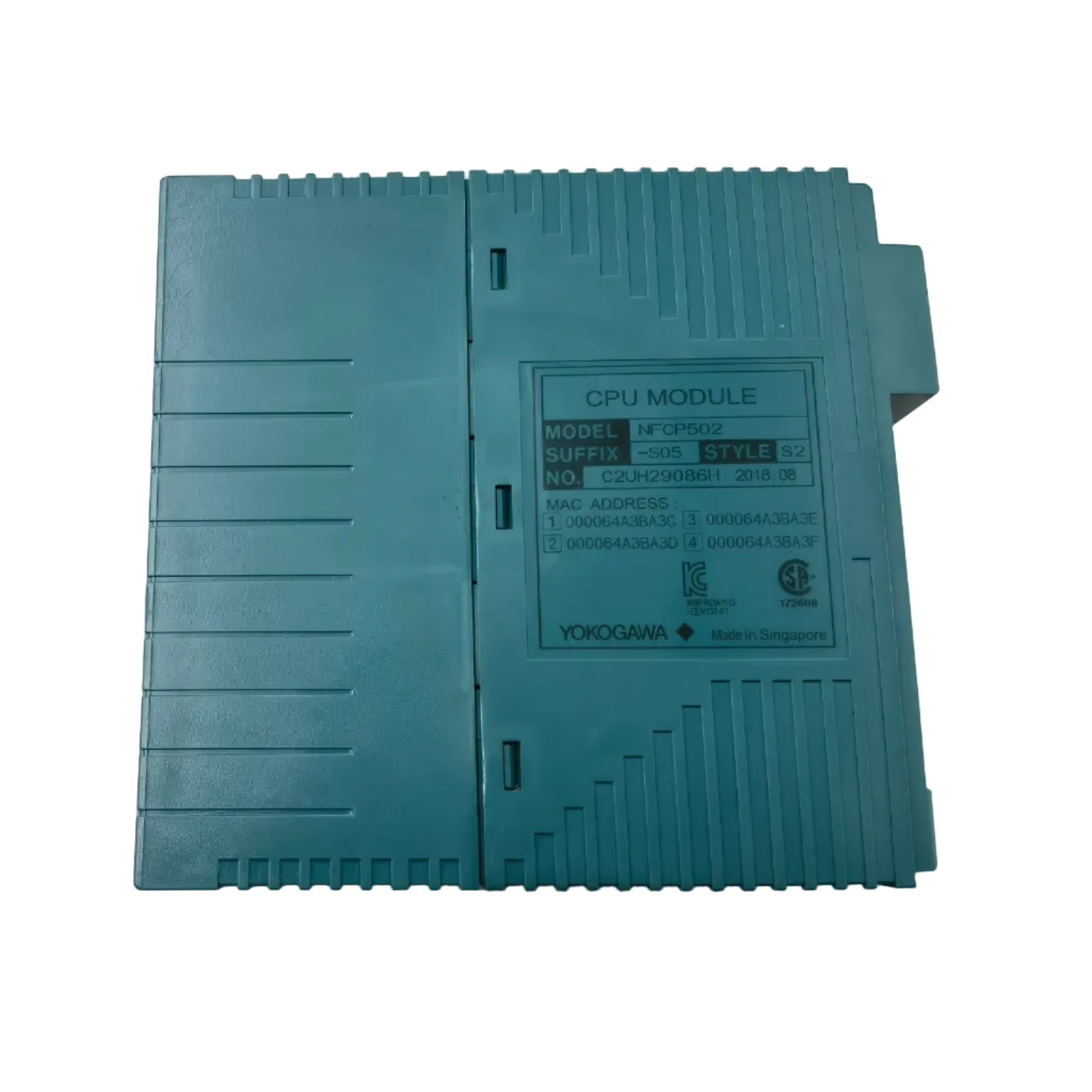

Suffix Code Breakdown

NFCP502: Designates the high-speed CPU module for FCN-style controllers, specifically equipped with a quad-Ethernet port interface for advanced networking.

-S: Signifies the "Standard Functions" software environment, optimized for standard process control and logic execution.

0: Represents the "Standard Type" hardware configuration, providing the primary processing power for the STARDOM ecosystem.

5: Indicates the protection and certification level. This "Basic Type" is designed for installation in non-hazardous areas, focusing on high-integrity performance in environments where explosion protection (Ex) is not a requirement.

Technical Specifications

Engineering Guide

Integrating the NFCP502-S05 requires attention to power management and network security to ensure long-term stability.

Slot Allocation and Redundancy

The module occupies two slots on the FCN base unit. For mission-critical applications, install two NFCP502 modules in a duplex configuration. This setup allows for seamless failover; if the primary CPU detects a hardware fault via its watchdog timer, the standby unit assumes control within milliseconds to maintain process continuity.

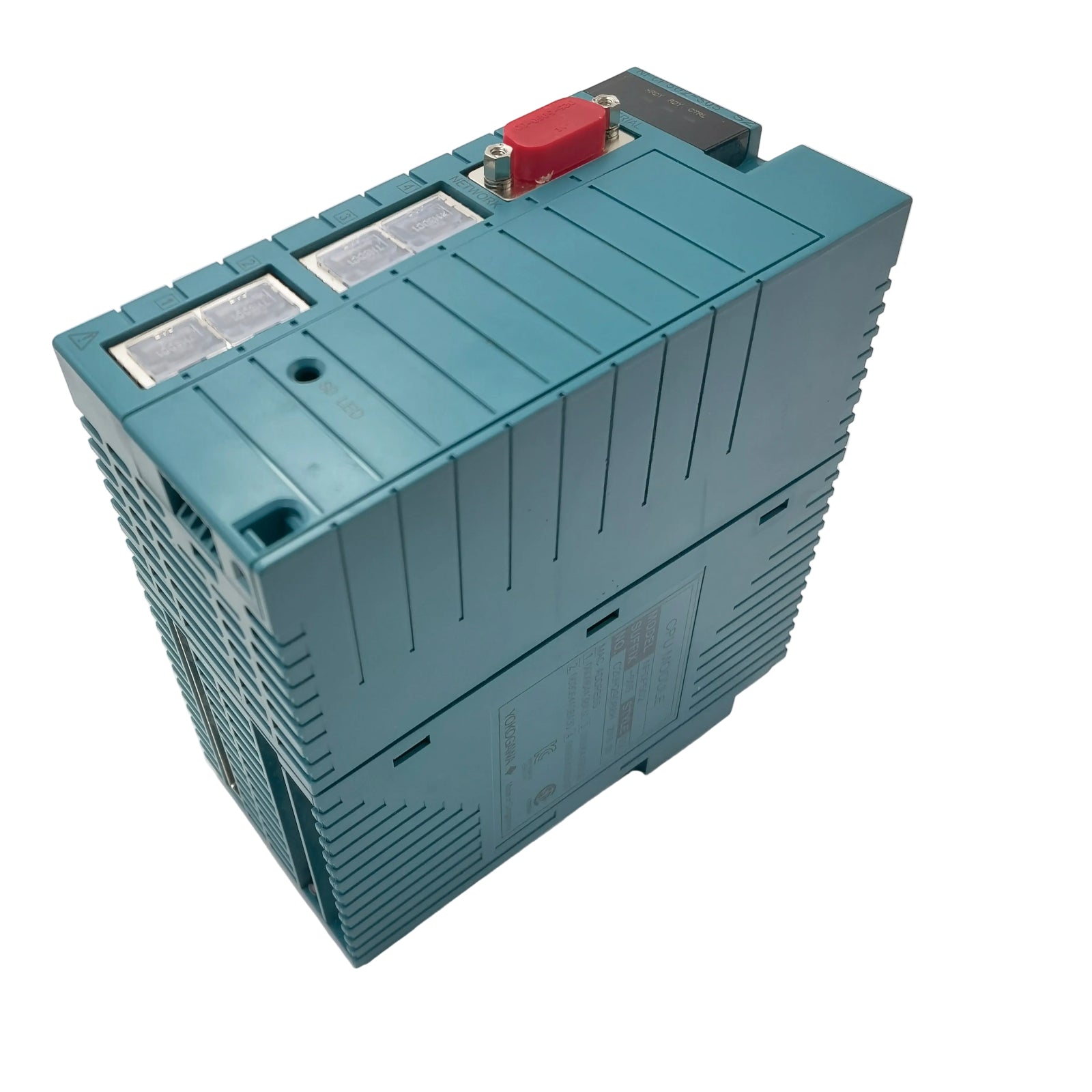

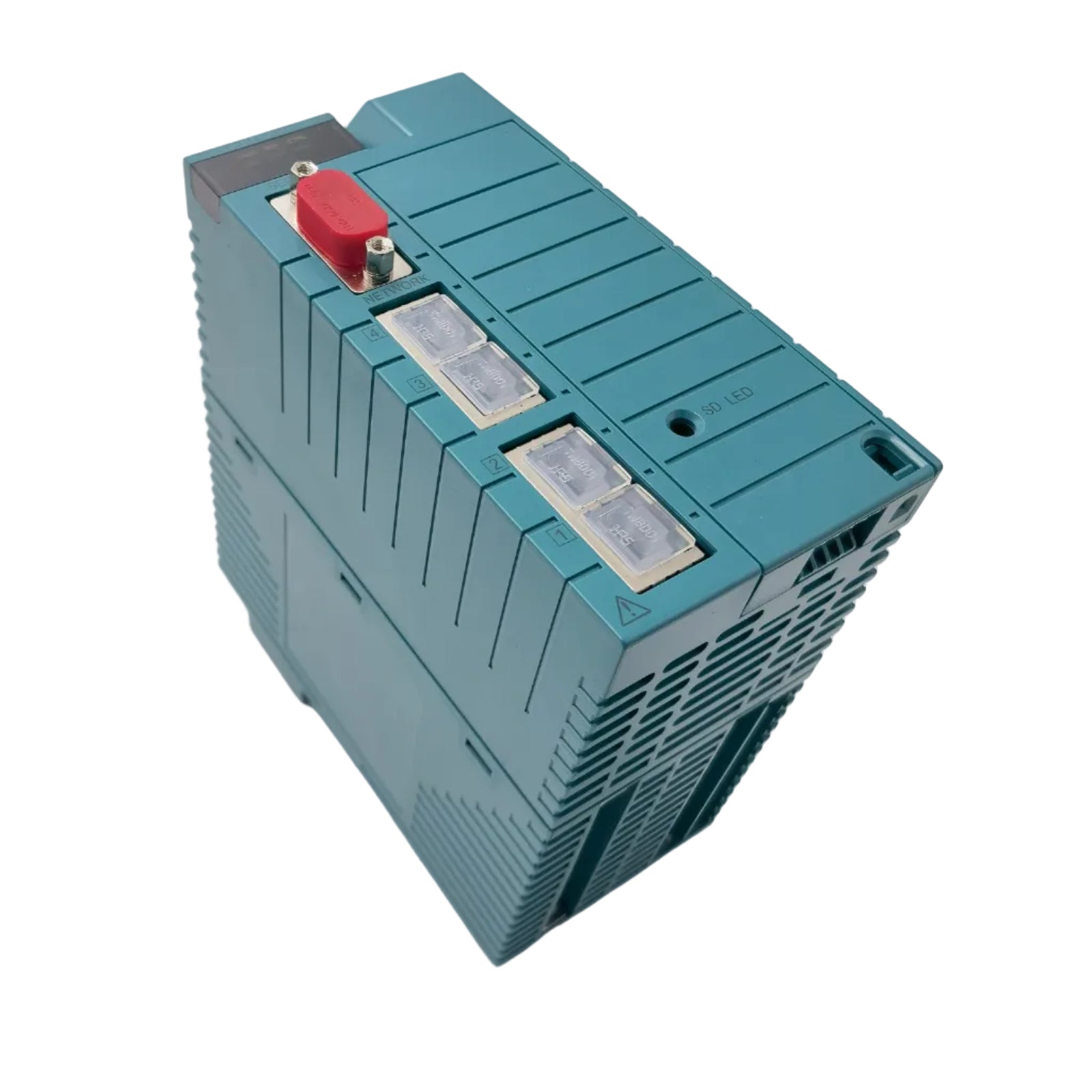

Network and Communication

Utilize the four Ethernet ports to physically segregate control traffic from management traffic. It is recommended to use shielded twisted pair (STP) Cat6 cables in high-noise environments. When configuring the RS-232-C port for Modbus or other serial protocols, ensure the baud rate settings match the field device exactly to prevent buffer overflows.

Battery and Memory Maintenance

The 2 MB Static RAM relies on a lithium battery for data retention during power outages. Check the "BATTERY" LED indicator during routine maintenance; if the LED triggers, replace the 1000 mAh graphite fluoride lithium battery within the specified window to prevent the loss of retained variables.

Engineering Advantages

The NFCP502-S05 distinguishes itself through its "Autonomous" capability, allowing it to function as a standalone controller with built-in web server and FTP functionality. Its hardware-based ECC memory is a critical advantage for industrial reliability, as it automatically detects and corrects single-bit errors that could otherwise cause system crashes in high-radiation or high-interference environments. The module's wide operating temperature range and fanless design eliminate mechanical failure points, ensuring the controller remains operational in remote, unconditioned cabinets where standard IT hardware would fail.

Delivery and Logistics

Delivery Time: 3-5 business days following payment confirmation.

Shipping Methods: Priority dispatch via DHL, FedEx, or UPS.

Quality Assurance: Ships in original Yokogawa factory-sealed packaging with a full guarantee of authenticity.

Technical FAQs

Q1: Does the NFCP502-S05 support duplex (redundant) CPU configurations?

A1: Yes. The STARDOM architecture supports mounting two NFCP502 modules side-by-side on a duplex-ready base unit to provide high-availability control.

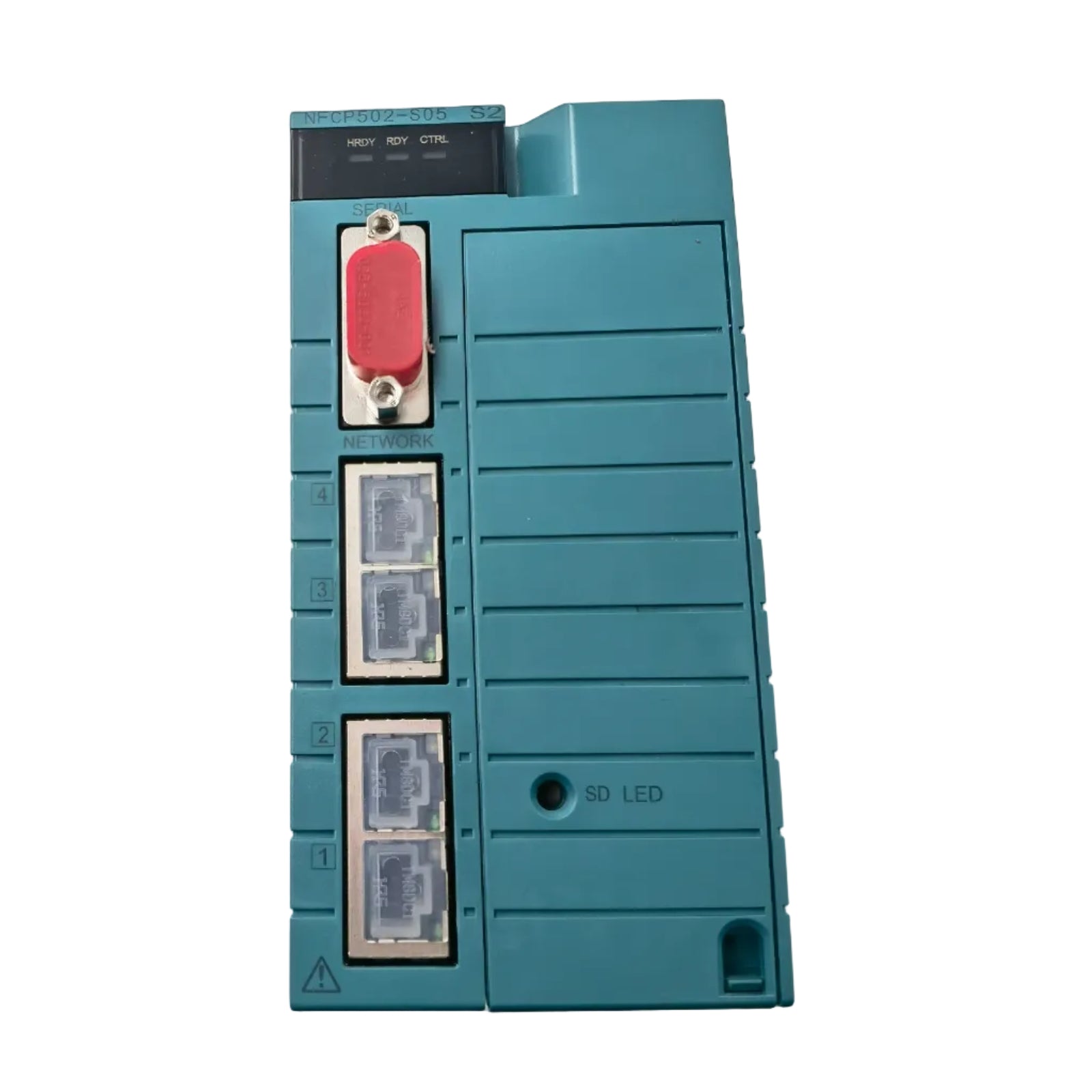

Q2: What is the purpose of the SD card slot on the front panel?

A2: The SD card slot supports SDHC cards (up to 32GB) for logging process data, storing application backups, or performing firmware updates without a PC connection.

Q3: Can I use all four Ethernet ports for the same network?

A3: While possible, the ports are best used to separate different network layers (e.g., one for the control bus, one for HMI communication, and others for field networks) to enhance security and reduce network jitter.

Q4: How does the "S2" style designation affect compatibility?
