Product Overview

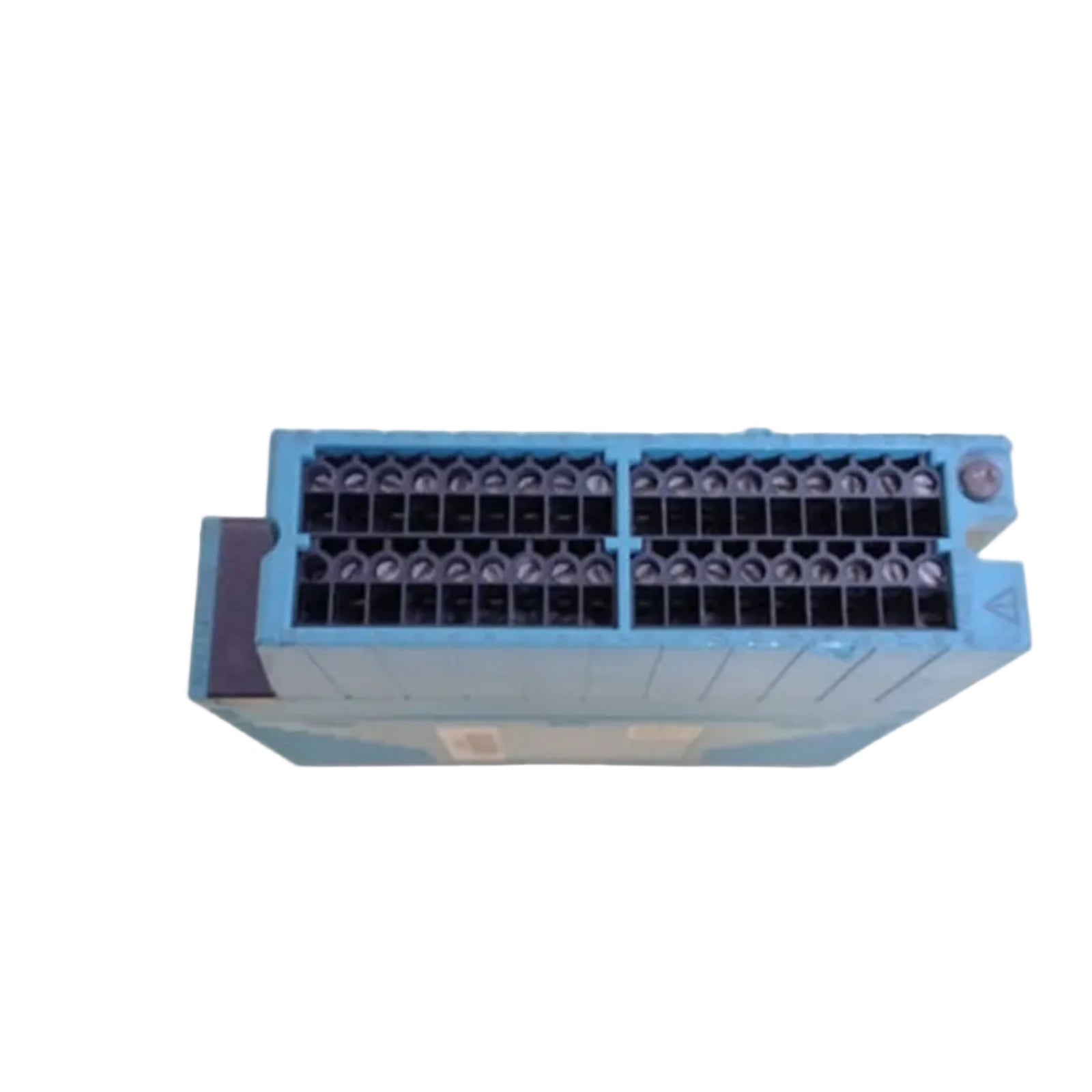

The Yokogawa NFAI141-S01 stands as a cornerstone of data acquisition for the CENTUM VP and CS 3000 Distributed Control Systems. This high-density analog input module features 16 isolated channels specifically engineered to process 4–20 mA current signals with superior precision. In mission-critical sectors such as oil and gas refining or power generation, this module provides the essential interface for monitoring critical process variables including pressure, flow, and temperature. The NFAI141-S01 excels in stabilizing signals from remote field transmitters, utilizing robust galvanic isolation to prevent ground loops from corrupting sensitive control data. By delivering clean, high-resolution digitized values to the field control station, this module empowers operators to maintain peak process efficiency and respond instantly to thermal or pressure excursions.

Technical Configuration

The NFAI141-S01 follows a specific nomenclature that defines its hardware capability and environmental suitability for industrial racks.

Model Suffix Breakdown

NFAI141: Basic Model Code identifying the 16-channel isolated analog current input module.

-S: Designates the Standard Type, optimized for universal process automation and standard high-speed data acquisition tasks within the Yokogawa DCS ecosystem.

0: Indicates the standard functional configuration, ensuring the module supports the full range of 4–20 mA diagnostic features including burn-out detection and over-range monitoring.

1: Represents the connection and protection type. This variant is designed for installation in standard, non-explosion-proof environments, utilizing standard connector interfaces for rapid integration into FCN or FCU base units.

Technical Specifications

Installation Guide

Correct engineering practices during the deployment of the NFAI141-S01 safeguard the integrity of your process signals and prevent hardware degradation.

Wiring and Termination

Utilize high-quality shielded twisted-pair (STP) cabling for all field connections to minimize the impact of electromagnetic interference. Secure the connections to the terminal block, ensuring that no bare wire is exposed. For 2-wire transmitters, verify that the module provides sufficient loop power; the internal 250 Ω resistance is optimized for standard 4-20 mA current loops.

Shielding and Grounding

Always ground the cable shields at the DCS cabinet side only. This single-point grounding prevents ground potential differences from creating circulating currents that could introduce measurement offsets. Maintain a minimum bending radius for signal cables to prevent mechanical stress on the module’s front-panel connectors.

Thermal Management

The module operates efficiently between -20°C and +70°C. However, in high-density racks where multiple NFAI141 modules are installed side-by-side, ensure active cooling or sufficient natural convection airflow. Leave a clearance of at least 50 mm above and below the base unit to allow heat to dissipate away from the sensitive ADC circuitry.

Engineering Advantages

The NFAI141-S01 provides a formidable barrier against the electrical noise and surges typical of large-scale industrial plants. Its 500 V AC isolation rating ensures that a catastrophic electrical fault at a single field transmitter does not propagate back to the central processor, maintaining overall system availability. The module's impressive 10 ms refresh cycle makes it ideal for fast-acting control loops and transient analysis in turbine monitoring systems. Furthermore, its ruggedized Japan-made architecture is built to withstand the corrosive atmospheres of chemical plants, ensuring a decades-long service life without the calibration drift common in lower-grade commercial components.

Delivery and Shipping

Delivery Time: 3-5 business days upon payment finish.

Logistics Partners: Reliable global delivery via DHL, FEDEX, or UPS.

Product Condition: Brand New, Original Factory Sealed, Export Packaging.

Technical FAQs

Q1: How does the module handle a transmitter failure or broken wire?

A1: The NFAI141-S01 includes integrated burn-out detection. If the input current falls below the threshold (typically 0.65 mA), the module triggers a diagnostic alarm to the DCS, allowing operators to identify and resolve the fault immediately.

Q2: Is the NFAI141-S01 hot-swappable?

A2: Yes, the CENTUM VP and CS 3000 architectures support the online replacement of I/O modules. However, the control loop should be placed in manual or a safe state before physical removal.

Q3: Does this module require an external power supply for the current loops?

A3: The NFAI141-S01 is a passive input module in terms of loop power. While it measures the current, the power for the 4-20 mA loop must be provided by the field transmitter or an external 24V DC power source.

Q4: What is the benefit of the 250 Ω input resistance?

A4: The 250 Ω resistor converts the 4-20 mA current into a 1-5 V DC signal internally. This is the industry-standard impedance for ensuring signal stability while maintaining compatibility with most standard HART and analog transmitters.
