Product Overview

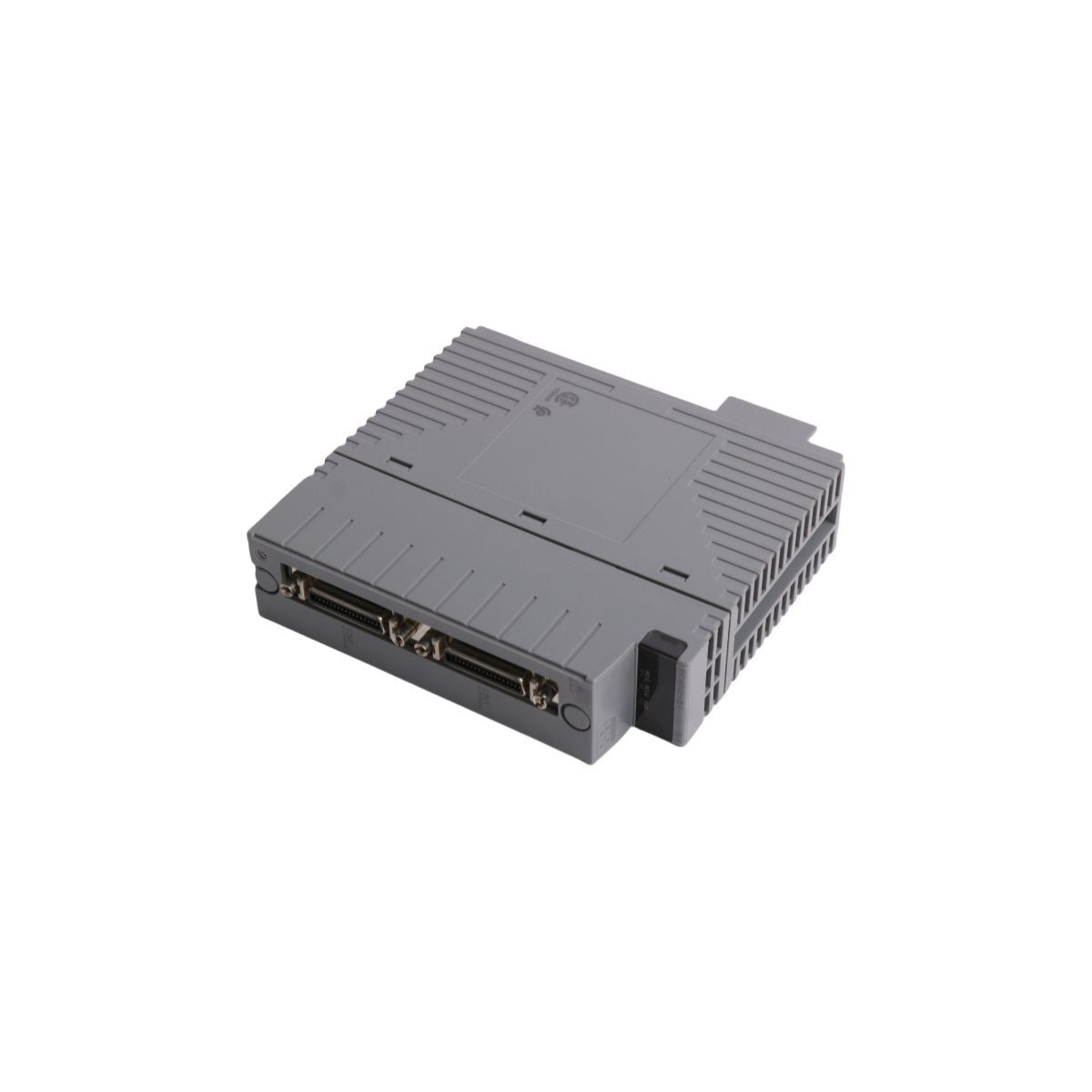

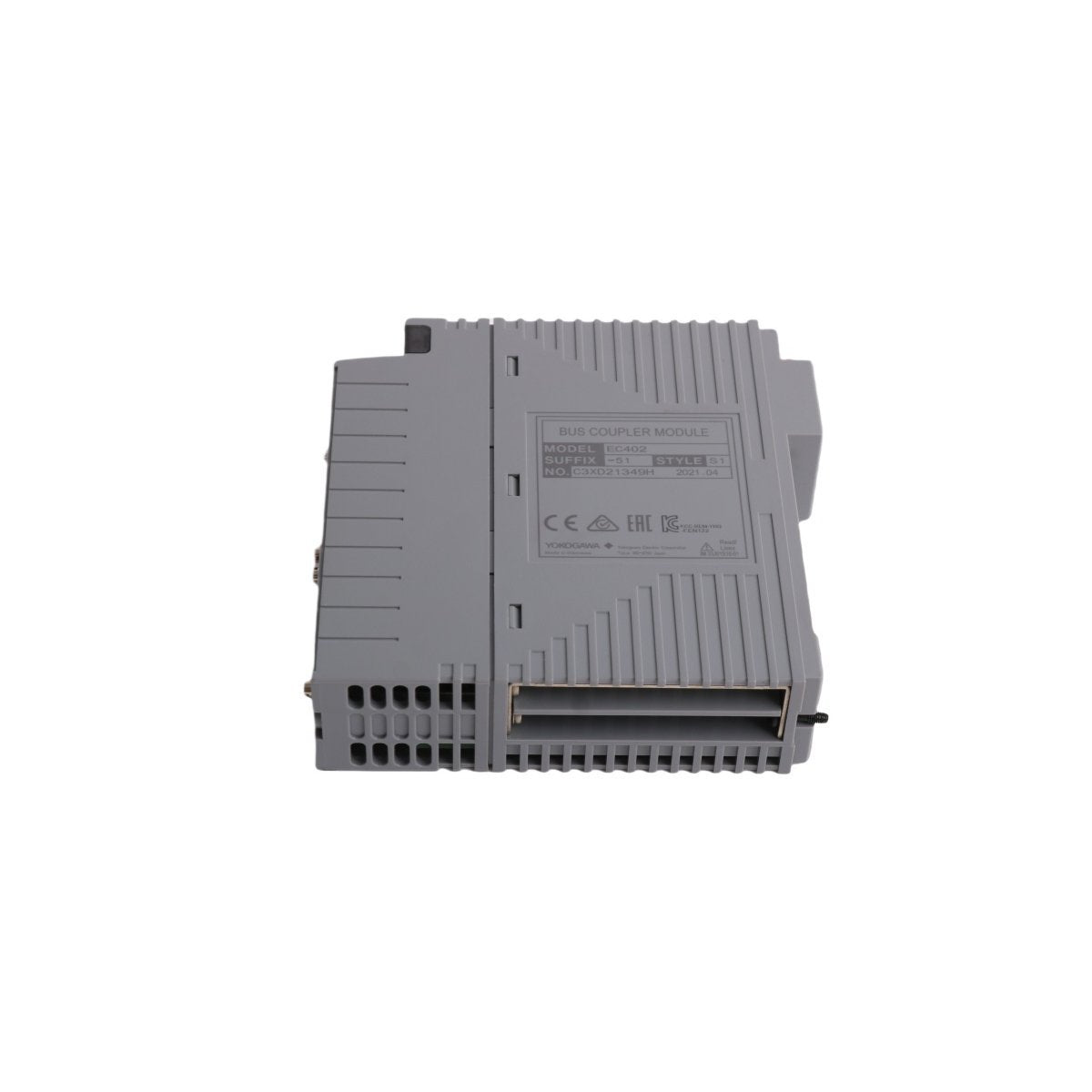

The Yokogawa EC402-50 S1 is a high-performance ESB Bus Coupler Module engineered for the CENTUM VP Distributed Control System (DCS). This hardware component serves as the primary communication bridge between Field Control Units (FCUs) and remote Node Units. By utilizing the ESB bus architecture, the module facilitates high-speed, deterministic data exchange essential for real-time process control.

Designed for scalability and system availability, the EC402-50 S1 supports dual-redundant configurations. When deployed in pairs, these modules provide a fail-safe communication backbone, preventing system downtime in the event of a cable or module failure. The S1 designation indicates the specific hardware revision optimized for current generation Yokogawa controller frameworks.

Technical Specifications

• Manufacturer: Yokogawa Electric Corporation

• Model: EC402-50 S1

• Product Category: ESB Bus Coupler

• Compatible Controllers: AFV30S, AFV30D, AFV40S, AFV40D, A2FV50, A2FV70

• Interface Ports: 2 x ESB Bus Connectors (Front-mounted)

• Bus Speed: 128 Mbps

• Transmission Distance: Up to 10 meters (standard ESB bus)

• Power Supply: 5V DC (supplied via backplane)

• Current Consumption: 0.25 A

• Weight: 0.24 kg

• Dimensions: 32 x 128 x 130 mm

• Origin: Japan

Functional Characteristics and Applications

System Connectivity and Integration

The EC402-50 S1 is installed directly into the processor unit's I/O module slots. It transmits data from the CPU to the local or extended I/O nodes. Its advanced circuitry is specifically tuned to maintain signal integrity over the 128 Mbps bus, even in environments with high electromagnetic interference (EMI).

Redundancy and Reliability

This module is a cornerstone of Yokogawa’s "Vnet/IP" and "ESB" reliability strategy. In a redundant setup, the modules operate in parallel, ensuring that process data reaches the controller without interruption. This makes the EC402-50 S1 an essential component for high-stakes industries such as petrochemical refining, LNG processing, and power utility management.

Diagnostics and Maintenance

The module includes onboard diagnostic indicators to provide immediate visual feedback on bus status and hardware health. Its plug-in design allows for rapid replacement during maintenance cycles, while the robust connector housing prevents mechanical wear during installation in dense control cabinets.
