Product Overview

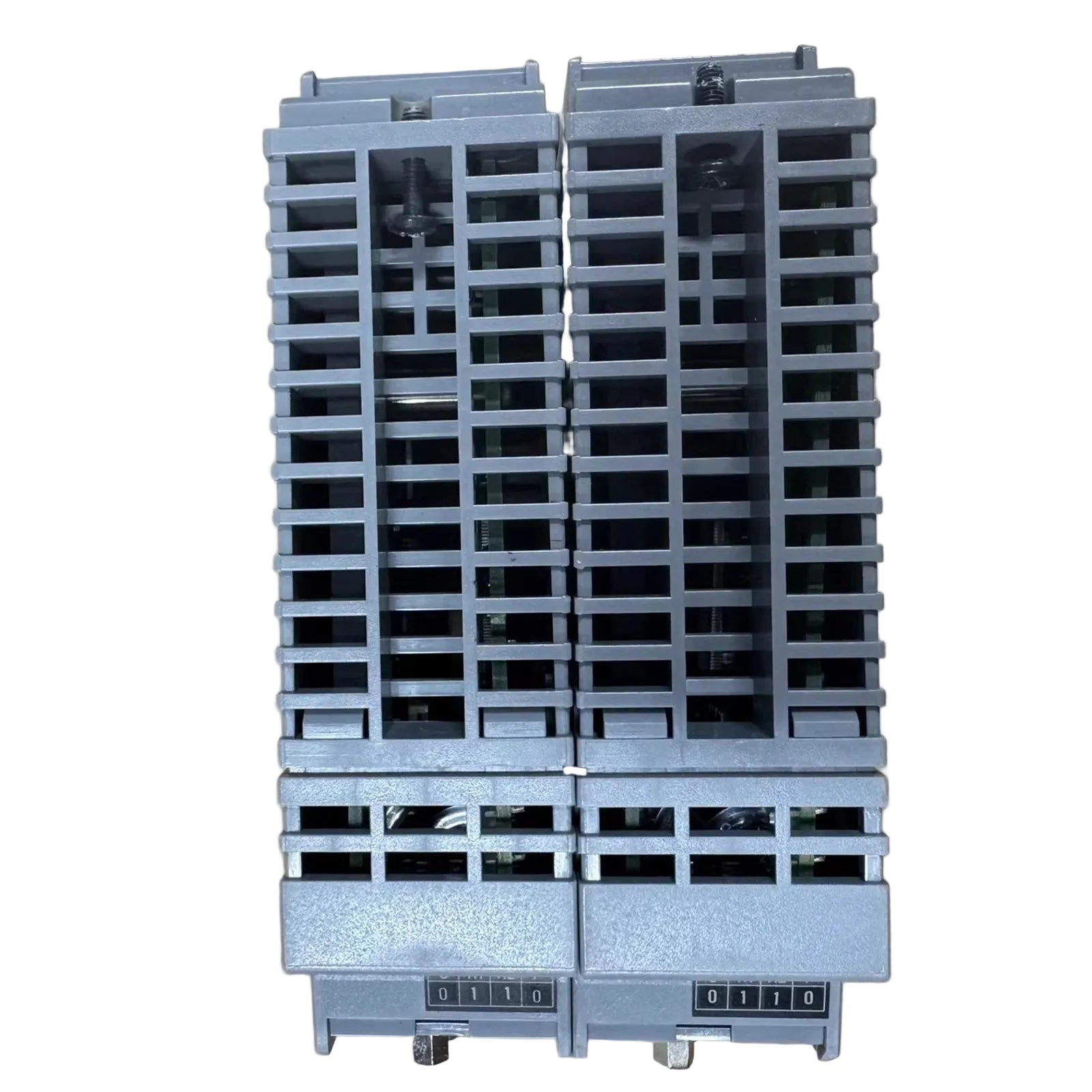

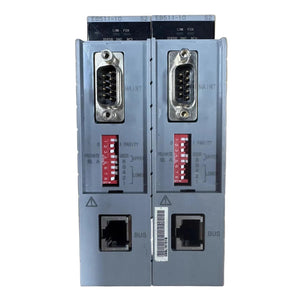

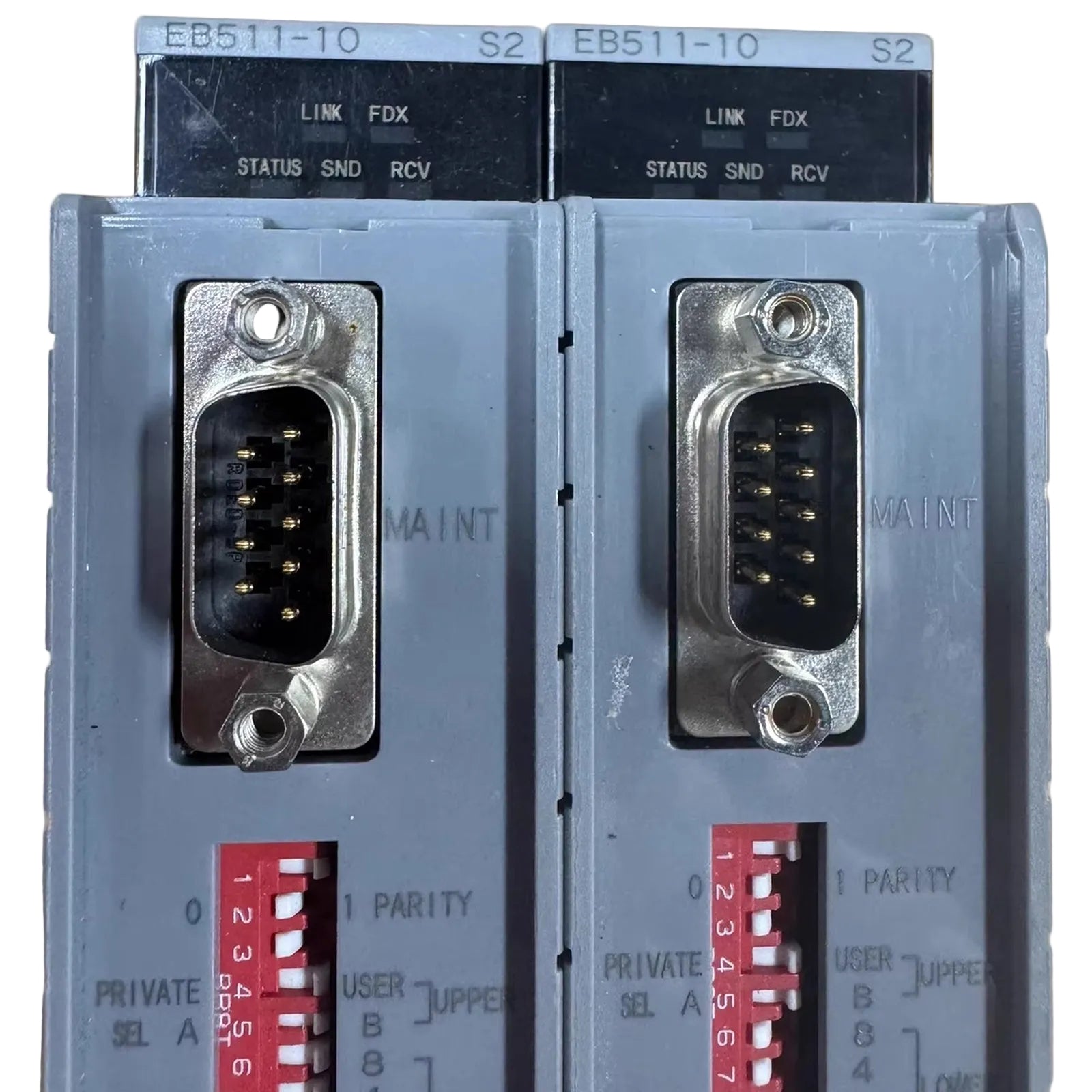

The Yokogawa EB511-10 stands as a critical communication bridge within the CENTUM CS and CENTUM VP Distributed Control Systems (DCS). This ER Bus Interface Module facilitates high-integrity data exchange between the Field Control Station (FCS) and extended I/O nodes. By utilizing the 10BASE-2 physical layer, the EB511-10 manages real-time traffic across the control network, ensuring that process variables and command signals reach their destination with zero latency.

In complex industrial environments such as oil refineries and large-scale chemical plants, the EB511-10 maintains the backbone of the control architecture. Its design prioritizes deterministic communication, which is essential for stabilizing loops in high-speed processes. Whether integrated into legacy CENTUM CS setups or modern CENTUM VP environments, this module provides the hardware reliability needed to prevent network bottlenecks and maintain 24/7 operational continuity.

Technical Configuration

As a core interface component, the EB511-10 features a specific suffix logic and hardware architecture tailored for Yokogawa’s ER Bus (Extended Remote Bus) topography.

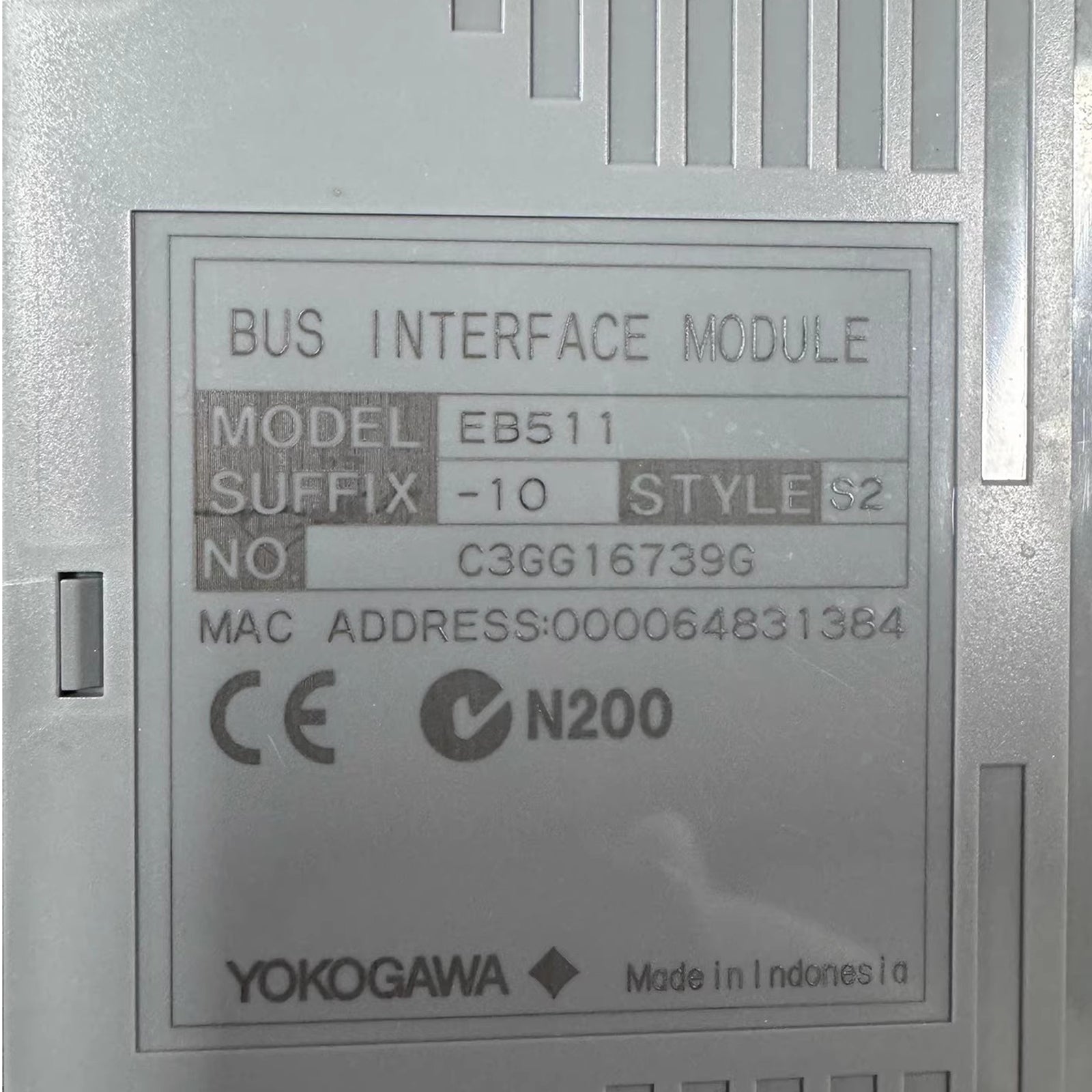

Suffix Code Breakdown

-1: Standard Communication Type

The first digit of the suffix confirms the hardware is optimized for standard 10 Mbps communication over the ER Bus. This ensures electrical compatibility with BNC-terminated coaxial cables, common in 10BASE-2 configurations.

0: Basic Functionality & Mounting

The trailing "0" indicates a standard mounting profile for Yokogawa I/O racks. This designation ensures the module fits precisely into the dedicated interface slots of the FCS, utilizing the backplane for both logic power and system-side data transfer.

Technical Specifications

Installation Guide

Proper installation of the EB511-10 is paramount to prevent network noise and signal reflection within the ER Bus.

Termination and Connection

Every ER Bus segment requires proper 50 Ω termination at both ends. Failure to install terminators on the BNC "T" connectors will cause signal reflections, leading to communication errors or module timeouts. Always ensure the BNC connectors are securely locked with a quarter-turn to maintain a low-resistance path.

Cable Management

Maintain a minimum bending radius of 10 cm for coaxial cables to avoid damaging the internal dielectric layer. Keep ER Bus cabling separate from high-voltage power lines to prevent electromagnetic interference (EMI) from corrupting the 10 Mbps data stream.

Slot Placement

Install the EB511-10 only in the designated interface slots as specified in the Yokogawa FCS hardware manual. Before insertion, inspect the backplane pins for any misalignment to prevent short circuits during hot-plugging.

Engineering Advantages

Reliable Deterministic Networking

The EB511-10 utilizes a dedicated ER Bus protocol that prioritizes control data over general traffic. This ensures that critical alarms and process updates arrive at the operator console without the jitter often associated with standard commercial Ethernet switches.

Extended Distance Capabilities

By leveraging the 10BASE-2 standard, this module allows for the distribution of I/O nodes over significant distances within a plant. This reduces the need for long runs of expensive multi-core copper wiring from the field to the central control room.

Seamless System Migration

Yokogawa designed the EB511-10 to provide a stable upgrade path. It allows plants running older CENTUM CS hardware to integrate newer CENTUM VP software and hardware components without requiring a complete overhaul of the existing network cabling.

Delivery and Logistics

Delivery Time: 3-5 business days upon receipt of payment.

Shipping Partners: Fast global delivery via DHL, FEDEX, or UPS.

Product Condition: Guaranteed Brand New, original factory sealed with all necessary documentation.

Technical FAQs

Q1: Can the EB511-10 be replaced while the system is online?

A1: Yes, the EB511-10 supports hot-swapping within the Yokogawa FCS environment. However, ensure that the redundant partner module (if applicable) is healthy and "Active" before removing the faulty unit to avoid a total loss of communication to the remote I/O nodes.

Q2: What is the maximum cable length supported by the EB511-10?

A2: Under the 10BASE-2 standard used for the ER Bus, the maximum segment length is 185 meters. For distances exceeding this, Yokogawa bus repeaters or optical converters are required.

Q3: Does this module support Modbus or PROFIBUS directly?

A3: The EB511-10 is a bus interface module for the ER Bus itself. While it facilitates the transport of data from various fieldbus communication modules (like the ALR or ALE series) to the processor, those specific protocols are handled by their respective dedicated modules, not the EB511-10.

Q4: Is a special tool required for installation?

A4: No special tools are required. The module slides into the rack and secures via integrated locking tabs. A standard BNC connector tool may be helpful for tightening connections in high-density cabinets.
