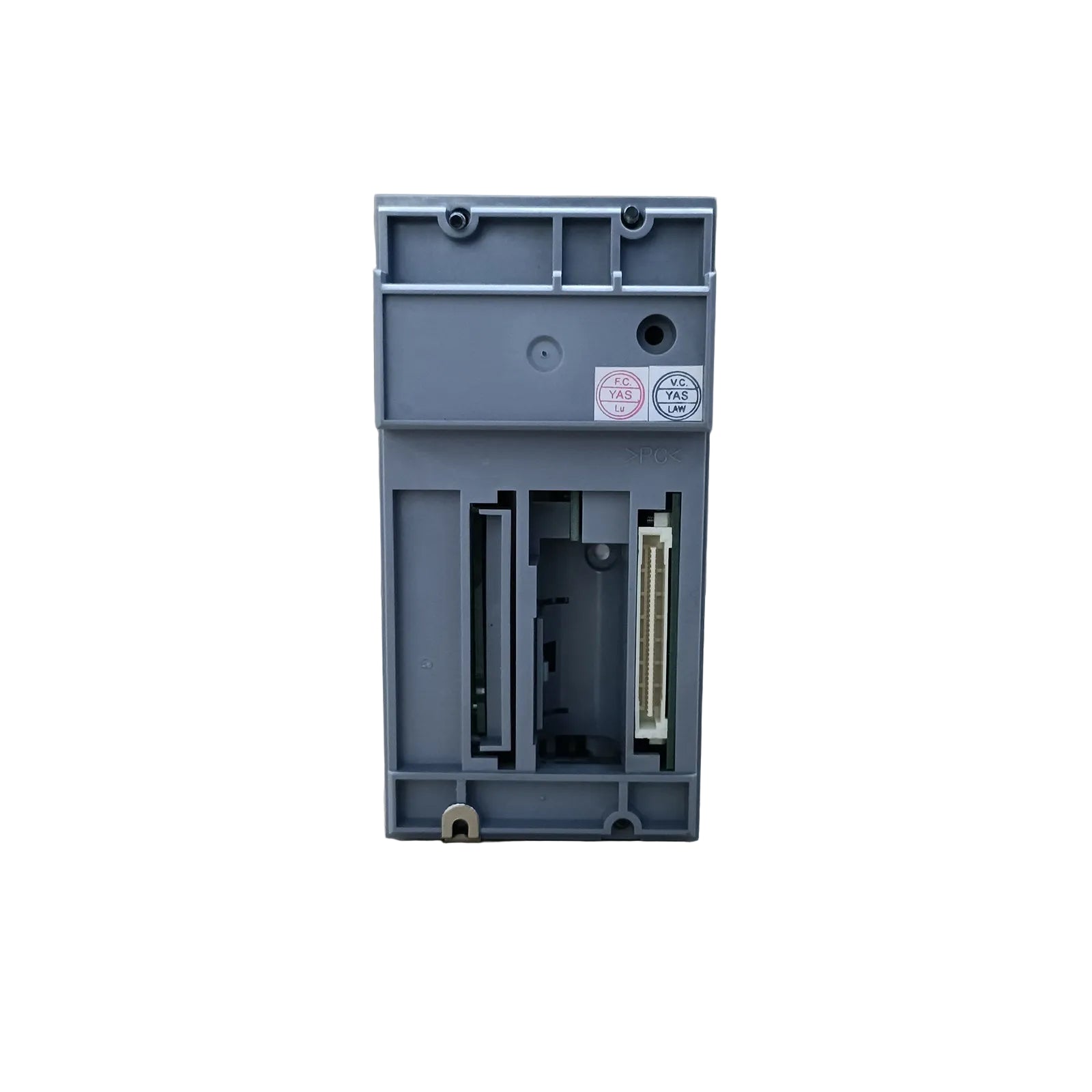

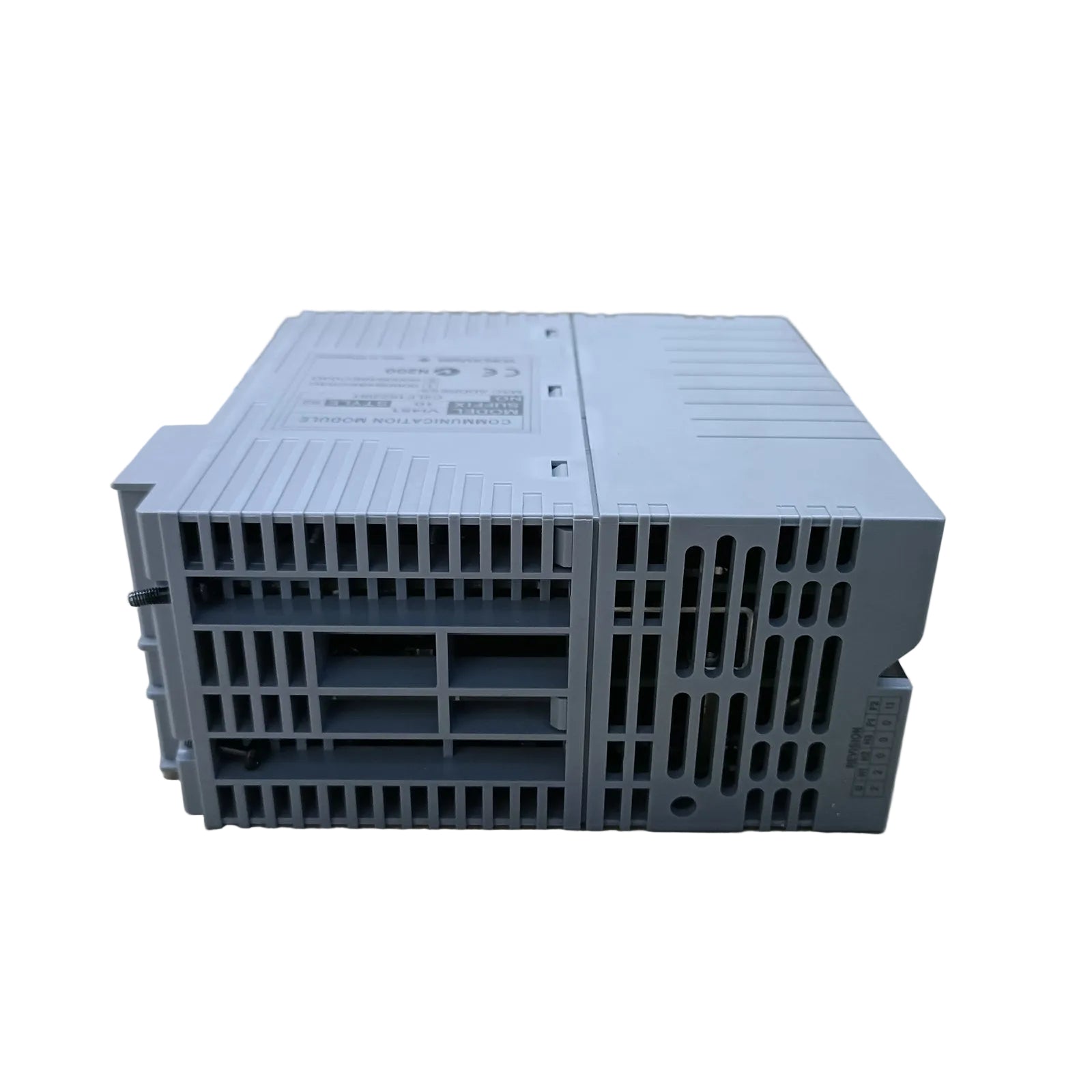

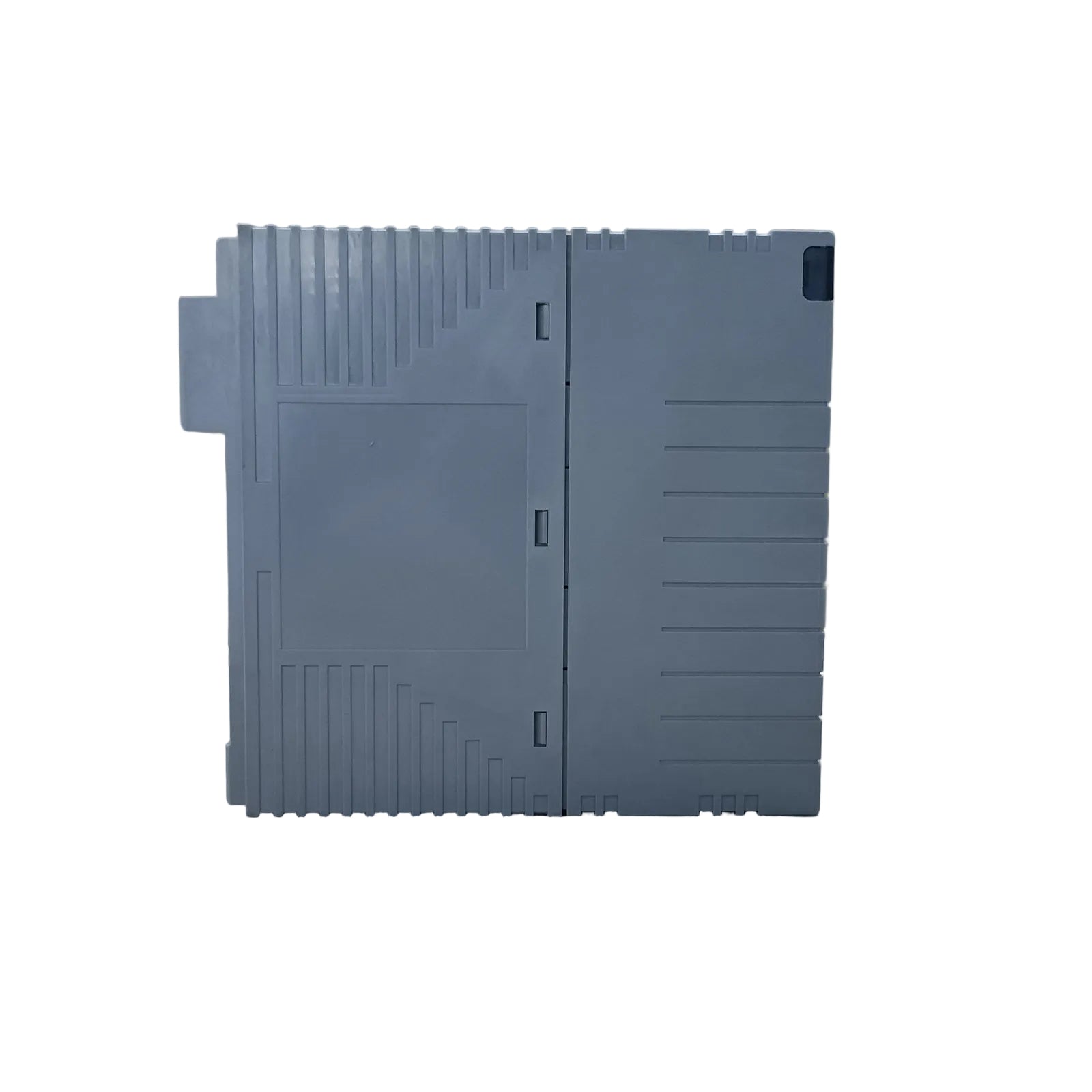

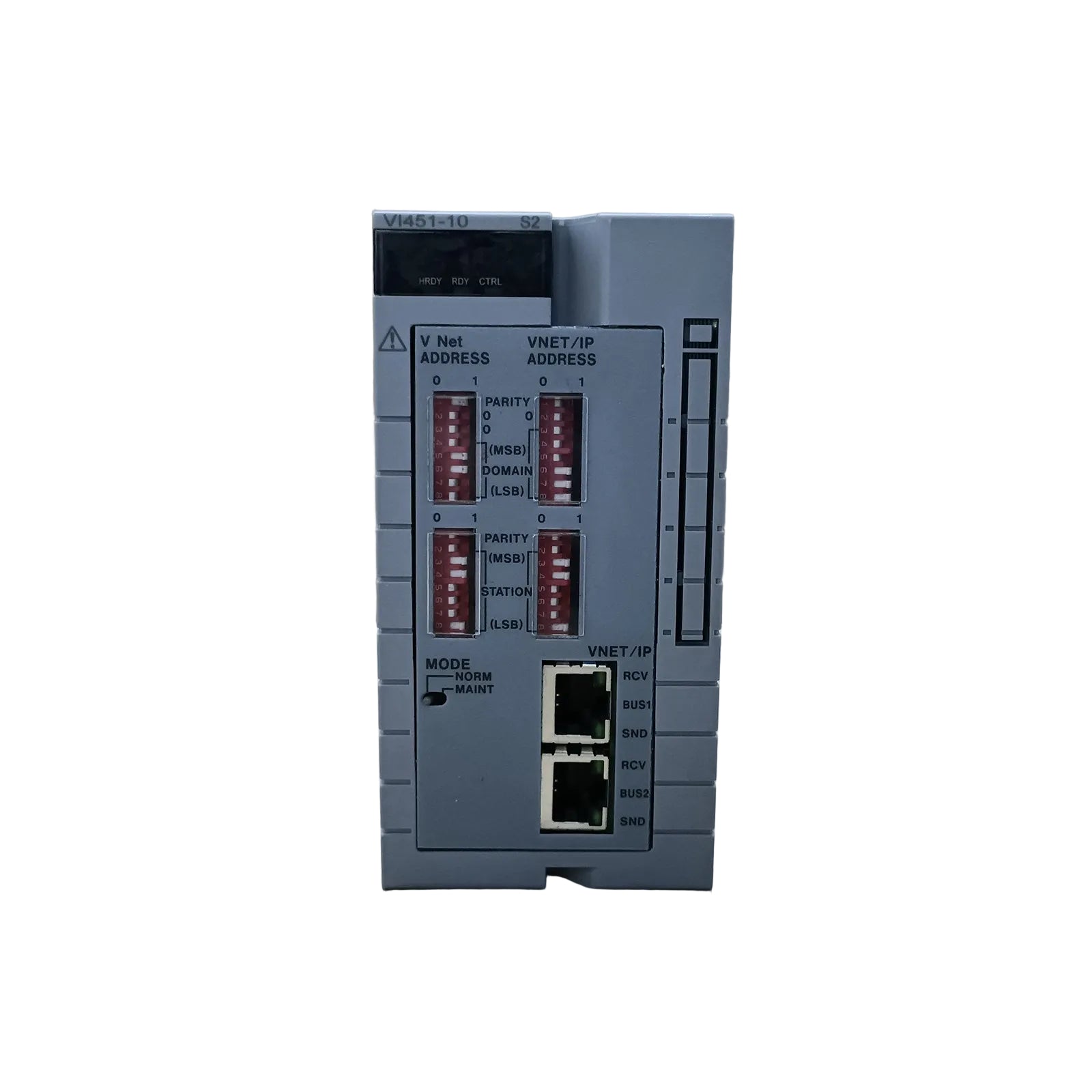

Product Overview

The VI451-10 is a high-performance communication interface module engineered by Yokogawa for integration within sophisticated industrial automation environments, particularly the CENTUM CS 3000 and CENTUM VP systems. This component facilitates seamless data exchange between controller units and peripheral devices, ensuring high-speed synchronization and robust network stability. Designed with a focus on durability, the module is encased in a protective housing that meets IP54 standards, making it suitable for environments where dust and light water splashing are present. It serves as a critical link in distributed control systems (DCS), maintaining the integrity of signal transmission across complex infrastructure.

Critical Hardware Parameters and Physical Specifications

• Operating Voltage: 100 to 120 V AC

• Operating Current: 6 A

• Peak Input Current: 20 A

• Environmental Rating: IP54 (Dust and Splash Resistant)

• Unit Weight: 2.0 kg (Shipping weight)

• Module Dimensions: 132 mm x 53 mm x 65 mm

• Country of Origin: Japan

• Mounting Type: Rack-mounted system integration

• Cooling: Natural air convection

Core Industrial Applications

This communication module is primarily utilized within the energy, chemical, and manufacturing sectors. It is specifically designed to support Yokogawa's legacy and modern control platforms, providing the necessary bandwidth for real-time monitoring and process control. Common applications include:

• Refinery process automation and data logging

• Power plant control system synchronization

• Chemical processing plant I/O management

• Water treatment facility remote communication links

FAQ

Q: What does the IP54 rating signify for the VI451-10 module?

A: The IP54 rating indicates that the hardware is protected against limited dust ingress and is resistant to water splashes from any direction, ensuring reliability in industrial settings that are not strictly climate-controlled.

Q: Is the VI451-10 compatible with standard 220V power systems?

A: No, this specific model is designed for an input power supply of 100 to 120 V AC. Connecting it to a higher voltage source will result in equipment failure or safety hazards.

Q: What is the significance of the 20 A current specification?

A: While the standard operating current is 6 A, the 20 A figure represents the maximum input current capacity, typically associated with the peak load during initial power-up or specific surge conditions.

Q: Can this module be used in offshore environments?

A: Yes, provided it is installed within a secondary protective enclosure. Its robust build quality and IP54 rating make it a preferred choice for the heavy-duty requirements of the oil and gas industry.

Q: Does the module require specialized software for configuration?

A: The VI451-10 is typically configured through the standard Yokogawa system engineering environment (such as CENTUM VP), where it is recognized as a specific node within the communication hierarchy.
