Product Overview

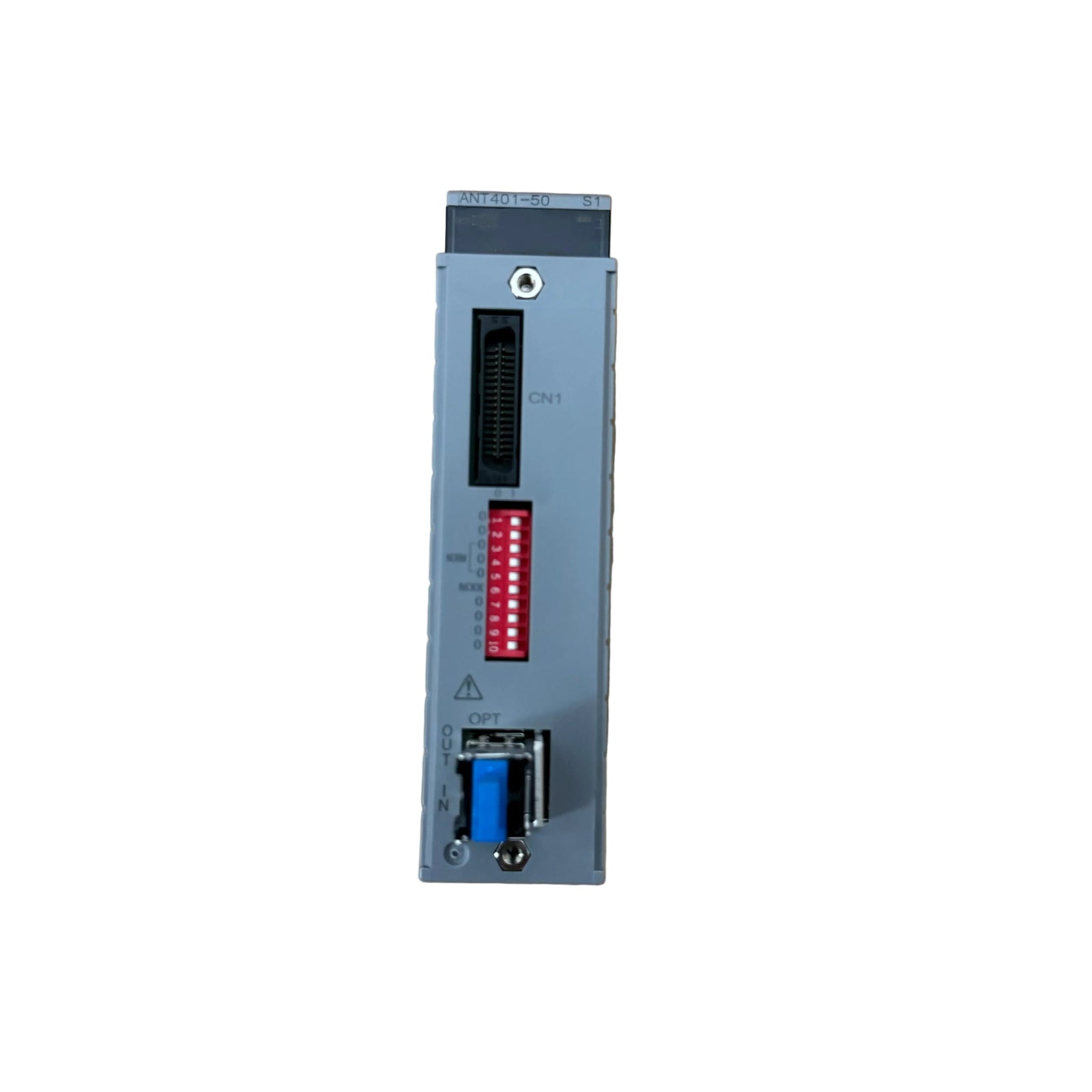

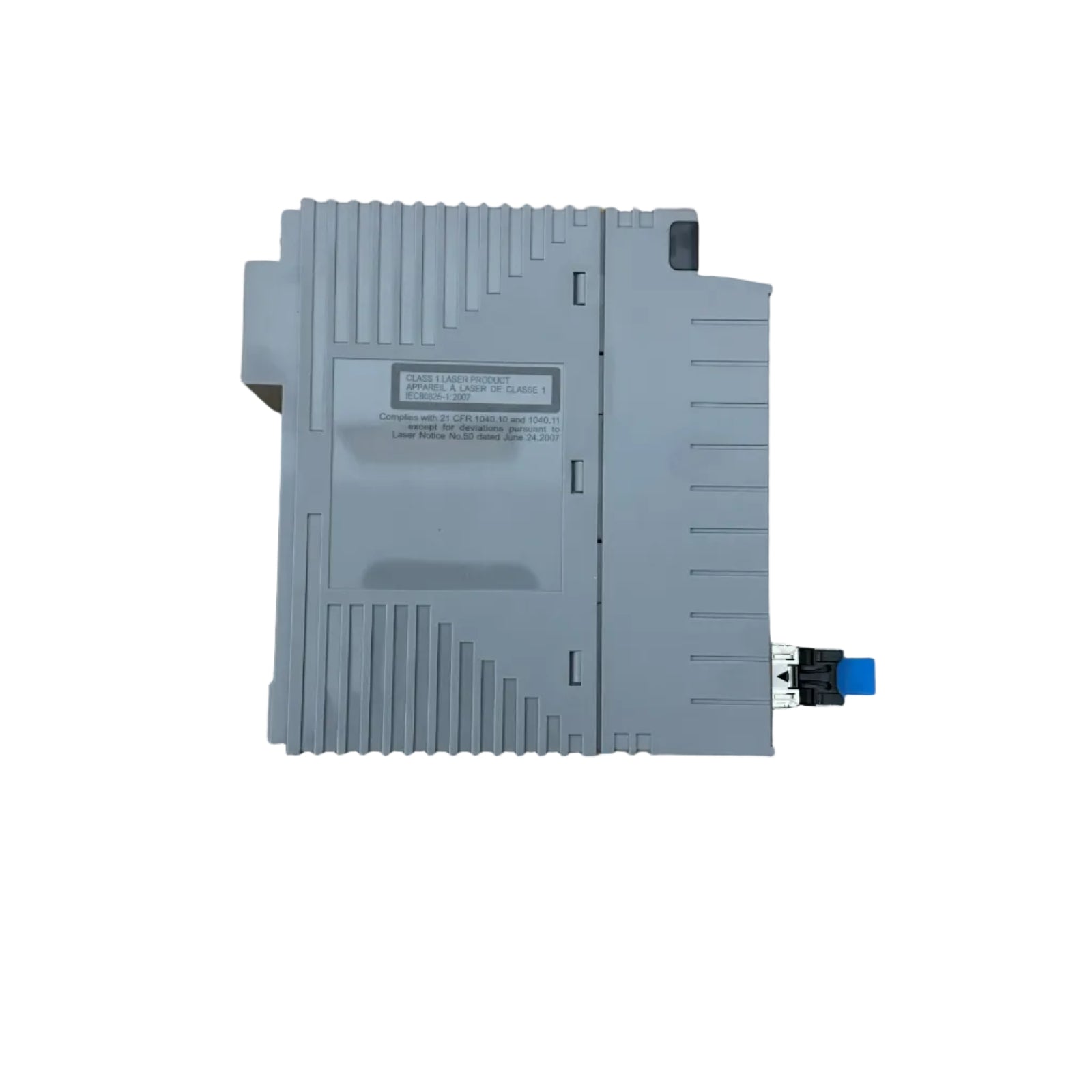

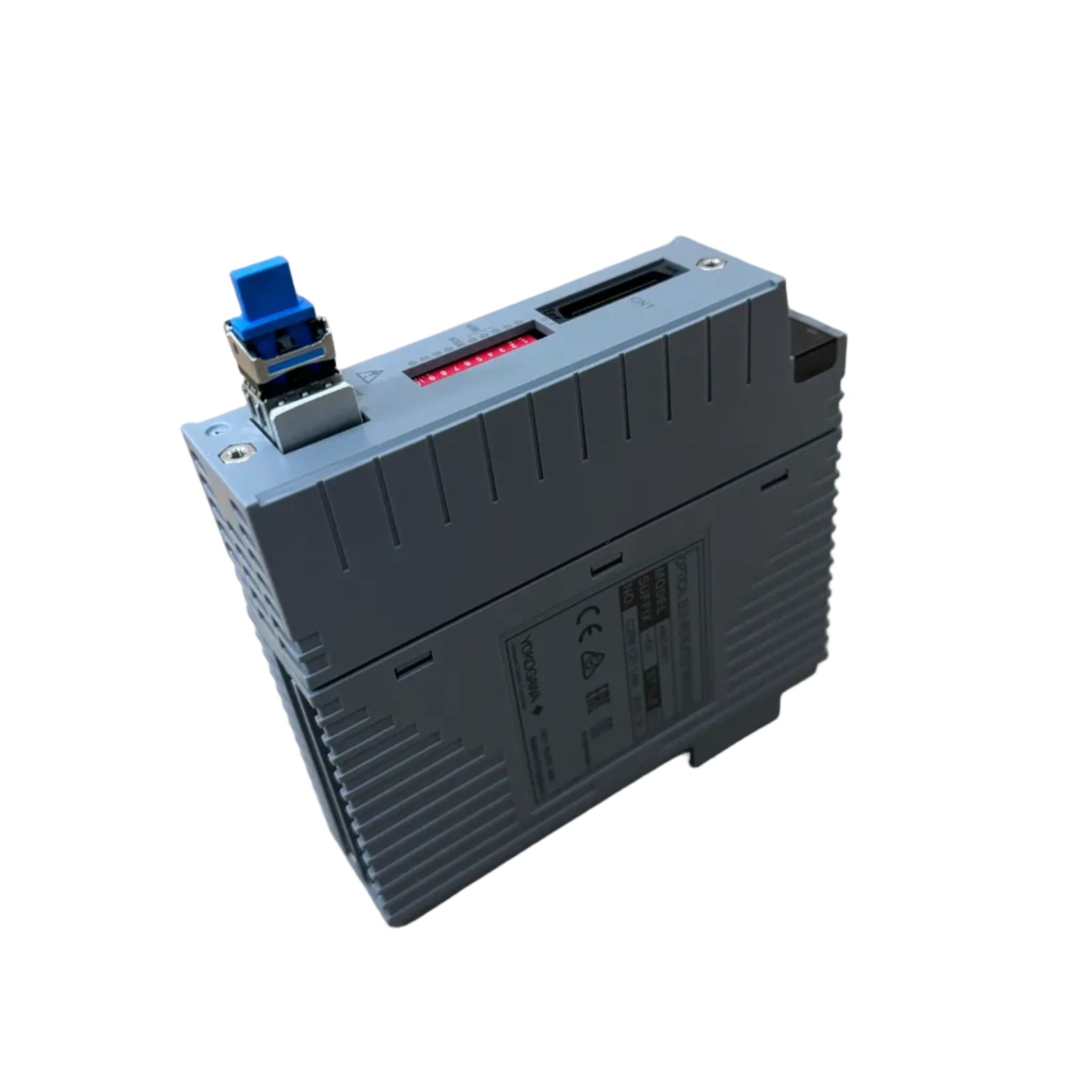

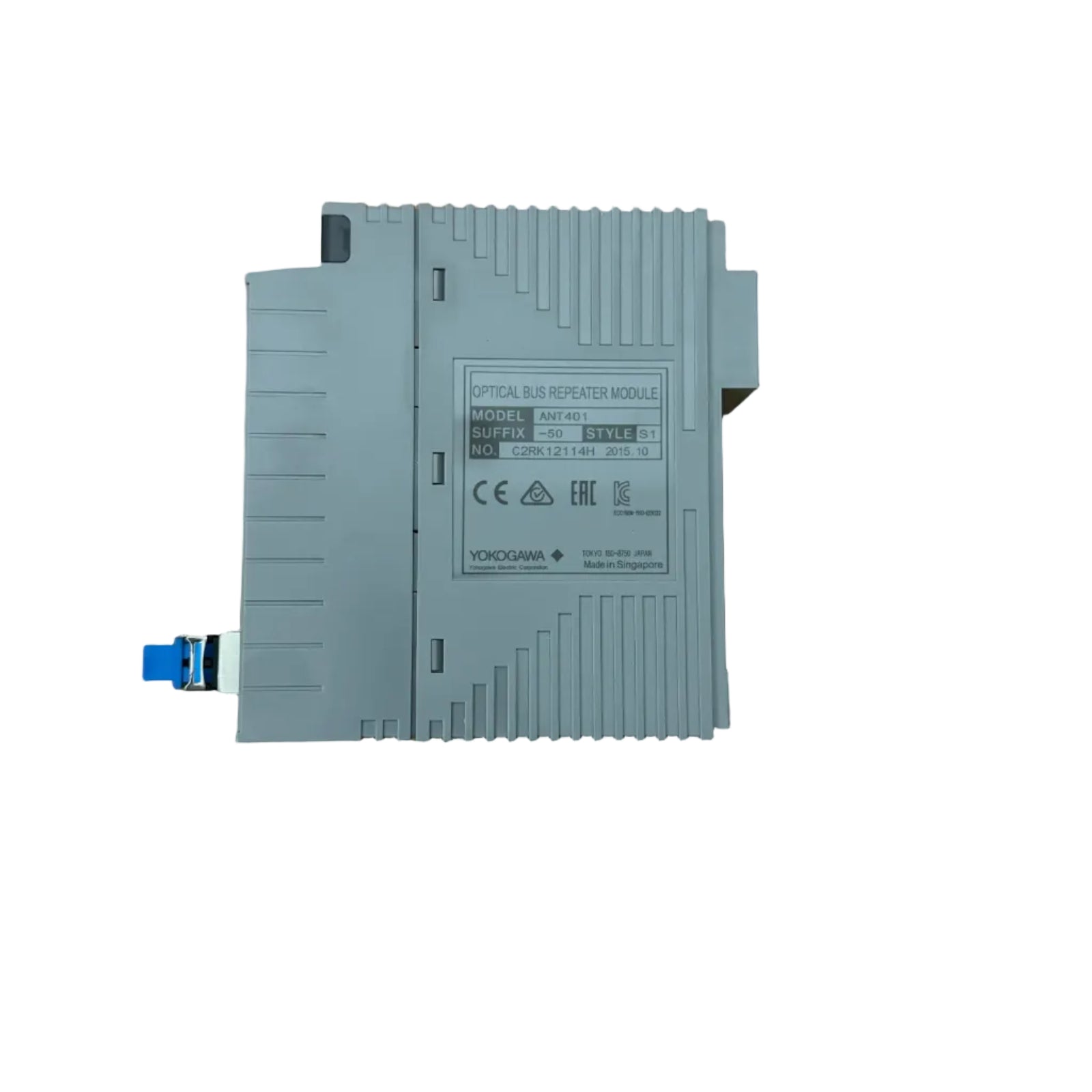

The Yokogawa ANT401-50/CU1T functions as a high-performance Optical ESB Bus Repeater Master Module, essential for extending the communication reach of CENTUM VP integrated control systems. This module overcomes the distance limitations of standard copper cabling by converting electrical signals into fiber optic transmissions, facilitating reliable data exchange over distances up to 5 kilometers. It plays a pivotal role in large-scale industrial complexes—such as petrochemical refineries and sprawling power plants—where controllers and remote I/O nodes reside in geographically separated areas. By utilizing optical isolation, the ANT401-50/CU1T effectively eliminates ground potential differences and protects the system against electromagnetic interference (EMI) and lightning surges, ensuring the continuous integrity of mission-critical control loops.

Technical Configuration

The suffix codes for the ANT401 series define the transmission capability and hardware interface, ensuring compatibility with specific fiber optic infrastructures.

Model Suffix Analysis

ANT401: Basic Model Code for the Optical ESB Bus Repeater Master Module.

-50: Specifies the extended transmission distance capability. This code confirms the module supports long-haul communication up to 5 kilometers using single-mode fiber optic cables.

/CU1T: Indicates the hardware interface and mounting configuration. The "CU" designation typically refers to the connector type and communication unit assembly, while the "T" confirms the inclusion of specialized terminal blocks or specific thermal hardening for rack-mounted environments.

Technical Specifications

Installation Guide

Successful deployment of optical repeaters requires precision in fiber handling and clean electrical termination.

Fiber Optic Management

Use high-quality single-mode fiber optic cables with SC-type connectors. Before insertion, clean all optical faces with an approved fiber cleaner to prevent signal attenuation. Maintain a minimum bending radius of at least 30 mm for the fiber patches to avoid micro-fractures in the glass core that lead to intermittent data loss.

Power and Synchronization

The module receives power directly from the backplane of the base unit. Ensure the master module (ANT401) and the corresponding slave module (ANT502) maintain synchronized power-up sequences. If the system utilizes redundant configurations, verify that both primary and secondary optical paths follow physically separate conduit routes to maximize availability.

Thermal Considerations

The module operates efficiently up to 70°C. However, in high-density racks, maintain active airflow to prevent heat pockets. If the environment exceeds standard industrial temperatures, utilize heat-dissipating filler plates in adjacent empty slots.

Engineering Advantages

The ANT401-50/CU1T provides total galvanic isolation between control rooms and field sites, shielding the central processor from field-side electrical faults. Its high-speed 128 Mbps throughput ensures that even at a 5 km distance, the latency of I/O updates remains negligible, maintaining the real-time responsiveness of PID loops. The rugged design resists the corrosive atmospheres common in chemical processing, while the "hot-swap" capability allows maintenance teams to replace modules without shutting down the entire control segment, drastically reducing potential downtime.

Shipping and Delivery

Delivery Time: 3-5 business days upon payment confirmation.

Logistics Partners: Global shipping via DHL, FedEx, and UPS.

Condition: Brand New, Factory Sealed, Original Packaging.

Technical FAQs

Q1: Can I use multi-mode fiber with the ANT401-50?

A1: No. The "-50" designation is specifically designed for single-mode fiber to achieve the 5 km range. Using multi-mode fiber will result in severe signal dispersion and communication failure.

Q2: Does this module support redundant configurations?

A2: Yes. For high-availability systems, you can install two ANT401 modules in a redundant base unit. The CENTUM VP software automatically manages the failover between the two optical paths.

Q3: How do I verify the signal strength of the optical link?

A3: You can monitor the link status via the Yokogawa Maintenance Man tool or System View. Physical verification requires an optical power meter to ensure the loss over the 5 km span does not exceed the module's rated optical budget.

Q4: Is the CU1T suffix compatible with older RIO bus architectures?

A4: The ANT401 is designed for the ESB and ER bus architectures used in CENTUM VP and newer CS3000 systems. It is not directly compatible with legacy "Rio" bus systems from the XL or early Centum series without a gateway.
