Product Overview

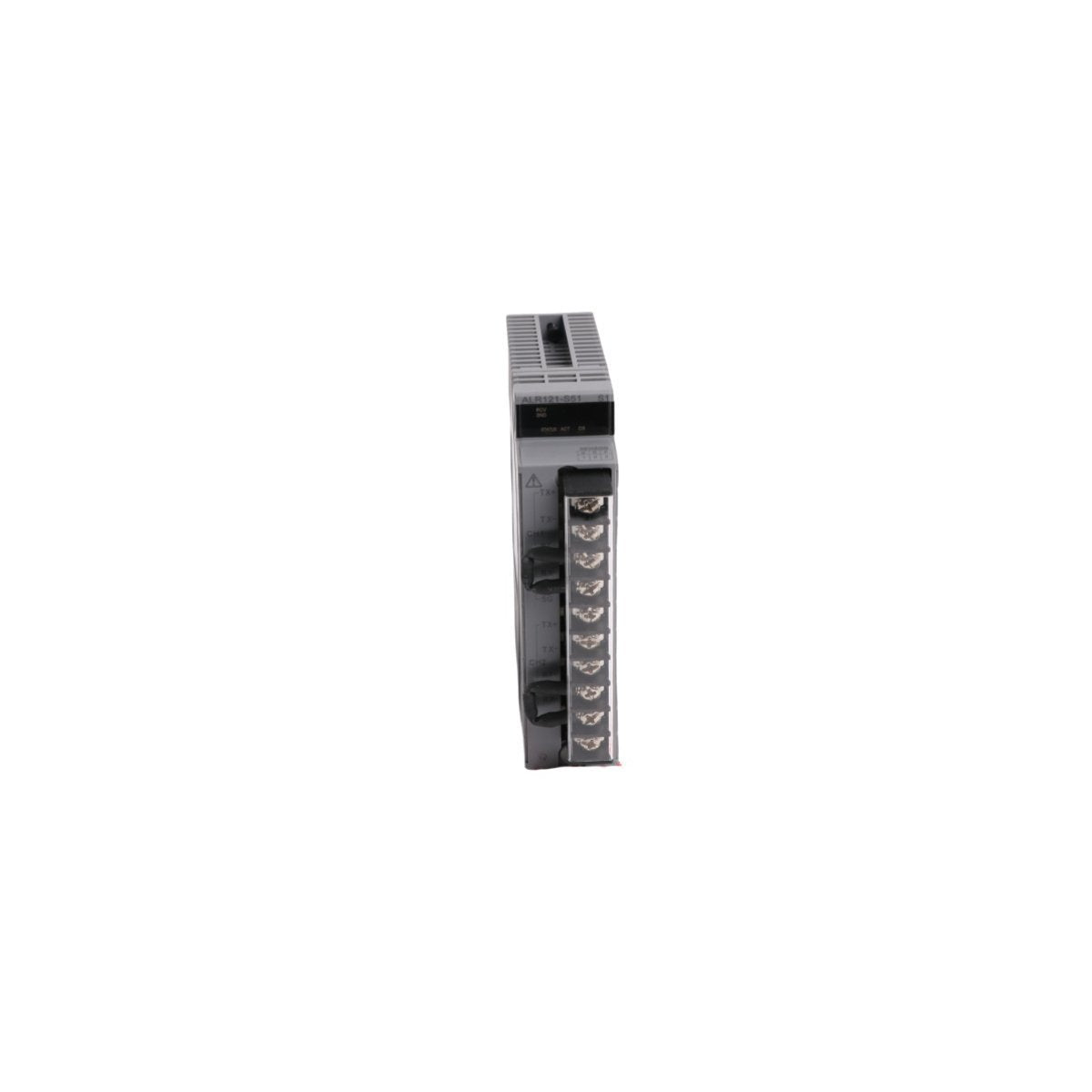

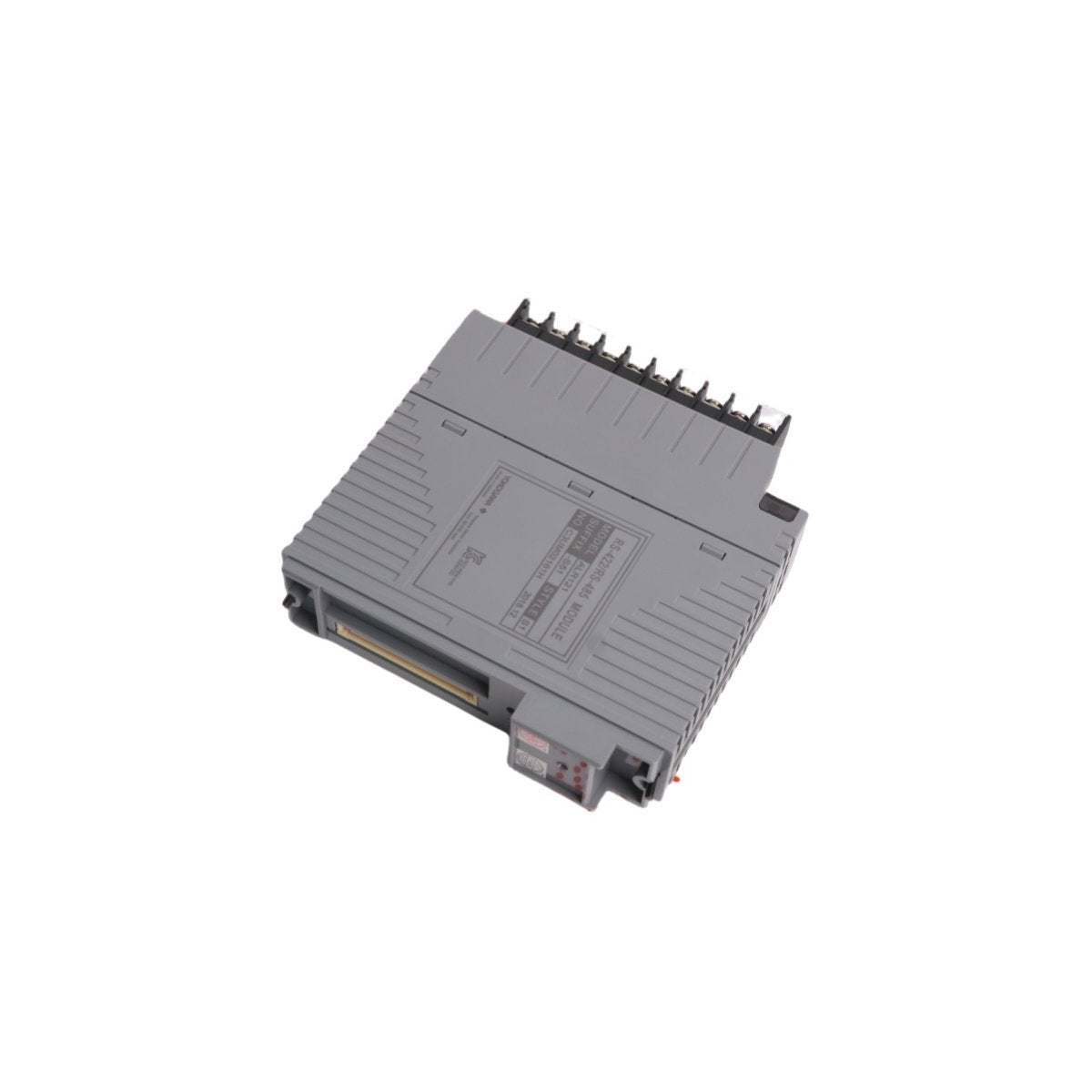

The Yokogawa ALR121-S51 is a specialized serial communication module designed to bridge the gap between Yokogawa Field Control Stations (FCS) and external subsystems. Primarily utilized within the CENTUM VP and ProSafe-RS safety architectures, this module facilitates the periodic collection of data from slave devices and stores them in localized I/O image areas. This architecture allows the DCS or SIS to access subsystem data asynchronously, ensuring that control logic execution remains deterministic and unaffected by external network latency.

The ALR121-S51 is engineered for mission-critical applications where safety integrity is paramount. It is often deployed in tandem with safety relay logic to provide SIL3-compliant communication pathways. This makes it an ideal solution for integrating third-party PLCs, burner management systems (BMS), and emergency shutdown (ESD) subsystems into a unified Yokogawa control environment.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ALR121-S51

• Communication Interface: RS-422 / RS-485 (2-wire or 4-wire)

• Number of Ports: 2 independent serial channels

• Protocol Support: Modbus RTU (Slave/Master support depending on system configuration)

• Safety Integrity Level: SIL3 certified (when integrated into ProSafe-RS systems)

• Baud Rate: Up to 115.2 kbps

• Maximum Cable Length: 1200 meters (RS-422/RS-485 standard)

• Isolation: Galvanic isolation between field side and system logic

• Operating Temperature: -20°C to +60°C

• Dimensions: 32.8 mm x 130 mm x 140 mm

• Weight: 0.30 kg

• Origin: Japan

Key Technical Characteristics

• Asynchronous Data Management: By utilizing internal I/O image mapping, the module allows the Field Control Station to reference subsystem data through standard function blocks without waiting for serial polling cycles to complete.

• SIL3 Certified Reliability: Built to meet TÜV and IEC 61508 standards, ensuring that communication between the safety controller and external devices maintains the highest levels of safety integrity.

• Fail-Safe Relay Architecture: Incorporates redundant design principles to ensure that even in the event of a partial hardware failure, the system remains in a safe state.

• Enhanced Noise Immunity: Features optical isolation for all serial signals, protecting the internal system bus from ground loops and electromagnetic interference common in heavy industrial zones.

• Front-Panel Diagnostics: Integrated LED indicators provide real-time status for transmit/receive (TX/RX) activity and module health (RDY/HRD), simplifying field troubleshooting.

• Simplified Integration: The module is fully recognized by Yokogawa engineering tools, allowing for easy configuration of Modbus registers and port parameters within the standard software environment.
