Product Overview

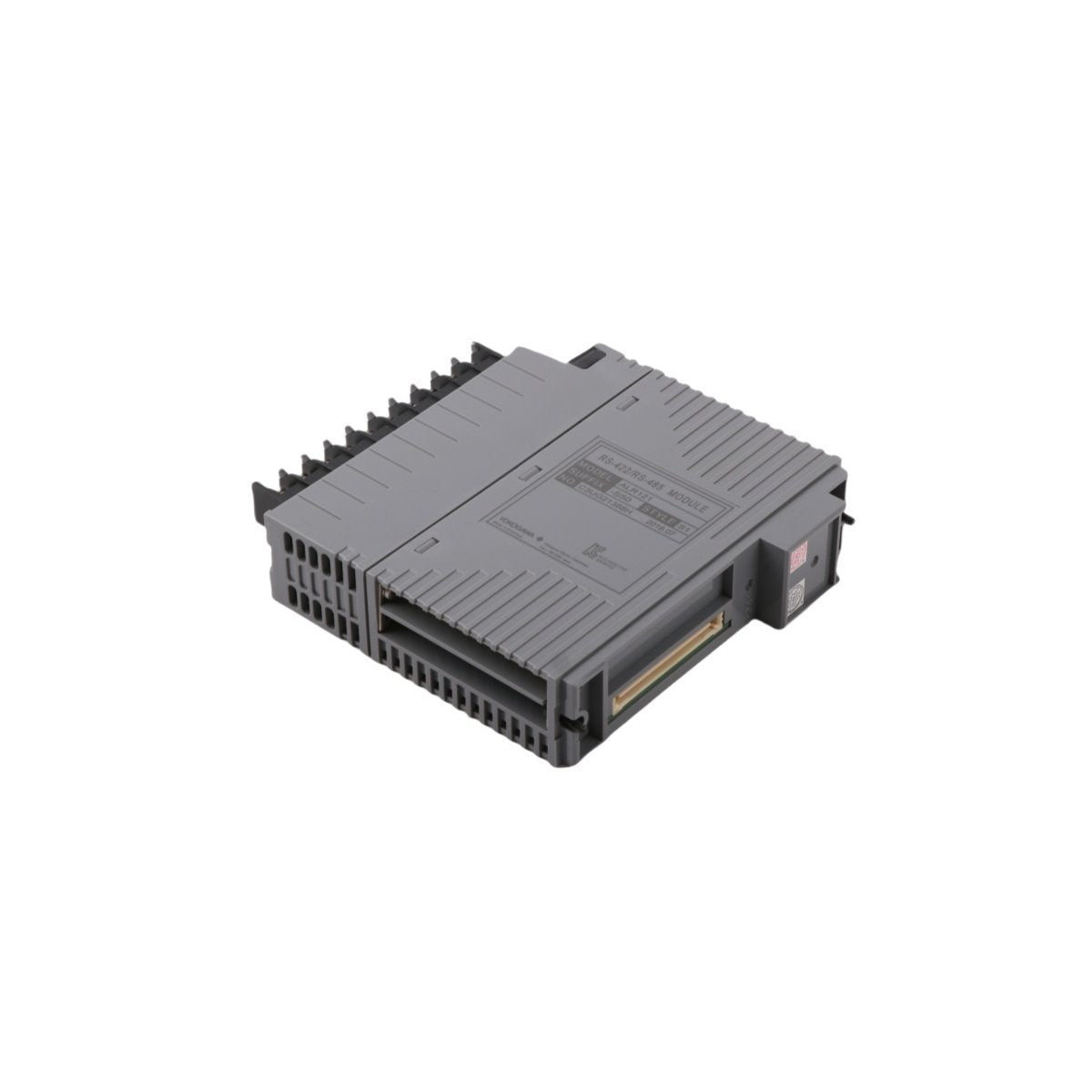

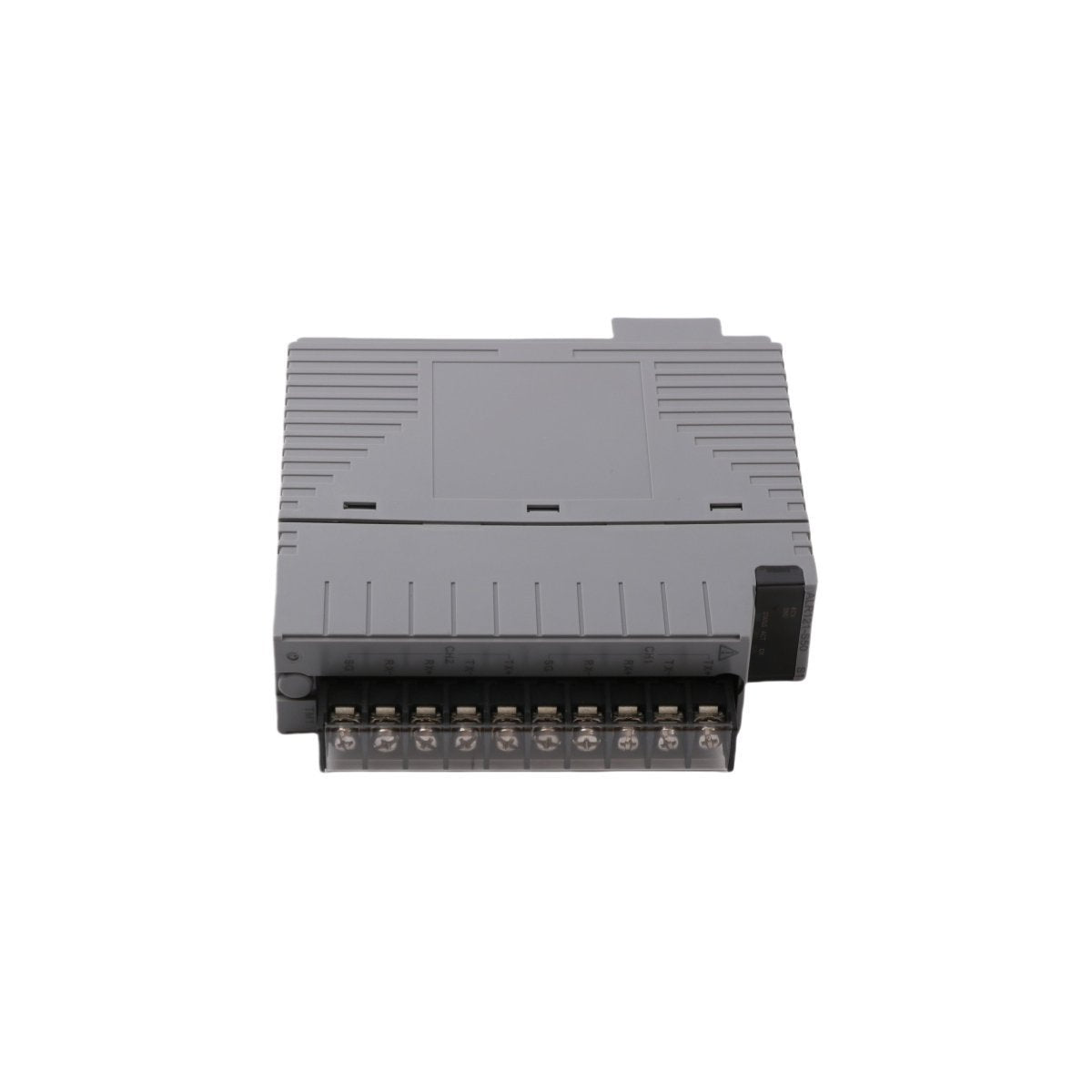

The Yokogawa ALR121-S50 is a high-reliability Serial Communication Module engineered for the CENTUM VP Distributed Control System (DCS) and the ProSafe-RS Safety Instrumented System (SIS). This module functions as a critical communication bridge, allowing Safety Control Stations (SCS) to interface with external Modbus master devices or subsystems via RS-422/RS-485 serial links. It is specifically designed to facilitate data transparency without compromising the functional safety of the overall system.

Supporting SIL3 safety integrity levels in accordance with IEC 61508, the ALR121-S50 ensures that process data is exchanged securely and accurately. Its architecture is optimized for mission-critical applications such as Emergency Shutdown (ESD) systems, Fire and Gas (F&G) systems, and Burner Management Systems (BMS), where both data reporting and safety compliance are paramount.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ALR121-S50

• Communication Interface: RS-422 / RS-485 (Serial)

• Protocol Support: Modbus Slave

• Number of Ports: 2 independent ports

• Safety Integrity Level: SIL3 certified (when used with ProSafe-RS)

• Data Rate: 300 bps to 115.2 kbps

• Isolation: Galvanic isolation between field signals and internal circuitry

• Operating Temperature: -20°C to +70°C

• Weight: 0.3 kg

• Dimensions: 32.8 mm x 141.2 mm x 130 mm

• Mounting: Compact FIO (Field Interface Orbus) architecture

Key Operational Features

• Dual-Port Redundancy: Provides two ports per module to support redundant cabling and fault-tolerant communication architectures, ensuring continuous availability even if one link fails.

• SIL3 Certified Connectivity: Maintains the highest level of safety integrity while allowing external Modbus devices to read safety-related data for monitoring or plant-wide integration.

• Electromagnetic Compatibility: Features advanced electrical isolation to prevent ground loops and shield the safety network from electromagnetic interference (EMI) typical in heavy industrial environments.

• Real-Time Diagnostics: Equipped with front-panel LED indicators (RDY, HRD, TX, RX) for immediate visual confirmation of module health and data transmission status.

• Integrated Configuration: Fully supported within the Yokogawa engineering environment, enabling streamlined setup of Modbus mapping and communication parameters through standard software tools.

• Robust Environmental Build: Engineered for longevity in harsh conditions, including high vibration and temperature fluctuations common in oil & gas and petrochemical facilities.
