Product Overview

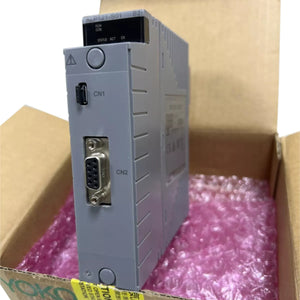

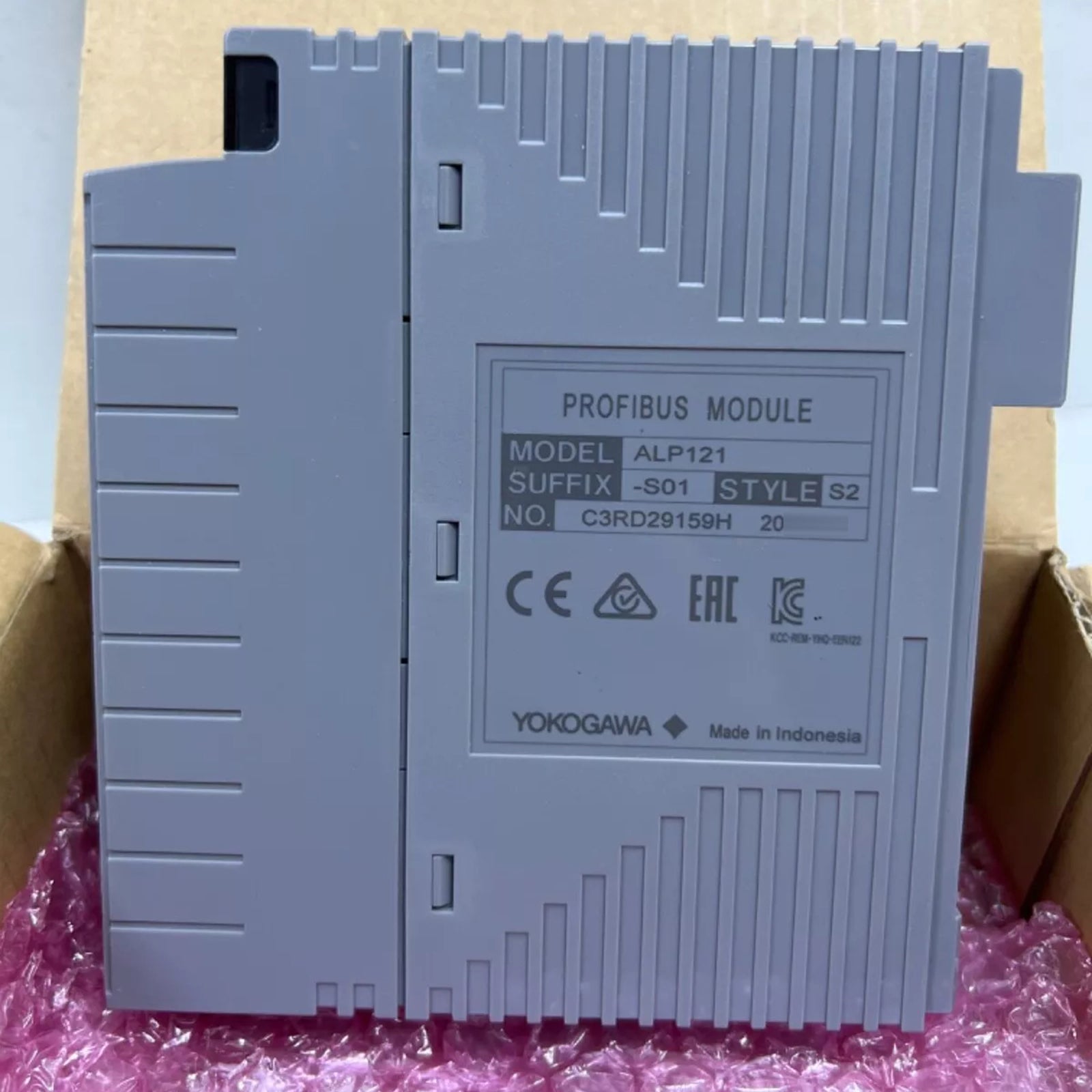

The Yokogawa ALP121-S01 is a high-reliability PROFIBUS-DP communication interface designed for seamless integration within the CENTUM VP and ProSafe-RS control architectures. Functioning as a master station, this module enables the Field Control Station (FCS) to exchange high-speed cyclic data with various field-level devices, including motor starters, frequency converters, and remote I/O terminals. The S01 variant is specifically treated with a conformal coating to meet ISA Standard G3, ensuring long-term hardware durability in environments containing corrosive gases. By utilizing the global PROFIBUS standard, this module provides a robust digital communication backbone for modern decentralized automation systems.

Hardware Infrastructure & Interface Profiles

The following specifications define the electrical and physical requirements for the ALP121-S01 within a distributed control environment.

• Communication Standard: PROFIBUS-DP (EN 50170 compliant)

• Master Functionality: Supports DP-V0 and DP-V1 cyclic data exchange

• Transmission Speed: Auto-detection from 9.6 kbps up to 12 Mbps

• Max Connectable Slaves: 125 stations (with repeaters)

• Corrosion Protection: ISA Standard G3 conformal coating

• Current Consumption: 0.6 A at 5 V DC

• Module Weight: 0.45 kg (Net); 2.0 kg (Total shipping mass)

• External Dimensions: 130 mm x 130 mm x 42 mm

• Connection Type: 9-pin D-sub female connector

• Isolation: Transformer isolation between communication port and internal system bus

Strategic Deployment Scenarios

The ALP121-S01 is implemented in large-scale industrial projects requiring complex device management and high-speed data throughput.

• Decentralized Drive Control: Managing high-frequency drives and soft starters in pulp and paper or cement industries through a single digital bus.

• Redundant Network Design: Utilizing dual-module configurations in safety-critical process loops to ensure communication continuity if a master module or cable fails.

• Harsh Chemical Environments: Deploying control hardware in wastewater treatment or chemical refineries where G3-certified protection is mandatory against hydrogen sulfide and chlorine.

• Third-Party Device Integration: Bridging specialized instruments from multiple manufacturers into the Yokogawa DCS ecosystem using the vendor-neutral PROFIBUS protocol.

FAQ

Q: Can the ALP121-S01 function as a PROFIBUS slave?

A: No, the ALP121-S01 is specifically designed to operate as a PROFIBUS-DP Master. It manages the communication timing and requests for all connected slave devices on the segment.

Q: What is the benefit of the G3 option in this module?

A: The G3 option refers to a conformal coating applied to the internal circuitry. This allows the module to be used in environments with severe corrosive gases, meeting ISA Standard G3 requirements and preventing premature hardware failure.

Q: How many ALP121-S01 modules can be installed in a single node?

A: The number of modules is determined by the total power consumption of the node and the available slots in the ANB10 or ANB11 units. Typically, multiple communication modules can coexist within one node unit.

Q: Does this module support the HART protocol?

A: This module is dedicated to PROFIBUS-DP communication. For HART device integration, specific analog I/O modules with HART support are required, though PROFIBUS-PA devices can be connected via a DP/PA coupler.

Q: Is the 2 kg shipping weight representative of the module itself?

A: No, the module itself weighs approximately 0.45 kg. The 2 kg shipping weight includes protective packaging, documentation, and the industrial-grade carton to ensure safe transit via international carriers.
