Product Overview

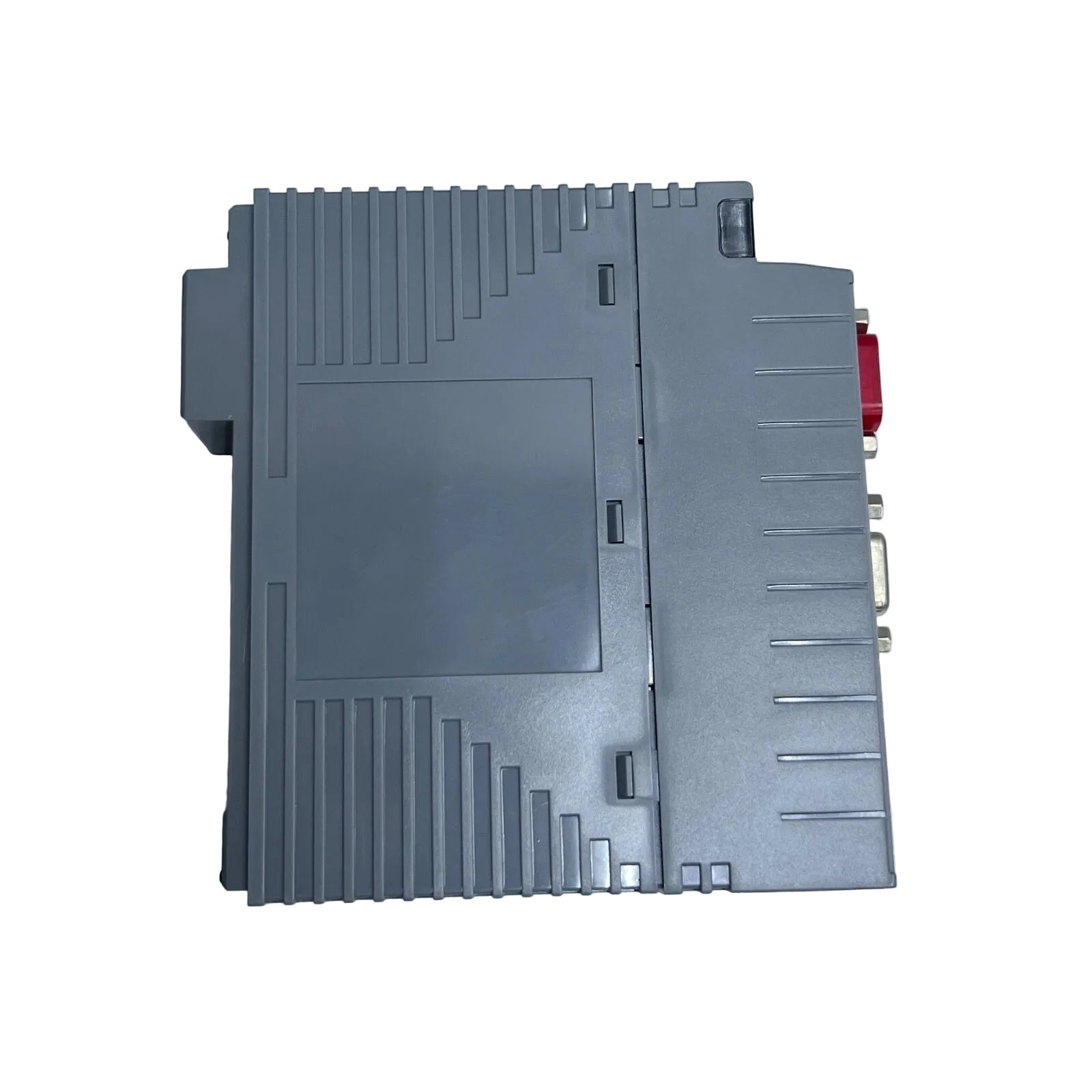

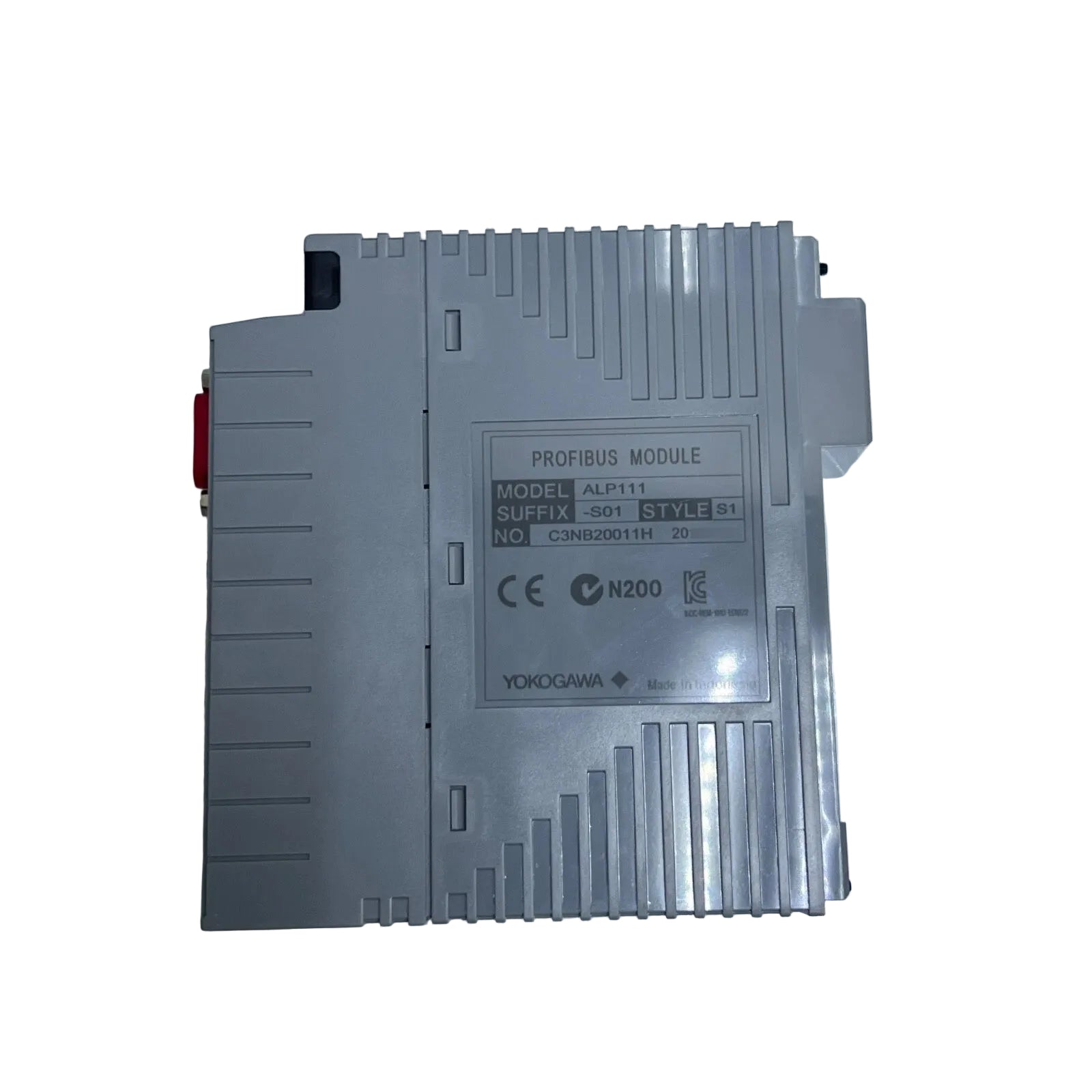

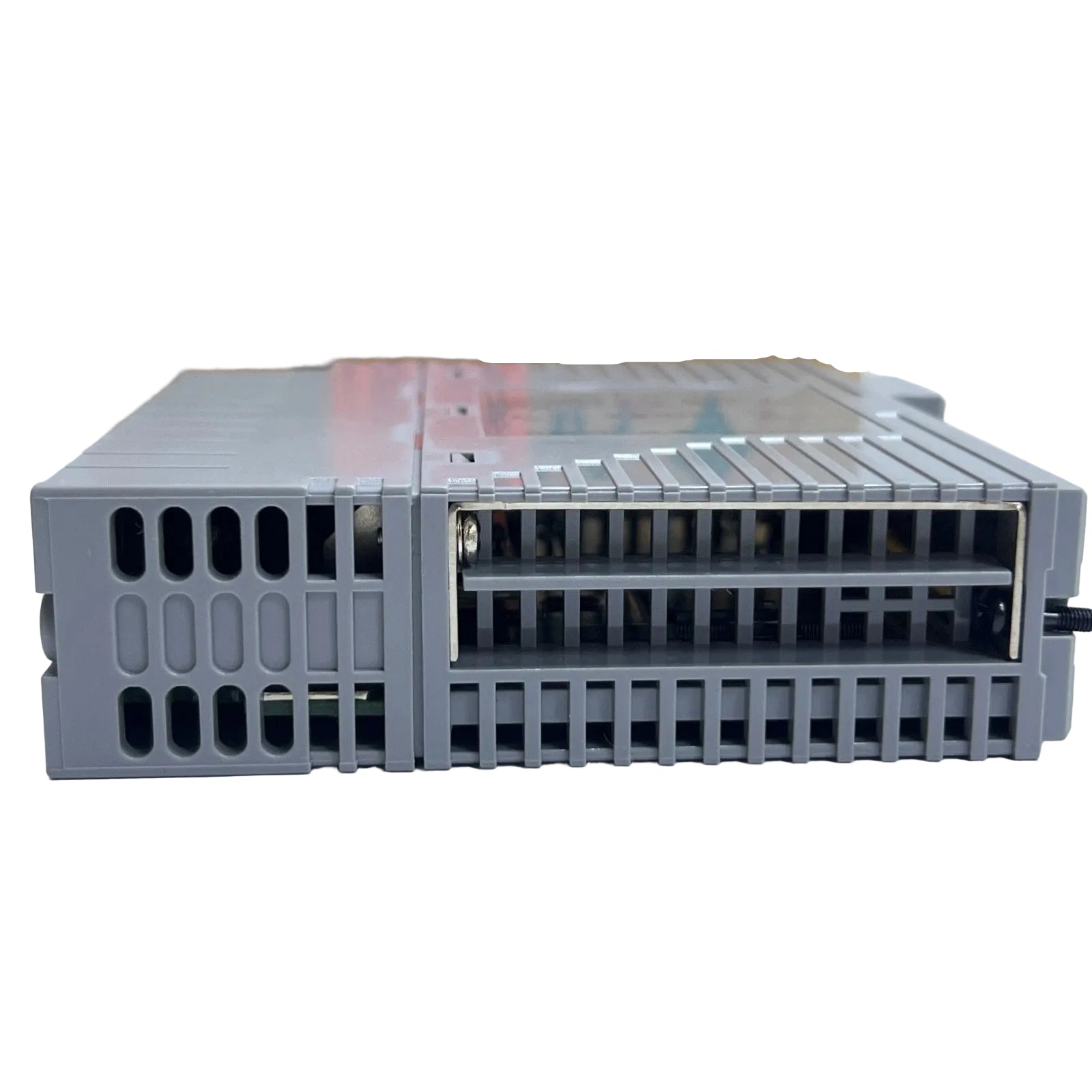

The Yokogawa ALP111-S01 is a high-performance communication gateway designed to bridge the gap between CENTUM VP/CS 3000 Distributed Control Systems and various PROFIBUS-compliant field instruments. Functioning as a robust Master station, this module facilitates the high-speed transfer of cyclic and acyclic data, allowing plant operators to monitor and control complex equipment like motor control centers (MCC), variable frequency drives (VFD), and remote I/O islands directly from the DCS interface. By centralizing fieldbus management, the ALP111-S01 reduces physical wiring requirements and provides a transparent digital link that enhances the overall observability of the industrial process.

Physical Characteristics and Hardware Configuration

The ALP111-S01 is engineered for industrial-grade durability, ensuring stable data throughput even in environments prone to thermal stress.

• Protocol Support: PROFIBUS-DP (Master Functionality)

• Data Transmission Rates: 9.6 kbps to 12 Mbps (Auto-negotiation)

• Maximum Node Capacity: Up to 125 slave devices per segment

• Interface Connection: Standard 9-pin D-sub female (RS-485)

• Isolation: Transformer-coupled signal isolation for high noise immunity

• Redundancy: Supports dual-redundant (Duplex) configuration

• Operating Temperature: -20°C to +60°C

• Hardware Mass: 0.6 kg (600g)

• Module Dimensions: 5.0 cm x 13.0 cm x 15.0 cm

• Current Consumption: 0.5 A at 5 V DC

Strategic Industrial Applications

The deployment of the ALP111-S01 is vital in modern facility management where multi-vendor device interoperability is required.

• Advanced Motor Management: Interfacing with smart motor starters and converters to capture real-time current, torque, and fault diagnostics for predictive maintenance.

• Redundant Control Backbones: Utilizing the module's duplex capability in safety-critical sectors, such as oil and gas or power generation, to maintain bus communication during a hardware fault.

• Remote I/O Consolidation: Coordinating data from various decentralized remote I/O stations located at the plant periphery back to the central Field Control Unit (FCU).

• Process Transparency: Leveraging built-in diagnostics to identify cable breaks or slave failures, significantly lowering the Mean Time to Repair (MTTR) for maintenance teams.

FAQ

Q: Can the ALP111-S01 be configured to ensure zero downtime?

A: Yes. By installing two ALP111-S01 modules in a duplexed slot configuration on the FCU, the system provides seamless communication redundancy, automatically switching to the standby module if the primary unit fails.

Q: What type of cabling is recommended for the PROFIBUS link?

A: For optimal performance at high baud rates, we recommend using shielded twisted-pair Type A PROFIBUS cable and ensuring that active terminators are properly installed at both ends of the segment.

Q: Is this module compatible with both CENTUM VP and older CS 3000 systems?

A: The ALP111-S01 is fully compatible with both architectures, provided the appropriate I/O node unit (such as ANB10 or ANB11) and software versions are in place.

Q: How many devices can I realistically control with one module?

A: While the protocol supports up to 125 slaves, the practical limit is determined by the required control cycle time and the volume of data points (I/O bytes) per slave device.

Q: Does this module require specialized software for configuration?

A: Yes, the PROFIBUS configuration is typically managed through Yokogawa’s engineering software (such as the PROFIBUS Configurator), which allows you to define the GSD files and bus parameters for all connected slaves.
