Product Overview

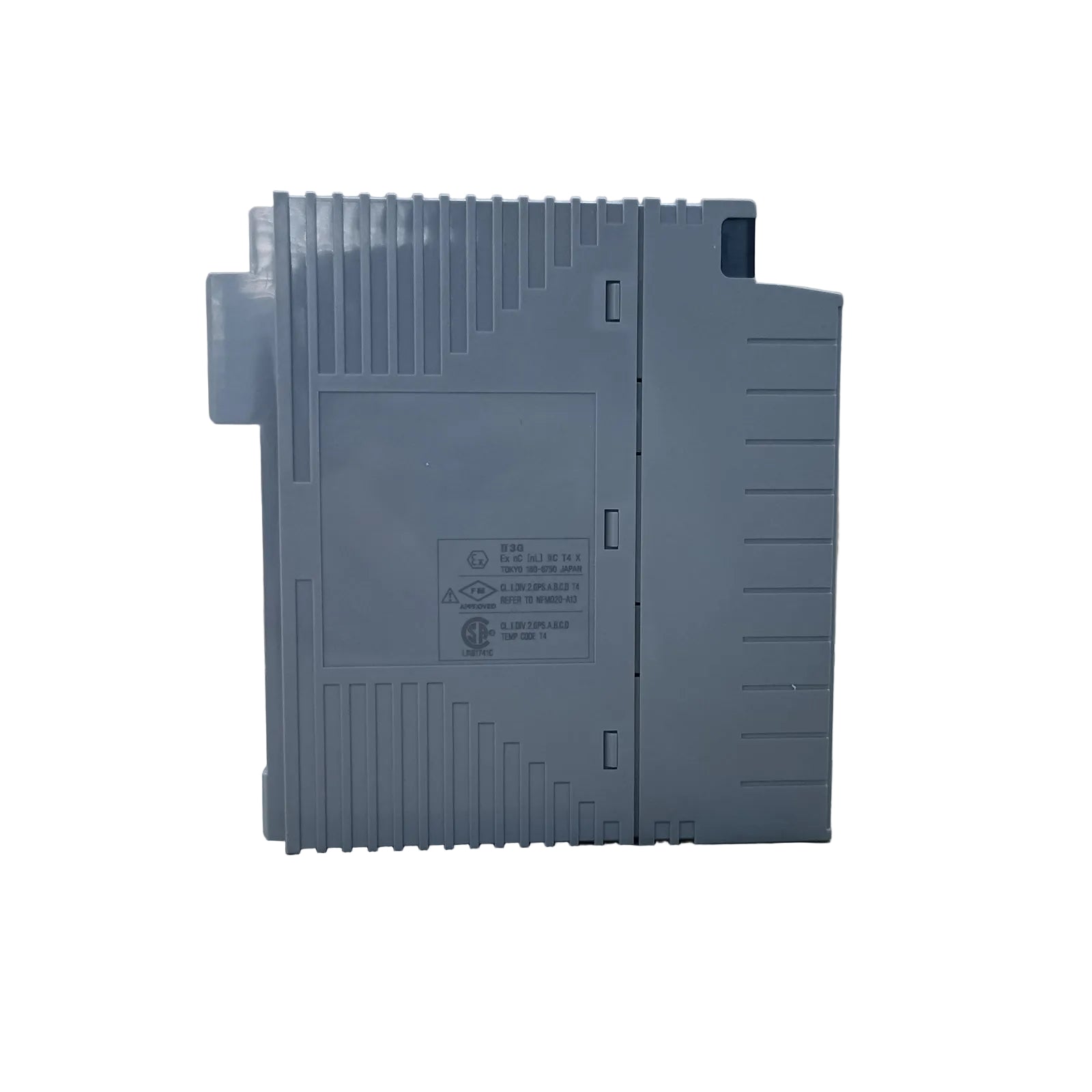

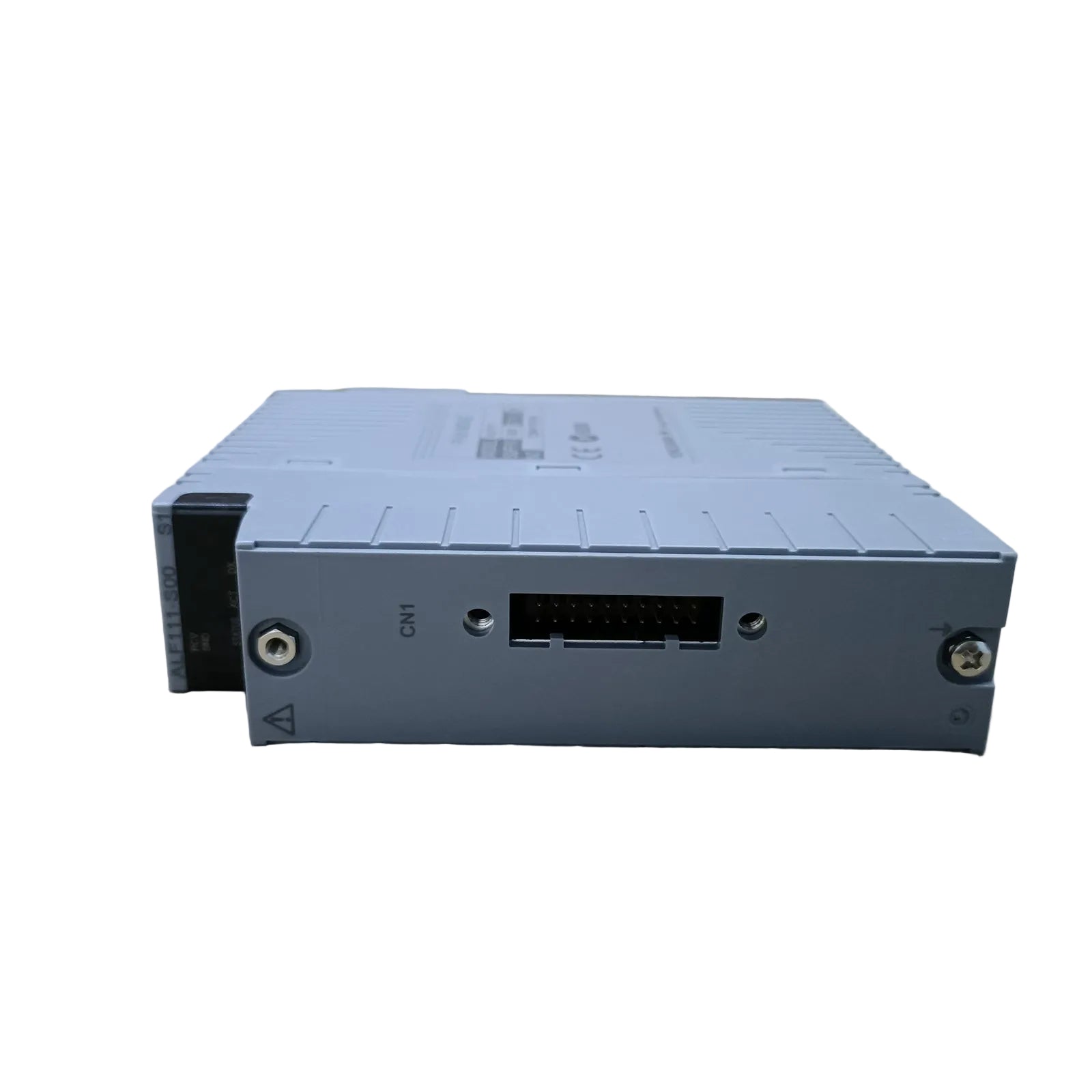

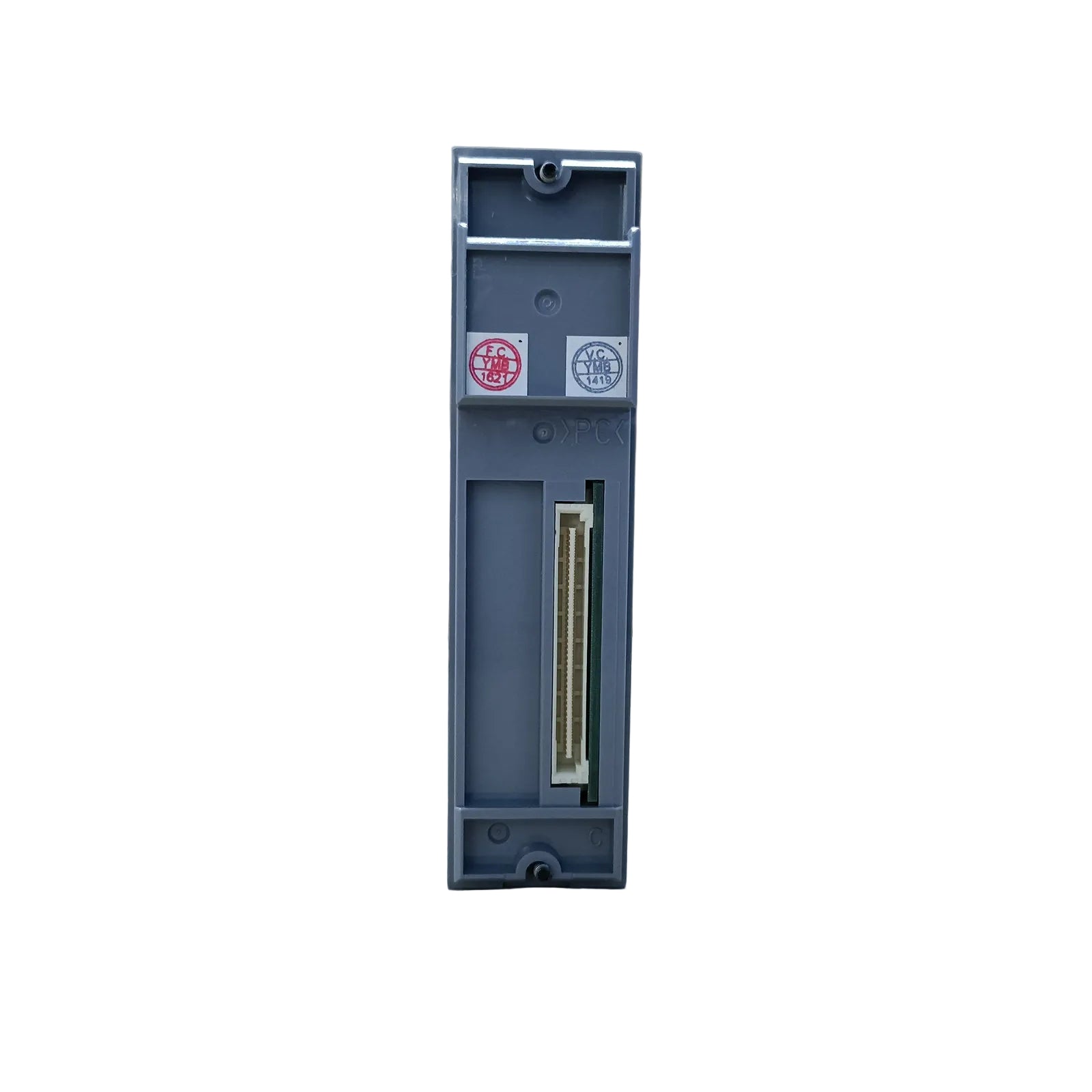

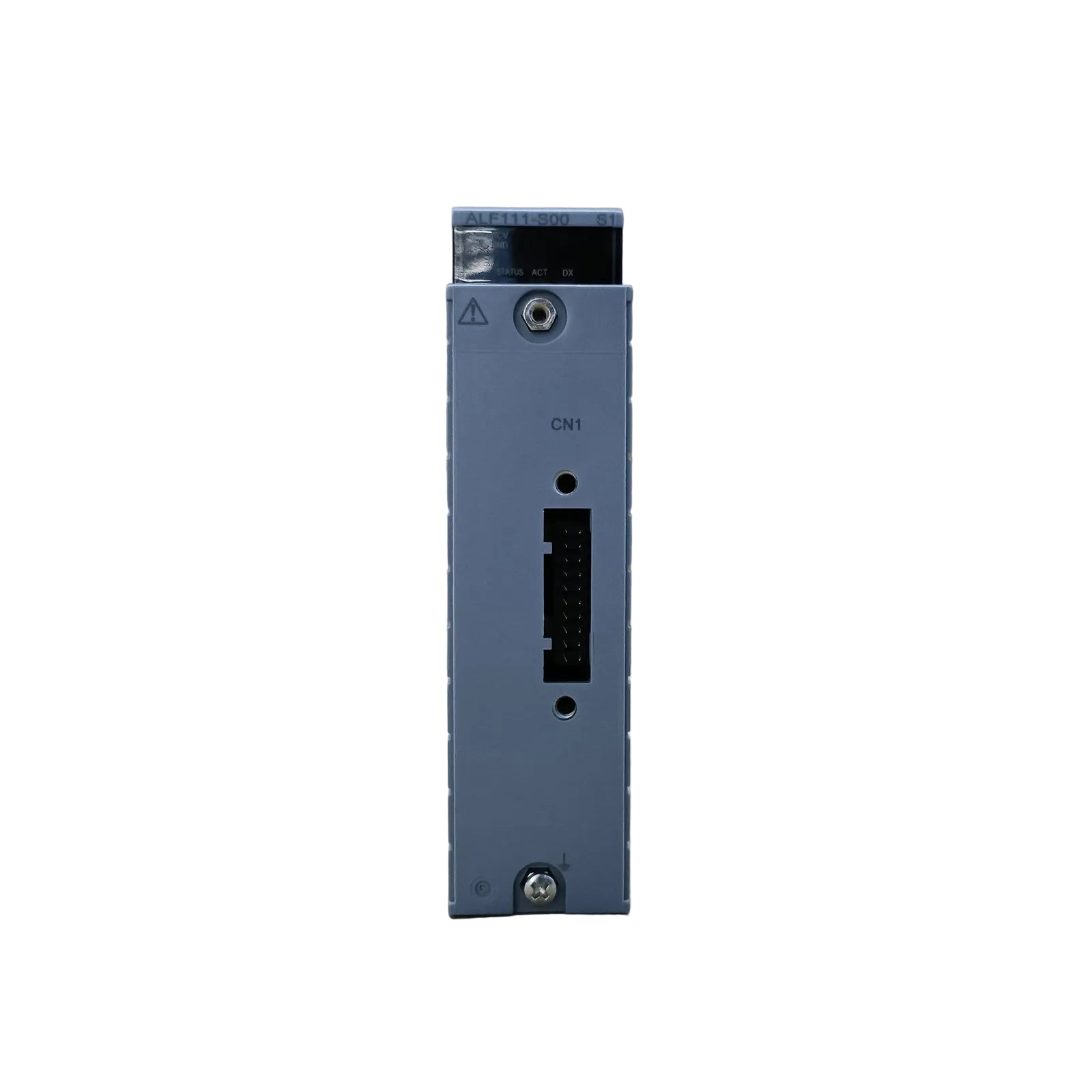

The Yokogawa ALF111-S00 is a high-performance communication interface designed to facilitate data exchange between a Field Control Station (FCS) and field instruments via the FOUNDATION Fieldbus H1 protocol. Operating at the physical layer of the control network, this module is an essential component for integrating intelligent field devices into the CENTUM VP or CENTUM CS 3000 systems. It is engineered for mounting on various control units and node units, including the AFV30, AFV40, and the ANB/ANT series. By utilizing this module, industrial facilities can achieve digital transformation at the sensor level, ensuring precise diagnostic data and process variables are transmitted reliably to the supervisory control level.

Hardware Specifications and Physical Data

Industrial Utility and Deployment

• Network Management: Functions as a Link Active Scheduler (LAS) to control the timing and traffic of the fieldbus segment, preventing data collisions.

• Time Synchronization: Acts as a Clock Master to ensure all connected field devices operate on a unified time stamp for accurate sequence-of-events recording.

• Mission-Critical Reliability: Supports dual-redundant configurations where two ALF111 modules work in tandem to prevent system downtime in the event of a hardware fault.

• Scalable Architecture: Capable of supporting up to 32 field devices per segment and 48 total I/O points, making it suitable for complex processing units.

• Versatile Mounting: Compatible with ESB and ER bus node units, allowing for flexible distribution of I/O throughout a plant's physical footprint.

FAQ

Q: Does the ALF111-S00 support redundant configurations for high-availability systems?

A: Yes, the module is designed for dual-redundancy. By installing two units in adjacent slots on a compatible node unit, the system maintains continuous communication even if one module fails.

Q: What is the maximum number of field devices that can be connected to a single module?

A: A single ALF111-S00 segment can support up to 32 units, although the actual number may depend on the power consumption of the connected devices and the segment's total current capacity.

Q: Can this module be installed in environments with extreme temperature fluctuations?

A: The hardware is rated for industrial-grade performance with an operating temperature range from -40 to 70 degrees Celsius, making it suitable for various climate conditions.

Q: Is the terminal block for the bus connection permanent or removable?

A: The module features a removable terminal block with pressure clamp terminals, which simplifies the wiring process and allows for easier maintenance or module replacement.

Q: How does the module handle signal interference and electrical surges?

A: It provides a high withstanding voltage of 1500 V AC between the field and the system side, ensuring that electrical noise or surges in the field do not damage the central control hardware.
