Product Overview

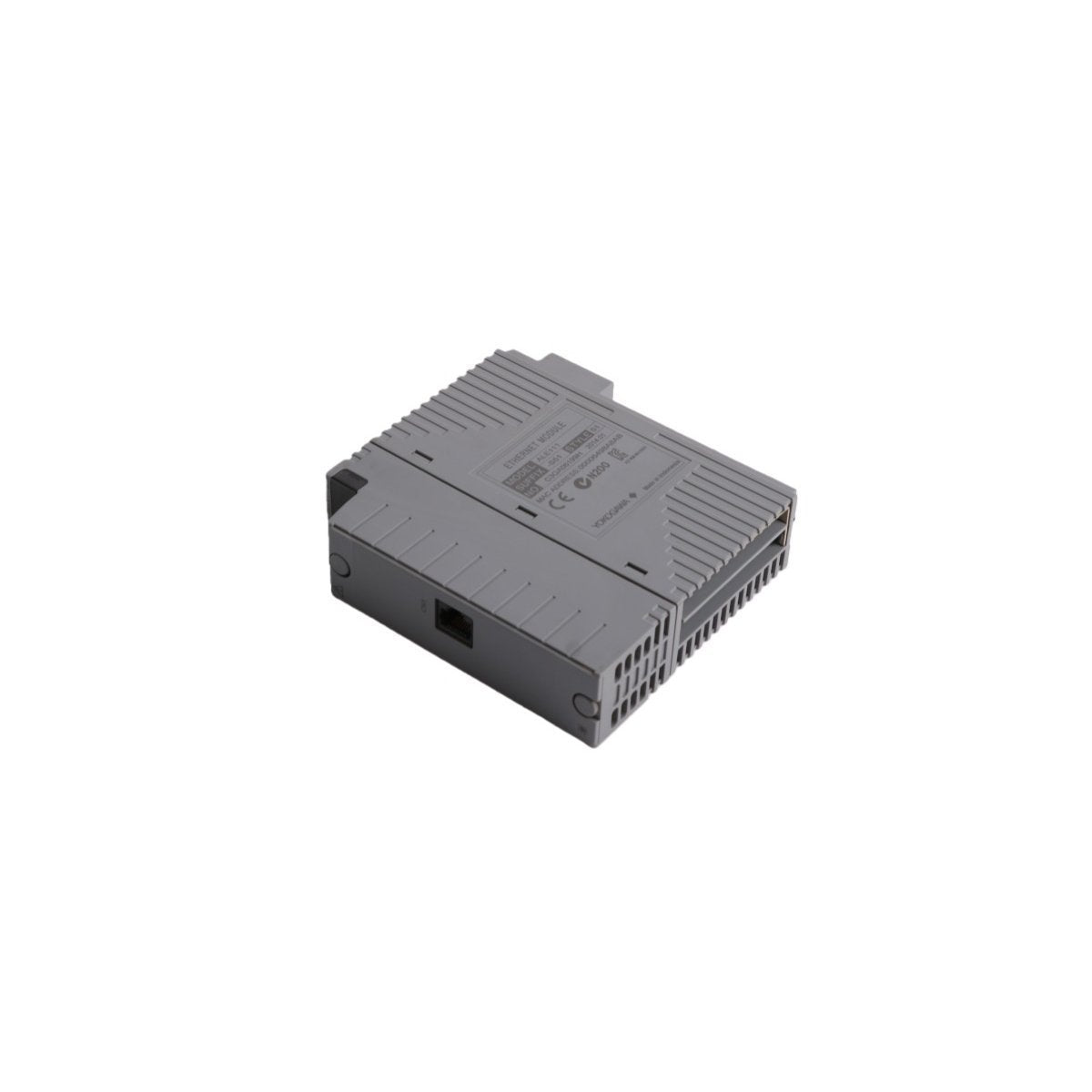

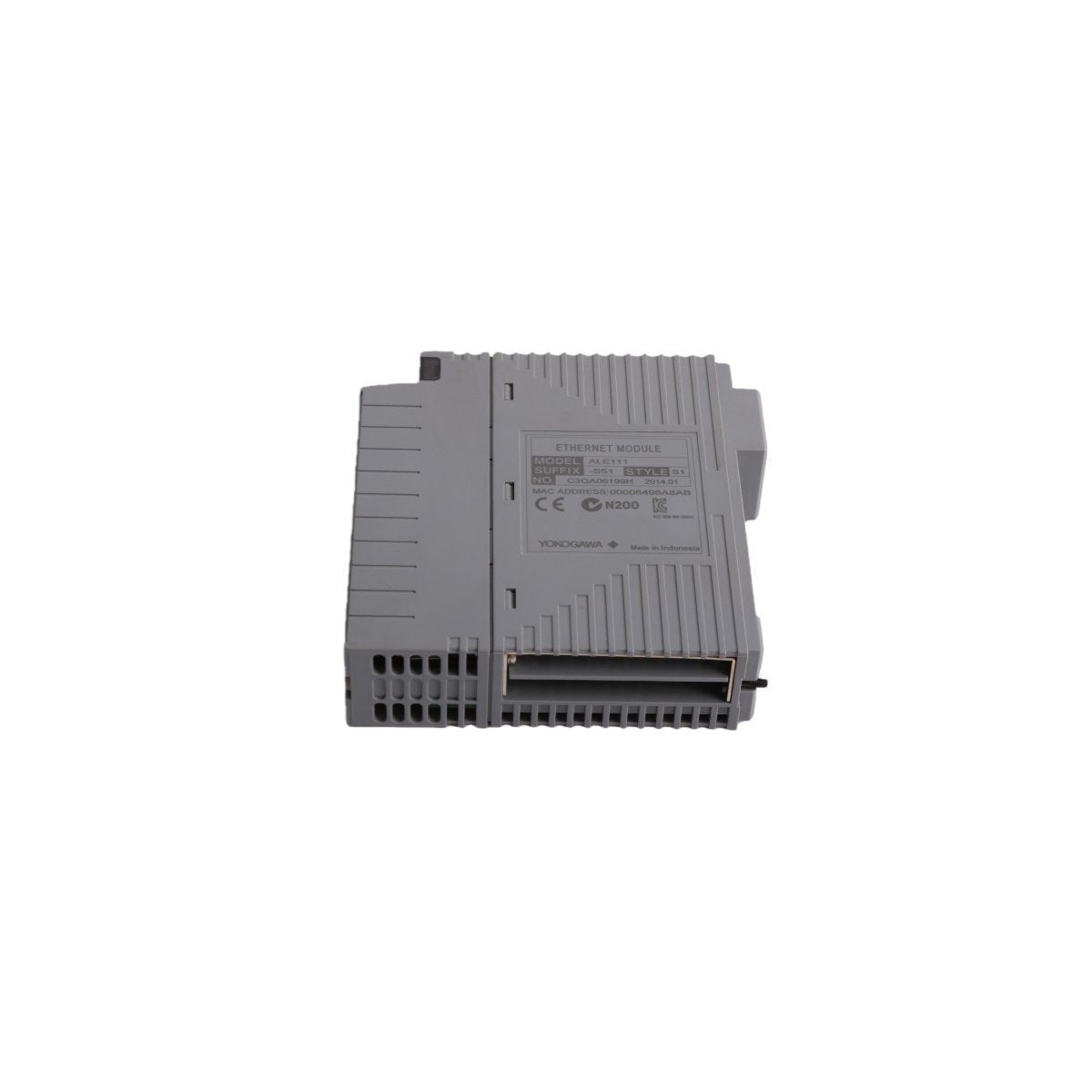

The Yokogawa ALE111-S51 is a high-performance Ethernet communication interface module designed for the CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). This module functions as a bridge between the Field Control Station (FCS) and external Ethernet-based subsystems, enabling the integration of third-party controllers, programmable logic controllers (PLCs), and intelligent field devices into the unified Yokogawa control environment.

The ALE111-S51 is specifically engineered to handle data-intensive industrial networking tasks. By supporting standardized communication protocols over 10BASE-T Ethernet, it ensures that supervisory data, diagnostic information, and real-time process variables are exchanged with high reliability. This "S51" variant is built to meet ISA Standard G3 environmental requirements, providing enhanced resistance to corrosive gases, which is essential for longevity in chemical and petrochemical facilities.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ALE111-S51

• Module Type: Ethernet Communication Module

• Communication Interface: 10BASE-T (Standard Ethernet)

• Maximum Transmission Distance: 100 meters per segment

• Protocol Support: Ethernet-based subsystem communication (e.g., Modbus/TCP, FA-M3 integration)

• Environmental Compliance: ISA Standard G3 (Corrosive gas resistance)

• Maximum Modules per FCS: Up to 4 modules

• Operating Temperature: -20°C to +70°C

• Power Consumption: 0.5 A at 5 V DC

• Weight: 0.3 kg

• Dimensions: 32.8 mm x 106.3 mm x 130 mm

• Origin: Japan

Key Technical Characteristics

• Subsystem Interconnectivity: Facilitates seamless data mapping between the DCS and external automation equipment, allowing for centralized monitoring of auxiliary plant units.

• Corrosive Environment Protection: Complies with ISA-S71.04 Class G3, making the circuitry highly resilient against harsh chemical atmospheres and increasing MTBF (Mean Time Between Failures).

• High-Speed Data Processing: Optimized for the asynchronous transfer of I/O images, ensuring that field control logic execution remains deterministic regardless of external network traffic.

• Dual-Redundancy Support: Can be deployed in pairs within an FCS node to provide automatic failover capabilities, preventing communication loss if a single module or network cable fails.

• Compact FIO Form Factor: Designed for standard Field Interface Orbus (FIO) slots, allowing for high-density installation in standard control cabinets and reducing overall panel footprint.

• Diagnostic Monitoring: Integrated LED indicators provide real-time status updates for link activity, module health, and data transmission, simplifying maintenance and network troubleshooting.
