Product Overview

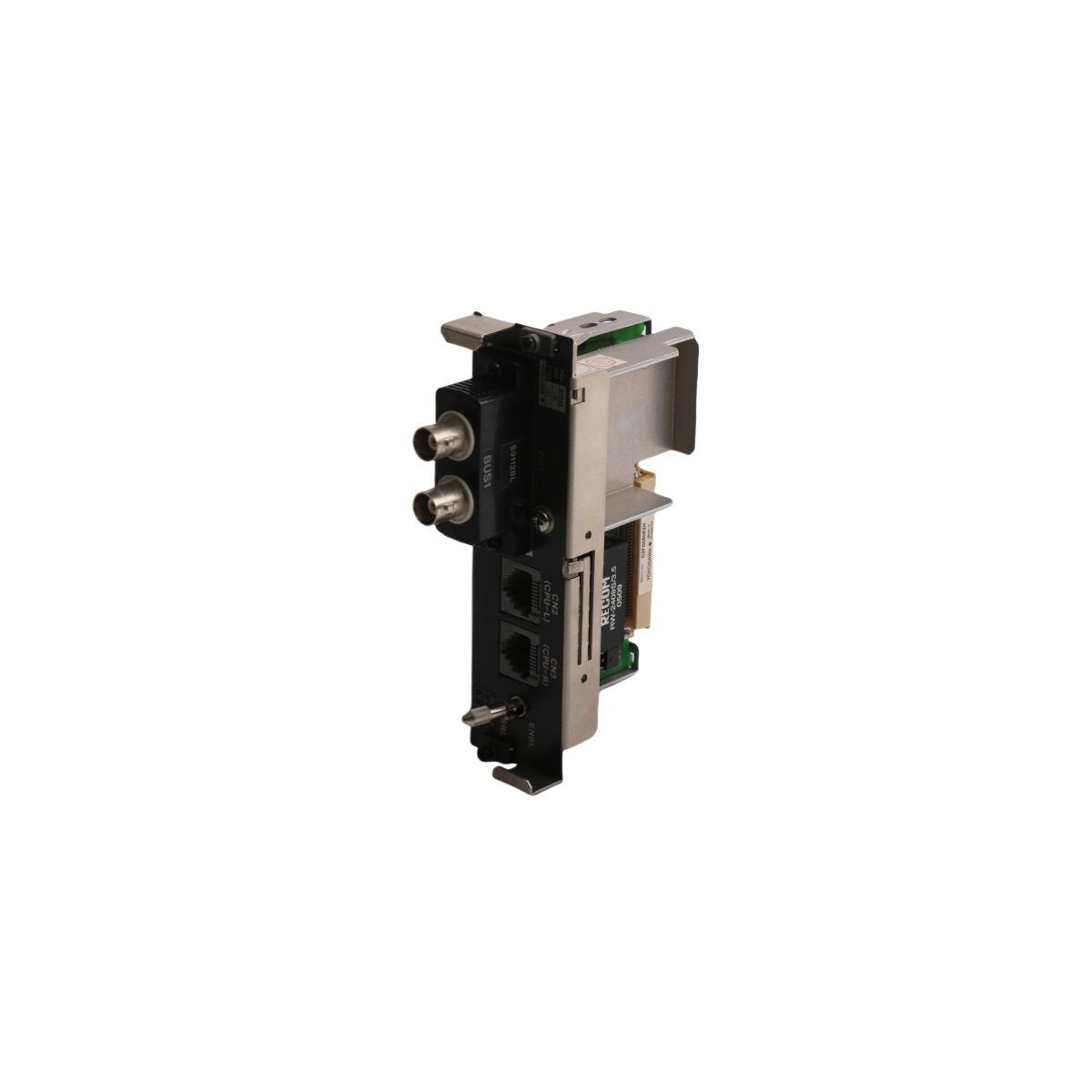

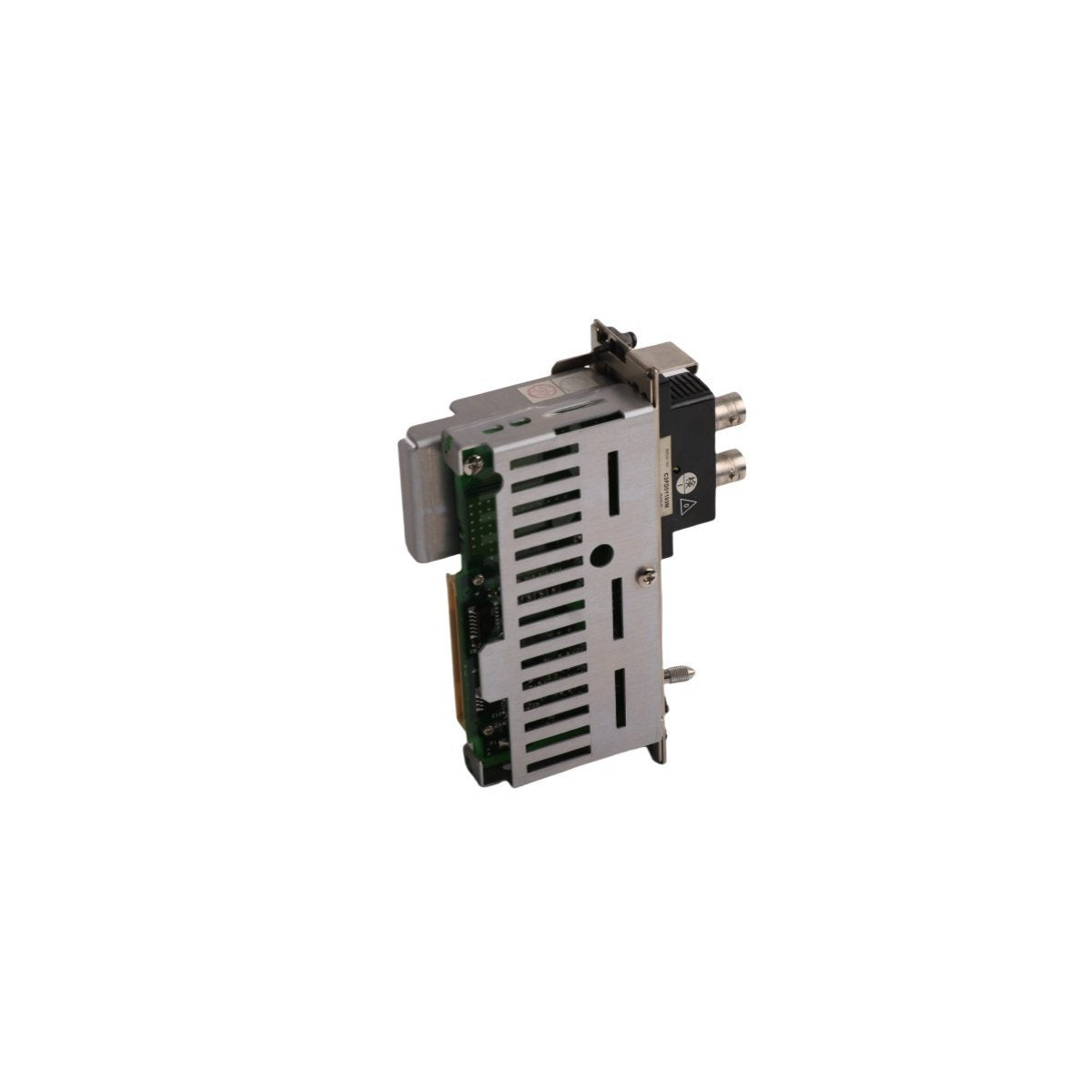

The Yokogawa AIP504-10 is a specialized V-NET Coupler Module designed for the CENTUM Distributed Control System (DCS) environment. It serves as a high-speed communication link between the system’s control bus and I/O subsystems, ensuring deterministic data transfer for critical process variables. Engineered for precision and reliability, the AIP504-10 is essential for maintaining the integrity of 16-bit analog measurements and sequence control data across the control network.

To ensure the high-resolution signal processing capabilities of the AIP504-10 are maintained, it is recommended for use in environments with clean power infrastructure. Proper suppression of harmonic currents—achieved through active filters or high-power-factor UPS units—is vital to prevent electrical interference from compromising the module’s sensitive analog-to-digital conversion and communication circuits.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: AIP504-10

• Module Type: V-NET Coupler Module

• Resolution: 16-bit processing capability

• Input Density: 16-channel isolated input support

• System Interface: V-NET control bus

• Power Requirements: 24V DC (Stability required via harmonic suppression)

• Operating Standards: EMC Directive compliant for European installations

• Dimensions: 2.1 x 10.2 x 15.2 cm

• Weight: 0.3 kg

• Origin: Japan

Key Technical Characteristics

• High-Precision Signal Integrity: Features 16-bit conversion logic that allows for granular data acquisition, making it ideal for monitoring volatile process variables in chemical and energy sectors.

• Deterministic V-NET Communication: Provides a dedicated hardware pathway for the V-NET protocol, ensuring that time-critical control signals are delivered without the latency associated with standard Ethernet traffic.

• Electromagnetic Compatibility (EMC): Designed to meet stringent international standards for noise immunity, provided it is supported by a power supply architecture that minimizes harmonic distortion.

• Isolated Architecture: The module utilizes 16-channel isolation to prevent ground loops and protect the central processor from field-side electrical surges.

• Robust Thermal Design: Built to operate reliably within the standard temperature fluctuations of industrial control cabinets, ensuring long-term hardware stability.

• Scalable Integration: Natively compatible with Yokogawa's range of Field Control Stations (FCS), allowing for easy expansion of existing DCS networks without complex re-engineering.
