Product Overview

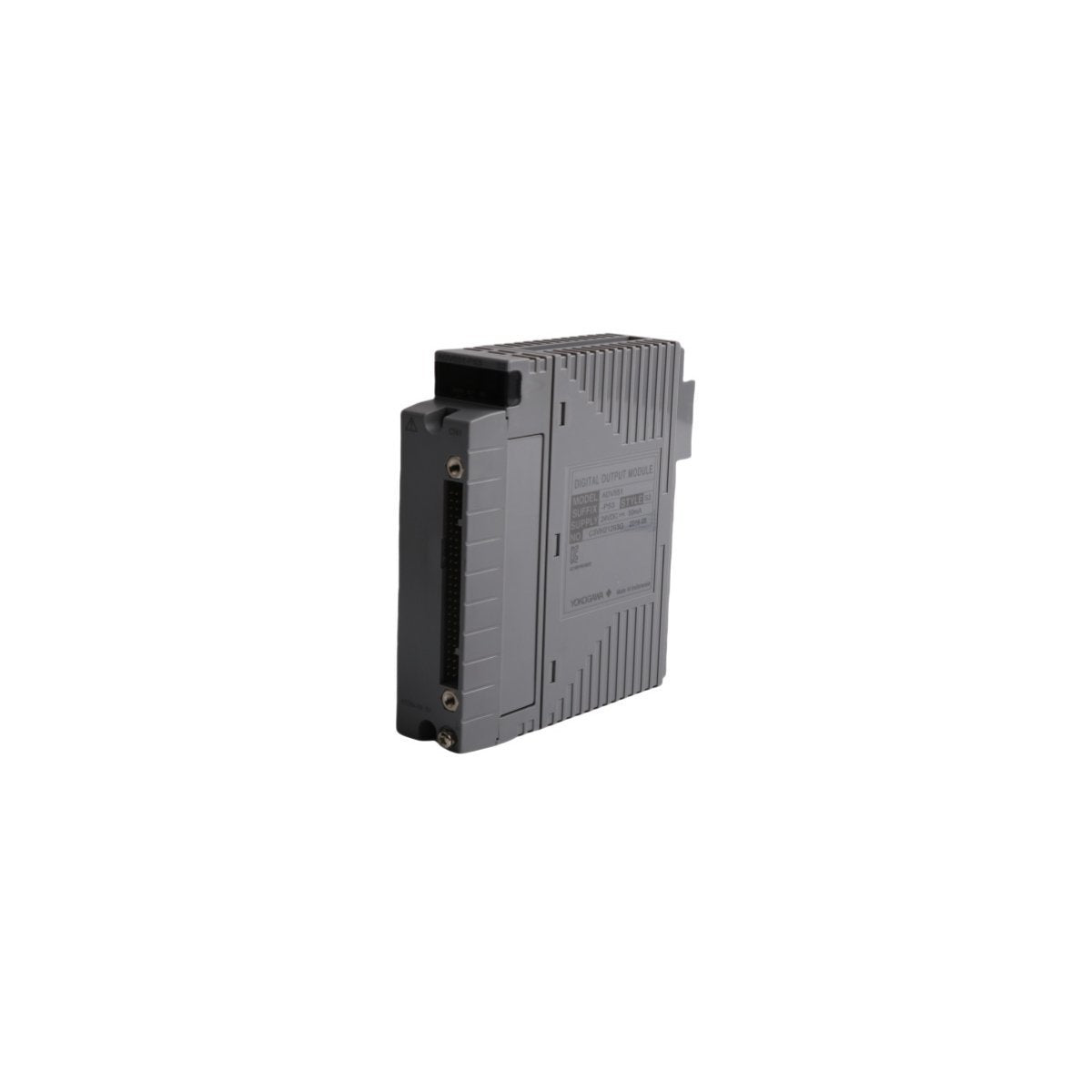

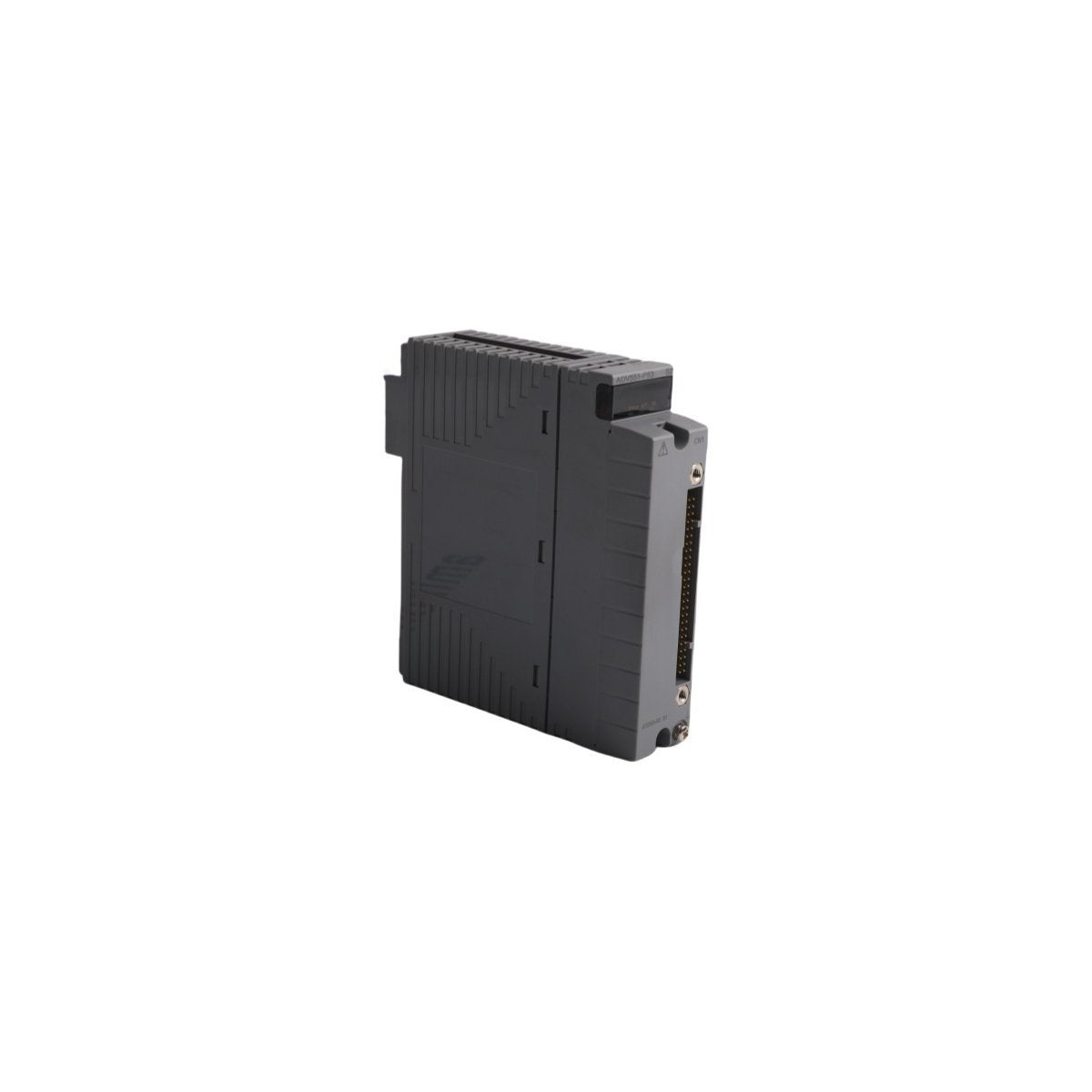

The Yokogawa ADV551-P53 S2 is a high-performance digital output module designed for the FIO (Field network I/O) architecture within the CENTUM VP Distributed Control System (DCS). This module serves as a critical control interface, providing 32 isolated channels to drive field-level actuators, solenoid valves, and indicator lamps. Engineered for high-speed switching and deterministic command execution, the ADV551-P53 S2 translates system logic into 24V DC binary signals. Its robust Japanese construction and specialized output circuitry make it a primary choice for mission-critical automation where precise control and long-term durability are non-negotiable.

Technical Characteristics

The ADV551-P53 S2 is distinguished by its advanced switching technology and system-level diagnostics:

High-Density Transistor Switching Featuring 32 channels in a single slim-form module, the ADV551-P53 S2 optimizes cabinet space while providing extensive control capacity. The module utilizes high-precision transistor outputs designed for sink-type configurations, ensuring rapid response times and superior longevity compared to traditional mechanical relays.

Advanced Pulse Width Modulation (PWM) Support Unlike standard digital modules, the P53 variant supports Pulse Width Modulation (PWM) functionality. This allows for the dynamic control of field devices, such as varying the position of a solenoid or adjusting the torque/speed of small DC motors, providing a level of flexibility usually reserved for specialized controllers.

Comprehensive System Diagnostics Equipped with sophisticated internal monitoring, the module continuously tracks channel health and communication integrity. Integrated LED indicators on the front panel provide real-time visual feedback, while the system bus transmits detailed diagnostic data to the Field Control Station (FCS) to minimize maintenance downtime.

Rugged Industrial Protection Each output channel is galvanically isolated to protect the internal DCS backplane from field-side electrical surges and noise. The module is engineered to operate reliably in harsh industrial climates, featuring a design that resists the vibrations and thermal fluctuations typical of heavy processing plants.

Technical Specifications

• Brand: Yokogawa

• Model Number: ADV551-P53 S2

• Product Type: Digital Output (DO) Module

• Channels: 32 (Isolated)

• Rated Voltage: 24 V DC

• Output Type: Current Sink (Transistor)

• Special Features: Pulse Width Modulation (PWM) capability

• System Compatibility: CENTUM VP / CS 3000 (FIO System)

• Weight: 0.24 kg

• Dimensions: 3.2 x 12.0 x 13.0 cm

• Origin: Japan

Application Areas

The Yokogawa ADV551-P53 S2 is an essential component for discrete and dynamic control in various industries:

• Petrochemical Refining: Operating high-speed solenoid valves and safety alarm arrays.

• Chemical Manufacturing: Managing batch sequence execution and reagent dosing pumps.

• Power Generation: Coordinating protective relay signals and auxiliary plant status lamps.

• Precision Manufacturing: Utilizing PWM for localized motor and actuator torque adjustments.
