Product Overview

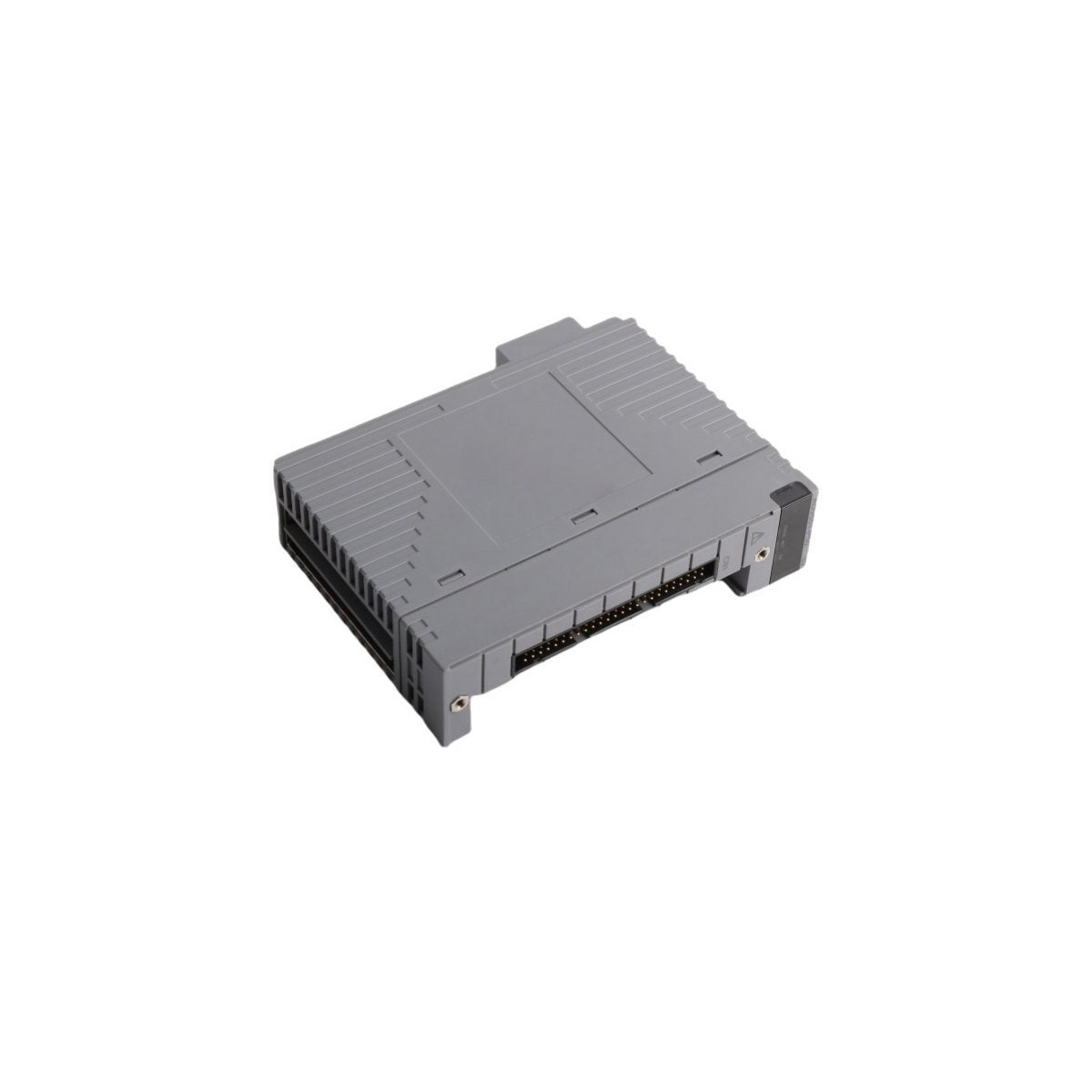

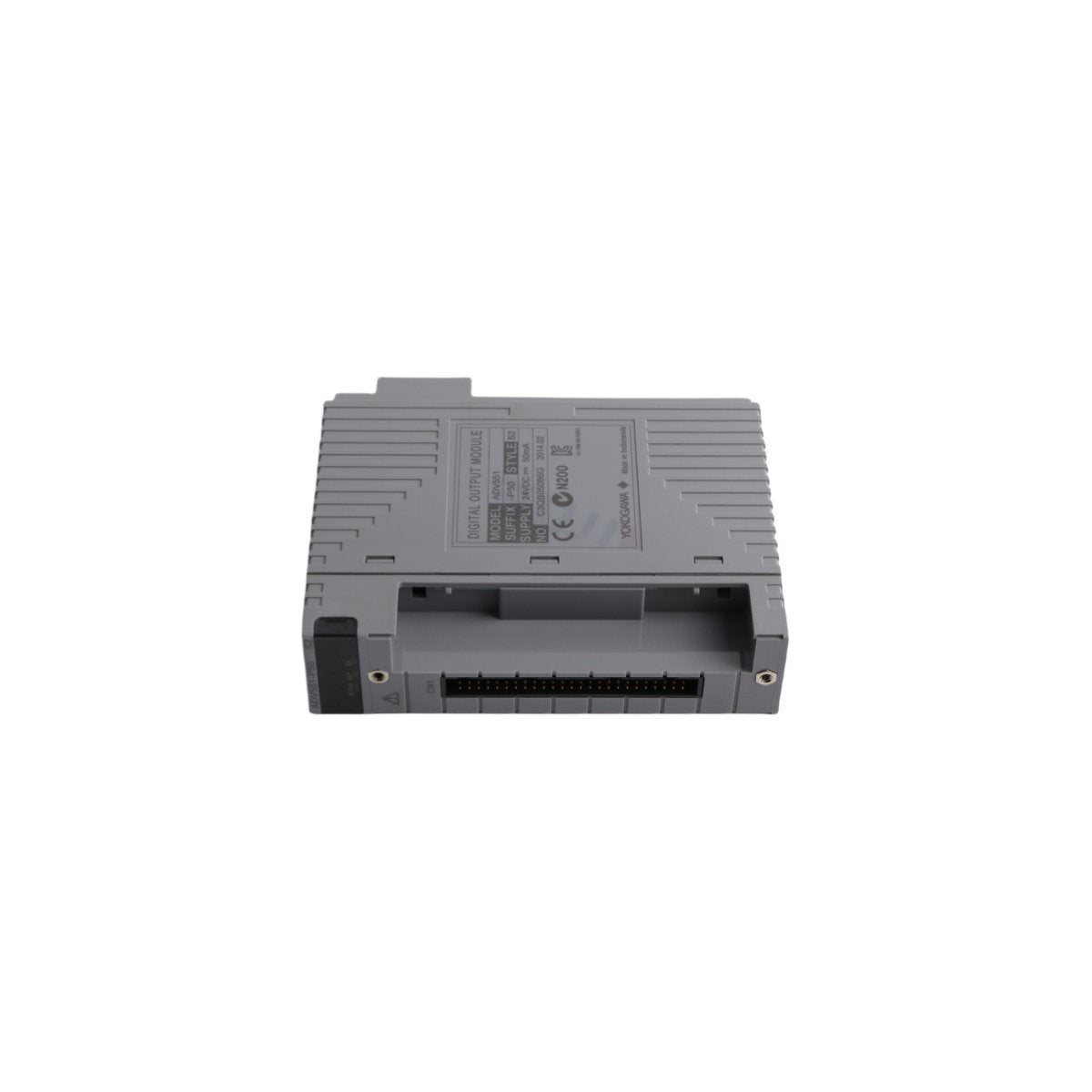

The Yokogawa ADV551-P50 S2 is a high-density digital output module designed for the FIO (Field network I/O) architecture within the CENTUM VP Distributed Control System (DCS). This module serves as the primary executive interface for commanding field-level actuators, providing 32 isolated channels for binary control. It is engineered to drive 24V DC loads such as solenoid valves, interposing relays, and indicator lamps. By utilizing advanced solid-state switching, the ADV551-P50 S2 ensures rapid, deterministic response times and long-term reliability in mission-critical process automation environments.

Technical Characteristics

The ADV551-P50 S2 is defined by its industrial-grade efficiency and versatile connectivity:

High-Density Control With 32 channels integrated into a compact slim-form module, it allows for extensive command capabilities while minimizing the physical footprint within I/O racks. This high density is essential for complex plants requiring massive discrete control points.

Flexible Wiring and Interfacing The module is equipped with a pressure clamp terminal block for direct field wiring, ensuring vibration-resistant and maintenance-free connections. Additionally, it supports MIL connector cable interfacing, allowing for standardized, pre-fabricated cabling solutions that reduce installation labor and commissioning errors.

Environmental and Safety Compliance Designed to operate in temperatures ranging from -10°C to +55°C, the module is suitable for various climate-controlled or semi-conditioned industrial environments. It adheres to ISO9001 quality standards and carries CE certification, ensuring it meets global benchmarks for safety, electromagnetic compatibility, and reliability.

Optimized Electrical Performance The internal circuitry is optimized for low power dissipation and minimal leakage current in the OFF state. This prevents "ghost" activation of sensitive field devices and contributes to the overall energy efficiency of the DCS cabinet.

Technical Specifications

• Brand: Yokogawa

• Model Number: ADV551-P50 S2

• Product Type: Digital Output (DO) Module

• Output Channels: 32 (Isolated)

• Rated Voltage: 24 V DC

• Output Format: Common Sink/Source (Application dependent)

• Connection Type: Pressure Clamp / MIL Connector

• Operating Temperature: -10°C to +55°C

• Humidity Range: 5% to 95% RH (Non-condensing)

• Weight: 0.18 kg

• Dimensions: 3.2 x 10.6 x 13 cm

• Origin: Japan

Application Areas

The Yokogawa ADV551-P50 S2 is a vital component for discrete control in various heavy industries:

• Oil and Gas: Actuating pneumatic solenoid valves and safety beacons.

• Chemical Manufacturing: Controlling batch sequence relays and pump starters.

• Power Generation: Managing auxiliary plant signals and interlocking circuits.

• Water Treatment: Operating automated valve manifolds and status indicators.
