Product Overview

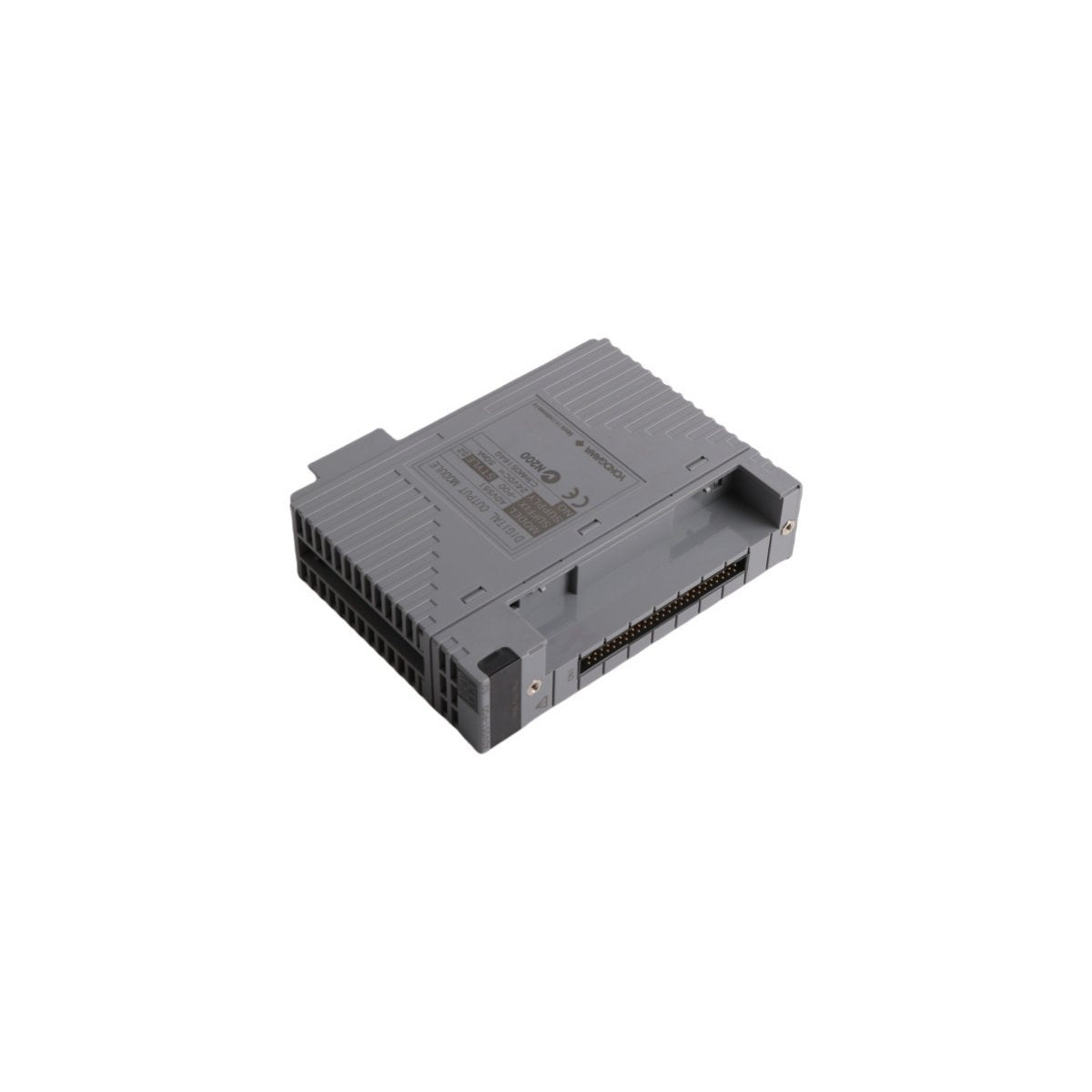

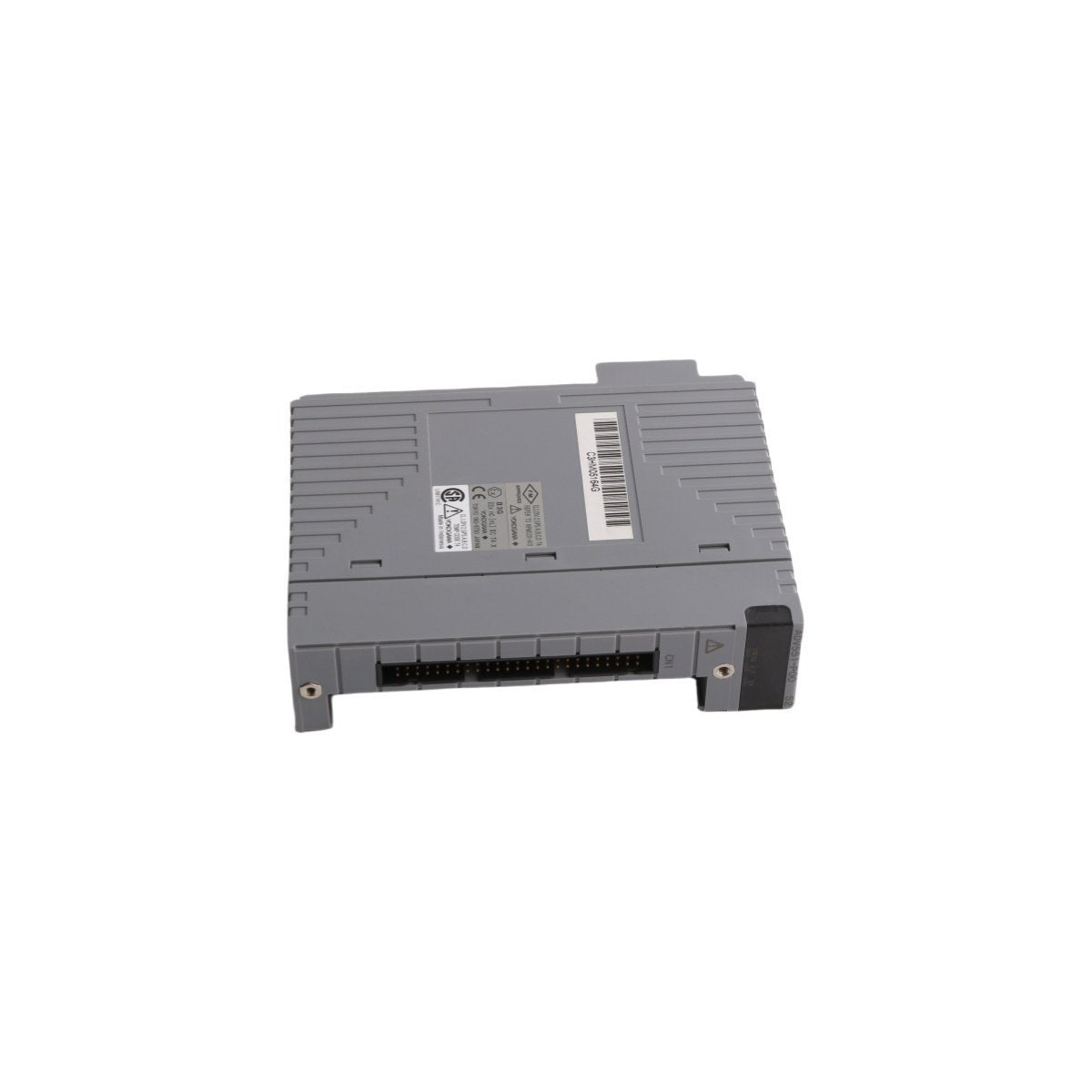

The Yokogawa ADV551-P00 S2 is a high-density discrete output module specifically engineered for the CENTUM VP Distributed Control System (DCS). Operating within the FIO (Field Interface Orbus) architecture, this module provides 32 isolated channels designed to drive field-side loads such as solenoid valves, auxiliary relays, and indicating lamps. The "P00" designation indicates a specific pressure-clamp or KS-cable interface compatibility, making it a streamlined solution for high-density wiring environments.

This module is designed for mission-critical reliability, providing high-speed switching capabilities while maintaining galvanic isolation between the internal system bus and external field circuits. Its architecture ensures that the Field Control Station (FCS) can execute precise sequence control and status signaling across a wide array of industrial applications including oil and gas, power generation, and chemical processing.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ADV551-P00 S2

• Output Type: Transistor Output (Sink type)

• Number of Channels: 32 channels, isolated (in groups)

• Rated Load Voltage: 24 V DC

• Maximum Load Current: 100 mA per channel

• Response Time: 2 ms or less (for signal output)

• Withstand Voltage: 1500 V AC between field side and system side

• Power Consumption: Max. 0.35 A (5 V DC)

• Weight: 0.18 kg

• Dimensions: 32.8 mm x 102.2 mm x 130 mm

• Origin: Japan

Key Operational Characteristics

• High-Density Output Management: Consolidates 32 digital output channels into a single compact slot, optimizing the physical footprint of the control cabinet and reducing hardware requirements.

• Redundant Configuration Support: Fully compatible with dual-redundant module setups, allowing for bumpless failover and continuous process operation in the event of a single module failure.

• Advanced Protection and Diagnostics: Features integrated over-current protection and provides real-time status feedback to the DCS software. This allows for rapid identification of channel faults or hardware irregularities via the Human Interface Station (HIS).

• Flexible Logic Execution: Supports standard status outputs as well as specialized control functions such as pulse width modulation (PWM) and time-proportional output configurations for nuanced process management.

• Industrial-Grade Reliability: Designed for long-term deployment in harsh industrial zones, withstanding significant temperature fluctuations and electrical noise interference without compromising signal integrity.

• Ease of Maintenance: Supports hot-swappable replacement during live system operation (when configured in redundancy), minimizing plant downtime and simplifying routine maintenance.
