Product Overview

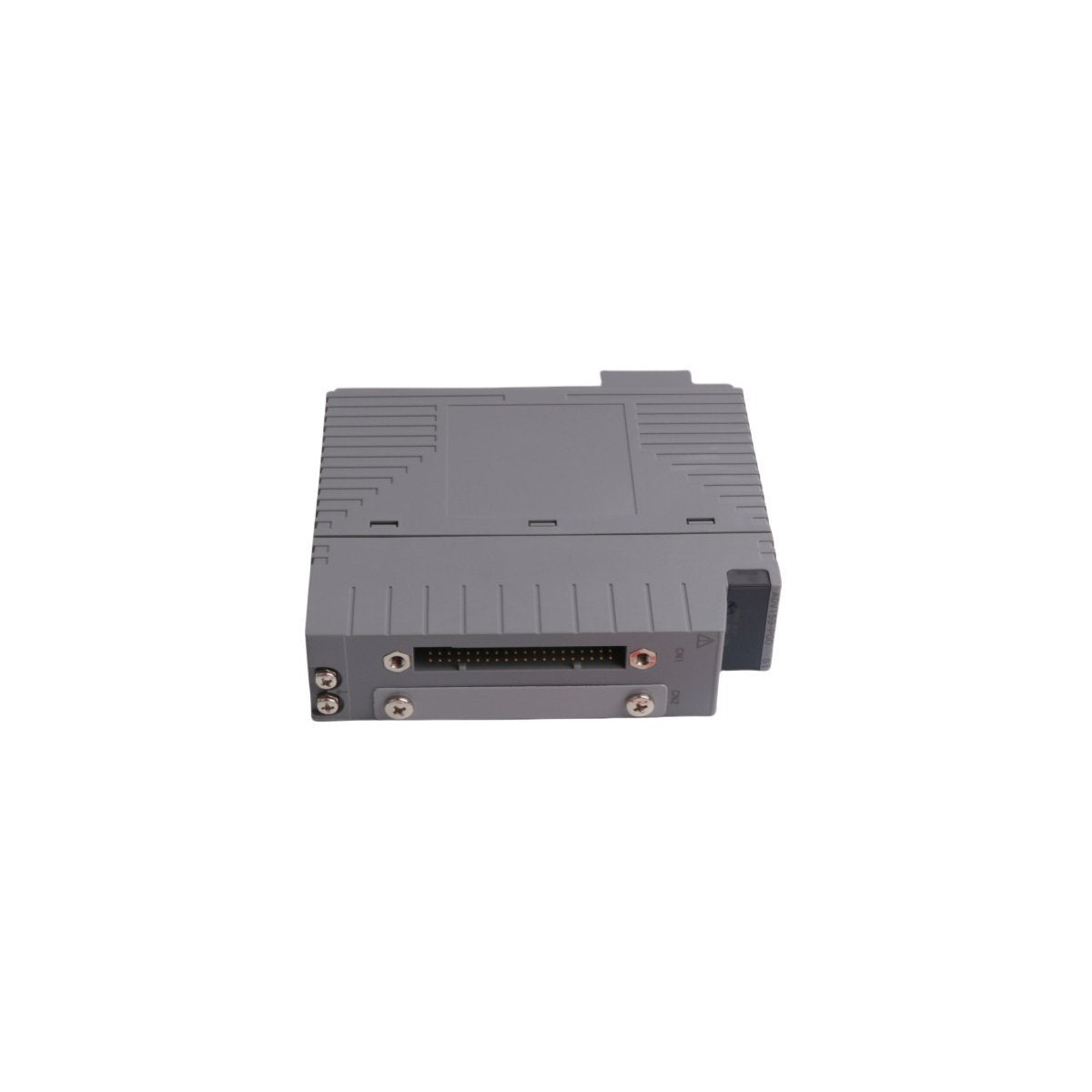

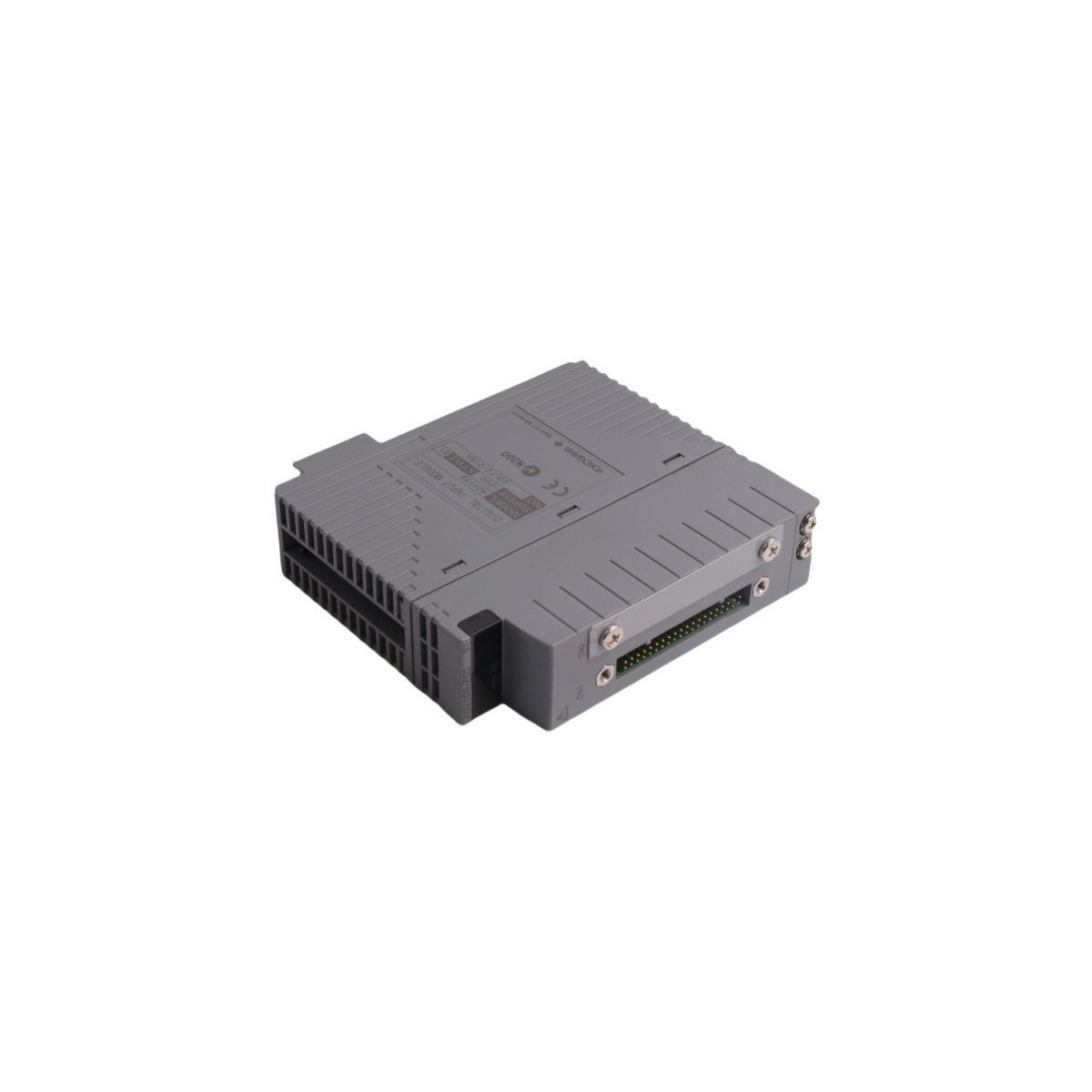

The Yokogawa ADV159-P00 is a high-density digital input module engineered for the CENTUM VP Distributed Control System (DCS). This module serves as a 32-channel interface designed to monitor discrete states from field devices such as dry contacts and switches. The "P00" designation indicates a specific interface style typically used with pressure-clamp terminals or KS cable connections, streamlining high-volume wiring in industrial control cabinets.

Operating within the FIO (Field Interface Orbus) architecture, the ADV159-P00 provides the necessary galvanic isolation to protect the internal system logic from field-side electrical noise and surges. It is an essential component for high-capacity signal acquisition in large-scale process industries, including power generation, water treatment, and petrochemical refining.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: ADV159-P00

• Module Type: Digital Input Module

• Number of Channels: 32-channel, isolated

• Input Signal: 24 V DC (for dry contact inputs)

• Input Current: 4.1 mA per channel

• Withstand Voltage: 1500 V AC between field and system logic

• Data Refresh Cycle: 10 ms

• Interface: Pressure-clamp terminal or KS cable (P00 variant)

• Power Consumption: Max. 0.5 A (5 V DC)

• Operating Temperature: -20°C to +70°C

• Weight: 0.28 kg

• Dimensions: 32.8 mm x 120 mm x 130 mm

• Origin: Japan

Key Technical Characteristics

• High-Density Signal Management: Consolidates 32 discrete inputs into a single FIO slot, allowing for maximum cabinet space efficiency and reduced hardware footprint in high-I/O applications.

• Redundant Configuration Support: Fully compatible with dual-redundant module pairing. This ensures that the Field Control Station (FCS) maintains continuous visibility of process states even in the event of a single module hardware failure.

• Galvanic Isolation: Features robust 1500 V AC optical isolation, preventing ground loops and protecting the internal DCS communication bus from unpredictable field-side electrical interference.

• Rapid Response Monitoring: With a 10 ms data refresh cycle, the module provides the real-time responsiveness required for precision sequence control and emergency status monitoring.

• Industrial Grade Reliability: Designed for long-term deployment in harsh environments, maintaining stable performance across an extended temperature range and resisting mechanical vibrations.

• Simplified Maintenance: The hot-swap capability (when configured redundantly) allows for the replacement of modules without shutting down the system, significantly reducing plant downtime during routine service.
